ตู้ลำโพงติดเพดาน EV EVID C4.2 ขนาด 4 นิ้ว 2 ทาง 200 วัตต์ EVID C4.2 Ceiling Loudspeaker จากแบรนด์ ELECTRO‑VOICE
EV EVID C4.2 4″
2-WAY COAXIAL CEILING LOUDSPEAKER
ลำโพงตระกูล EVID จาก Electro-Voice เป็นลำโพงตระกูลที่มีผบิตภัณฑ์ครบพอร์ตโฟลิโอมากที่สุดตระกูลหนึ่งในอุตสาหกรรมเสียงเชิงพาณิชย์ ได้เปิดตัวลำโพงรุ่นใหม่สามรุ่น ได้แก่ C4.2LP (ลำโพง Ceiling ขนาด 4 นิ้ว), C6.2 (ลำโพง Ceiling ขนาด 6.5 นิ้ว) และ P6.2 (ลำโพง Pendant ขนาด 6.5 นิ้ว) ลำโพง EVID ได้รับการออกแบบมาเพื่อให้คุณภาพเสียวแบะความสวยงามอย่างลงตัว รองรับการติดตั้งรูปแบบต่างๆ ในทุกพื้นที่ทั้งในและนอกอาคาร รูปแบบติดตั้งทำได้หลากหลายทั้งการติดตั้งแบบ Ceiling, flush, pendant และ surface ด้วยอุปกรณ์ mounting ที่ออกแบบมาโดยฌฉพาะ มีความยืดหยุ่น และยึดติดอุปกรณ์ได้แข็งแรง สามารถติดตั้งได้อย่างรวดเร็ว อีกทั้งดีไซน์หลากหลาย ผู้ใช้จึงสามารถออกแบบระบบให้มีความสวยงามกลงกลืนกับสถานที่ และได้คุณภาพเสียงระดับที่ต้องการ

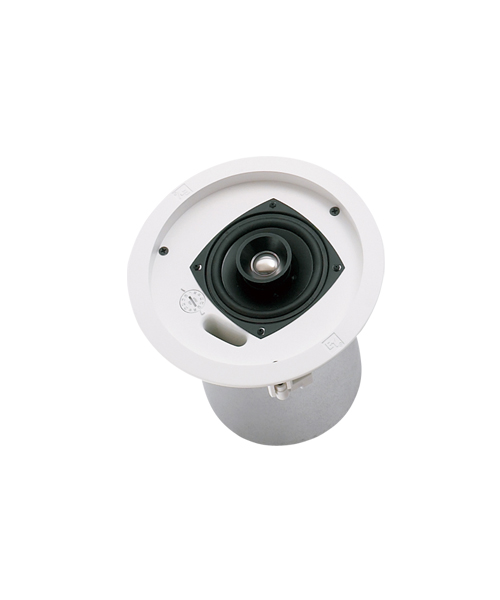

The Electro-Voice EVID C4.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer. The louspeaker features a waveguide coupled titanium coated dome tweeter.
The EVID C4.2 loudspeaker utilizes a 2nd order crossover network at 3.3kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C.42 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the louspeaker system using eith 70-V or 100-V lines, or 8Ω bypass. Selection is via a convenient switch on the front baffle.
The perforated grille is fi nished in semi-gloss white powdercoated enamel. The baffl e and bezel are constructed from UL94V-0 rated ABS. The rear enclosure is contructed from zincplated, heavy gauge steel. The rear enclosure, with fi berglass damping material, provides an optimum internal volume for extended low-frequency performance.
A rear cover, with provision for a junction box fi tting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge wire and provides pass-through to additional speakers. The EVID C2.4D model features a 3-pin fi re-safety rated input block. A tile bridge is included for safe suspension of the C4.2 ceiling systems in a drop ceiling that uses mineral wool, or other fi ber-based ceiling tiles.
The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, higheffi ciency, high maximum output, ease of installation, and wide-range reproduction of music or voice.
คุณสมบัติ
- Designed for air-handling spaces
- Ported enclosure for extended bass response
- Waveguide-coupled 0.75-inch titanium-coated tweeter
- Full-bandwidth overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
