EV EVID C8.2LP 8″ ENHANCED PATTERN-CONTROL 2-WAY COAXIAL CEILING LOUDSPEAKER
EV EVID C8.2LP ตู้ลำโพงติดเพดาน ขนาด 8 นิ้ว 2 ทาง 300 วัตต์

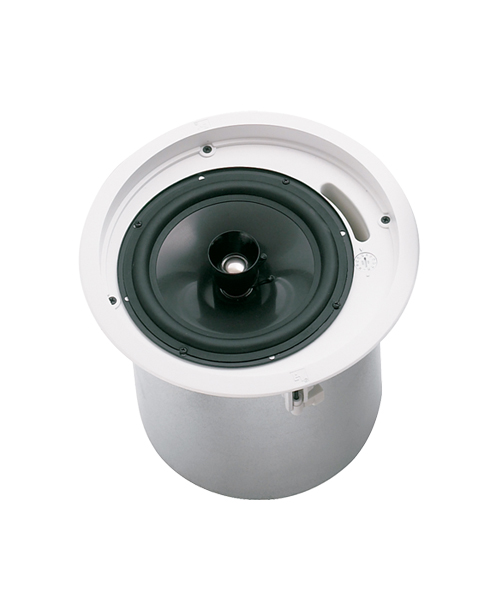

The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel.
The low profile enclosure makes it easy to mount in tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
- Low-profile for rich sound in tight spaces
- Ported enclosure for extended bass response
- Waveguide-coupled 1-inch titanium-coated tweeter
- Full-bandwidth overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
Available Color | White (paintable surface) |
Chassis Size | 203.2 mm |
Coverage (Nominal -6 dB) | 110 (conical) |
Diameter (Max) | 270mm (10.6″) |
Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
Frequency Response (-10 dB) | 50 – 20000Hz |
Grille | Powder-coated steel |
Height | 178mm (7″) |
HF Transducer | 1-inch (25 mm) Ti Mylar Laminate Dome |
Input Formats | 8ω, 70 V, 100 V |
LF Transducer | 8-inch polypropylene cone |
LP Height | 255mm (10″) |
Mounting Systems | Integrated 3-point toggle anchors |
Power Rating | 300W |
Regulatory Approvals | UL1480, UL2043 |
Sensitivity 1 W/1 m | 91dB |
Speaker Type | Ported cabinet, internally damped, two-way (passive crossover included) |
System Power Handling (Continuous/Program/Peak) | 100Watts (Overload Protected) |
Transformer | Yes |
Transformer Taps (Transformer Version Only) | (1.88 – 70 V only), 3.75, 7.5, 15, 30 |
Weatherized | No |
Weight Net | 5kg (11 lbs) |
