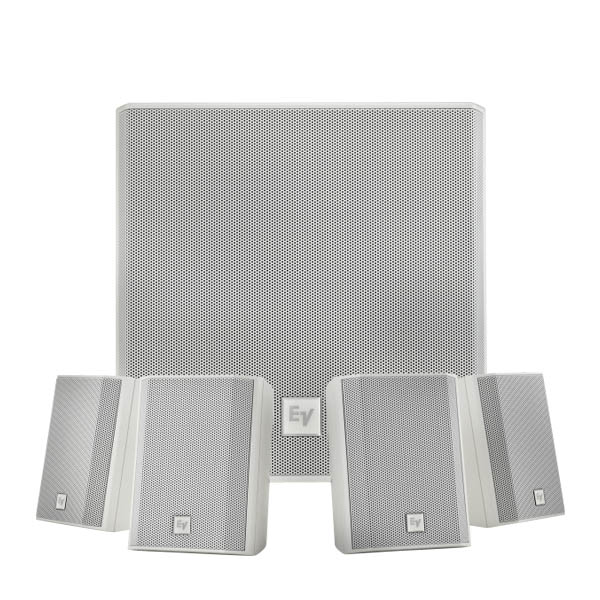

EV EVID S44 Compact Full-Range Loudspeaker System
EV EVID S44 ชุดลำโพงติดผนัง สำหรับแบ็คกราวนด์/ฟอร์กราวนด์มิวสิค สามารถรองรับการเชื่อมต่อได้ทั้งแบบ 4/8 โอห์ม และ แบบไลน์โวลล์ 70V/100V

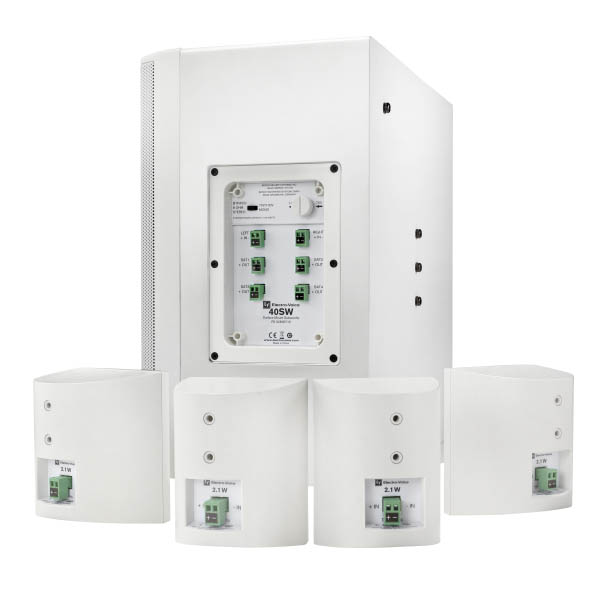

ประกอบด้วย

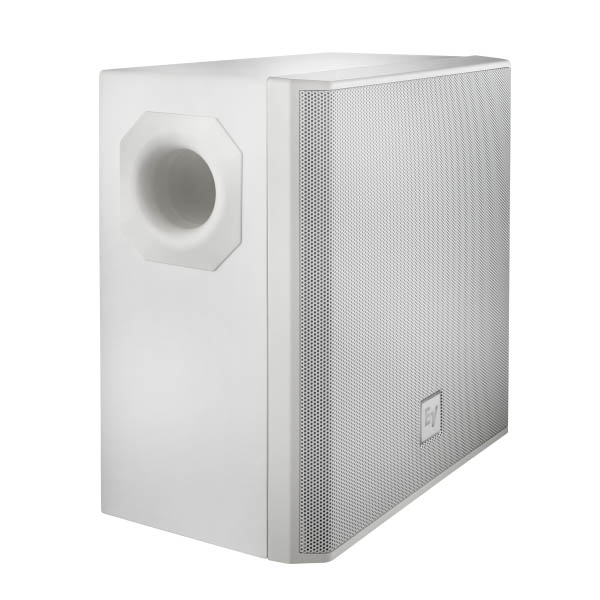

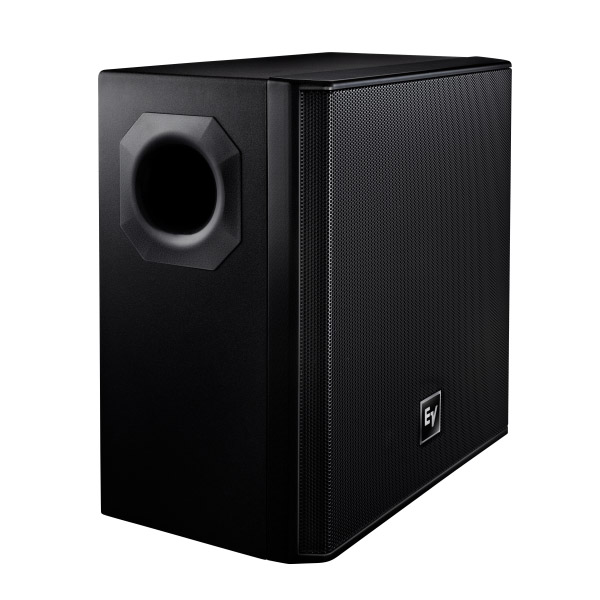

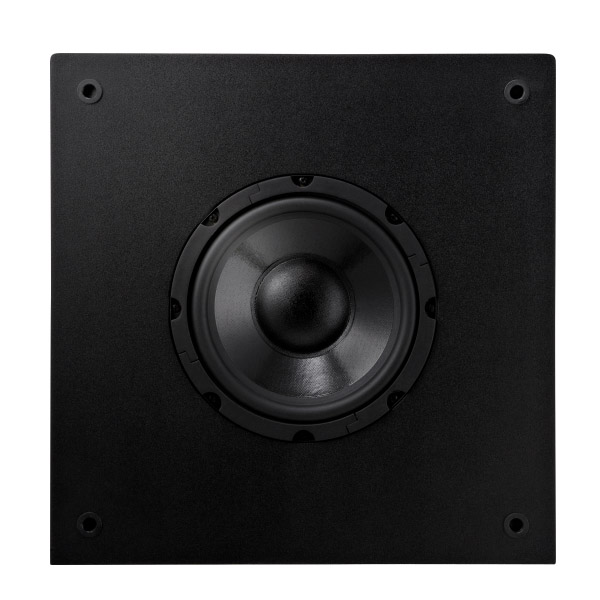

EV EVID-40S
ตู้ลำโพงซับวูฟเฟอร์ติดผนัง ขนาด 8 นิ้ว 200 วัตต์ 1 ใบ

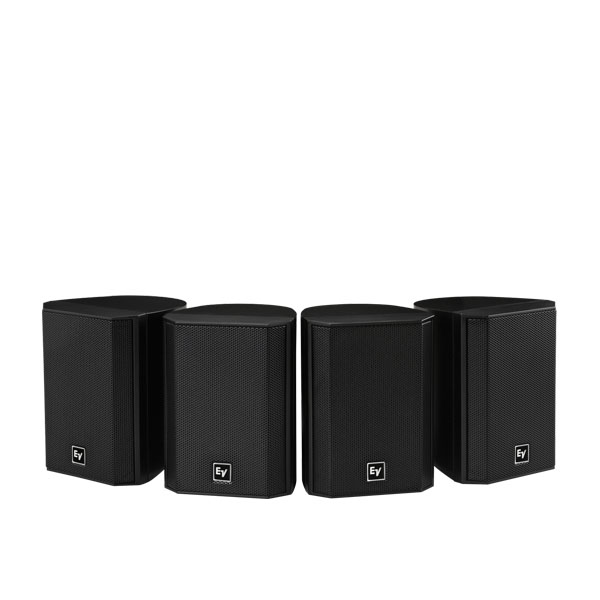

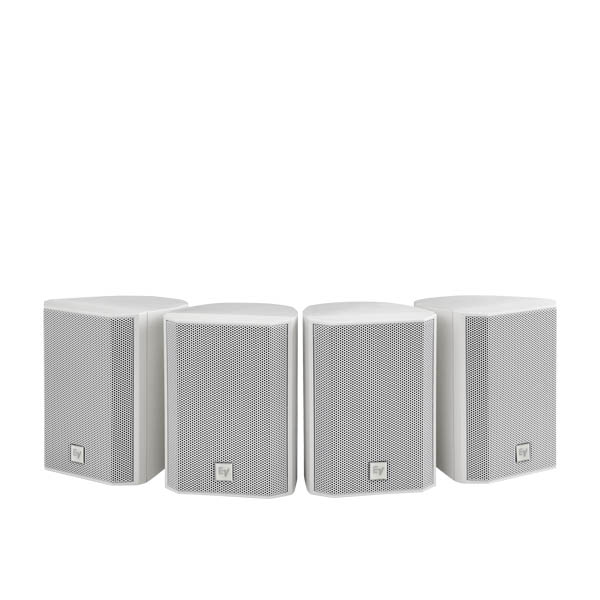

EV EVID 2.1
ตู้ลำโพงติดผนัง ขนาด 2 นิ้ว 30 วัตต์ 4 ใบ
The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.
In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike. Available in black or white finish.
คุณสมบัติ
- High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.

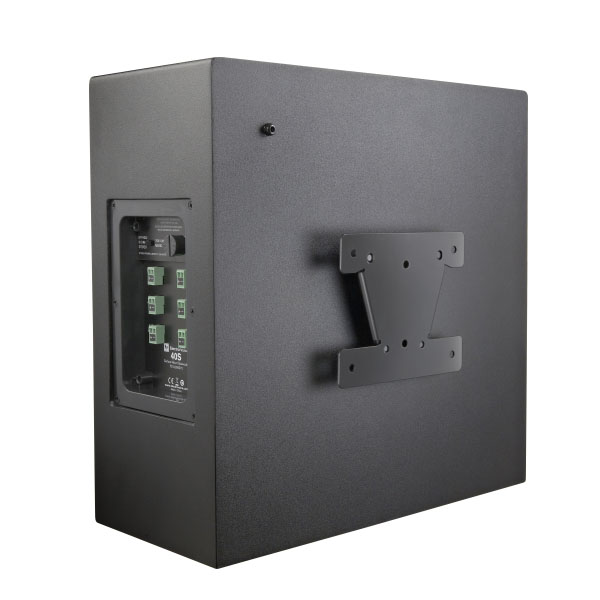

- Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.

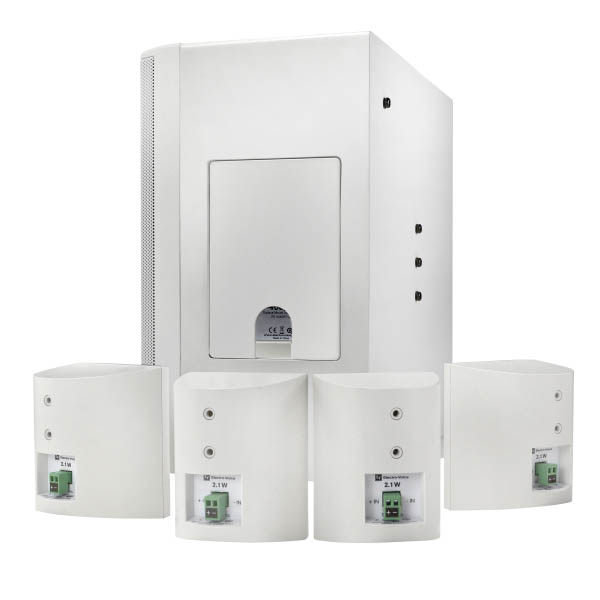

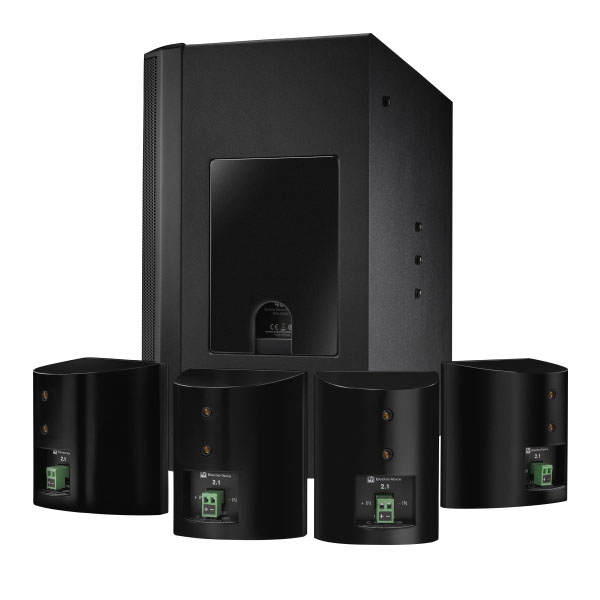

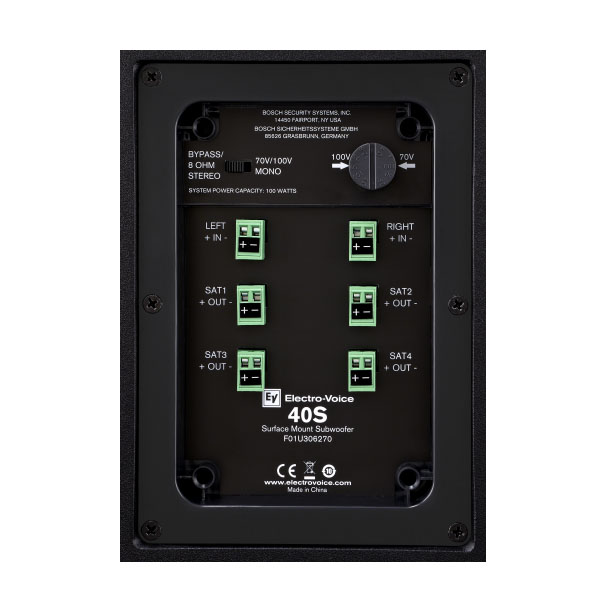

- Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).
- Satellite Speakers:
- 2” wide-range mid/high-frequency driver designed for broad, even coverage.

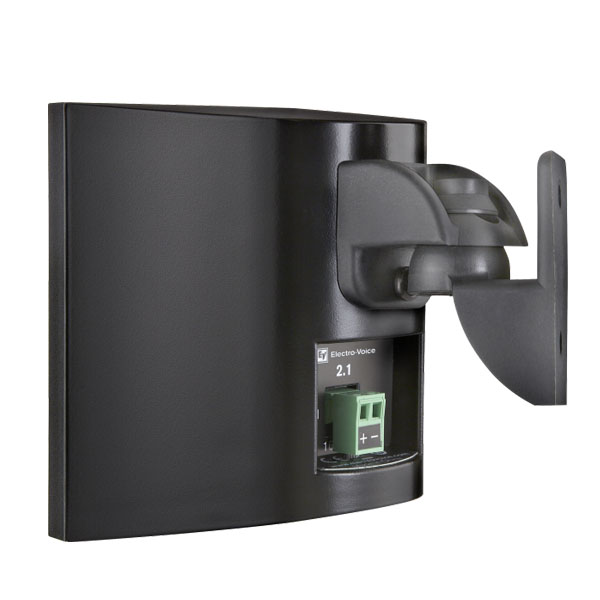

- Multi-angle compact mounting bracket system allows for a variety of speaker angles.
- Rigid high-impact ABS enclosure for durability.
สเปค
| Available Color | Black |
| Bracket Adjustment Range | EVID 2.1: 160° x 60° ; EVID 40S: Fixed |

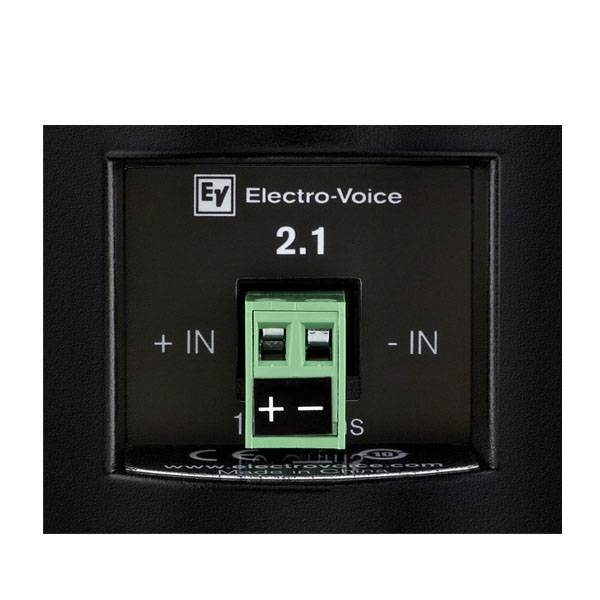

| Connector Type | Phoenix (2-pin) |
| Coverage, Music | EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional |
| Coverage, Voice | EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional |
| Depth | EVID 2.1: 95mm; EVID 40S: 230mm |
| Enclosure Material | EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF); |
| Frequency Response (-10 dB) | EVID 2.1: 180 Hz – 20 kHz; EVID 40S: 180 Hz – 20 kHz |
| Height | EVID 2.1: 115mm; EVID 40S: 400mm |
| Impedance | EVID 2.1: 16Ω; EVID 40S: Dual 8Ω / mono 4Ω |
| Included Accessories | Wall bracket; hex wrench |
| Maximum SPL | EVID 2.1: 100 dB; EVID 40S: 114dB |
| Passive Power Handling | 200W peak |
| Power Handling (Continuous / Peak) | EVID 2.1: 30 W; EVID 40S: 200W |
| Power Rating | 200W |
| Sensitivity 1 W/1 m | EVID 2.1: 84 dB; EVID 40S: 88dB |
| Shipping Weight | 1 sub and 4 satellites: 18.26kg |
| Transducer | EVID 2.1: 50 mm (1.97 in); EVID 40S: 200mm |
| Transformer Taps (Transformer Version Only) | EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25 |
| Weight Net | EVID 2.1: 0.5kg; EVID 40S: 12.05kg |
| Width | EVID 2.1: 85mm; EVID 40S: 400mm |
