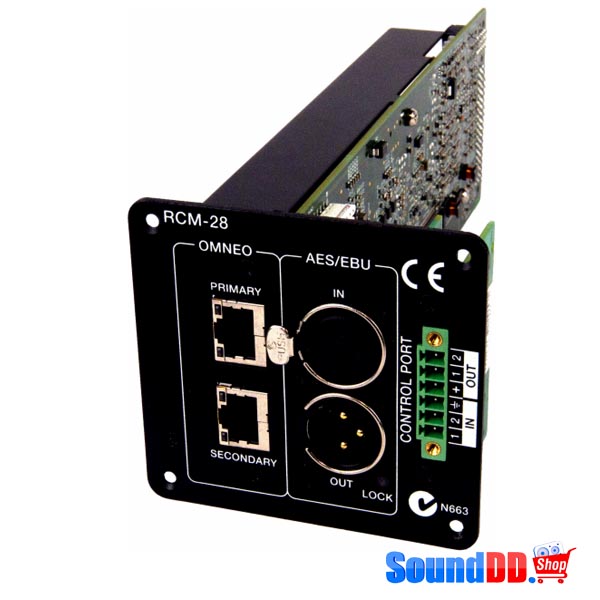

EV RCM-28 โมดูลเครือข่าย OMNEO และ DSP สำหรับแอมป์รุ่น TG5 / TG7 Electro-voice RCM-28 จากแบรนด์ EV

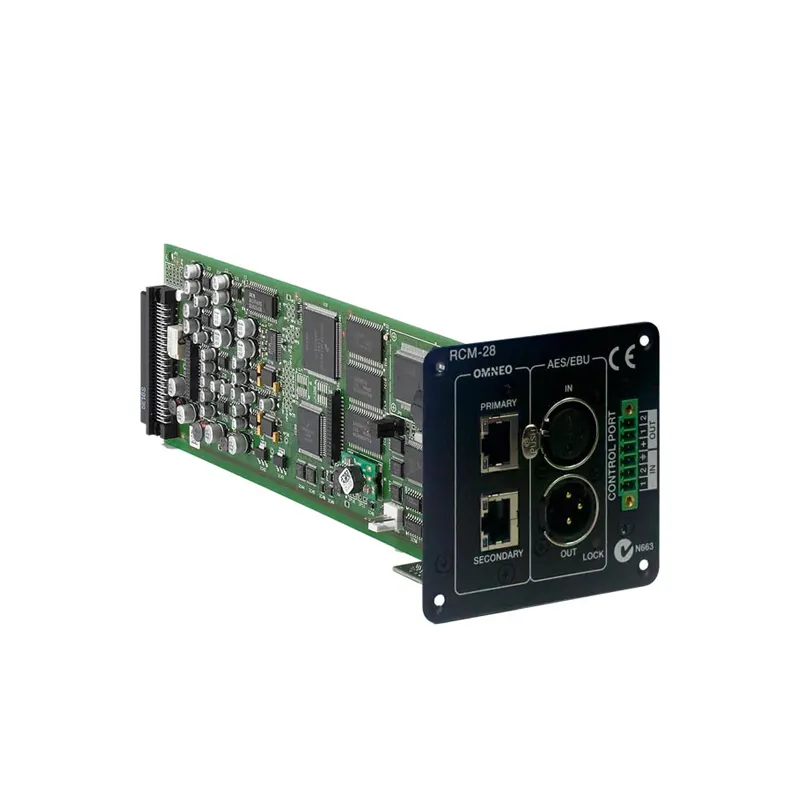

EV RCM-28

OMNEO NETWORK & DSP MODULE FOR TOUR GRADE AMPLIFIERS

EV RCM-28 Remote Control Module is a two-channel digital controller module for live sound reinforcement, PA and fixed installation applications. The module can be used in Electro-Voice Tour Grade amplifier models. Installing the RCM-28 turns a conventional amp into a remote amplifier, which, at any time, provides complete overview of the overall system status and control of all system parameters. RCM-28 modules allow the integration of amplifiers into an OMNEO network with up to 100 devices in a single subnet without additional hardware. OMNEO is a media networking architecture for professional applications. Using standard IP Ethernets, media products that integrate OMNEO can be assembled into networks of 2 to 10,000 cooperating devices that exchange studio-quality synchronized multichannel audio and share common control systems. This offers the possibility to control and monitor an entire sound system from one or more PCs using the IRIS-Net – Intelligent Remote & Integrated Supervision – software package. In addition to digital signal processing functions, the RCM-28 also offers a digital audio input (AES/EBU), OMNEO network audio inputs and outputs, and freely programmable control inputs and control outputs.

• OMNEO Network Interface

• Extend Tour Grade performance with powerful DSP functionality

• Advanced FIR-Drive loudspeaker optimization

• High precision load impedance supervision

• Two GPI and two GPO ports

• One-button system test for fast, complete check of connected cables and components

• Pilot tone detection for cable supervision

• Six recallable DSP/configuration presets

• Compatibility with any Dante network

Weight Net	14.11oz (400g)
Depth	230.8mm (9.09″)
Width	84.7mm (3.33″)
Height	80.4mm (3.17″)
A/D Conversion	24 Bit linear, sigma-delta, 128x oversampling
Analog Inputs	2 audio inputs on internal slot connector, pre-/post fader selectable
CAN Bus Interface	None
Control Protocol	OMNEO
D/A Conversion	24 Bit linear, sigma-delta, 128x oversampling
Data Format	24 Bit linear A/D and D/A conversion, 48 Bit processing
Digital Inputs	Omneo Network and AES3 (AES/EBU) format, XLR in/ thru connectors
FIR-Drive	Yes
GPIO Control Ports	1 x 6-pole Euro block 2 control inputs (Uin max. 5 V) 2 control outputs (2x 100 mA) 2 reference outputs (+5 V, 200 mA; GND)
Internal Processing	Dual core DSP, 500 MIPS
Network Control (IRIS-Net)	Yes
Sample Rate	48 kHz
Sample Rate Conversion (SRC)	32–192 kHz, internal sample rate- converter
Signal-to-Noise Ratio (A-weighted)	weighted) ADC: 120 dB typical DAC: 120 dB typical AES3: 128 dB typical Analog In to Analog Out: 116 dB typicaldB
THD+N	< 0.002 %
