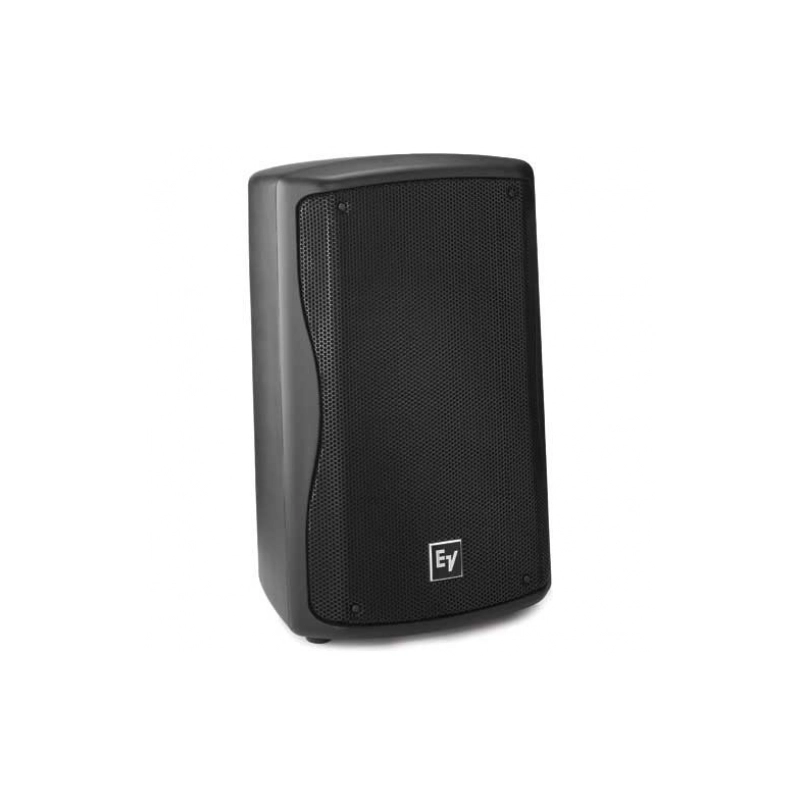

The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance.

The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response.

Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.

INSTALLING

Installing the ZX1i is quick and easy with the included QuickSAM mounting system. The QuickSAM allows the installer to simply snap the speaker onto the bracket, and then tighten it to the desired position. For array mounting, there is an optional AB-ZE array bracket kit which allows multiple units to be mounted together in a variety of configurations.

คุณสมบัติ

• Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
• Indoor/Outdoor Design – Meets IEC 529, IP44 & MIL810 Environmental Specs
• Attractive, Clean Design with Full Grille
• EV8L 8” Weatherized High-Output LF Transducer
• DH2005 1” Exit True Compression Driver
• 100° x 100° Coverage Pattern
• 200W Cont., 800W Peak Power Handling
• High Sensitivity, 121 dB Maximum SPL
