FOCUSRITE Red 8Line Audio Interface 58-in/64-out Two Red Evolution Mic Pres, Analogue Line-Level, DigiLink, Dante®, ADAT & S/PDIF

Name: FOCUSRITE Red 8Line Audio Interface 58-in/64-out Two Red Evolution Mic Pres, Analogue Line-Level, DigiLink, Dante®, ADAT & S/PDIF
Brand: FOCUSRITE
SKU: FOCUSRITE Red 8Line
Availability: InStock

฿120,000 (รวม VAT 7% แล้ว)

สอบถาม สั่งซื้อ LINE @SoundDD.Shop 02-435-8998

เงื่อนไขและข้อตกลง

เช็ค Stock สินค้ากับเจ้าหน้าที่ ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน ( ขึ้นอยู่กับที่อยู่จัดส่ง )
สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา โดยไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

สินค้ารับประกัน
จากศูนย์ชั้นนำ

แบรนด์แท้ 100%
แบรนด์ชั้นนำ

ส่งฟรี!
ตามเงื่อนไข

รายละเอียดเพิ่มเติม
ข้อมูลเพิ่มเติม

Audio Interface FOCUSRITE Red 8Line 58-in/64-out พร้อม Two Red Evolution Mic Pres, Analogue Line-Level, DigiLink, Dante®, ADAT & S/PDIF จากแบรนด์ FOCUSRITE

FOCUSRITE Red 8Line
58-In, 64-Out Thunderbolt™ 3 Audio Interface

58-In, 64-Out Thunderbolt™ 3 Audio Interface With Two Red Evolution Mic Pres, Analogue Line-Level, DigiLink, Dante®, ADAT & S/PDIF Connectivity

Red 8Line is a 58-input, 64-output, Thunderbolt™ 3 audio interface that features two Red Evolution mic pres, independent L/R monitor outs, eight balanced line inputs and outputs on DB25 connectors; 32 channels of Dante® I/O; 16-channel ADAT input and output (at 48kHz), and stereo S/PDIF input and output. As with other Red interfaces, it has professional-grade 24-bit/192kHz A-D and D-A conversion for no-compromise recording and audio playback. With 119dB dynamic range A-D and 121dB dynamic range D-A (A-Weighted), the converters have been expertly selected and calibrated by Focusrite to provide the best balance of sound quality, dynamic range and conversion latency.

The Focusrite Red range is the best choice for professionals who work in Pro Tools™ | HD and other DAWs — on both Mac and PC. With both mini-DigiLink and Thunderbolt 3 connections, it’s possible to instantly switch between Pro Tools and other DAW applications without the need to reconfigure your audio settings. Simply change the host mode either in RedNet Control software, or using the Red 8Line front panel, to change DAWs in seconds. This ability to quickly switch between production environments means you’ll never lose that moment of inspiration, or leave your clients waiting.

Red 8Line features the latest implementation of Thunderbolt 3, with Focusrite’s session-proven, ultra-low-latency, rock-solid Thunderbolt drivers. This speed provides the flexibility to use DAW plug-ins in real time, so you can harness the processing power of your DAW to track through plug-ins and record virtual instruments. With two Thunderbolt 3 ports as standard, it’s also possible to daisy-chain Thunderbolt devices, such as third-party plug-in accelerators, hard drives, external 4K displays, processing units and Thunderbolt hubs.

On-board Dante connectivity enables Red 8Line to communicate with industry-standard Audio-over-IP equipment from hundreds of manufacturers. Dante makes it easy to expand your system, embrace new ways of working, and discover rapid system expansion using Focusrite RedNet interfaces or devices from third parties such as Neve, Yamaha and DiGiCo. Red 8Line has built-in monitor control for mono, stereo and multi-channel monitoring environments up to 7.1.2. Compatibility with the new Focusrite RedNet R1 desktop remote controller allows even greater flexibility, and customised presets for immersive monitoring environments including Dolby Atmos®.

คุณสมบัติ

High-performance 24-bit/192kHz A-D and D-A conversion with 119dB dynamic range A-D and 121dB dynamic range D-A (A-Weighted)
Seamless multi-platform workflow enables switching between different DAWs in seconds, using the front panel or control software
Two Red Evolution remote-controllable mic preamps provide up to 63dB of ultra- clean gain, with phantom power, high-pass filter, phase reverse and Air mode
Latest implementation of Thunderbolt 3 ultra-low-latency drivers for Mac and PC provide the flexibility to use DAW plug-ins in real-time
Dual Thunderbolt ports as standard enable daisy-chaining of devices such as plug-in accelerators, hard drives and external 4K displays
Twin mini-DigiLink ports provide connectivity directly to Pro Tools | HD cards, with no need for device expansion
Dual Dante ports enable connection to the industry standard Audio-over-IP protocol, for easy expansion and interoperability with other digital devices
Monitor control supports mono, stereo and multi- channel monitoring environments up to 10 channels, including 7.1.2
Extensive analogue I/O provided by eight line inputs and outputs on DB25; independent L/R monitor outputs; independent Red Evolution mic preamps, plus two stereo headphones outputs
Three LCDs provide highly accurate level metering for any input or output block, as well as for main monitor and headphone outputs
RedNet Control allows quick setup of complex monitoring and routing configurations, and control of the preamps remotely
High-fidelity dual headphone outputs are powerful enough to deliver loud audio on high-impedance headphones
Dual front-panel instrument connections ensure immediate access to instrument inputs, even when racked
New Windows 10 Thunderbolt drivers make Red 8Line compatible with PC-based audio systems
Focusrite software bundle includes the Brainworx bx_console Focusrite SC channel strip from the original Focusrite Studio Console, plus Red 2 and Red 3 EQ and Compression plug-ins, which accurately reproduce the sonic qualities of the original Red hardware. Focusrite Plug-in Collective membership provides access to frequent free downloads from the most innovative music software

สเปค

SPECIFICATIONS

SIMULTANEOUS INPUTS & OUTPUTS

Channel Count
Up to 58 x 64

SYSTEM REQUIREMENTS

Computer
Apple Mac with at least one Thunderbolt 3 port (or Thunderbolt 1 / 2 port and Apple Thunderbolt 3 adapter) running supported OS. Windows 10 system with at least one Thunderbolt 3 port (Thunderbolt 1 / 2 Windows systems are not supported)

Other
Internet connection for downloading and installing software and driver

MICROPHONE INPUTS

Note
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω

Gain Range
0-8dB to 63dB in 1dB steps

Type
Electronically Balanced, Zin = 6.2kΩ

Frequency Response
20Hz – 35kHz ±0.2dB, min gain

THD+N
-101dB (0.0009%) @ -1dBFS (@ 11dB Gain)

EIN
Less than -129dBu ‘A’-Weighted (typical)

Signal-To-Noise Ratio
119dB ‘A’-Weighted (typical), min gain

Common-Mode Rejection Ratio
50/60Hz CMRR: -90dB

Phantom Power
+48V, independently switchable per channel

HPF
High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Air Mode
2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kΩ

Max. Input Level
Greater than 19dBu, min gain

LINE INPUTS 1-8

0 DBFS Reference Level
+18 or +24dBu (switchable)

Type
Electronically Balanced, Zin = 20kΩ

Frequency Response
20Hz – 35kHz ±0.2dB

THD+N
-102dB (0.0008%) @ -1dBFS

Signal-To-Noise Ratio
119dB ‘A’-Weighted (typical)

Common-Mode Rejection Ratio
50/60Hz CMRR: -70dB

Note
All measurements taken at 24dBu, Rs = 600Ω

INSTRUMENT INPUTS

Note
All measurements taken at maximum gain unless otherwise stated, Rs = 600Ω

Gain Range
0-8dB to 63dB in 1dB steps

Type
Zin = 2.3MΩ

Max. Input Level
Greater than +15dBu, min gain

Frequency Response
20Hz – 35kHz ±0.2dB, min gain

THD+N
-100dB (0.001%) @ -1dBFS (@ 11dB Gain)

Signal-To-Noise Ratio
117dB ‘A’-Weighted (typical), min gain

HPF
-3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Air Mode
2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz)

LINE OUTPUTS 1-8

0 DBFS Reference Levels
+18 or +24dBu (switchable)

Frequency Response
20Hz – 35kHz ±0.2dB

THD+N
Less than -104dB (0.0006%) unweighted, 20Hz – 20kHz; -1dBFS input

Dynamic Range
121dB ‘A’-weighted (typical), 20Hz – 20kHz

Output Impedance
Nominal output impedance = 136Ω balanced (68Ω each phase)

Note
All measurements taken at maximum output level, Rs = 100kΩ

MONITOR OUTPUTS

Note
All measurements taken at maximum output level, Rs = 100kΩ

0 DBFS Reference Levels
+18dBu

Frequency Response
20Hz – 35kHz ±0.2dB

THD+N
-80dB (0.01%) unweighted, 20Hz – 20kHz; -1dBFS input

Dynamic Range
120dB (A-Weighted)

Output Impedance
Nominal output impedance = 136Ω balanced (68Ω each phase)

Channel Count
2 Out

Monitor Outputs
2 x 1/4″ TRS jack

HEADPHONE OUTPUTS

Note
All measurements taken at maximum output level, Rs = 600Ω

0 DBFS Reference Levels
+16dBm ± 0.5dB

Frequency Response
20Hz – 20kHz ±0.2dB

THD+N
Less than -75dB (0.018%) unweighted, 20Hz – 20kHz

Dynamic Range
114dB ‘A’-weighted (typical), 20Hz – 20kHz

Output Impedance
10Ω

Headphone Impedance
32Ω – 600Ω

Channel Count
2 Stereo Channels Out

Headphone Outputs
2 x 1/4″ TRS stereo jack

MICROPHONE CROSSTALK

Mic Input To Input
Less than -80dB; 20Hz – 20kHz (driven channel at -20dBFS)

Mic Input To Output
Less than -130dB; 20Hz – 20kHz (driven channel at -20dBFS)

Output To Mic Input
Less than -165dB; 20Hz – 20kHz (driven channel at -20dBFS)

LINE CROSSTALK

Line Input To Line Input
Less than -100dB; 20Hz – 20kHz (driven channel at -20dBFS)

Line Input To Output
Less than -150dB; 20Hz – 20kHz (driven channel at -20dBFS)

Output To Line Input
Less than -150dB; 20Hz – 20kHz (driven channel at -20dBFS)

OUTPUT CROSSTALK

Output To Output
Less than -95dB; 20Hz – 20kHz (driven channel at -20dBFS)

HEADPHONE CROSSTALK

Headphone To Headphone
Less than -95dB; 20Hz – 20kHz (driven channel at -20dBFS)

DIGITAL PERFORMANCE

Supported Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Clock Sources
Internal, ADAT 1, ADAT 2, S/PDIF, Word Clock, Loop Sync or from Dante Network Master

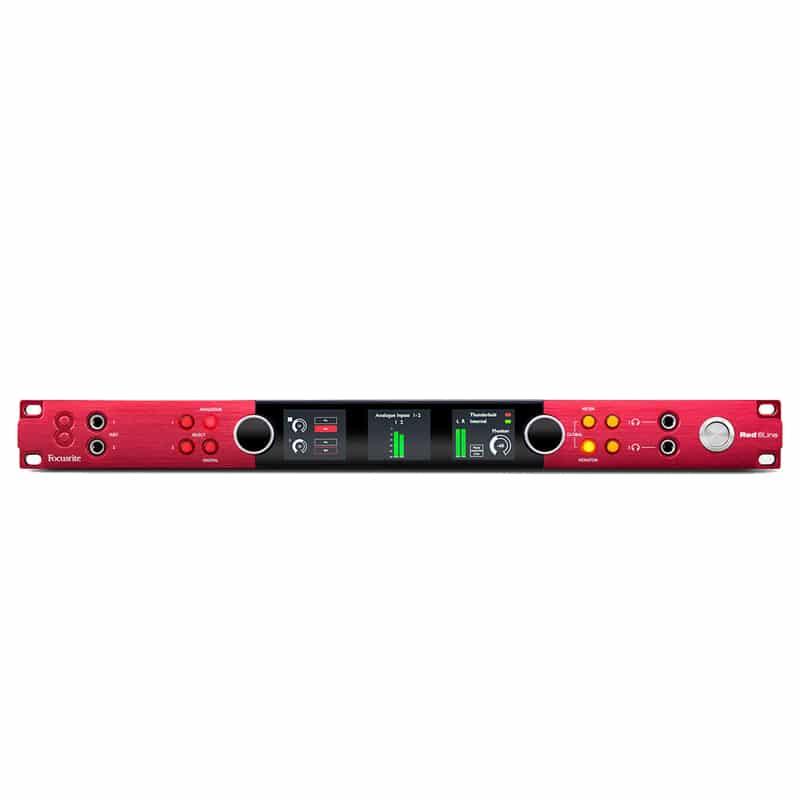

FRONT PANEL CONNECTIVITY

Instrument Inputs
2 x 1/4″ TS jack

Channel Count
2 Channels In

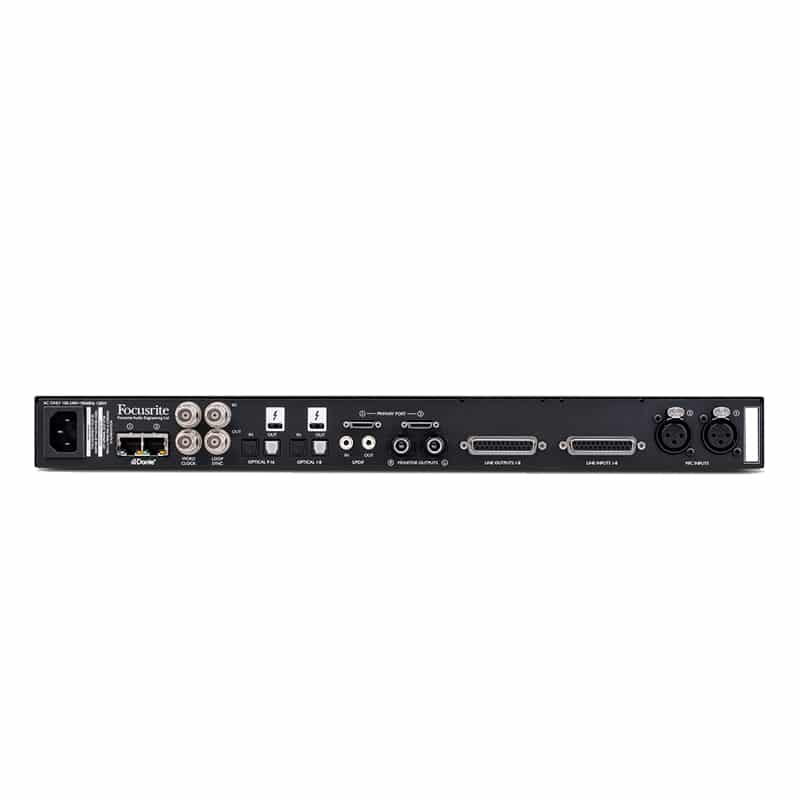

REAR PANEL CONNECTIVITY

Channel Count
Up to 58 In and 64 Out

Thunderbolt Ports
2 x Thunderbolt 3 Ports (Primary Port 1 and Primary Port 2)

PRO TOOLS|HD

Channel Count
Up to 58 In and 64 Out (32 In and 32 Out per connection)

Primary Port
2 x Mini DigiLink

MIC INPUTS

Channel Count
2 In

Input
2 x Female XLR

LINE LEVEL

Channel Count
8 In and 8 Out

Input
2 x DB25 connectors (AES59)

Output
2 x DB25 connectors (AES59)

ADAT

Channel Count
Up to 16 In and 16 Out

Input
2 x TOSLINK connector

Output
2 x TOSLINK connector

Channel Assignments @ 44.1 KHz, 48 KHz
Port 1 = Channels 1 – 8 , Port 2 = Channels 9 – 16

Channel Assignments @ 88.2 KHz, 96 KHz: SMUXI
Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8

Channel Assignments @ 176.4 KHz, 192 KHz
SMUXII: Port 1 = Channels 1 – 2 , Port 2 = Channels 3 – 4

S/PDIF

Channel Count
2 In and 2 Out (Optical up to 96kHz)

Input
1 x RCA phono socket (1 x TOSLINK up to 96kHz)

Output
1 x RCA phono socket (1 x TOSLINK up to 96kHz)

LOOP SYNC

Loop Sync Input
1 x BNC 75Ω port

Loop Sync Output
1 x BNC 75Ω port

WORD CLOCK

Word Clock Input
1 x BNC 75Ω port

Word Clock Output
1 x BNC 75Ω port

PSU

PSU
1 x IEC Input

FRONT PANEL INDICATORS

Screens
3 x Screens (menus and metering)

Control Functions
2 x Encoders (menu navigation, channel functions (Gain, +48V, Phase, HPF, Air and Mic/Line/Inst) monitor and headphone outputs (Level, Mute and Dim)). 4 x Switches (control over menus & metering)
