FOCUSRITE RedNet A16R MkII Dante Audio Interface 16 ชาแนล 24-bit operation at up to 192kHz sampling rate

LINE INPUTS

• 0 DBFS Reference Levels
  +18 or 24dBu (switchable) (will this need to be restated due to variable level control

• Frequency Response
  20Hz – 20kHz ± 0.1dB

• THD+N
  Less than -100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input

• EIN
  -96dBu A-Weighted (typical)

• Signal-To-Noise Ratio
  120dB A-Weighted (typical)

• Converter Dynamic Range
  120dB A-Weighted (typical), 10Hz – 20kHz

LINE OUTPUTS

• 0 DBFS Reference Levels Outputs
  18 or 24dBu (switchable)

• Frequency Response Outputs
  20Hz – 20kHz ± 0.1dB

• THD+N Outputs
  Less than -100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input

• Noise In Presence Of Signal
  -94dBu A-Weighted (typical)

• Dynamic Range
  118 dB A-Weighted (typical)

• Converter Dynamic Range Output
  120dB A-Weighted (typical), 10Hz – 20kHz

CROSSTALK

• Input To Output Or Input
  Less than -100dB unweighted, 20Hz – 20kHz; 23dBu input

• Output To Input Or Output
  Less than -100dB unweighted, 20Hz – 20kHz; -1dBFS input

DIGITAL INPUT SAMPLE RATE CONVERTERS

• Sample Rate Range
  32kHz to 216kHz

• Gain Error
  -0.3dB

• Dynamic Range Inputs
  Greater than 138dB

• THD+N Inputs
  Less than -130dB (0.00003)

• Latency
  11 to 45 samples (network and sample rate dependent)

DIGITAL PERFORMANCE

• Supported Sample Rates
  44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit

• Clock Sources
  Internal or from Dante Network Master

• External Word Clock Range
  Nominal sample rate ±7.5

REAR PANEL CONNECTIVITY

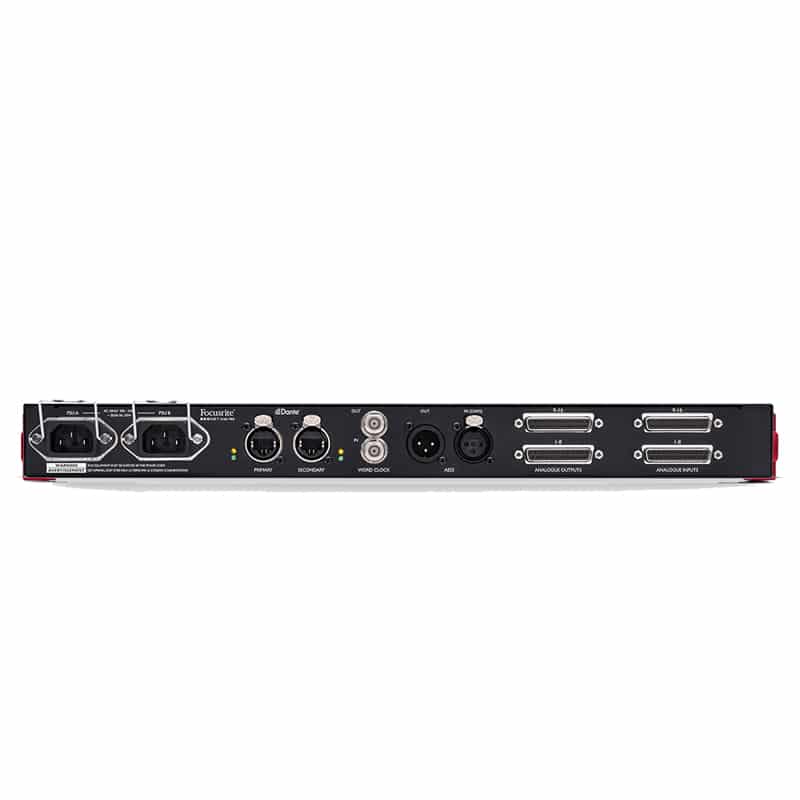

• Line Inputs
  2 x DB25 connectors

• Line Outputs
  2 x DB25 connectors

• Channel Count
  2 x 2 AES/EBU channels

• Input (Optional DARS)
  1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)

• Output
  1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)

• Word Clock Input
  1 x BNC 75O port (switchable termination)

• Word Clock Output
  1 x BNC 75O port

• PSU
  2 x IEC Inputs with retaining clips

• Network
  2 x EtherCON NE8FBH, also compatible with standard RJ45 connectors

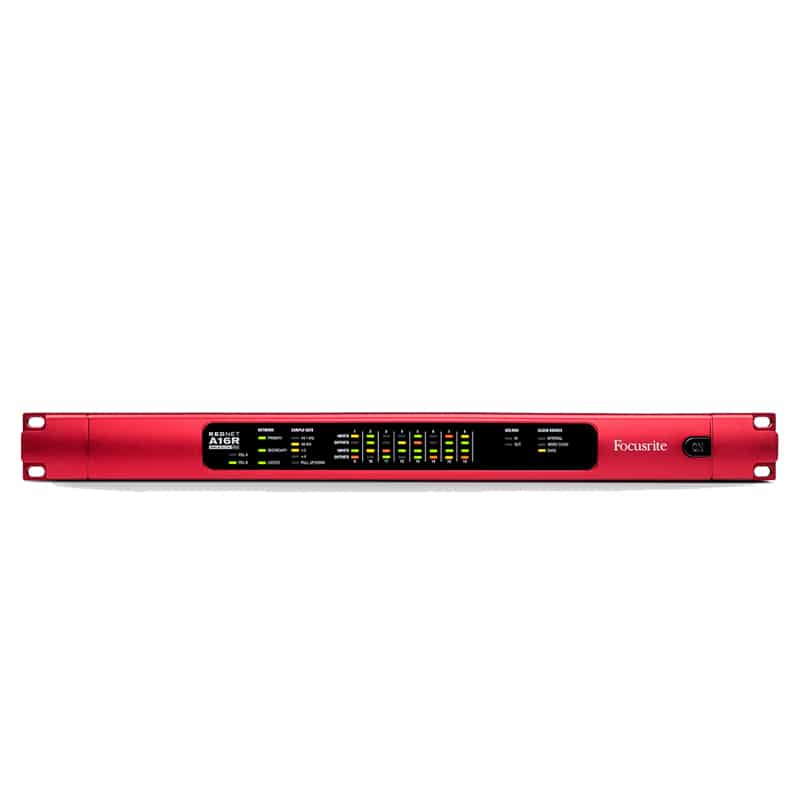

FRONT PANEL INDICATORS

• Primary PSU (A)
  Green LED. Illuminates when an AC input is applied and all DC outputs are present

• Primary Network
  Green LED. Indicates that a network connection is present on primary port when in redundant mode

• Secondary Network
  Green LED. Indicates that a network connection is present on secondary port when in redundant mode

• Network Locked
  Green LED. When unit is following network grand master, shows valid network lock

• Sample Rate
  Orange LED for each: 44.1kHz, 48kHz, x2, x4

• Pull Up/Down
  Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain

• AES/EBU Signal Indicators
  2 I/O signal indicator LEDs

• Clock Source
  Orange LED for each

NETWORK MODES

• Redundant
  Allows unit to connect to two independent networks

• Switched
  Connects both ports to integrated network switch allowing daisy-chaining
