• Surge Protection
  • Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
• Noise Filtration
  • LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
• Voltage Protection
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
• Pull-out Lights
  • Dual smooth track retractable LED lights illuminate equipment in your rack.
• Diagnostic Lights
  • LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
• Isolated Banks
  • Isolated outlet banks minimize inter-component interference and noise contamination.
• 10 AMP Rating
  • 10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
• 11 Total Outlets
  • 11 total outlets (10 rear panel outlets and one front panel convenience outlet).
• BNC Lamp Connector
  • Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

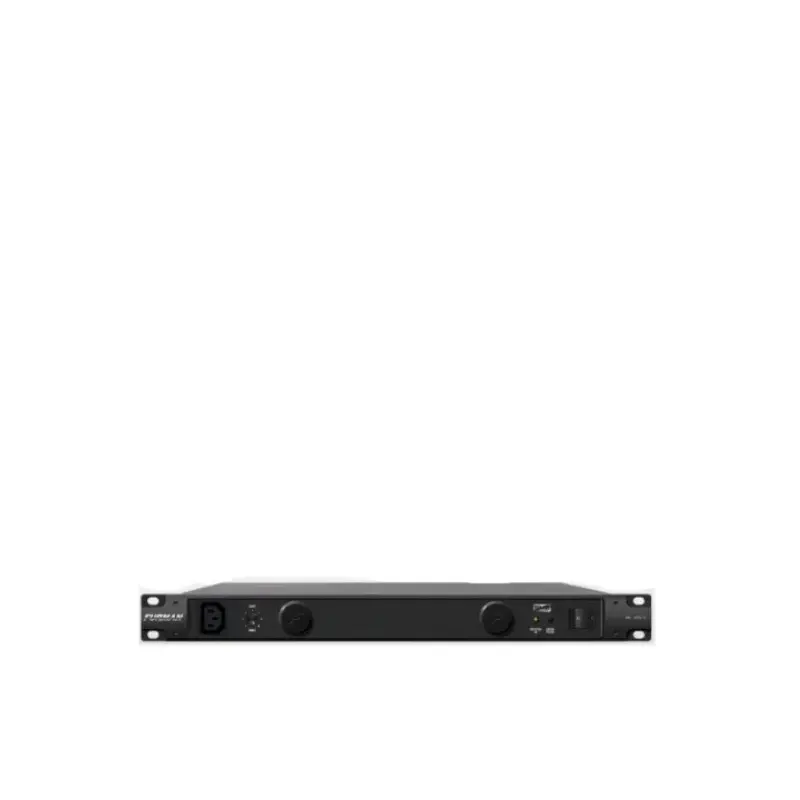

FURMAN PL-8C E

General

• FamilyClassic Series : 240V
• Line Voltage : 240 (Volts)
• Power Requirements : 240
• BlueBOLT Enabled : No
• Power Factor Technology : No
• Number of Outlets : 11
• Number of Isolated Banks : 2
• Outlet Descriptions : All 11 outlets linearly filtered and surge protected
• Rack Mountable : Yes
• Rack Ears Included : Yes
• Front Panel Meter(s) : No
• Front Media Light(s) : 2 multi-LED, dimmable lamps
• Control : On/Off switch and light dimmer knob on front panel.
• Voltage Regulation : N/A
• Compliance : CE
• Dimensions : 482.6mm W x 266.7mm D x 44.5mm H
• Power Consumption : 12 Watts

AC Protection

• AC Protection Technology : Extreme Voltage Shutdown
  Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination
• Automatic Voltage Shutoff : Yes
• Under-Voltage Shutoff : 180V
• Over-Voltage Shutoff : 274V
• Maximum Current Rating : 10 (Amps)
• Initial Clamping Level : 375 VAC peak @ 3,000 Amps

Filtration

• Filtration Technology : LiFT
• Filtration Rating :
  • 10 dB @ 10 kHz
  • 40 dB @ 100 kHz
  • 50 dB @ 500 kHz

Signal Line Protection

• Signal Line Protection : N/A

Shipping Info

• Length : 21.6 (Inches)
• Width : 14.8 (Inches)
• Height : 4.2 (Inches)
• Weight : 11.35 (Lbs)
• Unit of Measure : Each
• UPC : 654061028093
• Master Pack Qty : 2

Other Specifications

• Power Cord : 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plug
• Voltage Protection Rating : (UL 1449 3rd Edition, 3,000A)
• Response Time : 1 nanosecond
• Peak Impulse Current : 6,500 amps
• Rear BNC Connector : Rear rack lamp, 12VAC 500MA max (lamp not included)
