ลำโพงเพดาน HK AUDIO IL 80-CT ขนาด 8 นิ้ว 60 วัตต์ พร้อม Passive Crossover และ switchable 100 V transformer Ceiling loudspeaker จากแบรนด์ HK AUDIO

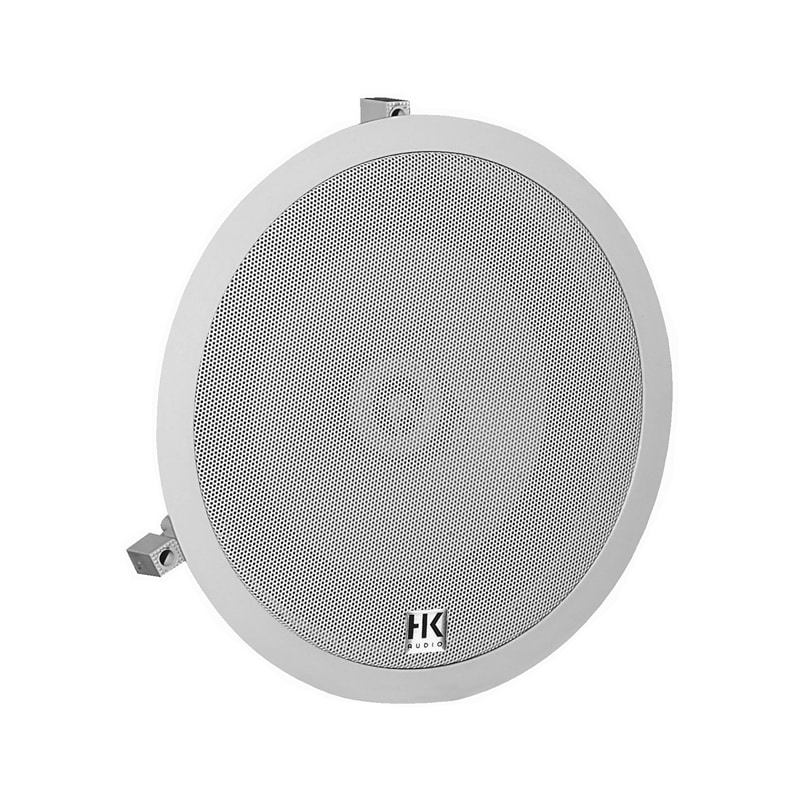

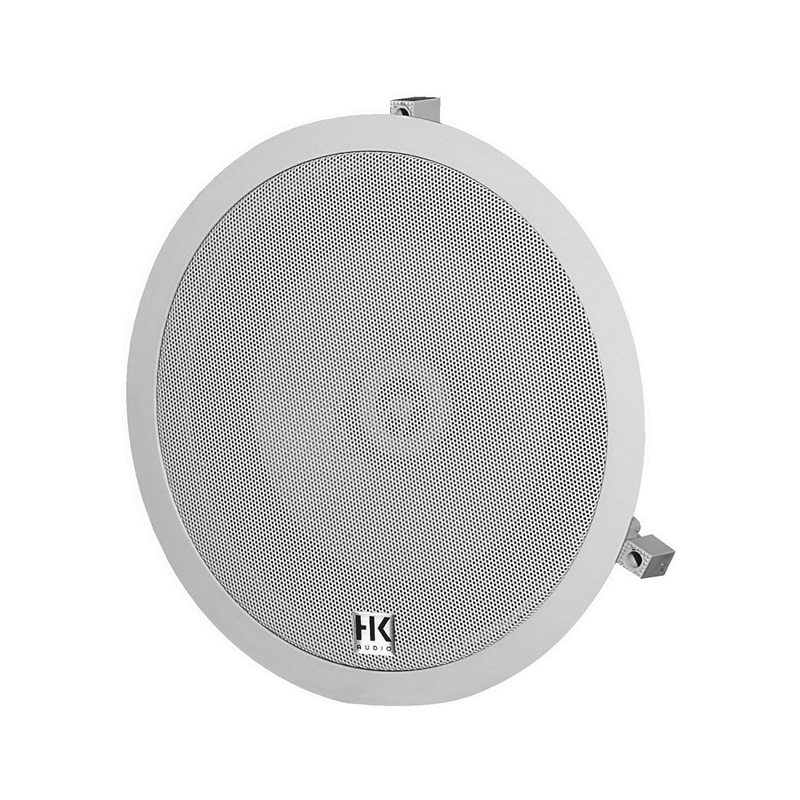

HK AUDIO IL 80-CT
Ceiling loudspeaker without rear chamber
Ceiling loudspeaker without rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille.
Equipped with 8″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W).
Modification of the power tapping in the installed state via switch possible.
Standard finish is white, repainting possible.
สเปค
| Product name | IL 80-CT |
| Power tap low impedance | 60 W |
| Power tap 1 at 100 V | 1 W |
| Power tap 2 at 100 V | 2 W |
| Power tap 3 at 100 V | 4 W |
| Power tap 4 at 100 V | 8 W |
| Power tap 5 at 100 V | 15 W |
| Sensitivity 1 W/1 m (full space) | 86 dB |
| Frequency response +/- 3 dB (processed) | 55 Hz – 19 kHz |
| Frequency response -10 dB (processed) | 47 Hz – 19 kHz |
| Max. SPL @ 10 % THD (EN 60268-21, full space) | 103 dB |
| Directivity (horizontal x vertical) | 80° circular |
| Electrical impedance | 8 ohms (low impedance), 10000/5000/2500/1250/666 ohms (100 V taps) |
| Low/mid transducer | 1 x 8″ with ferrite magnet |
| High frequency driver | 1 x 0.75″ with neodymium magnet, coaxial to LF transducer |
| Crossover/cut-off frequency | integrated passive crossover, 3000 Hz |
| DSP filters | none |
| Connections | 1 x terminal strip |
| Mounting points | integrated mounting clamps, for ceiling thicknesses 10 – 40 mm |
| Cabinet material | Plastic |
| Front grille | Metal grille |
| Finish | Plastic smooth, white |
| Protection class (IP code EN 60529) | not specified |
| Optional accessories | none |
| Dimensions (W x H x D) | 245 mm outside diameter, 180 mm installation diameter, 70 mm installation depth |
| Weight | 1.4 kg |
