ลำโพงติดผนัง HK AUDIO IL 60-TB ขนาด 6.5 นิ้ว 40 วัตต์ พร้อม Passive Crossover Compact, passive speaker system สำหรับ short distances จากแบรนด์ HK AUDIO

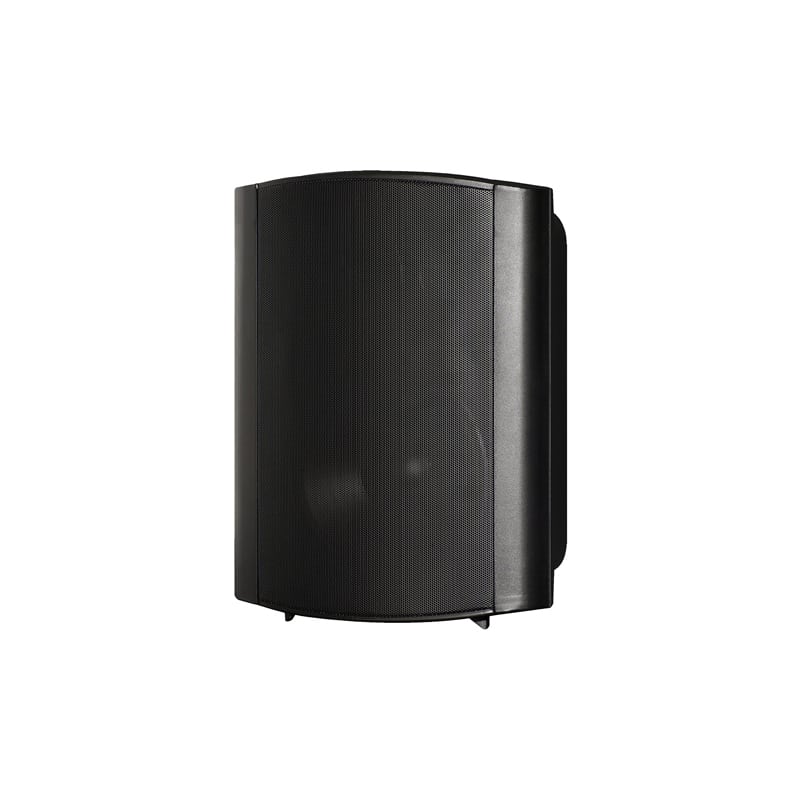

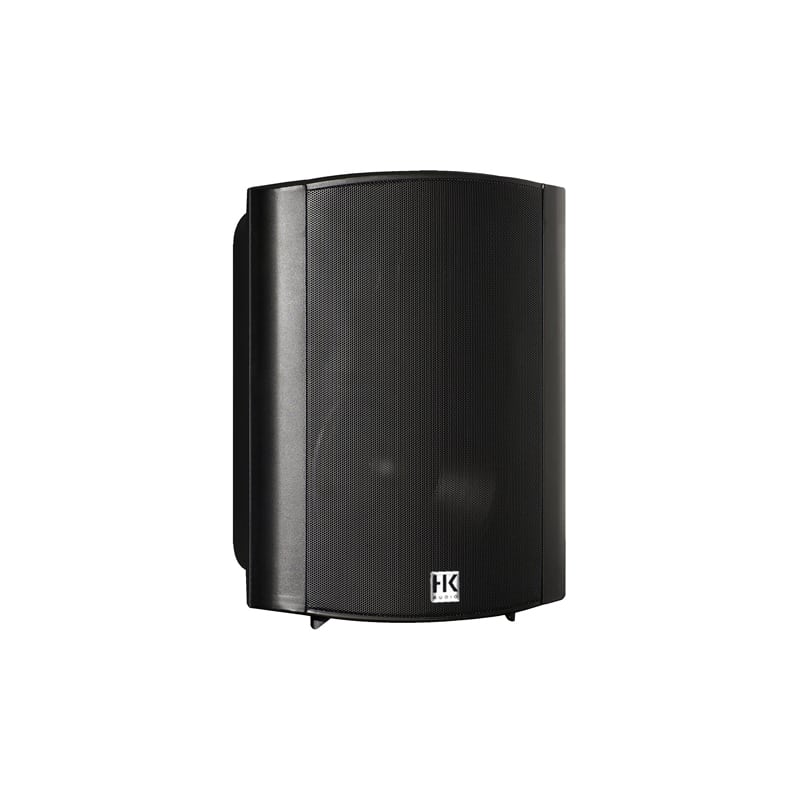

HK AUDIO IL 80-TB
Compact speaker system for short listening distances
Compact, passive speaker system for short distances, trapezoidal plastic housing, 8″ woofer and 0.75″ tweeter, switchable 100 V transformer with five power taps, 100 dB max. SPL (10 % THD), 50 Hz – 19 kHz (-10 dB), 1 x screw terminal
สเปค
| Product name | IL 80-TB/TW |
| Power tap low impedance | 60 W |
| Power tap 1 at 100 V | 2 W |
| Power tap 2 at 100 V | 5 W |
| Power tap 3 at 100 V | 10 W |
| Power tap 4 at 100 V | 20 W |
| Power tap 5 at 100 V | 40 W |
| Sensitivity 1 W/1 m (full space) | 83 dB |
| Frequency response +/- 3 dB (processed) | 60 Hz – 19 kHz |
| Frequency response -10 dB (processed) | 50 Hz – 19 kHz |
| Max. SPL @ 10 % THD (EN 60268-21, full space) | 101 dB |

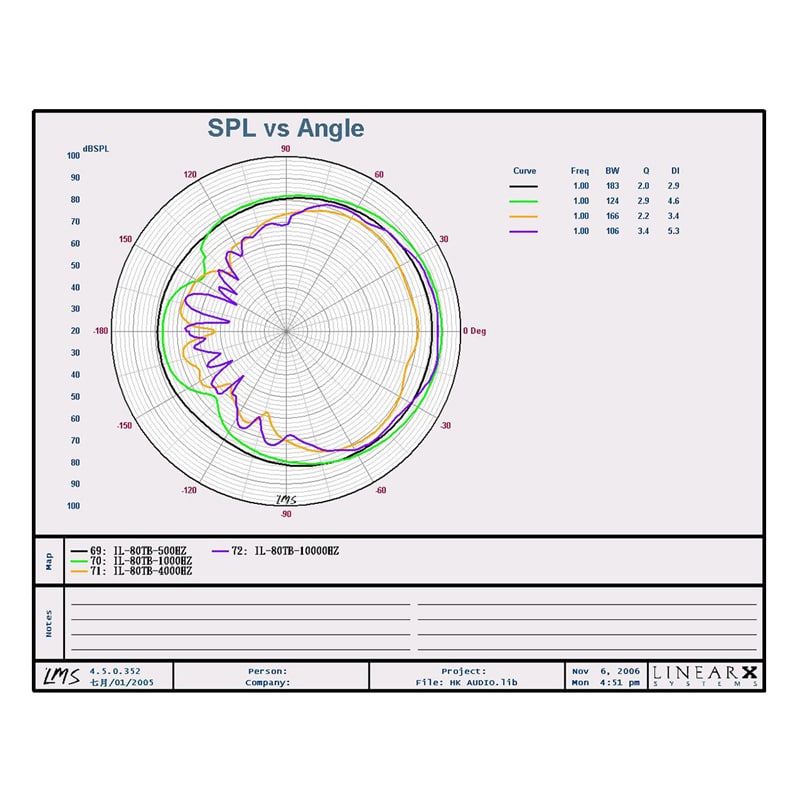

| Directivity (horizontal x vertical) | 90° x 90° |
| Electrical impedance | 8 ohms (low impedance), 5000/2000/1000/500/250 ohms (100 V taps) |
| Low/mid transducer | 1 x 8″ with ferrite magnet |
| High frequency driver | 1 x 0.75″ with neodymium magnet |
| Crossover/cut-off frequency | integrated passive crossover, 2500 Hz |
| DSP filters | none |
| Connections | 1 x binding post |
| Mounting points | none |
| Cabinet material | Plastic |
| Front grille | Metal grille |
| Finish | Plastic smooth, black (TB) and white (TW) |
| Protection class (IP code EN 60529) | not specified |
| Optional accessories | U-bracket for wall mounting included in delivery |
| Dimensions (W x H x D) | 270 x 370 x 220 mm |
| Weight | 5.4 kg |
