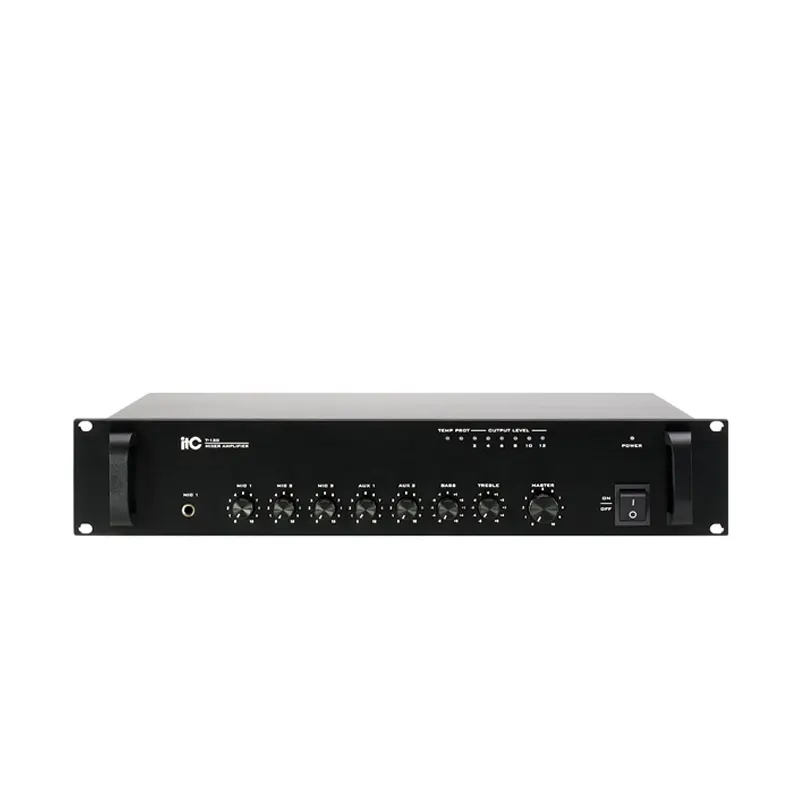

ITC T-120 มิกเซอร์แอมป์ 120 วัตต์ MONO 3 MIC , 2 AUX ITC T-120 Mixer Amplifier จากแบรนด์ ITC
ITC T-120
Mixer Amplifier (Phone Jack MIC Input)
The basic public address mixer amplifiers have power ratings from 60W, 120W, 240W, 350W,500W to 650W. They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input.
Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel.
Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16Ω speaker outputs are provided. Extensive protection for short-circuit, overload and high temp.
คุณสมบัติ
-
Mixer amplifier for paging and background music system.
-
Rated power from 60W, 120W, 240W, 350W, 500W to 650W.
-
2U rack mount (less than 350W) and 3U rack mount design.
-
70V, 100V and low impedance 4-16Ω speaker output.
-
Three Mic inputs by phone jack type.
-
Mic 1 with VOX priority and VOX level on front panel.
-
Mic 2-3 by phone jack on rear panel.
-
Two Aux Inputs and 2 line inputs for spare use.
-
One EMC priority input.
-
EMC has priority over all inputs except MIC1.
-
Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control.
-
Short circuit, overload and high temp protection.
สเปค
Model |
T-60 |
T-120 |
T-240 |
Rated Power Output |
60W |
120W |
240W |
Speaker Outputs |
70V, 100V & 4~16Ω |
||
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input |
||
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input |
|||
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input |
|||
EMC: 775mV/10KΩ, Unbalanced DG7.62 input |
|||
Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω, Unbalanced RCA output |
||
Tone |
Bass: ±10dB at 100Hz |
||
Treble: ±10dB at 10KHz |
|||
Frequency Response |
50Hz~16KHz (+1dB, -3dB) |
||
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
||
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
||
Muting Function |
MIC 1 overrides other input signals |
||
with 0-30dB attenuation |
|||
Crosstalk |
≤50dB |
||
Cooling |
Fan automatically starts up when temp reaches 55℃ |
||
Protection |
High temp, overload & short-circuit |
||
Power Supply |
~110V-230V 50/60Hz |
||
Power Consumption |
100W |
200W |
400W |
Weight |
8.1Kg |
8.6Kg |
11.68Kg |
Dimensions |
484 x 303 x 88mm |
484 x 358 x 88mm |
|
Finish |
Panel: aluminum plate, black |
||
Case: SPCC Panel |
|||
