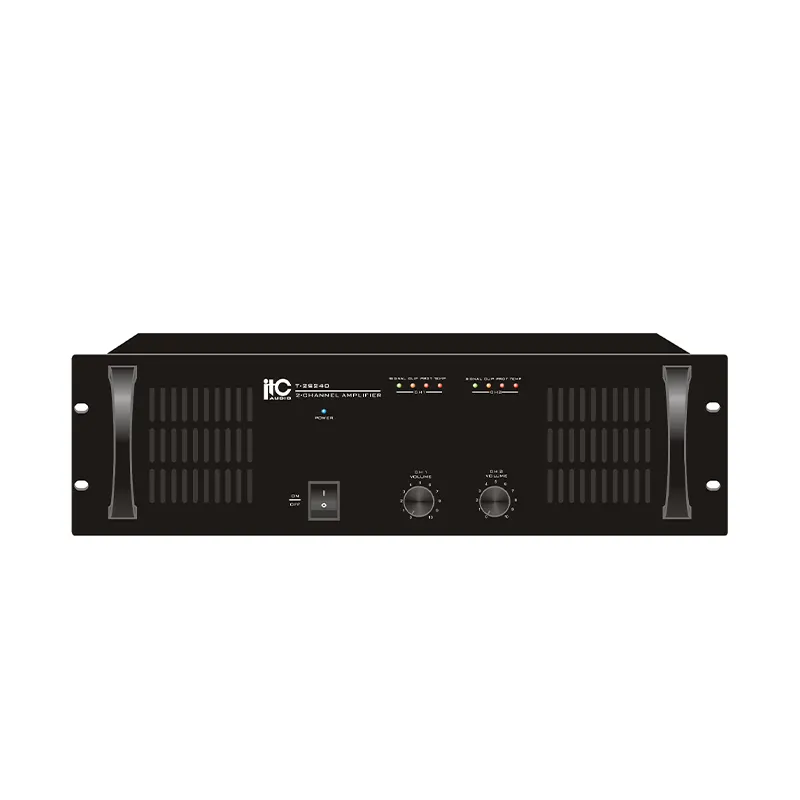

เพาเวอร์แอมป์ลายน์ ITC T-2S500 70V/100V 500 วัตต์ Power Amplifier จากแบรนด์ ITC
ITC T-2S500
500W POWER AMPLIFIER (70V/100V/4Ω)
The 2 channel power amplifiers are designed for commercial and industrial public address applications. With two separate amplifier in a single chassis and rated power ranges from 60W, 120W, 240W, 350W to 500W per channel which provides a wide selection to meet different size sound system needs.
คุณสมบัติ
- 2 separate amplifier into one chassis
- Rack mount amplifier in 2U (T-2S60/T-2S120) and 3U (T-2S240/T-2S350/T-2S500) types
- Rated power from 60W, 120W, 240W, 350W to 500W per channel
- 70V, 100V and 4-16ohm speaker outputs for each channel
- Isolated transformer for human safety operation
- Balanced XLR type line input and unbalanced 1/4 inch XLR phone jack line input for each Channel
- Balanced XLR type line outputs for each channel feed to another power amplifier
- Reliable protection of over heat, over load, clip & short circuit
- Indications for power, signal, clip, protection and temp
- Excellent device of radiator cooling fan that ensures working effectively
สเปค
|
Model |
T-2S500 |
|
Rated Power Output |
2x500W |
|
Speaker Outputs |
70V, 100V & 4~16Ω |
|
Input Sensitivity & Impedance |
±385mV/20KΩ, Balanced XLR Input 775mv/10KΩ, Unbalanced TRS Input |
|
Output Sensitivity & Impedance |
±385mvV/470Ω, Balanced XLR output 775mv/470Ω, Unbalanced TRS output |
|
Overload Electromotive Force |
＞15dB |
|
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|
S/N Ratio |
＞90dB |
|
THD |
Less than 0.1% at 1KHz, 1/3 rated power |
|
Crosstalk |
＜50dB |
|
Cooling |
Fan automatically start up when temp reaches 55℃ |
|
Protection |
Over heat, over load, clip & short circuit |
|
Power Supply |
~110V/60Hz or ~230V/50Hz or DC 24V |
|
Power Consumption |
1500W |
|
Dimensions |
484x359x132mm |
|
Finish |
Panel: aluminum plate, black Case: Steel plate, black |
