เครื่องขยายเสียงขนาด 240 วัตต์ ITC T-4S240 แบบ มัลติชาแนล 4 x 240W มีค่าความเพี้ยนน้อยกว่า 0.5 % ที่ 1 กิโลเฮิร์ท Power Amplifier จากแบรนด์ ITC

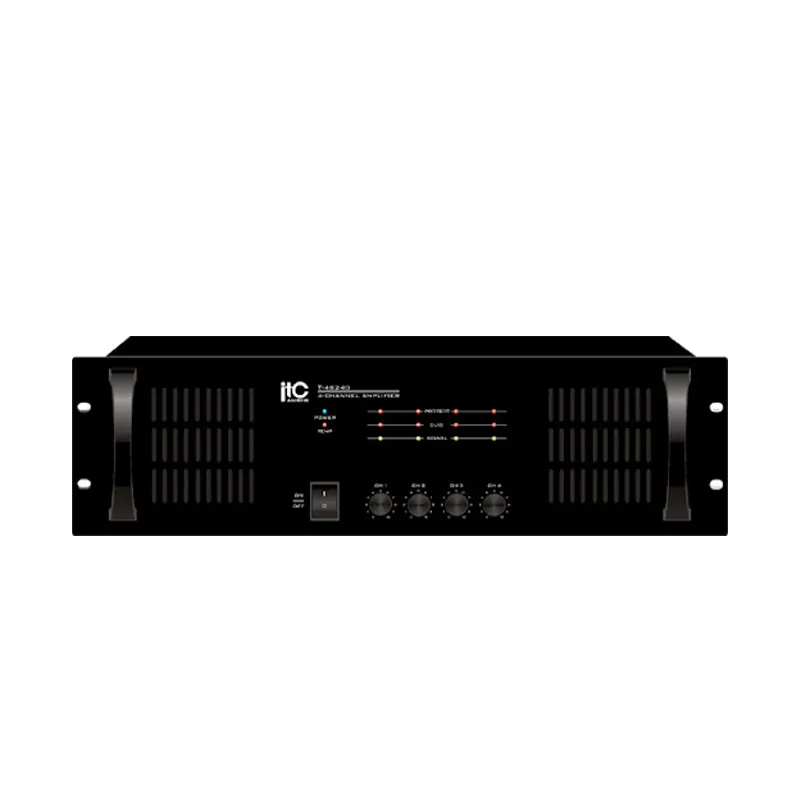

ITC T-4S240
240W POWER AMPLIFIER (70V/100V)
The 4 channel power amplifiers are designed for commercial and industrial public address applications. With four separate amplifier in a single chassis and rated power ranges from 60W, 120W and 240W per channel which provides a wide selection to meet different size sound system needs.
คุณสมบัติ
- 4 separate amplifier into one chassis
- Rack mount amplifier in 2U(T-4S60/T-4S120) and 3U(T-4S240) types
- Rated power from 60W, 120W to 240W per channel
- 70V, 100V and 4-16ohm speaker outputs for each channel by phoenix types
- Isolated transformer for human safety operation
- Balanced phone jack type line input for each channel
- Reliable protection of over heat, over load, clip & short circuit
- Indications for power, signal, peak, and protection
- Excellent device of radiator cooling fanner that ensures working effectively
สเปค
| Model | T-4S240 |
| Rated Power Output | 4x240W |
| Speaker Outputs | 70V, 100V & 4Ω |
| Input Sensitivity & Impedance | ±385mV/10KΩ, Balanced phone jack type |
| Overload Electromotive Force | ＞15dB |
| Frequency Response | 50Hz~16KHz(+1dB, -3dB) |
| S/N Ratio | ＞90dB |
| THD | Less than 0.1% at 1KHz, 1/3 rated power |
| Crosstalk | ＜50dB |
| Cooling | Fan automatically start up when temp reaches 55℃ |
| Protection | Over heat, over load, clip & short circuit |
| Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V |
| Power Consumption | 1500W |
| Dimensions | 484x449x132mm |
| Finish | Panel: aluminum plate
Case: steel plate |
