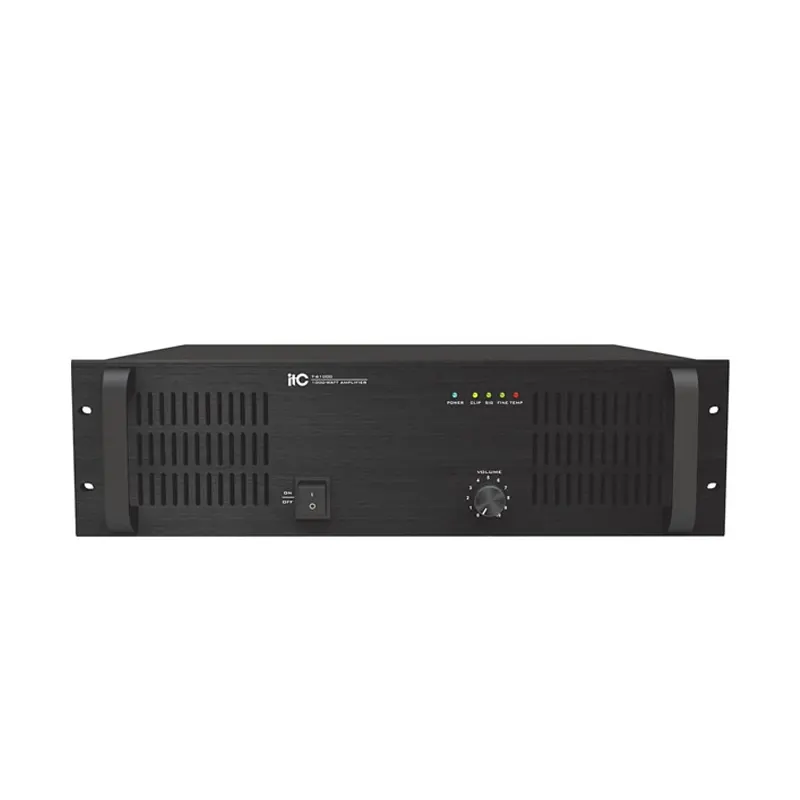

ITC T-61500 เพาเวอร์แอมป์ลายน์ แบบ 70V/100V 1 ชาแนล 1500 วัตต์ MONO จากแบรนด์ ITC
ITC T-61500
1 Channel Power Amplifier
The range of power amplifiers are designed for general commercial and industrial publicaddress applications. Rack mount design in 3U type, rated power range from 1000W to1500W which provides a wide selection to meet different sound system needs. Balanced and unbalanced line inputs are it selectable for installer, balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V and 4-16Ω speaker outputs are convenient for installation when selection different speaker matching. A master volume control is included. Complete protection includes clip, short circuit, high temp and overload. Indications for power, signal, clip, protection and temp.
คุณสมบัติ
-
Rack mount amplifier in 3U type.
-
Rated power from 1000W to 1500W.
-
70V, 100V and 4-16Ω speaker outputs.
-
Isolated transformer for human safety operation.
-
Balanced XLR type line input and unbalanced 1/4 inch TRS phone jack line input.
-
Balanced XLR type line output feeds to another power amplifier.
-
Reliable protection of over heat, over load, clip & short circuit.
-
Indications for power, signal, clip, protection and temp.
-
Excellent device of radiator cooling fanner that ensures working effectively.
Optional
-
DC 24V input available on less than 500W models.
-
Panel with/without handhold.
-
Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch (Except for 1000W and 1500W).
สเปค
Model |
T-61000 |
T-61500 |
|
Rated Power Output |
1000W |
1500W |
|
Speaker Outputs |
70V, 100V & 4~16Ω |
||
Input Sensitivity & Impedance |
775mV/10KΩ, Unbalanced XLR/TRS Input |
||
Output Sensitivity & Impedance |
775mV/470Ω, Unbalanced XLR/TRS output |
||
Frequency Response |
50Hz~16KHz (+1dB, -3dB ) |
||
S/N Ratio |
>90dB |
||
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
||
Ground Lift |
Lift the earth line ground by switch GND/lift to “lift” position |
||
Cooling |
Fan automatically start up when temp reaches 55℃ |
||
Protection |
Over heat, over load, clip & short circuit |
||
Power Supply |
~110V-230V 50/60Hz |
||
Power Consumption |
1500W |
2300W |
|
Weight |
25.8Kg |
27.08Kg |
|
Dimensions |
484 x 451 x 132mm |
||
Finish |
Panel: aluminum plate, black |
||
Case: SPCC Panel, black |
|||
