ITC T-650 เครื่องขยายเสียงพร้อมแอมป์ในตัว 70V/100V 650 วัตต์ มีปุ่มปรับระดับเสียง Mic 1,2,3,Aux,1,2 เสียงทุ้ม,เสียงแหลม และ Masterแยกอิสระต่อกัน Mixer Amplifier จากแบรนด์ ITC

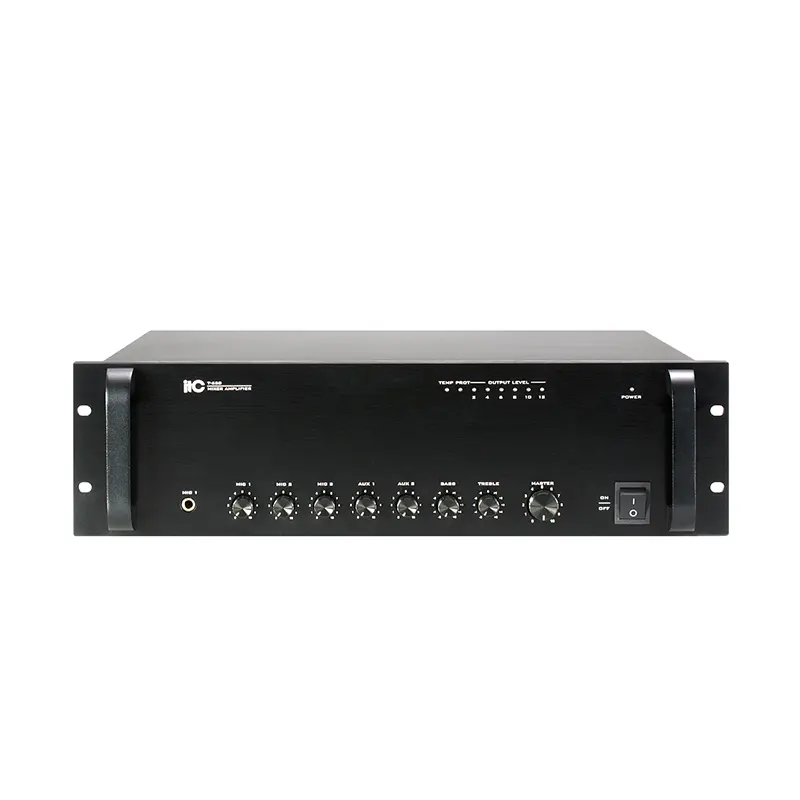

ITC T-650
RMS Mixer Amplifier, 3 mic, 2 aux, 100V/70V and 4ohms
The basic public address mixer amplifiers have power ratings from 60W, 120W, 240W, 350W,500W to 650W.
They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input.
Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel.
Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.
คุณสมบัติ
- Mixer amplifier for paging and background music system
- Rated power from 60W, 120W, 240W, 350W, 500W to 650W
- 2U rack mount (less than 350W) and 3U rack mount design
- 70V, 100V and low impedance 4-16ohm speaker output
- Three Mic inputs by phone jack type
- Mic 1 with VOX priority and VOX level on front panel
- Mic 2-3 by phone jack on rear panel
- Two Aux Inputs and 2 line inputs for spare use
- One EMC priority input
- EMC has priority over all inputs except MIC1
- Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
- Short circuit, overload and high temp protection
สเปค
Model |
T-650 |
Rated Power Output |
650W |
Speaker Outputs |
70V, 100V & 4~16Ω |
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω , Unbalanced phone jack input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ , Unbalanced RCA input EMC: 775mV/10KΩ , Unbalanced RCA input |
Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω , Unbalanced RCA output |
Tone |
Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
|
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
|
Muting Function |
MIC 1 overrides other input signals with 0-30dB attenuation |
|
Crosstalk |
≤50dB |
|
Cooling |
Fan automatically start up when temp reaches 55℃ |
|
Protection |
High temp, overload & short-circuit |
|
Power Supply |
~110V/60Hz or ~230V/50Hz or DC 24V |
|
Power Consumption |
950W |
|
Weight |
17.8Kg |
|
Dimensions |
484 x 385x132mm |
|
Finish |
Panel: aluminum plate, black Case: steel plate, black |
