ITC TI-1206S มิกเซอร์แอมป์ 120 วัตต์ MONO 4 MIC

฿20,490 (รวม VAT 7% แล้ว)

สินค้ายกเลิกการผลิต

สินค้าหมดแล้ว

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :
  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :

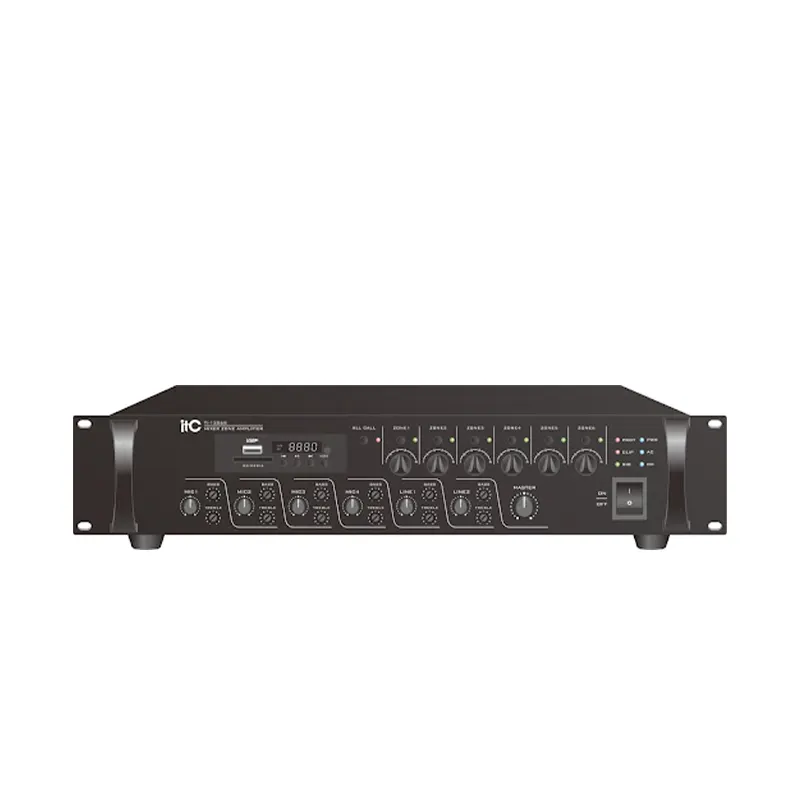

ITC TI-1206S มิกเซอร์แอมป์ 120 วัตต์ MONO 4 MIC จากแบรนด์ ITC

ITC TI-1206S

6 Zones Mixer Amplifier with MP3

คุณสมบัติ

  • 4 channel Mic. inputs, 2 channel line inputs, separated treble and bass control.
  • 6-channel zone output, zone volume is independently controlled.
  • Built-in bell, the bell tone is optional, 4 tones and 2 tones (built-in), the alarm generator.
  • MP3 decoder module supports USB / SD / Bluetooth / FM radio playback. Configuring MP3 remote control, support memory function without power input, MIC recording function.
  • When start the built-in generator, the background will turn off and 6-channel zone output will automatically turn on, switch to maximum output volume function.
  • Built-in 24V DC power input
  • MIC1- 4 built-in 48V phantom power and independent control switch.
  • T-216 remote microphone can remote control zone output, the maximum cascade 6pcs Mic.
  • The audio input with separate control, tone control and master volume control
  • A variety of LED display (signal, clip, protection LED indicator)
  • With fan forced cooling structure, to ensure the device to keep long time working
  • There are five priority levels:
    – EMC with top priority: When there is EMC alarm signal input, it overrides all audio, 6 zone outputs open automatically.
    – The 2nd priority level: TEL / REM MIC is priority to MIC1-4, LINE1-2,chime.The 3rd priority level: built-in alarm generator is priority toMIC1-4, LINE1-2, 6 zone outputs open automatically.
    – The 4th priority level :built-in chime is priority to MIC1-4, LINE1-2.
    – The 5th priority level :built MIC1 is priority to  MIC2-4, LINE1-2.
  • The constant voltage output: 70V, 100V, constant impedance output: 4-16Ω
น้ำหนัก 6.5 กก.
ขนาด 484 × 310 × 88 มิลลิเมตร
ยี่ห้อ

สเปค

Model TI-1206S TI-2406S TI-3506S
Amplifier Section(Load 100V Output) Rated Output Power (THD 1%) 120W(RMS) 240W(RMS) 350W(RMS)
Speaker Zone 1~5 Output 25W MAX 50W MAX 70W MAX




Mic Input Section(Mic 1~4 In@1KHz)

Input Sensitivity/Impedance 5mV 600Ω/350mV 10KΩ BAL
S/N Ratio Better than 75dB
Frequency Response (±3dB) 80Hz~16KHz
Tone Control (Bass:100Hz, Treble:10KHz) ±10dB
Phantom Power + 48V






Line Input Section

(Mic 1~2 In@1KHz)



Input Sensitivity/Impedance 350mV/47KΩ
S/N Better than 80dB
Frequency Response (±3dB) 80Hz~16KHz
Tone Control (Bass: 100Hz,Treble:10KHz) ±10dB




Tel Audio Input



Input Sensitivity/Impedance 0.775V/10KΩ
S/N Better than 75dB
Frequency Response (±3dB) 50Hz~16KHz




EMC Audio Input



Input Sensitivity/Impedance 0.775V/10KΩ
S/N Better than 75dB
Frequency Response (±3dB) 80Hz~16KHz
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) 1V/600Ω
Remote MIC Sensitivity/Impedance 775mV/10KΩ
THD Less than 0.1% at 1KHz, 1/3 rated power
Power Supply ~110V/60Hz or ~230V/50Hz & DC 24V
Power Consumption 180W 320W 500W
Weight 6.5Kg 7.1Kg 7.8Kg
Dimensions 484x310x88 mm
