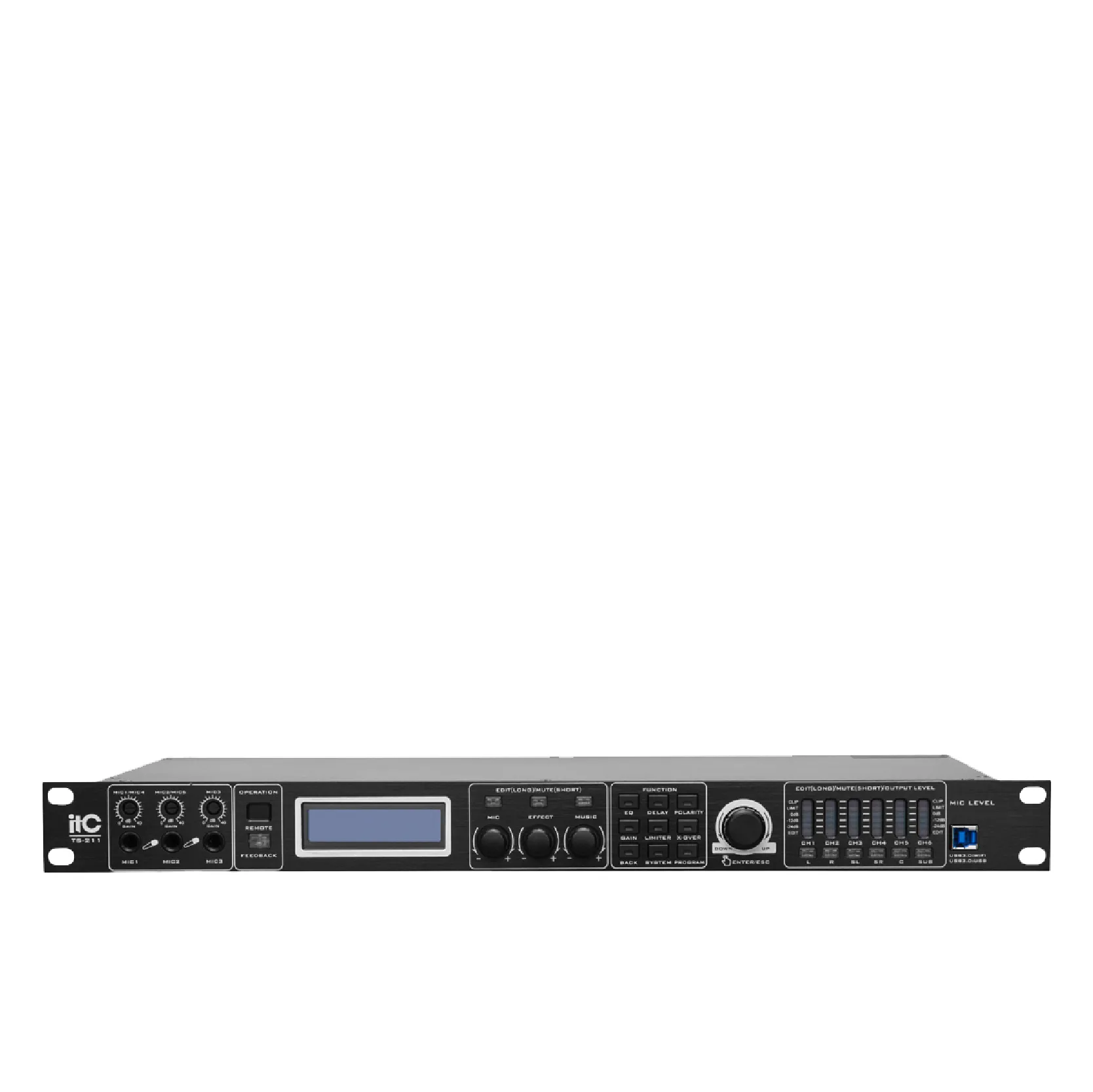

24-bit A/D and D/A converter, 32-bit DSP processor มิกเซอร์&ปรีแอมป์ ITC TS-211 Pre Processor จากแบรนด์ ITC
ITC TS-211
24-bit A/D and D/A converter, 32-bit DSP processor
ITC TS-211
- 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP processor.
- 3 1/ 4″ inputs with automatic audio signal detection, providing groups of five mic input, standard and 5.1 channel output.
- USB cable provided for connection to PC. Also provided is a remote control (infrared).
- Directly to use the function keys on front panel or Connecting with PC to operate the device
- 10 typed of storable user programs are present (with 10 factory-presets downloaded from the factory).
- Included is a parameter lock function (with password) in order to avoid unwanted ot unauthorized changes to settings.
- Each output channel comes with 7 bands of individual parametric EQ (including a high-pass and low-pass filter, 4 kinds of slopes and an adjustable gain (-30db to +15db).
- LCD screen and a 7 band-LED digital level meter (shows status of input, output, mute and edit).
- Delay ,phase-control and mute adjusting are available for each input and output channel. The delay offer a maximum of 60ms.
- An adjustable effects channel, microphone-volume, background-music volume are present.
- Microphone channels come with 4 levels of anti-feedback functions. Both microphone and music signals include a noise gate.
- Special-effects come with 3-bands parametric EQ .The ratios between echo & reverb can be adjusted.
ITC TS-211
|

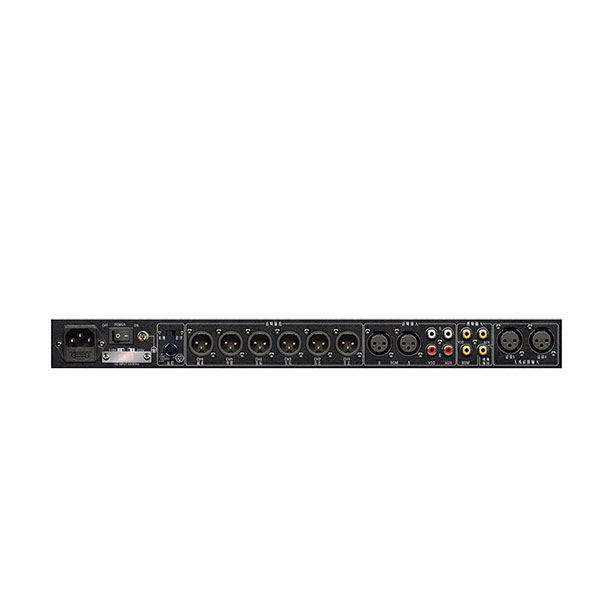

Input channel jacks |
3 front 1 /4″ phono inputs, 2 pairs of RCA inputs , 1 pair of female XLR, 1 against 3 RCA Video Inputs, 3 groups with 5 channel mic input. |
|
Output channel jacks |
Kp23+: 3.1 channel male-output; Kp24: 4 channel male-output: KP25+: 5.1 channel male output. |
|
Input impedance |
Balanced: 20KΩ. |
|
Output impedance |
Balanced: 100Ω. |
|
PC port |
One USB Com Port on front panel. |
|
CMRR |
>70dB(1KHz). |
|
Input range |
≤+25db. |
|
Frequency response |
20Hz-20KHz(-0.5db). |
|
S/N R |
>110db. |
|
THD |
<0.01% OUTPUT=0db/1KHz. |
|
Crosstalk of channels |
>80db(1KHz). |
Functions of input channels |
|
|
Input mute |
Each channel has independent mute control. |
|
Input delay |
Each channel has independent delay control;range: 0—30ms, step-over @1ms. |
|
Input polarity |
Same phase (+/+) or reversed phase (+/-). |
|
Input EQ |
Music and mic inputs come with 9 bands of individuals parametric EQ. Central frequency point: 20Hz to 20KHz, Bandwidth:0.01oct to 3oct, Step-over is 0.01oct. |
|
Input gain |
Default frequency: EQ140Hz, EQ280Hz, EQ3160Hz, EQ4317Hz, EQ5632Hz, EQ6126Hz, EQ72515Hz, EQ85018Hz, EQ910KHz.Also, High-cut and Low Cut Filter is added |
|
Both music and mic have independent gain control from 0% -100%. |
|
|
Limiter |
Both music and mic have independent limiter control, -30db to +20dB, stepover,0.1db. |
|
Feedback |
Mic comes with 4-levels anti-feedback functions. |
Functions of output channels |
|
|
Output mute |
Each channel has independent mute control. |
|
Output gain |
Each channel has independent gain control. Adjustable range 0%-100%, step-over 1% 0.5dB. |
|
Output delay |
Each channel has independent delay control,range: 0—1000ms,step-over 21us@<10ms; step-over 84us@10-20ms; step-over:0.5ms@>20ms. |
|
Output polarity |
Same phase (+/+) or reversed phase (+/-). |
|
Crossover |
Each channel can set up LPF and HPF independently, with adjustable parameters: Filter types: Linkwitz-Riley/Besse/Butterworth.Frequency turning point: 20Hz-20KHz, |
|
239 total frequency points, decay of slope: 12db/oct, 18db/oct, 24db/oct, 48dB/oct |
|
|
Limiter |
Each channel can set up limiters independently (all with adjustable parameters): Threshold value: -20db to +20db. Step-over: 0.5dBu@starting time: 0.3ms-100ms, |
|
step-over<1ms @0.1ms, Step-over>1ms@1ms. |
|
|
Output EQ |
Each output channel can be set up with 7 bands of individual EQ. PEQ and GEQ modes are both present . Under PEQ, the adjustable parameters are :LO-EQ1 (bass |
|
boost or low cut), H1-EQ15 (high boost or high damp) are the frequency points, all adjustable. Slope options are 12dB/oct, 24dB/oct, 36dB/oct and 48Db/oct. Others |
|
|
option are: 13-bands of parametric EQ. There are total of 239 frequency points. Bandwidth: 0.01oct-3oct, step-over is 0.05oct. Gain: -40db to +20db, step-ver is |
|
|
0.1dB. When set as GEQ, the functions are the same as when set as PEQ. |
|
|
Effects processor |
1M of Memory, includes 3 bands of parametric EQ. |
|
Processor |
96KHz sampling frequency, 32-bit floating-point DSP. |
|
Display |
Resolution of 144×32 character LCD and 6-segment LED display for accurate digital input and output level meter, mute and edit status |
|
Power |
≤25W. |
|
Power supply |
AC110V/220V 50/60Hz. |
|
Product dimension(W×D×H) |
482×200×44mm. |
|
Shipping dimension(W×D×H) |
1 piece: 562x294x98mm/0.0162m3 6 pieces: 576X308X612mm/0.1123m3 |
|
Gross weight |
1 piece: 4.7Kg 1 piece: 4.7Kg |
