Input Channel & Socket |
2 channel XLR female |

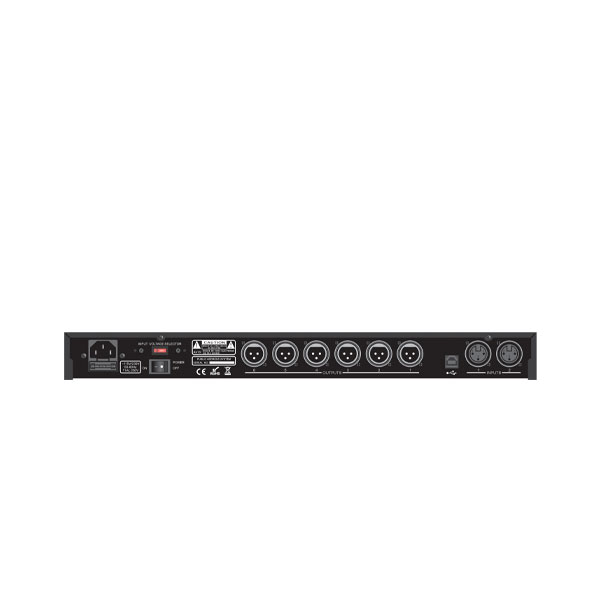

Output Channel & Socket |
4 channel XLR female |
Input impedance |
20KΩ balanced |
Output impedance |
100KΩ balanced |
PC interface |
Front Panel: 1 USB, Real Panel: 2 Rs485 (RJ-45) |
CMRR |
>70dB (1KHz) |
Input Range |
≤+25dBu |
Frequency Response |
20Hz-20KHz(-0.5dB) |
SNR |
>110dB |
THD |
<0.01% OUTPUT=0dBu/1KHz |
Channel separation |
>80dB (1KHz) |
Input Channel Function |
|
Input Mute |
Separate mute control on each channel |
Input delay |
Each input channel has a separate delay control, adjustment range is 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us; |
|
greater than 20ms, step is 0.5ms |
Input Phase |
inverting (+)/reverse (-) |
Input Equalization |
Each input channel has six parametric equalizer, adjustment parameters is: center frequency: 20Hz-20KHz, |
239 frequency points Bandwidth in total: 0.05oct-3oct, step to 0.05oct gain: -20dB-+20 dB, step is 0.1dB |
Output Channel Function |
|
Output Mute |
Separate mute control on each channel |
Output Selection |
The output can individually select different input channels |
Output Volume |
adjustment range: -80dB-+12dB, step is 0.1dB |
Output delay |
Each output channel has a separate delay control, adjustment range 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us; |
greater than 20ms, step is 0.5ms |
Output phase |
inverting (+)/reverse (-) |
Frequency Divider Setting |
Each output channel can set low pass filter (LPF) and high-pass filter (HPF) separately; adjustable parameters: Filter Type: Linkwitz-Riley/Bessel / |
frequency turning point: 20Hz-20KHz, 239 a frequency attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct, 30 dB / oct, 36 dB / oct, 42 dB / oct, 48dB/oct |
Limiter Setting |
Each output channel can set limiter separately; adjustable parameters: threshold :-40dBu-+20 dBu, step to 0.5dBu start time: 0.3ms-200ms, |
less than 1ms, step 0.1 ms; greater than 1ms, in steps of 1ms release time: 50ms-5000ms |
Output Equalization |
Each output channel has six parametric equalizers; equalization mode has Parameter/Lo-Shelf/Hi-Shelf |
Adjustable parameter under Parameter Status: center frequency: |
|
20Hz-20KHz, a total of 239 frequency points Bandwidth: 0.05oct-3oct, step is 0.05oct gain: -20dB-+20 dB, step is 0.1dB |
Adjustable parameter under Lo-Shelf and Hi-Shelf status: center frequency: 20Hz-20KHz, 239 frequency points slope in total: 6dB/12dB |
gain: -20dB-+20 dB, steps is 0.1dB |
Processor |
96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A conversion |
Display |
2 x 24 LCD displays setting menu, 6-segment LED display input / output precision digital level meter, mute and editing status |
Power consumption |
≤25W |
Power Supply |
AC110V/220V 50/60Hz |
Dimension ( W x D x H ) |
482 x 190 x 44mm |
Net Weight |
3.6Kg |
Transport dimensions ( W x D x H ) |
562 x 362 x 98mm |
