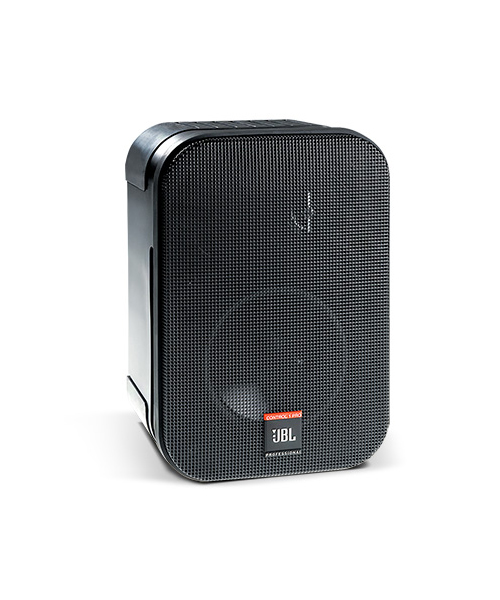

JBL CSS-1S/T Compact Two-Way 100V/70V/8-Ohm Loudspeaker
JBL CSS-1S/T ตู้ลำโพงติดผนัง ขนาด 5.25 นิ้ว 2 ทาง 60 วัตต์ JBL CSS-1S/T ลำโพงติดผนัง จากแบรนด์ JBL
CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
FEATURES
- 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
- 8 Ohm Direct Setting
- Included Wall-Mounting Bracket
- Professional Drivers and Network
SPECIFICATION
| Frequency Range (-10 dB) | 85 Hz – 18 kHz | |
| Frequency Response (±3 dB) | 120 Hz – 16 kHz | |
| Power Capacity | 60 Watts | |
| Sensitivity | 86 dB SPL, 1W (2.83V) at 1m (3.3 ft) | |
| Maximum SPL | 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting |
|
| Nominal Coverage | 120ºH x 120ºV | |
| Directivity Factor (Q) | 6.2 | |
| Directivity Index (DI) | 7.9 dB | |
| Nominal Impedance | 8 ohms (in 8Ω DIRECT mode, selectable on back panel) | |
| Transformer Taps | 10 W, 5 W (& 2.5W @ 70V) | |
| Crossover Frequency | 4.3 kHz | |
| Transducers | ||
| LF Driver | 135 mm (5.25 in) low frequency driver | |
| HF Driver | 19 mm (0.75 in) polycarbonate dome tweeter | |
| Input Connectors | Spring-loaded terminals | |
| Enclosure | ||
| Enclosure Material | Polypropylene Structural Foam | |
| Color | Black | |
| Dimensions | 229 mm x 159 mm x 143 mm (9.0 in x 6.3 in x 5.6 in) |
|
| Net Weight (each) | 2.0 kg (4.5 lb) | |
| Shipping Weight (pair) | 4.8 kg (10.5 lb) | |
| Included Accessories | Wall-mounting bracket assembly |
