JBL PRX712 ตู้ลำโพง 12 นิ้ว 2 ทาง 1,500 วัตต์ มีแอมป์ในตัว คลาส D

ลำโพง JBL ตู้ลำโพง JBL PRX712 12 นิ้ว 2 ทาง 1,500 วัตต์ มีแอมป์ในตัว คลาส D ช่วงย่านความถี่ 55.7 Hz – 18.2 kHz JBL PRX712 ลำโพง จากแบรนด์ JBL

JBL PRX712

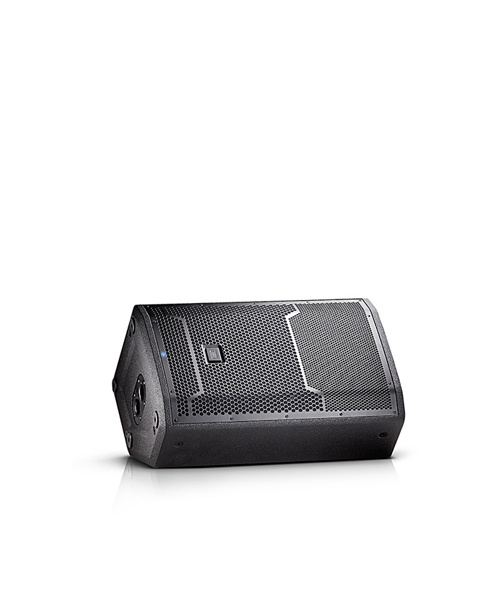

12″ Two-Way Full-Range Main System/Floor Monitor

PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.

The PRX700 Series represent an evolutionary step in the efficient use of amplifier power, rugged durability and enhanced versatility in a self-powered loudspeaker designed from the ground up to perform in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are typical. They are the first systems to use our patented Differential Drive technology with ferrite drivers featuring high power, wide bandwidth and low distortion. Versatile, scalable, easy-to-transport and set up, the PRX700 Series use JBL’s tour tested technology throughout for a lifetime of reliable performance you can trust.

• 135 dB peak SPL

• 12″ Differential Drive® low-frequency driver for low-distortion and higher SPL

• 1.5″ diameter next generation JBL neodymium compression driver

• JBL designed waveguide for accurate coverage

• Efficient Class-D amplifier technology

• Optimized EQ for monitor or front-of-house applications

• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

• Line level and direct microphone input capability

• Professional XLR-1/4″ combination inputs, RCA inputs, and XLR loop-through

• Multi-angle enclosure for main PA or floor monitor applications

• Integrated 36 mm pole mount socket with angle down tilt

• Injection molded handle with backing cup for easy transport

• Integrated M10 suspension points for easy setup

• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.

• Cloth backed, dent-resistant 16 gauge steel grilles

• PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX718XLF subwoofer, offering a high performance self-powered sub/sat system.

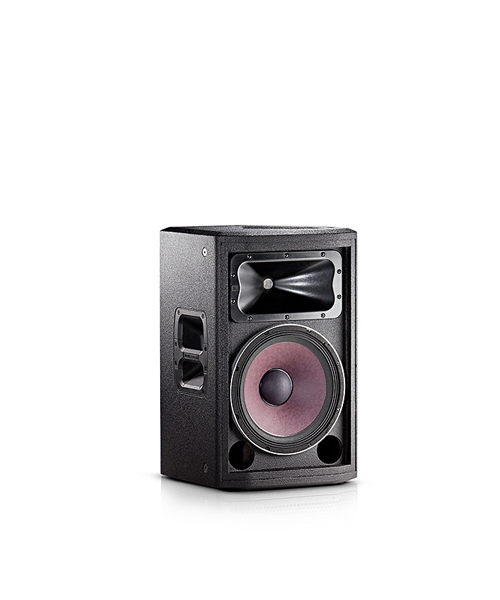

• The PRX712 is comprised of a 12″ Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

• All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of

  1000 lbs. each.

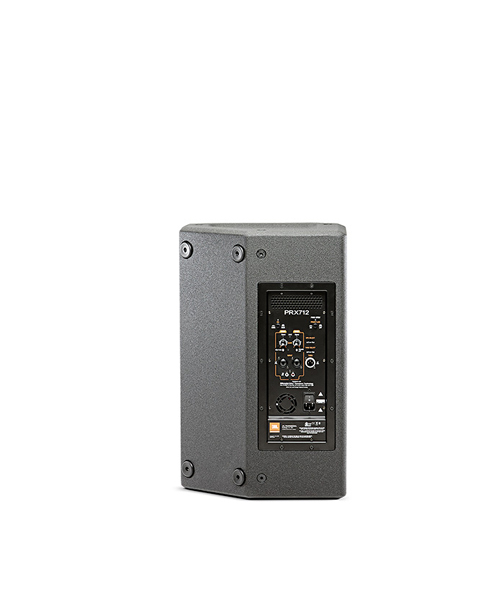

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
