ลำโพง JBL ชุดลำโพงไลน์อาร์เรย์ 2×8 นิ้ว และซับวูฟเฟอร์ 18 นิ้ว VTX-A8 SYSTEM-2 ชุดลำโพงไลน์อาร์เรย์ จากแบรนด์ JBL
JBL VTX-A8 SYSTEM-2 VTX:A-SERIES SYSTEM SOLUTIONS
ประกอบด้วย
JBL VTX A8
ตู้ลำโพงไลน์อาร์เรย์ 6 ใบ
JBL VTX B18
ตู้ลำโพงซับวูฟเฟอร์ 4 ใบ

CROWN I-Tech 4x3500HD
เพาเวอร์แอมป์ 2 เครื่อง

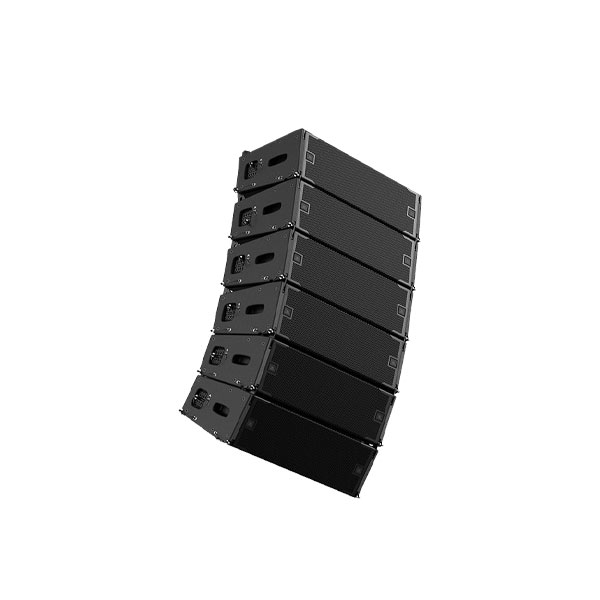

JBL VTX A8 Dual 8″ Compact Line Array Loudspeaker With 110º Dispersion
JBL VTX A8 ตู้ลำโพงไลน์อาร์เรย์ ขนาด 8×2 นิ้ว 3 ทาง 600 วัตต์ VTX A8 Line Array จากแบรนด์ JBL
The VTX A8 is a next-generation line array element that delivers JBL Professional’s flagship VTX A Series technology in a compact solution for small to mid-size rental and installed applications. The VTX A8 was designed to solve the diverse sound reinforcement needs of production companies, rental houses, theaters, houses of worship, as well as production applications requiring front fills, side arrays or other auxiliary support for larger-scale VTX systems. Proprietary JBL woofers and our latest-generation high-frequency transducer and waveguide technology, provides unmatched performance, efficiency, and a consistent 110-degrees of horizontal coverage. The A8 combines two 8” woofers, four 3.5” midrange drivers and two 2” high-frequency drivers in a single low-profile cabinet. Proprietary double-flared low-frequency ports, precisely calculated for greater low-frequency performance extend the usable operating range down to 49Hz. The VTX A8 shares the VTX A Series’ patented rigging mechanism and suspension system for streamlined deployment, while a comprehensive suite of accessories open up a world of configuration options.
Used on its own or in conjunction with the VTX B18, A12 or A12W, the VTX A8 expands the JBL VTX A Series to offer audio professionals a complete toolset for designing optimal sound systems for any application.
- Innovative 3-way (bi-amp) design for best-in-class performance
- JBL Differential Drive™ woofers and Slip Stream™ ports deliver optimal bass response down to 49 Hz
- Common HF compression driver across A-Series products provides excellent sonic consistency
- Mid-frequency Radiation Boundary Integrator® (RBI) design maximizes transducer density and improves horizontal directivity
- Innovative auto-locking rigging mechanism for streamlined, rapid deployment
- Built-in MF/HF passive network allows for reduced amplifier channels
- Full-face, enclosed grille for refined aesthetics and weatherization (IP55)
- Comprehensive mounting accessories expand configuration options
- Integrates seamlessly with JBL system control and prediction software
- Compact, lightweight design
Frequency Response (-10dB) | 50Hz – 19kHz (Preset: VTX A8) |
Coverage Pattern | Horizontal: 110-degrees nominal (300Hz – 18kHz) Vertical: Varies with array size and configuration |
Max SPL | 139 dB (Preset: VTX A8) |
System Processing | Crown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD |
IP Rating | IP55 (IEC 60529) |
Dimensions (H x W x D) | 226.60mm x 761.29mm x 375.16mm 8.92in x 29.97in x 14.77in |
Weight | 29.5 kg (65.0 lbs) |

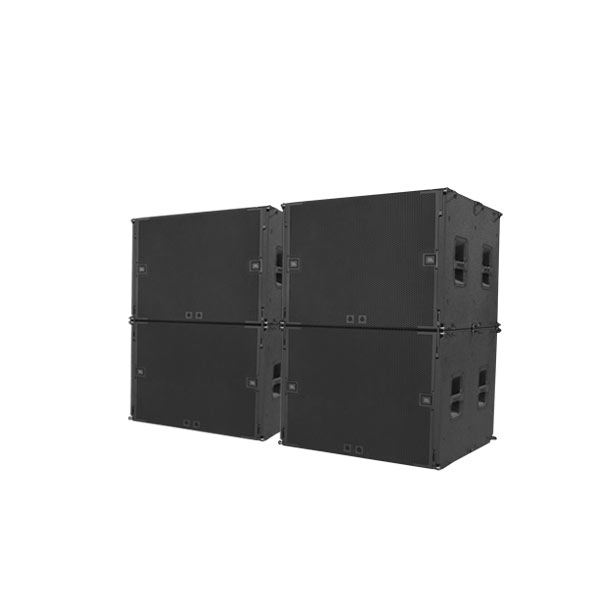

JBL VTX B18 Single 18” Subwoofer
JBL VTX B18 ตู้ลำโพงซับวูฟเฟอร์ไลน์อาเรย์ ขนาด 18 นิ้ว 1300 วัตต์ VTX B18 ตู้ลำโพงซับวูฟเฟอร์ จากแบรนด์ JBL
The VTX B18 is JBL Professional’s next-generation single 18” subwoofer, designed to complement VTX full-range sound reinforcement systems. The VTX B18 features JBL’s new 2288H 18” woofer, engineered for improved linearity, increased sensitivity and extra-long excursion. The 2288H is based on JBL’s Differential Drive, dual voice coil, dual-gap technology, which delivers better heat dissipation, lower power compression and wider dynamic range than conventional single-coil designs. The B18 incorporates JBL’s patented Slip Stream™ double-flared exponential low-frequency port design to improve airflow and reduce audible turbulence, even at maximum excursion. The B18 shares the industrial design of the JBL’s VTX A-Series products and has the same width and suspension hardware as the VTX A8, allowing the two products to be used together in a variety of flown or ground-stacked configurations. The VTX B18 can be deployed in omni-directional or cardioid configurations, in arrays of up to 16 enclosures.
- New JBL 2288 transducer offers increased sensitivity, lower distortion and improved linearity
- JBL SlipStream™ double-flared exponential ports for reduced noise and air turbulence
- Built-in, easy to use, spring-loaded rigging system
- Support for omnidirectional and cardioid array configurations
- Front and rear NL4 connectors streamline cable management
- Channel-selection switch minimizes wiring requirements
- Mechanically compatible with the VTX A8 and all A8 suspension accessories
- Full integration with JBL system prediction and control software
- Comprehensive mounting accessories expand configuration options
- Compact design
Frequency Response (-10dB) | 28Hz – 80Hz (Preset: VTX B18 80) |
Coverage Pattern | Omni-directional or Cardioid |
Max SPL | 135dB (Preset: VTX B18 80) |
System Processing | Crown Audio I-Tech 12000HD, Crown Audio I-Tech 4x3500HD |
IP Rating | IP55 (IEC 60529) |
Dimensions (H x W x D) | 551.68mm x 761.29mm x 736.6mm 21.72in x 29.97in x 29.0in |
Weight | 68 kg (150 lbs) |

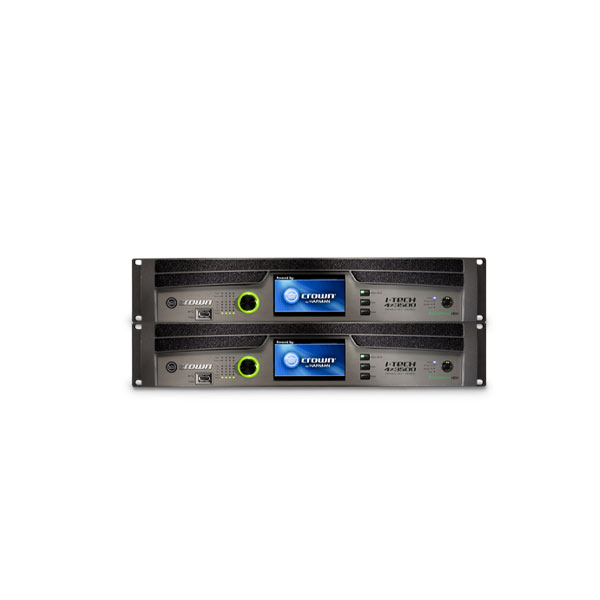

CROWN I-Tech 4x3500HD Four-channel, 4000W @ 4Ω Power Amplifier
The I-Tech 4x3500HD amplifier is the industry’s first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown’s patented Class-I technology delivering uncompromising power output across all four channels, and it’s easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
More Flexibility
- True Ethernet backbone – fast, reliable and scalable
- Color LCD provides users with diagnostics and presets for easy setup
- Includes SLM (Sweep Load Monitoring) with system-level diagnostics
- Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
- New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
- The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
No Compromise
- BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
- High common-mode rejection eliminates hum and RFI on input cables
- Professional-grade connectors for all inputs and outputs
- Full power-supply voltage is always available, allowing instantaneous power on demand
- Quality-graded components let you safely drive the amplifier harder
- More total capacitance provides tremendous energy reserves for power bursts
No Comparison
- The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
- LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
- Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
- Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)
Channels | 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet) |
Sensitivity | Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms |
Damping Factor | > 5000 |
Signal to Noise Ratio | ≥ 108dB |
THD (full rated power, 20 Hz – 20 kHz) | 0.35% |
Frequency Response | ± 0.25dB |
Intermodulation Distortion (from 0 dB down to -40 dB) | 0.06% |
Crosstalk | > 80dB |
Common Mode Rejection | > 80dB typical |
Dimensions | 3.3″ x 19″ x 16.95″ (8.9 cm x 48.3 cm x 43.1 cm) |
Net Weight | 29 lbs (13.2 kgs) |
Power Connector | 32A powerCON (on amp) – L6-30 plug (into wall) |
