JTS PMM-4 มิกเซอร์เสียงส่วนบุคคล 4 ชาแนล

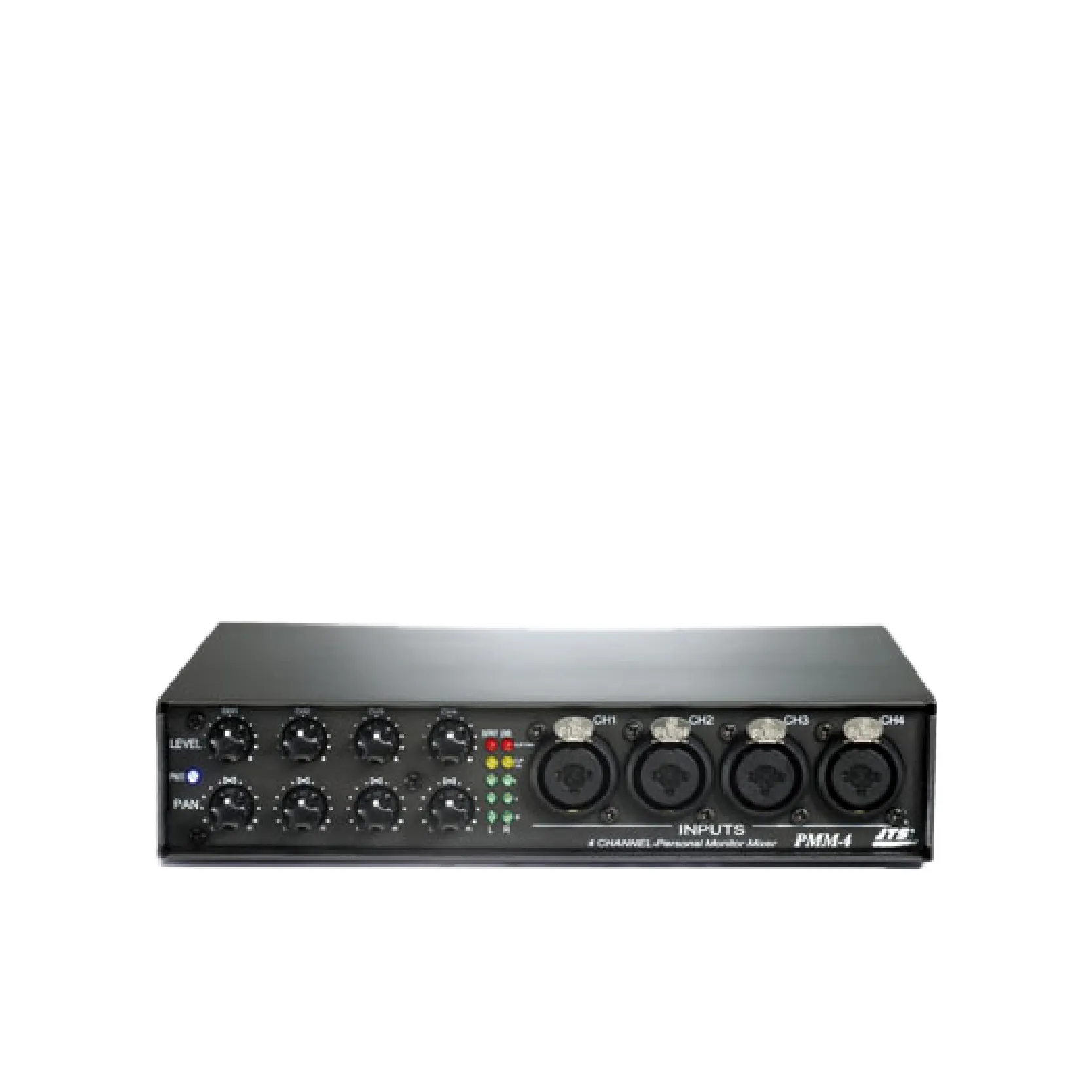

JTS PMM-4
Personal Monitoring Mixer
The PMM-4 is ideal as a primary or submixer for meeting rooms, Houses of Worship, broadcast and educational public address systems. Four inputs with XLR 1/4” phone jack combo connecter. Two additional auxiliary inputs and four split outputs are provided for expansion capabilities.
คุณสมบัติ
- Personal Monitor Mixing
- Courtrooms, Meeting Rooms
- Restaurants, Schools
- House of Worship
- Aerobics/Health Club
สเปค
PMM-4 |
|
| Frequency Response | 22~22,000 Hz |
| Distortion | <0.025% |
| Noise. | <-61dB |
| CMRR | >70dB |
| Power Supply | 12~18VDC, 600mA |
| Dimensions (mm) | 205(D)*212(W)*43.5(H) |
| Net Weight | 1.41kgs |
| Input Connector | XLR / 1/4” balance phone jack combo |
| Input Impedance | 5.9KΩ |
| AUX Input Connector | 1/4” phone jack (left / right channel) |
| AUX Input Impedance | 18.2 KΩ(MONO:9.1 KΩ) |
| Main Mix Output Connector | 1/4” phone jack (left / right channel) |
| Main Mix Output Impedance | balanced:1KΩ, unbalanced:500Ω |
| Output level (Max) | 6.5±0.3dB (INPUT CH1~4) |
| Split Output Connector | XLR |
| Split Output Noise | <-110dB |
