อุปกรณ์เสริมมิกเซอร์ KLARK TEKNIK DN32-LIVE สำหรับ Midas M32 และ Behringer X32 การควบคุมระยะไกลผ่านแอพ PC, Android หรือ iPad จากยี่ห้อ KLARK TEKNIK

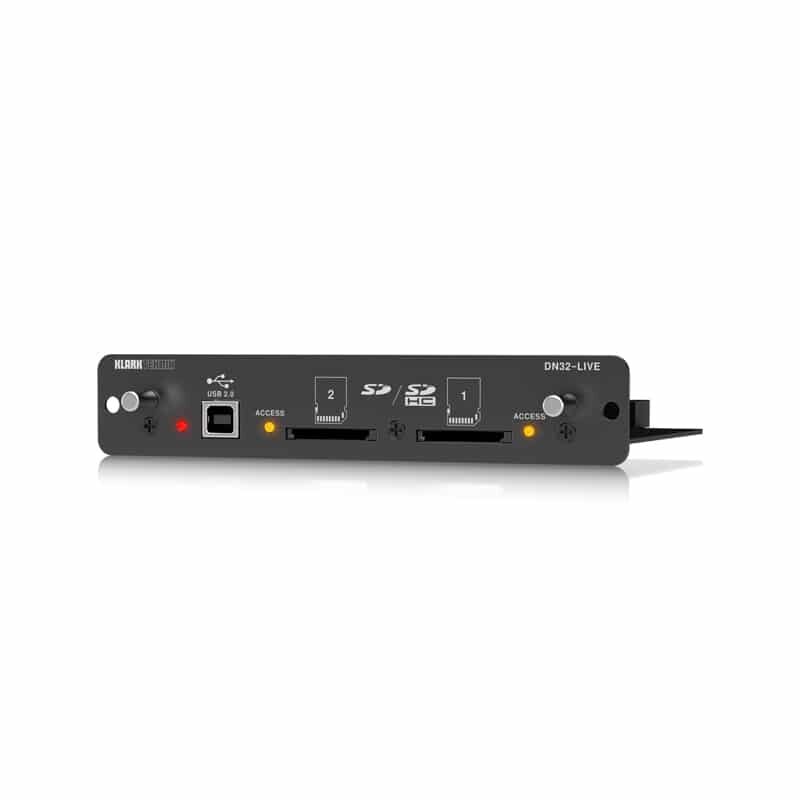

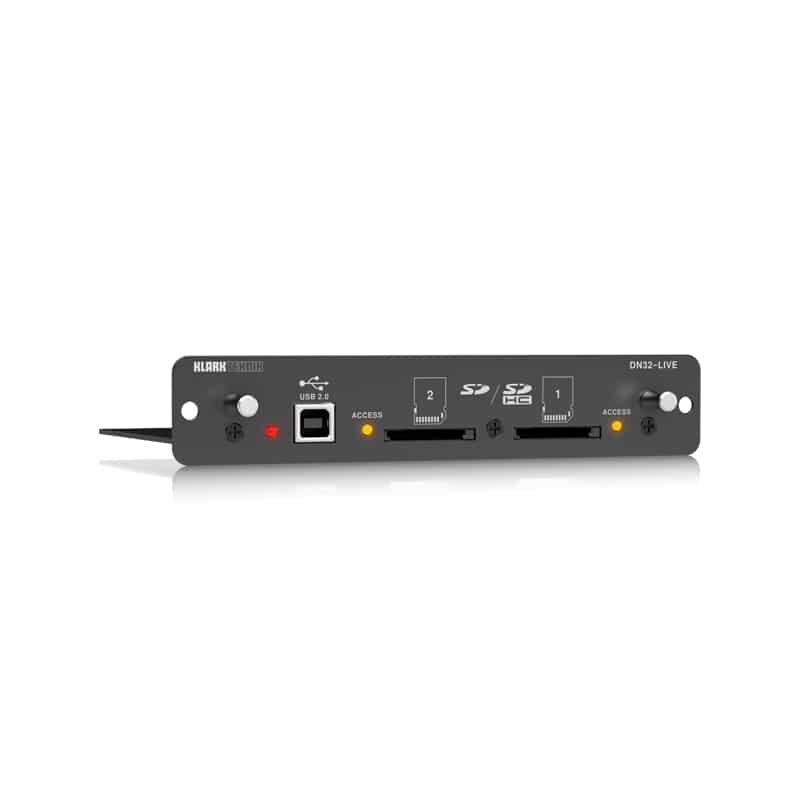

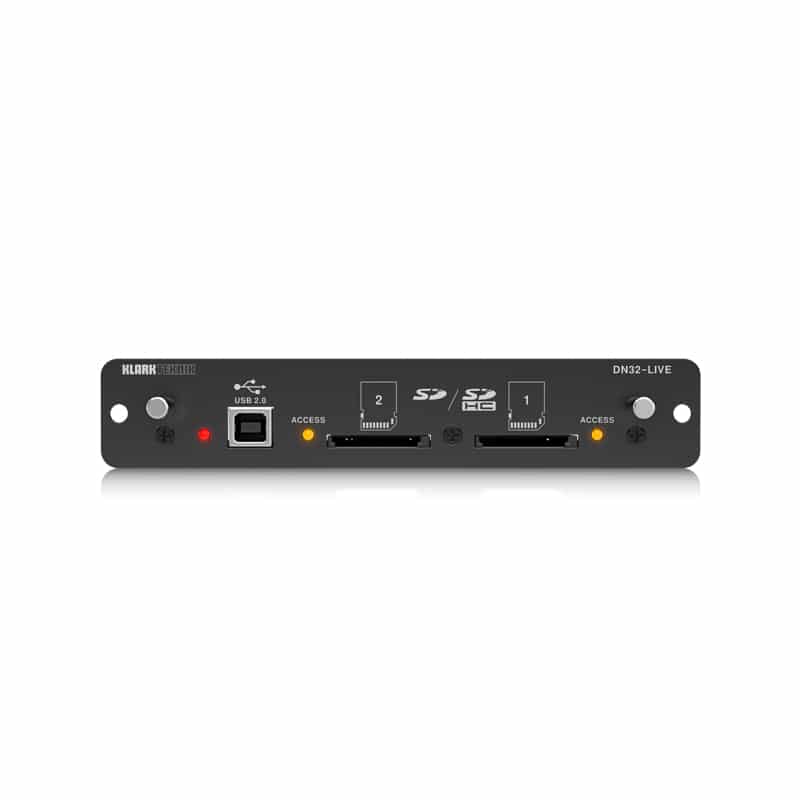

KLARK TEKNIK DN32-LIVE
SD/SDHC and USB 2.0 Expansion Module for 32 Bidirectional Channels of Live Recording/Playback
DN32-DANTE
The DN32-DANTE expansion card provides up to 32 channels of bidirectional, networked audio to your Midas M32 or Behringer X32 mixing console for seamless integration with Dante enabled IP networks. Based on information technology standards, Dante provides uncompressed, multichannel digital media networking, with low latency and synchronisation. By focusing on flexible interoperability on an existing IP network infrastructure, Dante has been widely accepted and adopted by many pro audio manufacturers.
Connectivity and Redundancy
DN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote control data for your console with bidirectional multichannel audio streams on the same cable.
When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection, and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches. For a list of compatible switches, visit www.audinate.com.
Clock Synchronisation and Routing
The DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. All routings and device parameters can be controlled from anywhere in the network, and are exclusively made using the Dante Controller application, which is available free of charge at www.audinate.com.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
- USB 2.0 expansion module for Midas and Behringer digital consoles

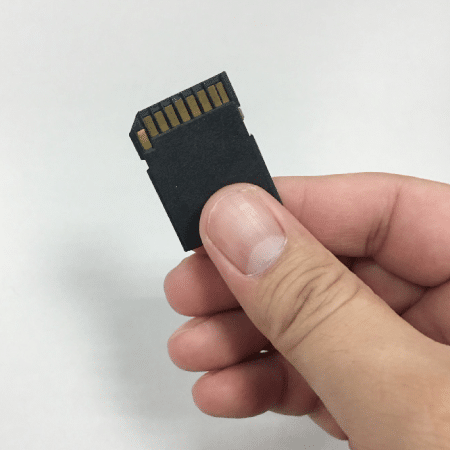

- 32-channel live recording and playback on dual SD/SDHC cards
- Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files
- Up to 32 bidirectional channels @ 48 kHz of recording and playback
- Independent operation of SD cards and USB recording / playback

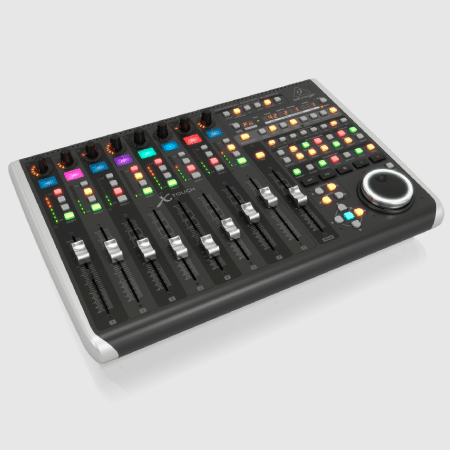

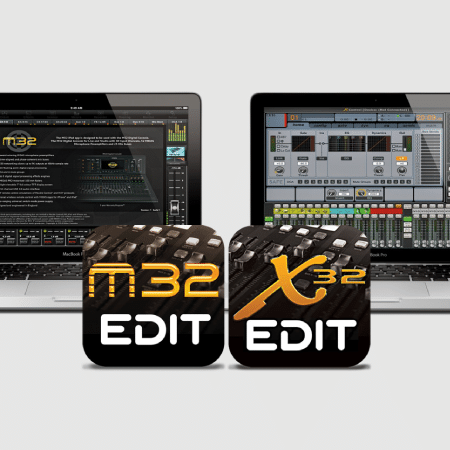

- Remote control via PC, Android* or iPad* apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH
- Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time
- Sample-accurate automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop

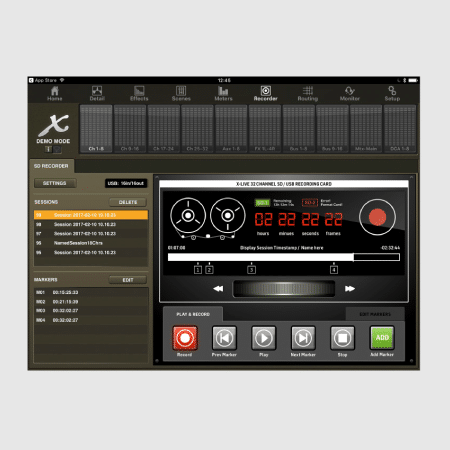

- Instantaneous live playback with preload and markers in the console UI and remote apps
- Markers can be set on the fly for identifying song positions while recording or playing back
- All markers can be edited directly in the console GUI
- Seamless computer integration for virtual sound checks and software plug-ins
- Channel routing can be stored and automated for record/playback
- Secure file handling in the event of power blackout (optional CR123A Lithium cell required)
- Enables remote control of compatible DAW software via emulations of Mackie Control* and HUI* protocols
- Compatible with CoreAudio on Mac OSX* – ultra-low latency ASIO* drivers for Windows* PC available
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
