DN32-MADI

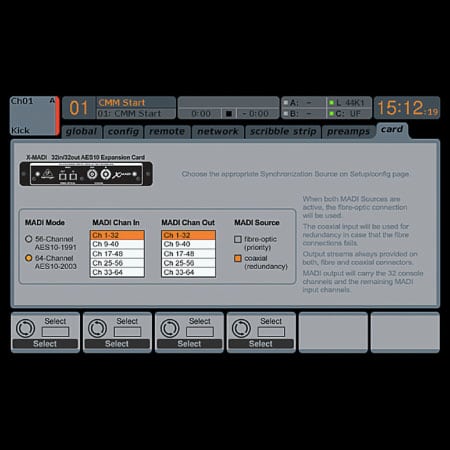

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.

Connectivity and Redundancy

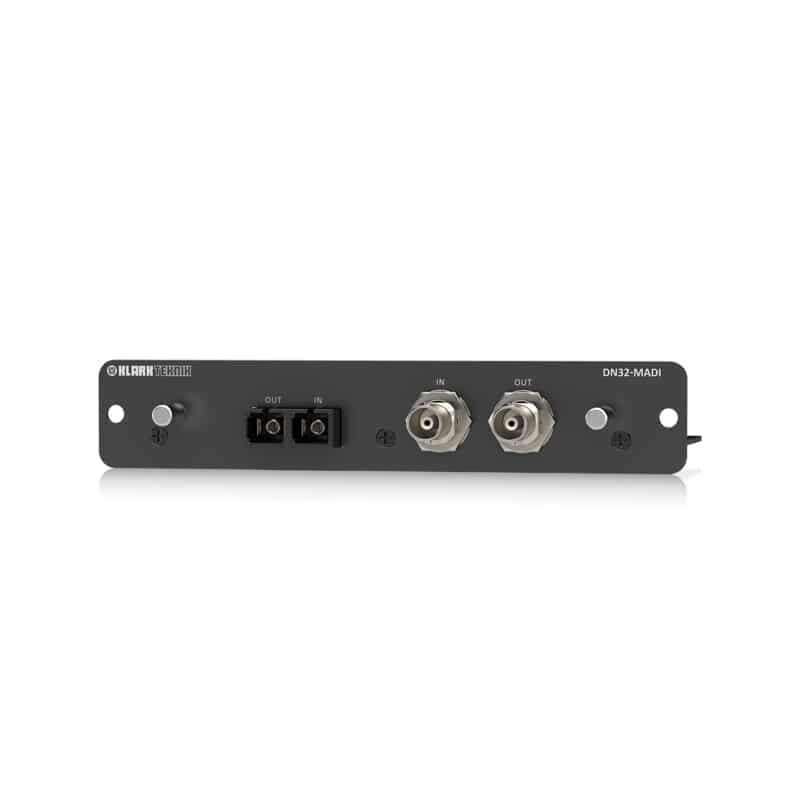

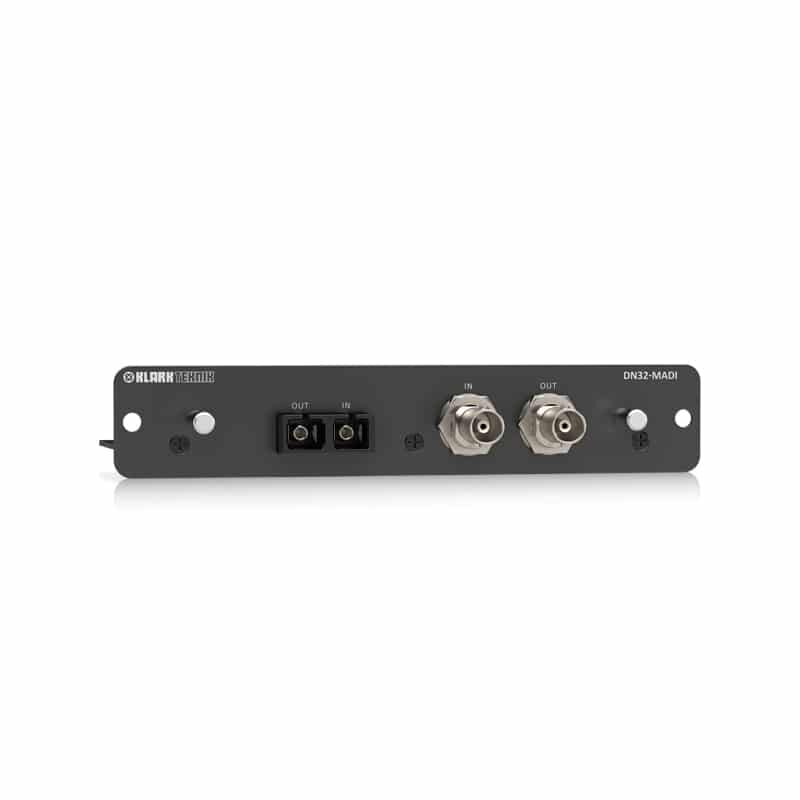

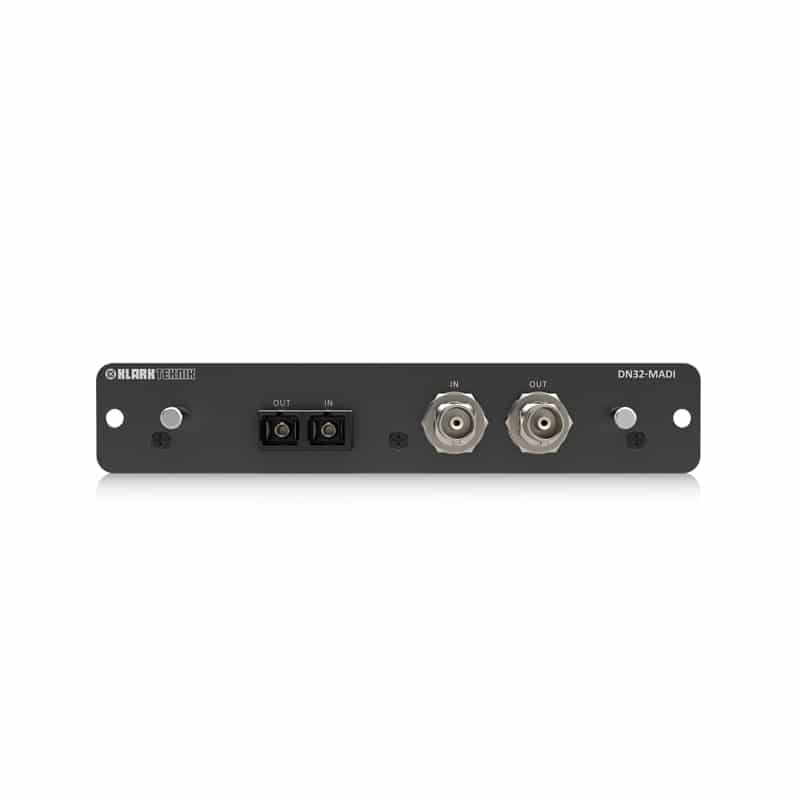

DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. Klark Teknik has tested multimode cable connections of 500 metres in length successfully, and distances of up to 2 km may be possible.

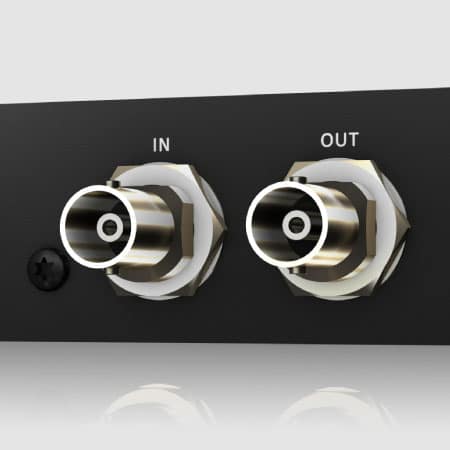

Dual BNC connectors are also provided for transmission on standard 75-Ohm coaxial cables up to 100 metres in length. When both the optical and coaxial interfaces are utilised, the coaxial I/O serves as a redundant connection, and is automatically activated should the optical connection become unavailable.

Clock Synchronisation and Routing

The DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. All routings and device parameters can be controlled from anywhere in the network, and are exclusively made using the Dante Controller application, which is available free of charge at www.audinate.com.
