ชุดลำโพง Active Column LD SYSTEMS CURV 500 TS HF 1×18 นิ้ว และ MF 4×6 นิ้ว ซับวูฟเฟอร์ 15 นิ้ว 1000 วัตต์ จากแบรนด์ LD SYSTEMS

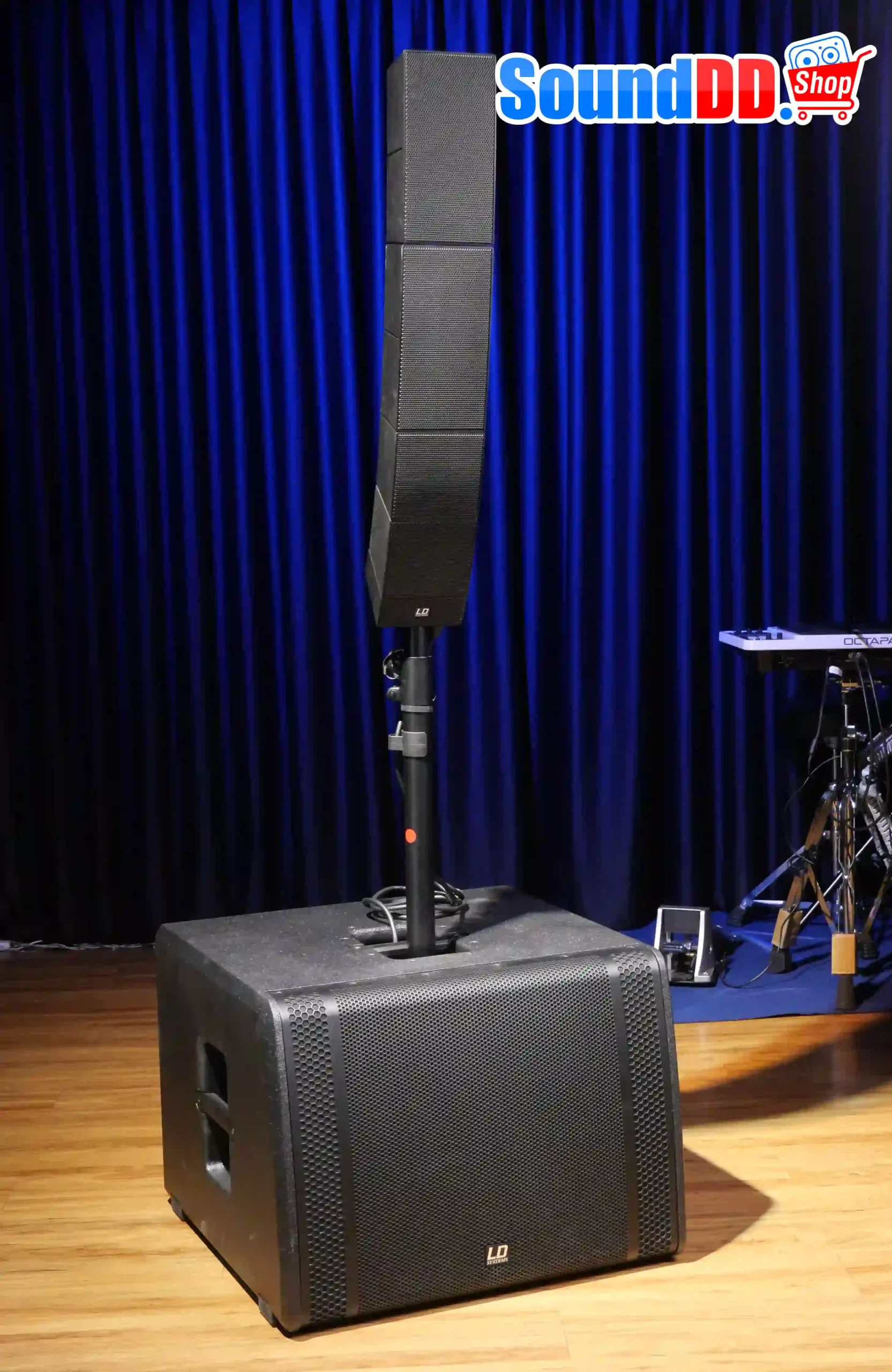

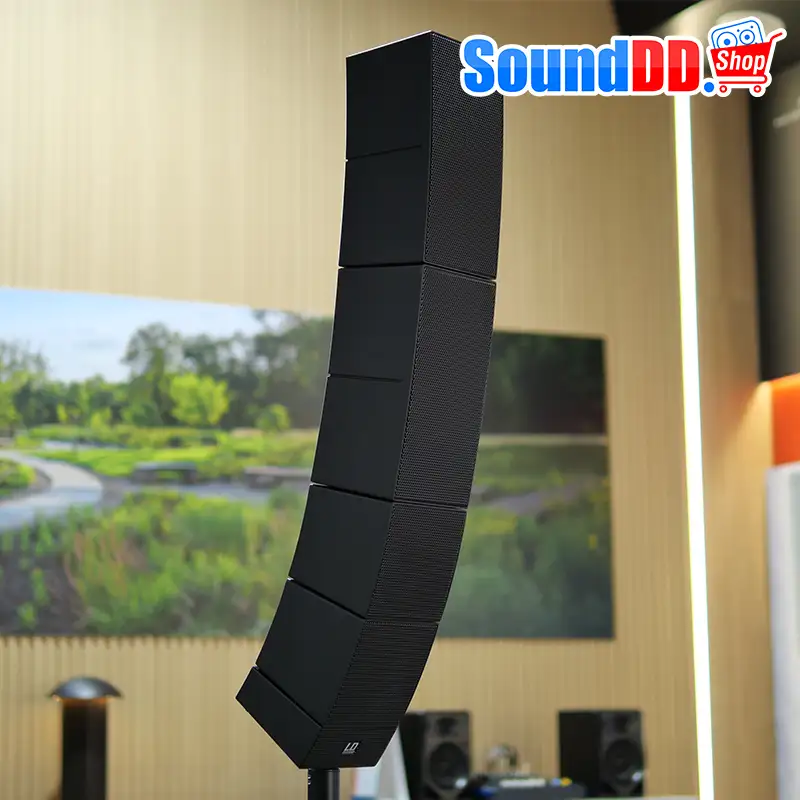

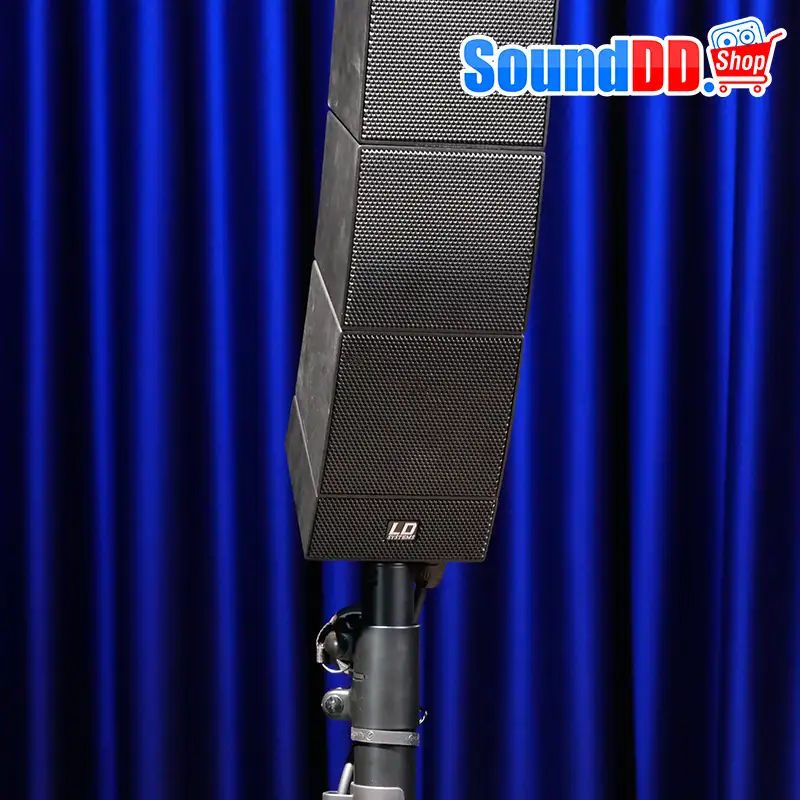

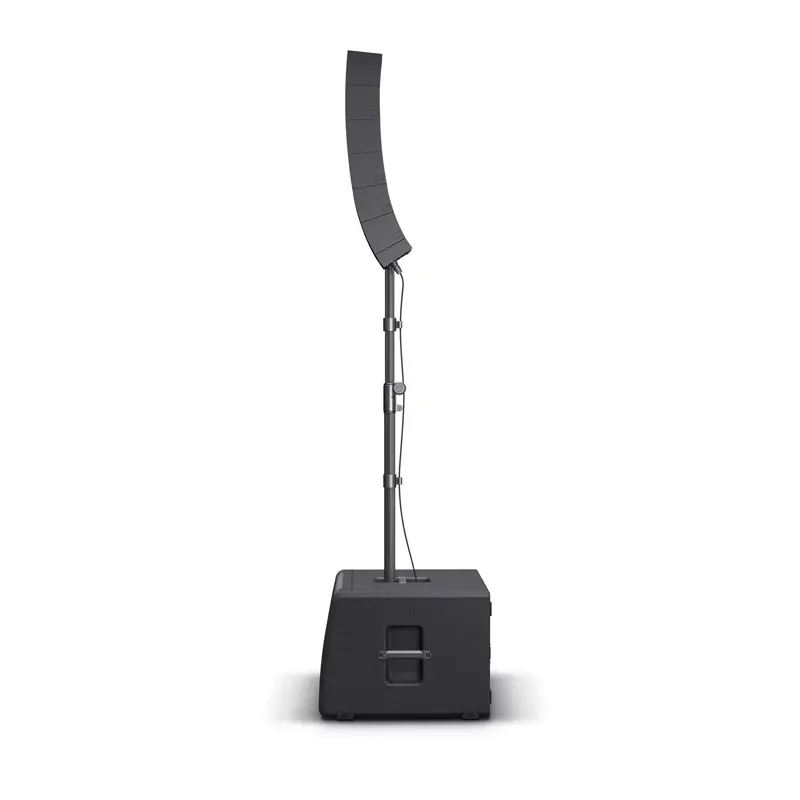

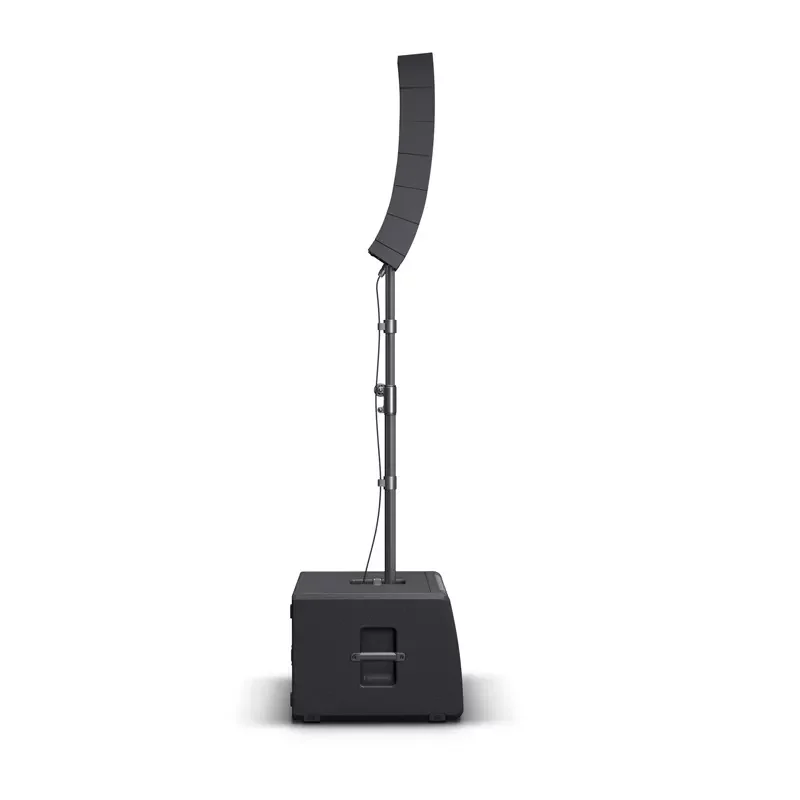

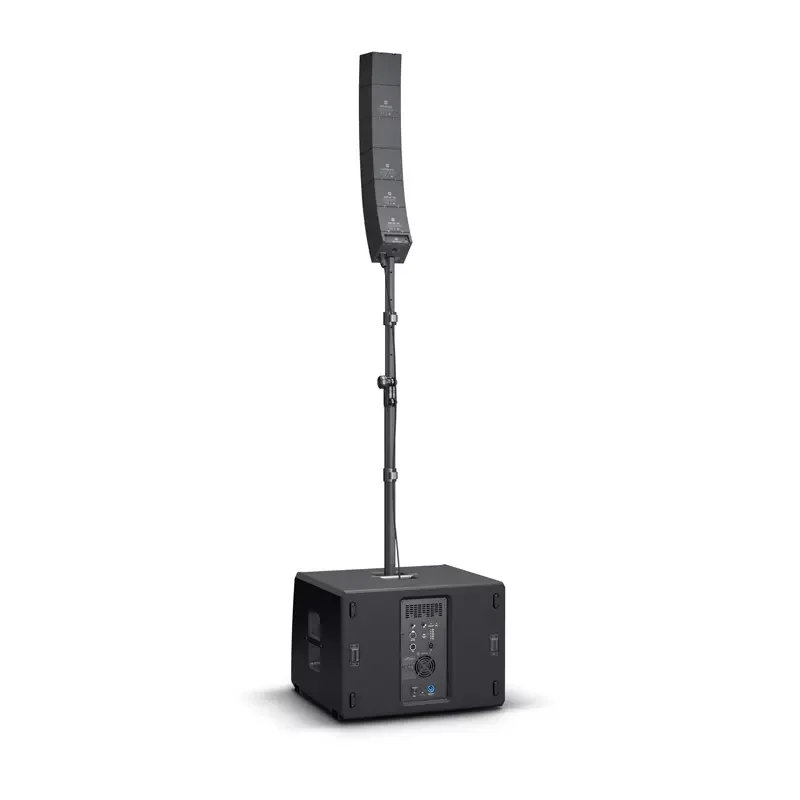

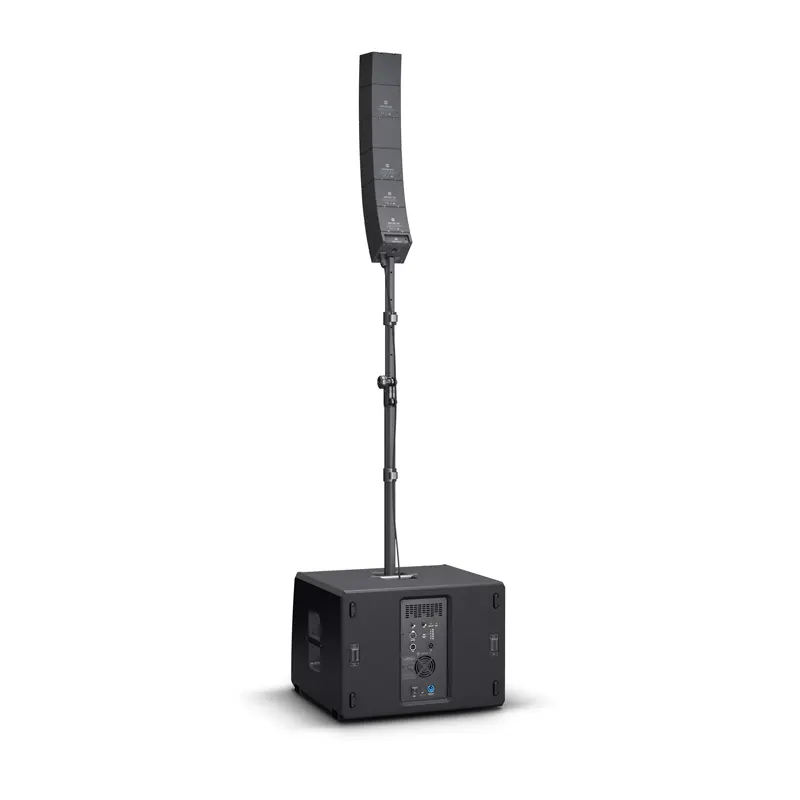

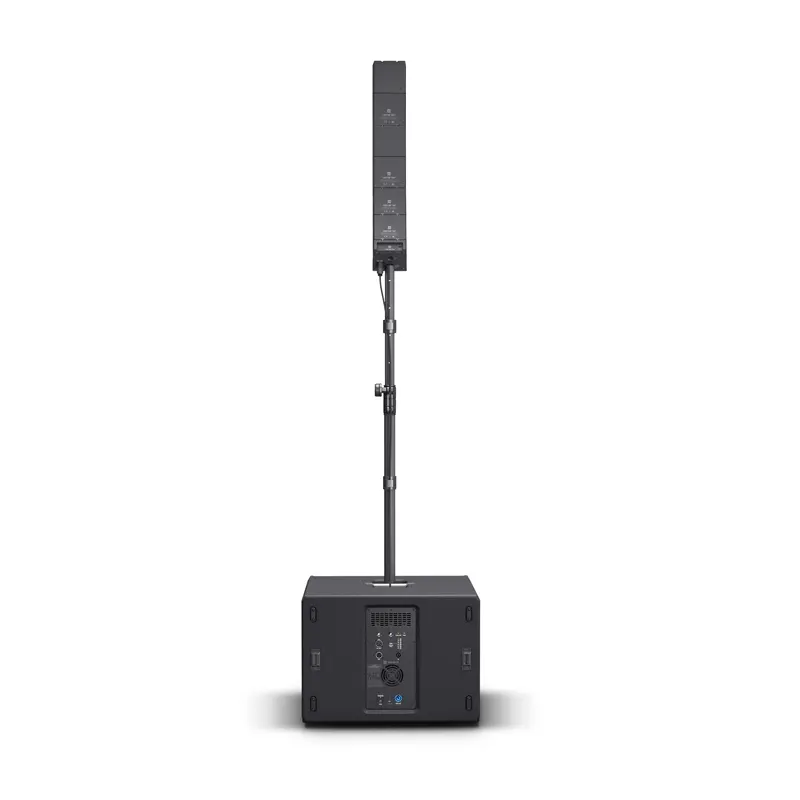

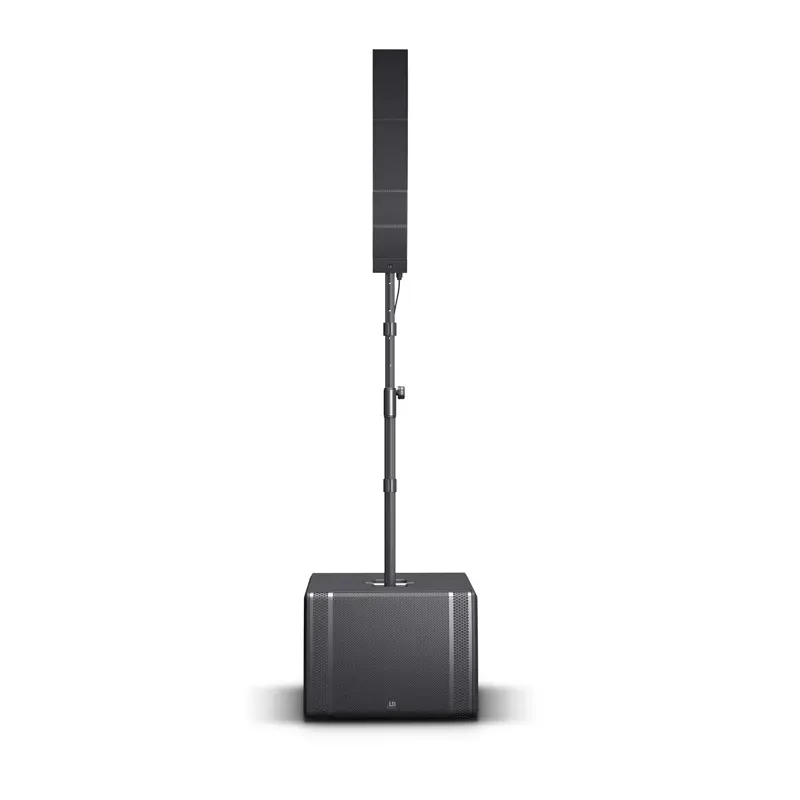

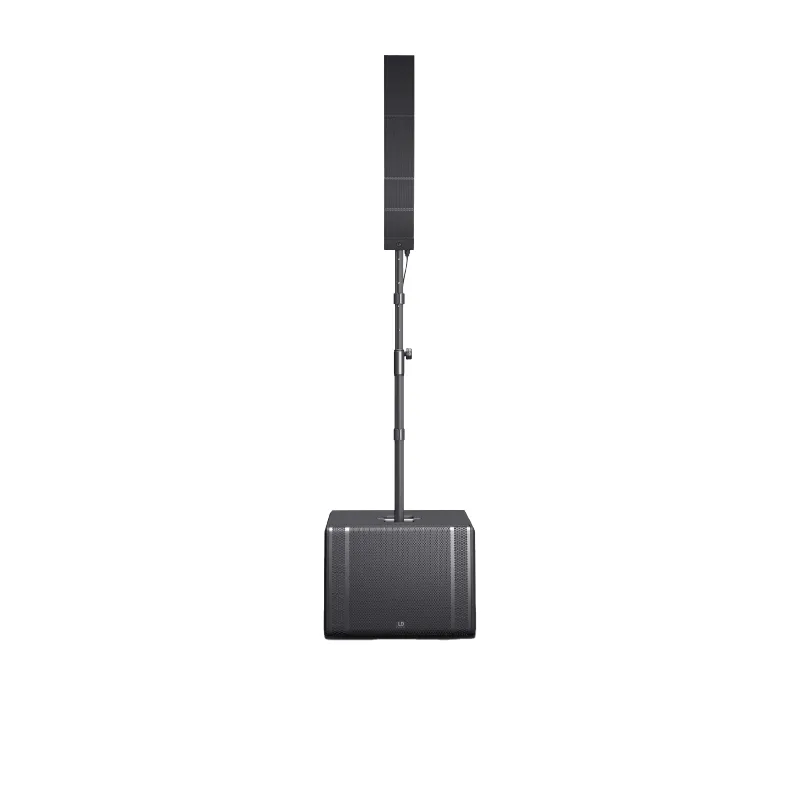

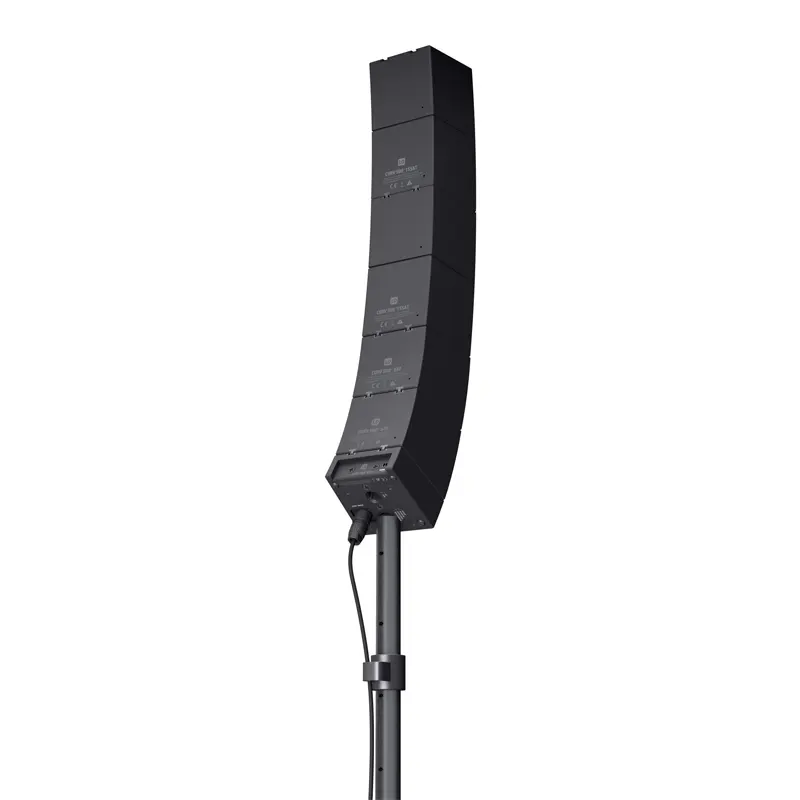

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4″ midrange and triple 1″ high frequency drivers using LD Systems’ WaveAhead® technology, and two duplex satellites with twice the speaker complement.

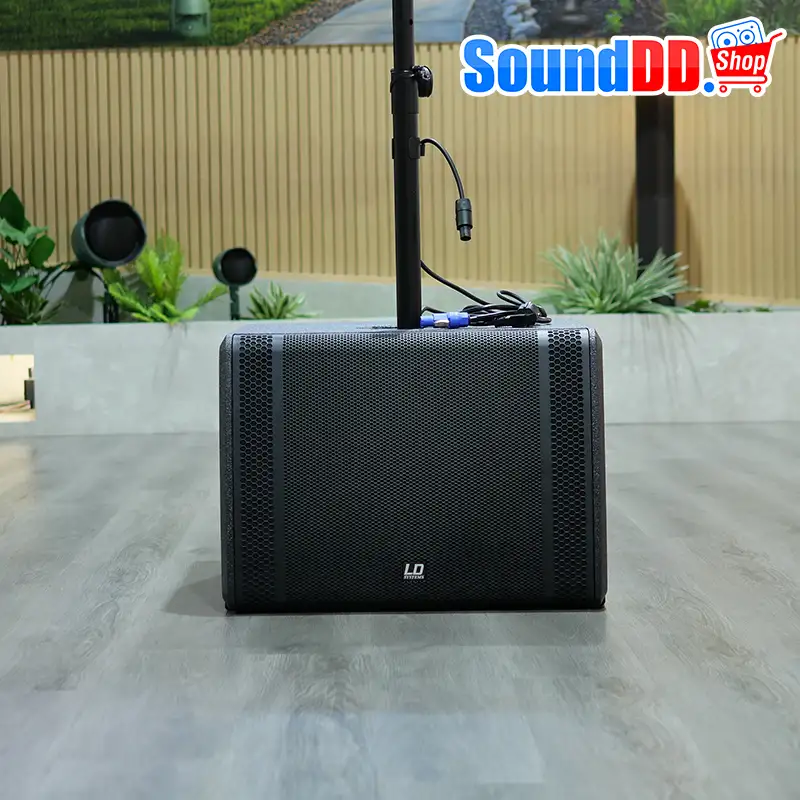

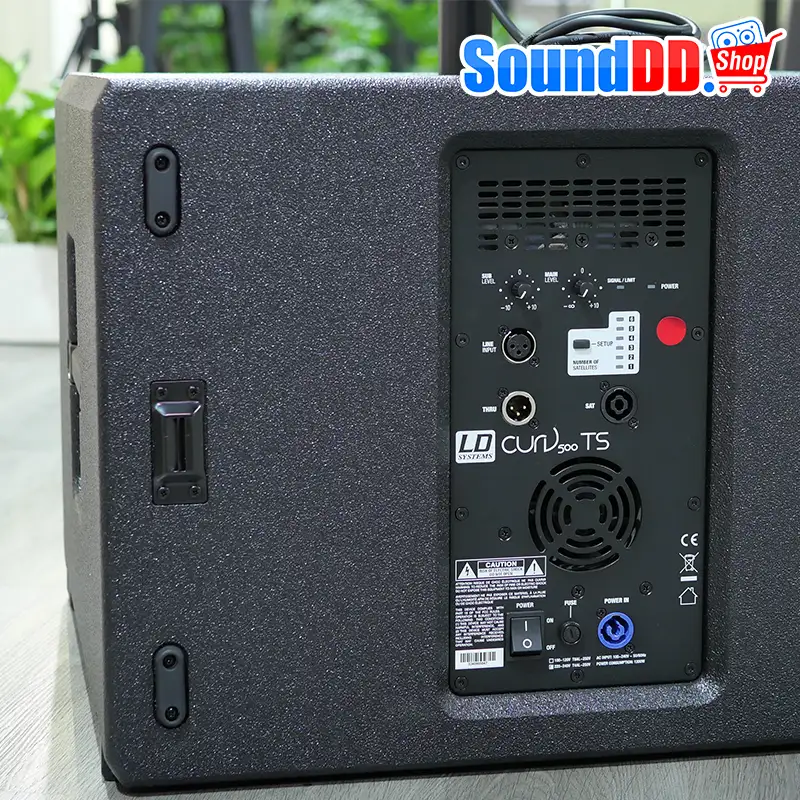

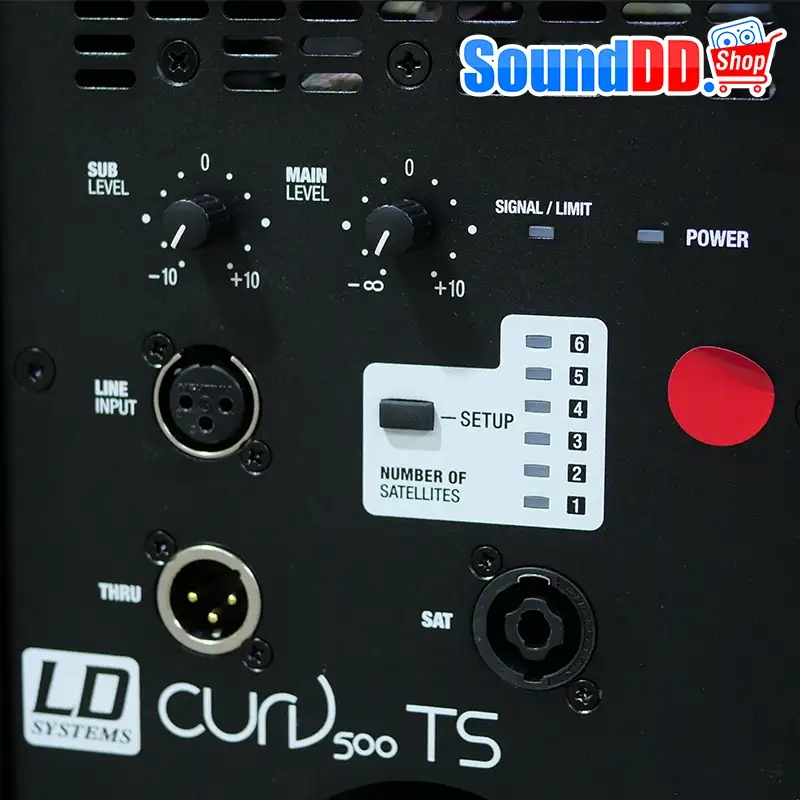

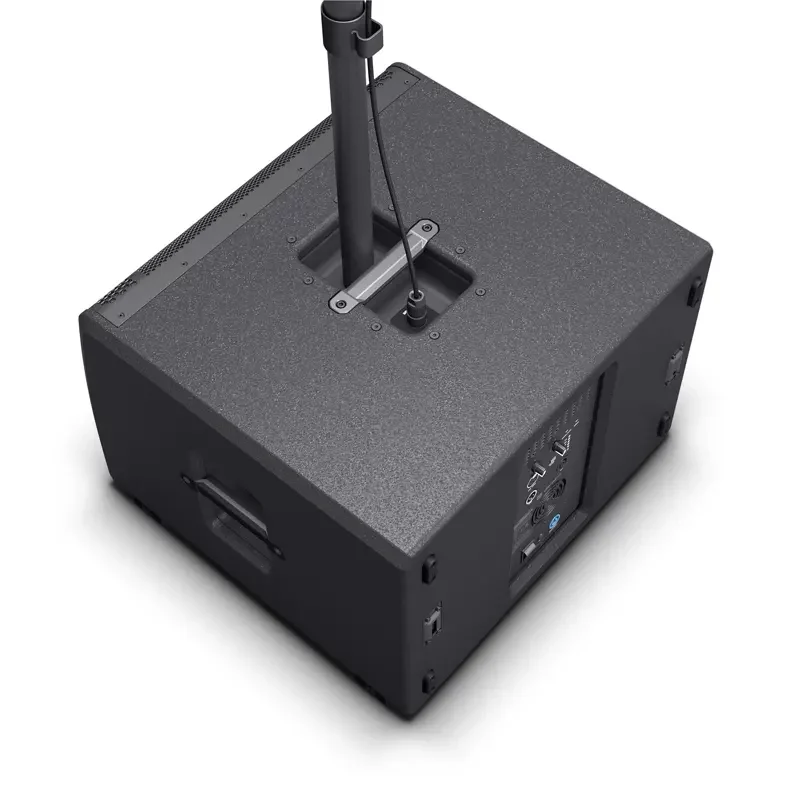

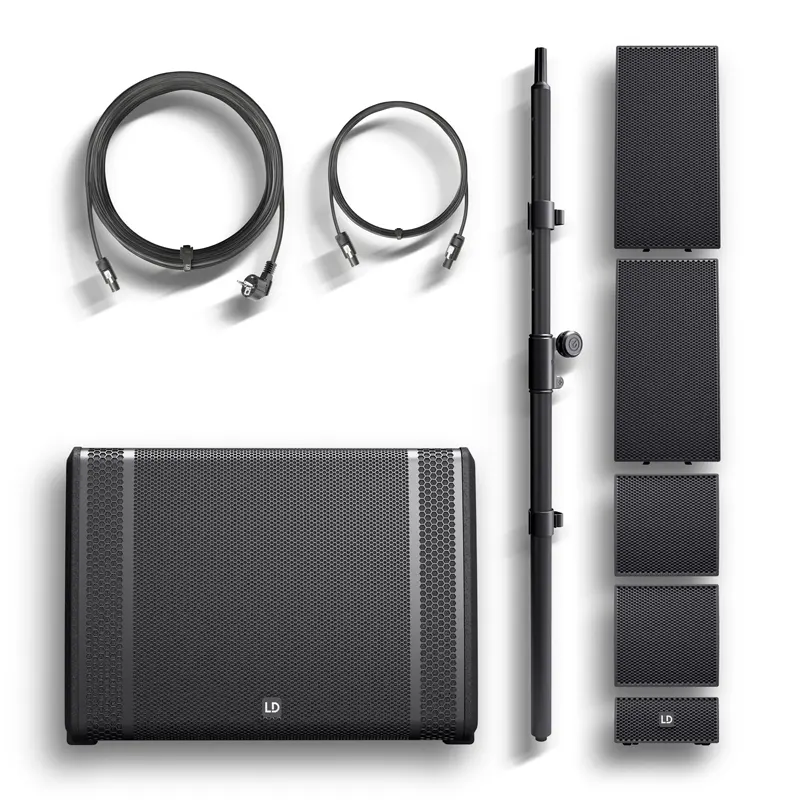

The ported 15″ subwoofer base includes the CURV 500® Touring Array System’s class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
คุณสมบัติ
- Portable touring array system for live events, DJs and bands
- 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
- 1,000 watts RMS system power and 131 dB max. SPL
- Fully scalable for far and near field applications

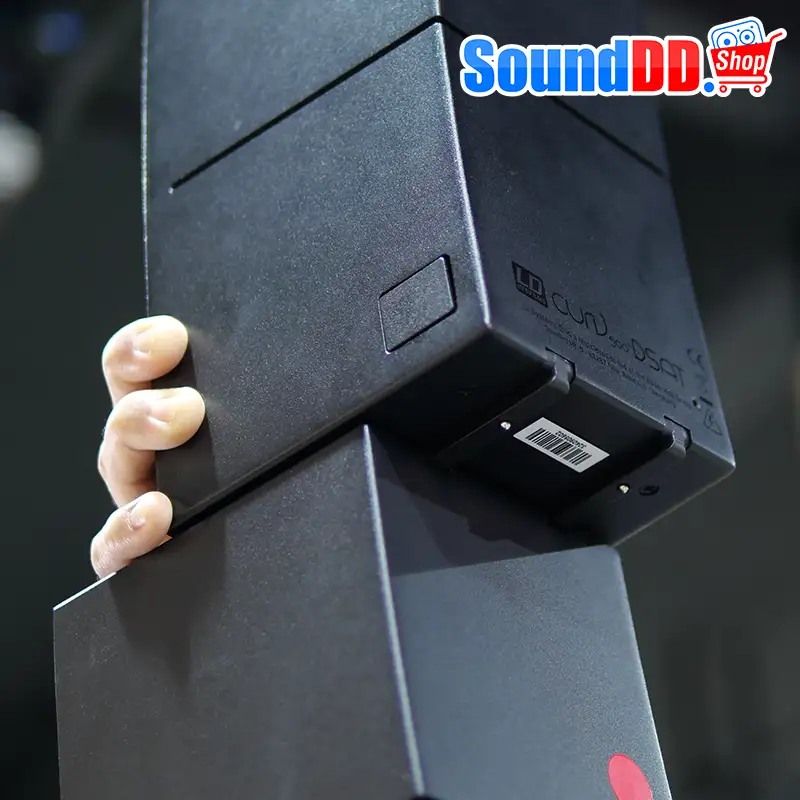

- SmartLink® plug & play adapter for versatile application
- Durable aluminum unibody satellite construction
- 18 mm birch ply subwoofer cabinet with Polyurea finish
- Ergonomic handles for convenient transport and setup
สเปค
| Product type |
PA Complete Systems |
| System output (RMS): |
1000 W |
| Color |
Black |
| Number of array satellites |
4 |
| Number of Smartlink adapters |
1 |
| Number of subwoofers |
1 |
| Max. SPL (continuous) |
125 dB |
| Max. SPL (peak) |
131 dB |
| Frequency response |
40 – 20000 Hz |
| Dispersion (H x V) |
110° horizontal, vertical 34 |
| RMS |
Subwoofer: 700 W , Array Satellites: 300 W |
| Peak power |
Subwoofer: 1400 W , Array Satellites: 600 W |
| Amplifier |
Class D |
| Protection circuits |
DSP-based multiband limiter, overload, short circuit, thermal overload |
| Weight |
48,2 kg |
| Accessories (included) |
Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m) |

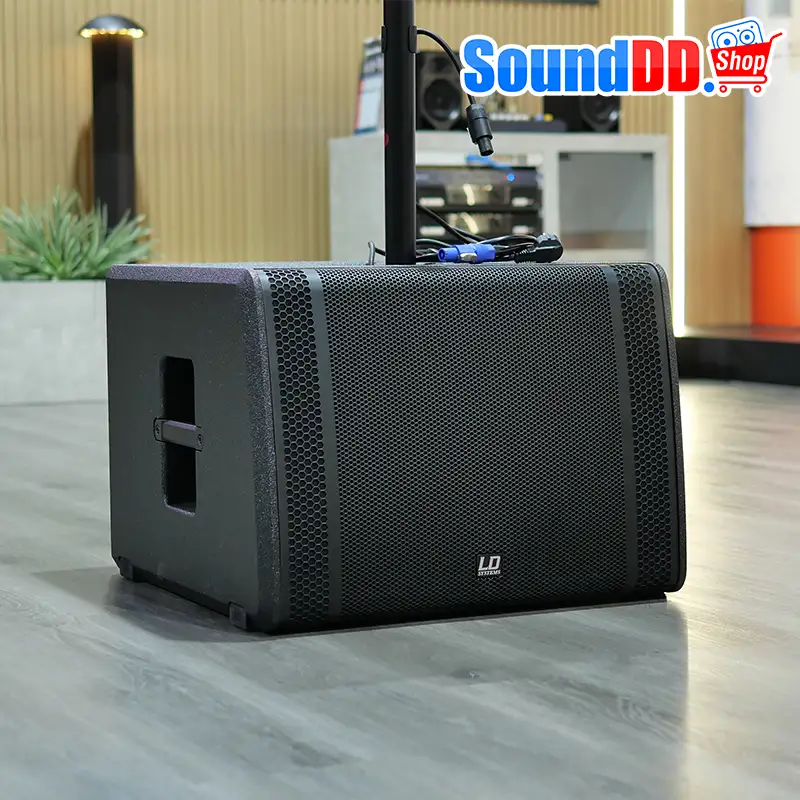

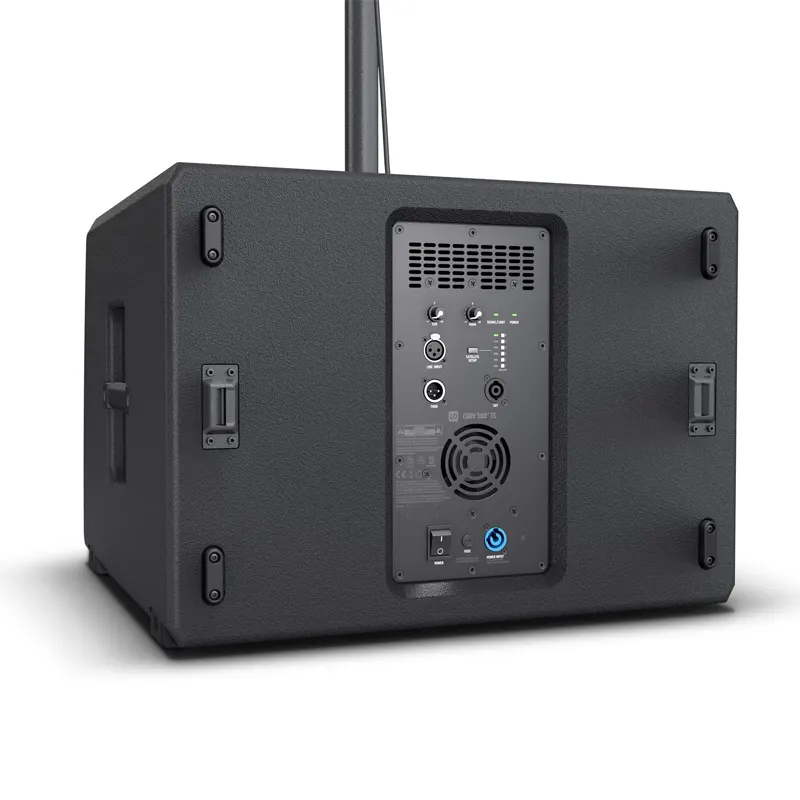

Subwoofer
| Low/mid driver dimensions |
15 “ |
| Low/mid driver dimensions (mm) |
381 mm |
| Cabinet construction |
Bass Reflex |
| Housing material |
plywood |
| Cabinet surface |
Polyurea |
| Dimensions Subwoofer (W x H x D) |
600 x 437 x587 mm |
| Subwoofer weight |
35.5 kg |
| Subwoofer features |

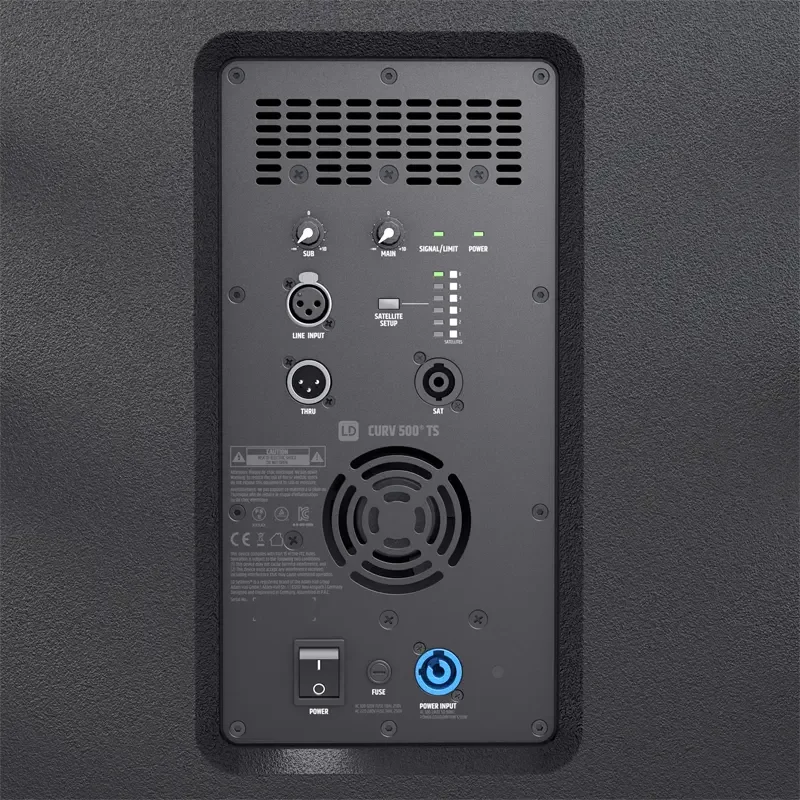

4 ergonomic handels, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20 |

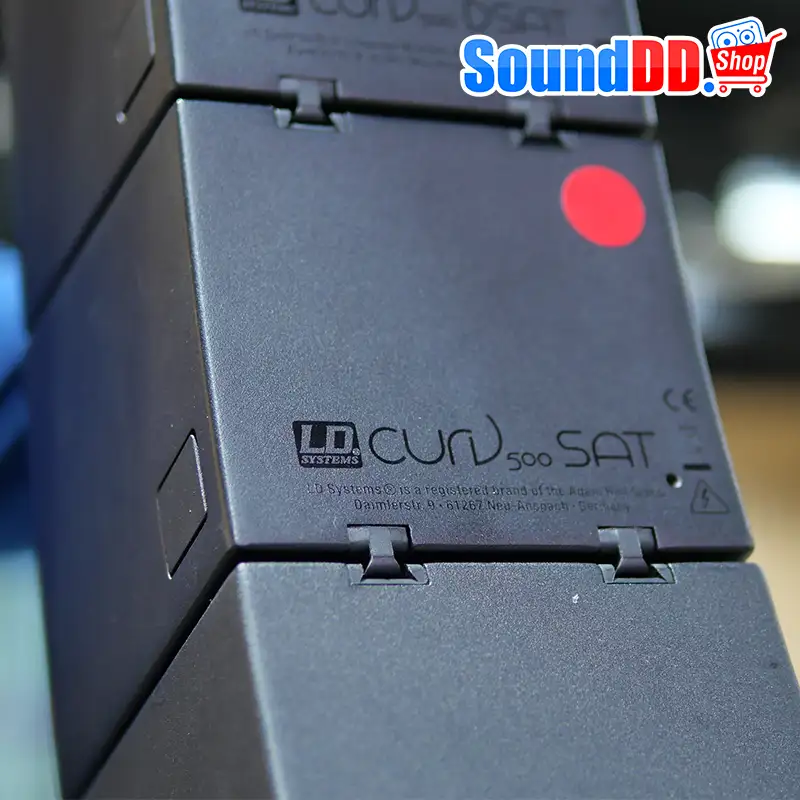

LDCURV500DSAT – LD Systems CURV 500 TS Duplex Satellite Black
| Product type |
Installation Loudspeakers |
| Type |
Wall-mounted Loudspeaker |
| Midrange size |
2 x 4 “ |
| Tweeter dimensions |
6 x 1 “ |
| Load rating (RMS) |
80 W |
| Peak power |
160 W |
| Dispersion |
110° horizontal, vertical (each satellite) 7 ° |
| Impedance |
8 Ohm(s) |
| SPL (1W/1m) |
91 dB |
| Max. SPL |
110 dB |
| Material |
Die-cast aluminium |
| Surface |
Powder coated |
| Width |
122 mm |
| Height |
240 mm |
| Depth |
126 mm |
LDCURV500S2 – LD Systems CURV 500 TS Two Array satellites for the CURV 500® Portable Array System, black
| Product type |
PA Complete Systems Accessories |
| Type |
Array Satellites |
| Midrange size |
1 x 4 “ |
| Tweeter dimensions |
3 x 1 “ |
| Load rating (RMS) |
40 W |
| Peak power |
80 W |
| Speakers per amplifier channel (DSP44/45K) |
8×1, 4×2, 2×3, 2×4, 5, 6 (LOW Z) |
| Dispersion |
110° horizontal, vertical (each satellite) 10 ° |
| Impedance |
16 Ohm(s) |
| SPL (1W/1m) |
88 dB |
| Max. SPL |
104 dB |
| Color |
Black |
| Height |
122 mm |
| Depth |
122 mm |
| ##Weight (pair) |
3.44 kg |
| Features |
WaveAhead® Technology |
LDCURV500SLA – LD Systems CURV 500 TS SmartLink Adapter for up to six LD CURV 500® Satellites, Black
| Type |
Smartlink® Adapter |
| Connectors |
1x Speakon compatible |
| Height |
57 mm |
| Depth |
57 mm |
| Features |
2x M6 thread for optional wall mount |
| Weight |
0,35 kg |
