ลำโพงติดผนัง LD SYSTEMS SAT 82 G2 ขนาด 8 นิ้ว 2 ทาง 120 วัตต์ กลมกลืนไปกับสภาพแวดล้อมได้อย่างลงตัว จึงเหมาะสำหรับระบบภายในบ้าน จากแบรนด์ LD SYSTEMS

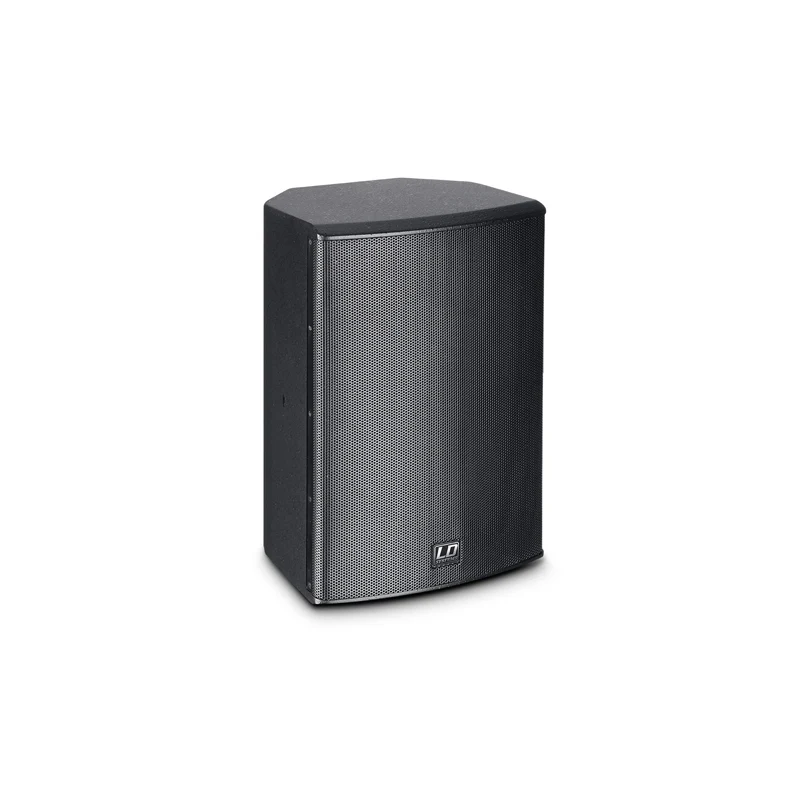

LD SYSTEMS SAT 82 G2
8″ Installation Monitor passive black
The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8″ custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz – 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

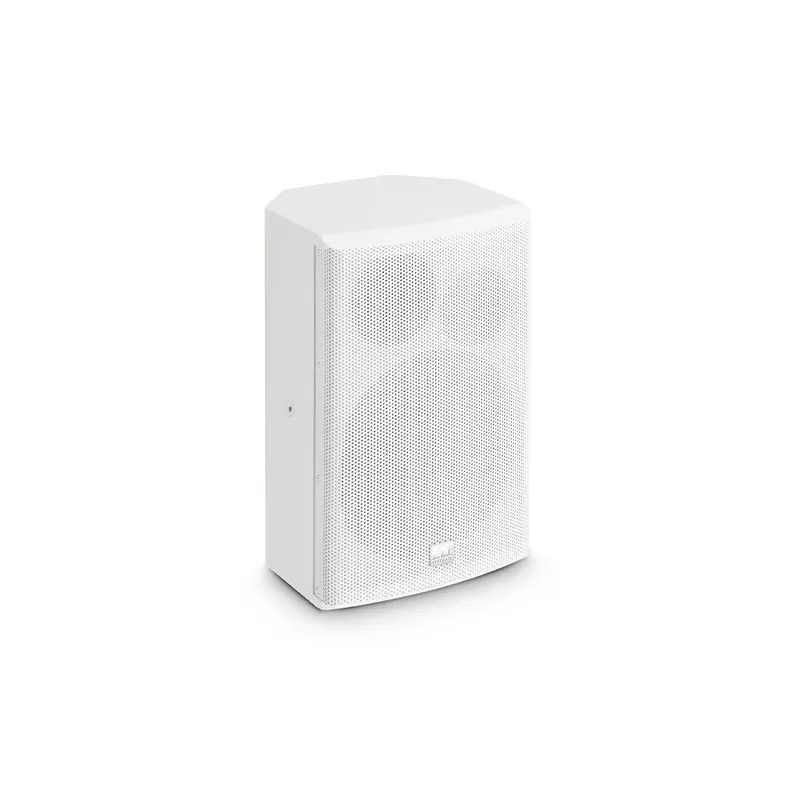

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
สเปค
Product type | Installation Loudspeakers |
Type | Wall-mounted Loudspeaker |
Low/mid driver dimensions | 8 “ |
Woofer size | 203 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
HF driver dimensions | 1 “ |
HF driver size | 25 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
Dispersion (H x V) | 60 x 60 |
Load rating (RMS) | 120 W |
Frequency response | 50 – 20000 Hz |
SPL (1W/1m) | 93 dB |
Max. SPL | 114 dB |
Impedance | 8 Ohm(s) |
Protection circuits | HF Driver |
Loudspeaker inputs | 1 |
Speaker input connections | Clamp connector |
Speakers per amplifier channel (DSP44/45K) | 4 |
Cabinet material | 15 mm MDF |
Cabinet surface | texture paint |
Cabinet colour | Black |
Cabinet construction | Bass Reflex |
Width | 274 mm |
Height | 410 mm |
Depth | 243 mm |
Weight | 7 kg |
