MACKIE 1202VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 12 ชาแนล MACKIE 1202VLZ4 มิกเซอร์อนาล็อก จากแบรนด์ MACKIE

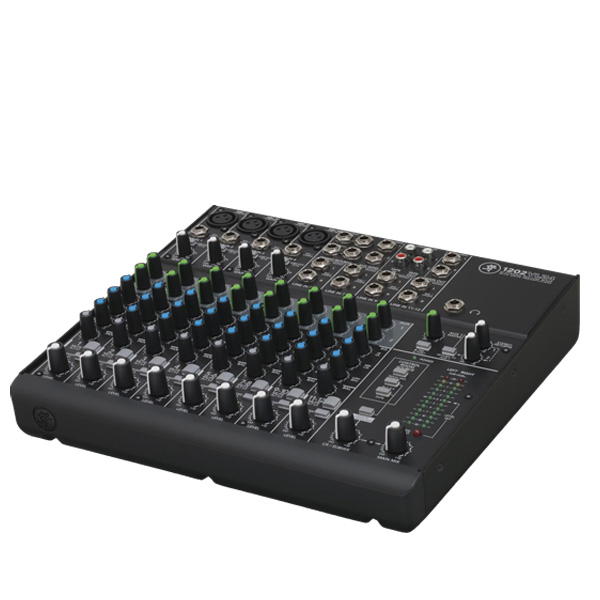

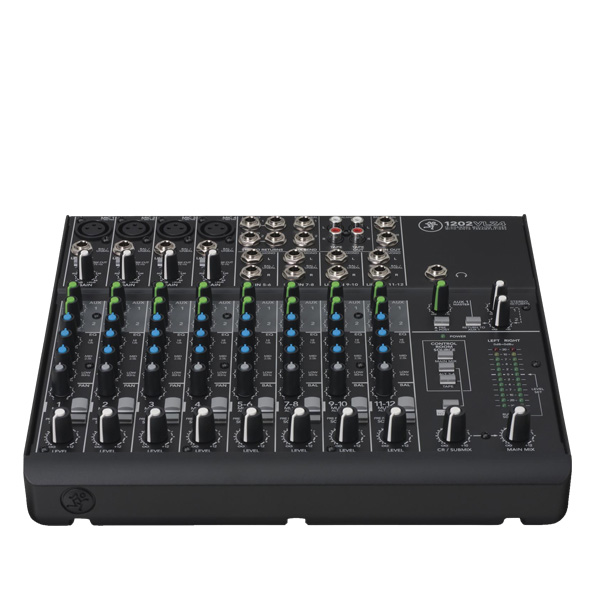

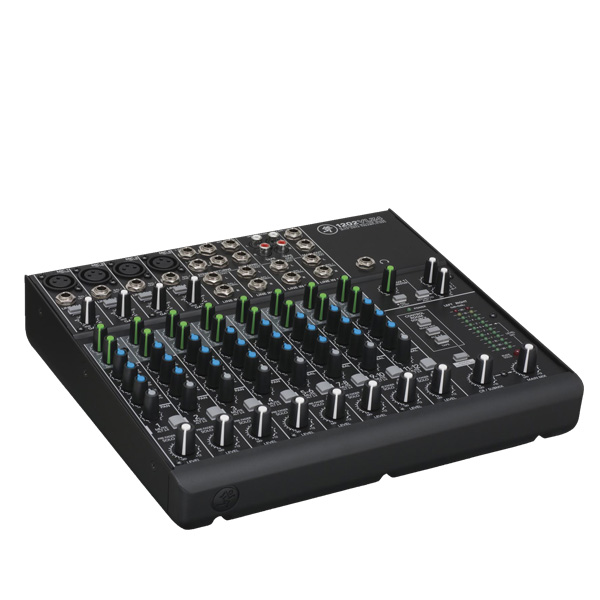

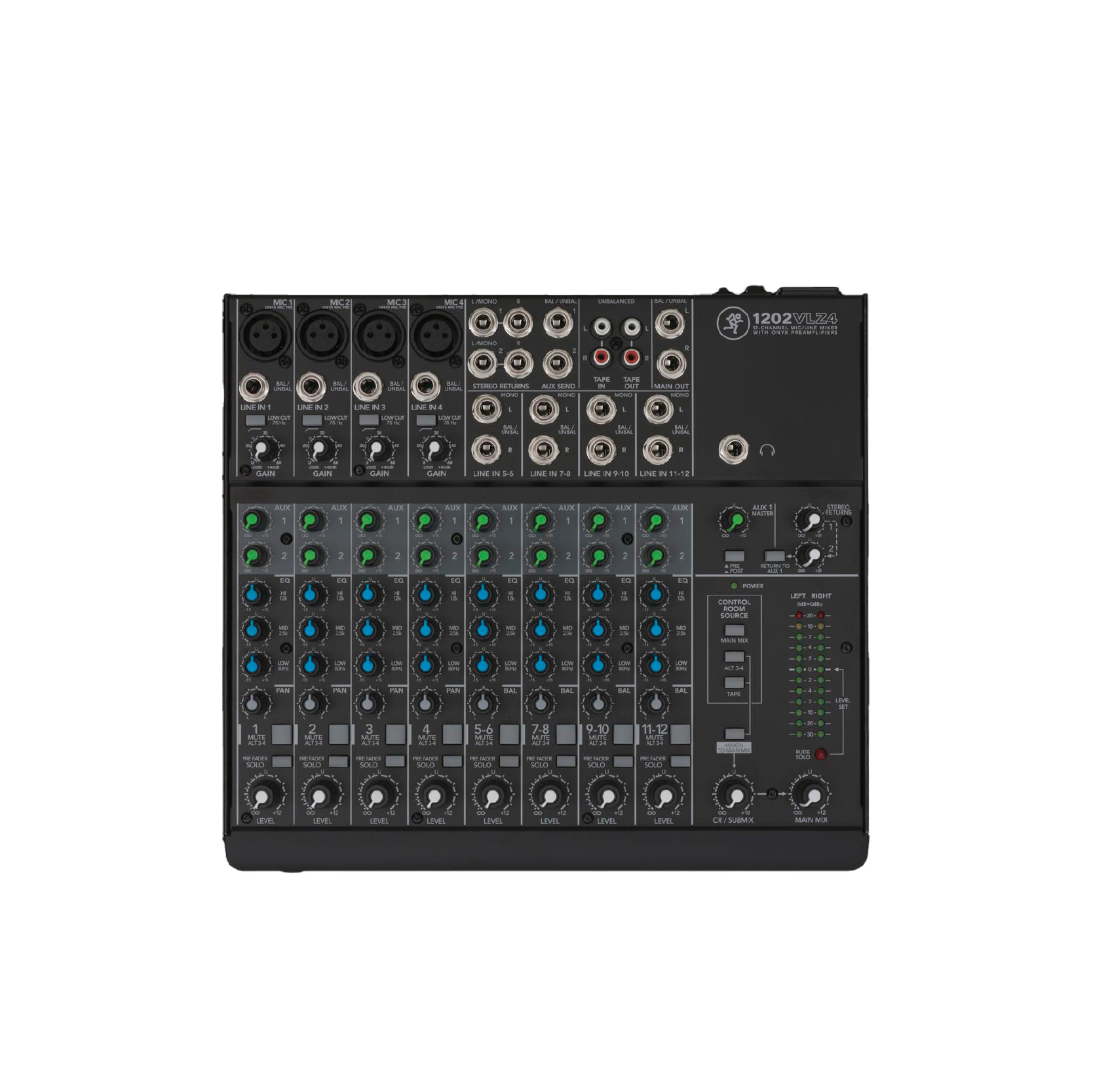

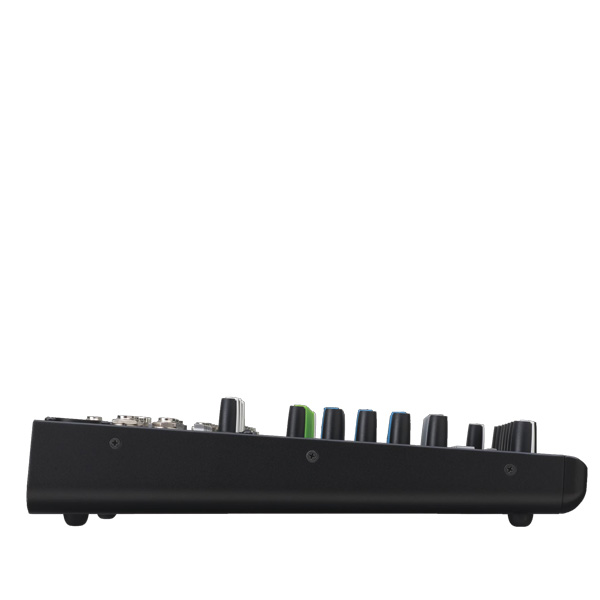

MACKIE 1202VLZ4 12-CHANNEL COMPACT MIXER
VLZ4 Series
Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie’s flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.
ONYX PREAMPS
- ONYX PREAMPS
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0-0007% (20Hz – 20kHz)
HIGH HEADROOM & LOW NOISE
Strict attention to component quality has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture
BUILT LIKE A TANK
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls
COMPREHENSIVE & PROVEN
Mackie’s VLZ4 line is extremely comprehensive,offering mixers of every channel count, every price point, for every application. From the ultra-compact 402VLZ4 for desktop applications to the tour-fiiendly 3204VLZ4, you can be sure there is a VLZ4 mixer with the right feature set for your needs.
- 12-channel mixer featuring our signature high-headroom, low-noise design
- 4 boutique-quality Onyx mic preamps
Ultra-wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% [20 Hz – 50 kHz]
- improved RF rejection, perfect for broadcast applications
- Phantom power for condenser mics
- 12 high-headroom line inputs
- 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
- Aux send, level, pan and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design using an optional rack ear kit
- Multi-voitage power supply for worldwide use
Main Mix Noise
- (2O Hz-20 kHz bandwidth, 1/4″ main out, channels 1-4 gain @ unity,
- channel E05 liat, all channels assigned to main mix, channels 1 and
- 3 panned lelt, 2 and 4 panned right.)
- Main mix knob down, channel gain knobs down: -100 dBu
- Main mix knob @ unity. channel gain knobs down: -86.5 dBu
- (90 dB Signal to Noise Ratio, rel +4 dBu)
- Main mix knob @ unity, channel gain knobs @ unity: -84.5 dBu
Total Harmonic Distortion (THD)
- (1 kHz 6 30 dB gain, 20 Hz—20 kHz bandwidth)
- Mic pre @ insert <0.0007%
Attenuation / Crosstalk
- (1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in,
- 1/4″ main out, gain @ unity)
- Main mix knob down -75 dBu
- Channel Alt I Mute switch engaged ~85 dBu
- Channel gain knob down ~87 dBu
Frequency Response
- Mic input to main output (gain @ unity)
- +0, —1 dB, 20 Hz to 50 kHz
- +0, ~3 dB, <1 0 Hz to >1 00 kHz
Equivalent Input Noise (ElN)
- (Mic input to insert send out, max gain)
- 150 Q termination -128.5 dBu 20 Hz-20 kHz
Common Mode Rejection Ratio (CMRR)
- 1 kHz better than -70 dB
Maximum Levels
- Mic in +22 dBu
- Tape in +16 dBu
- All other inputs +22 dBu
- Main mix XLB out +28 dBu
- All other outputs +22 dBu
Impedances
- Mic in 2.5 k)
- Channel insert return 2.5 k)
- All other inputs 10 k9 or greater
- Tape out 1.1 k)
- All other outputs 120 Q
ED
- High Shelving :15 dB @ 12 kHz
- Mid Peaking :1 5 dB @ 2.5 kHz
- Low Shelving :15 dB @ 80 Hz
AC Power Requirements
- Power Consumption 25 watts
- US,JP 100-120 VAC,50~60 Hz
- EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz
- Operating Temperature 0′ – 40 C 32′ – 104’F
Fuse Rating
- 100-120V 500 mA slo bio, 5 x 20 mm
- 220-240V 250 mA slo bio, 5 x 20 mm
Physical Properties (product)
- Height 1 0.7 in / 273 mm
- Depth 3.0 in / 75 mm
- Width 1 1 .9 in / 303 mm
- Weight 6.5 lb / 3.0 kg
Physical Properties (packaged product)
- Height 6.1 in / 155 mm
- Depth 14.0 in / 356 mm
- Width 1 3.2 in / 335 mm
- Weight 8.0 lb / 3.6 kg
Options
- 1202VLZ4 Mixer Bag P/N 093-004-00
Ordering Information
1202VLZ4 12-Channei Compact Mixer, US P/N 2040763-00
1202VLZ4 12-Channei Compact Mixer, EU P/N 2040763-01
1202VLZ4 12-Channei Compact Mixer, JP P/N 2040763-02
1202VLZ4 12-Channei Compact Mixer, UK P/N 2040763-03
1202VLZ4 12-Channei Compact Mixer, AU P/N 2040763-04
1202VLZ4 12-Channei Compact Mixer, CN P/N 2040763-05
1202VLZ4 12-Channei Compact Mixer, 82 P/N 2040763-06
