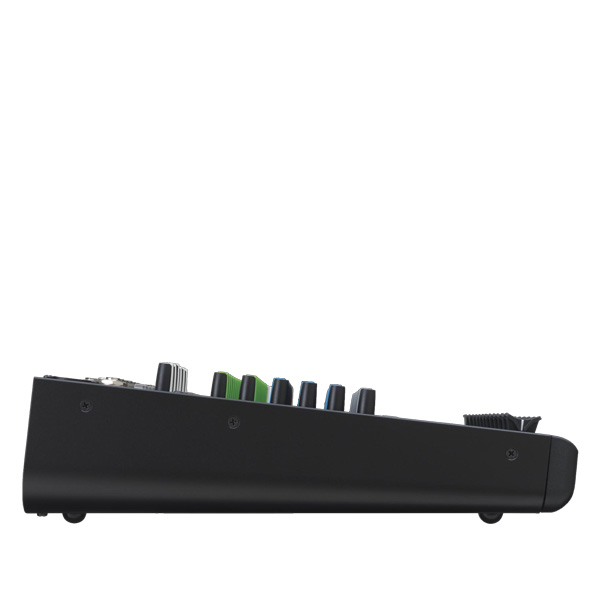

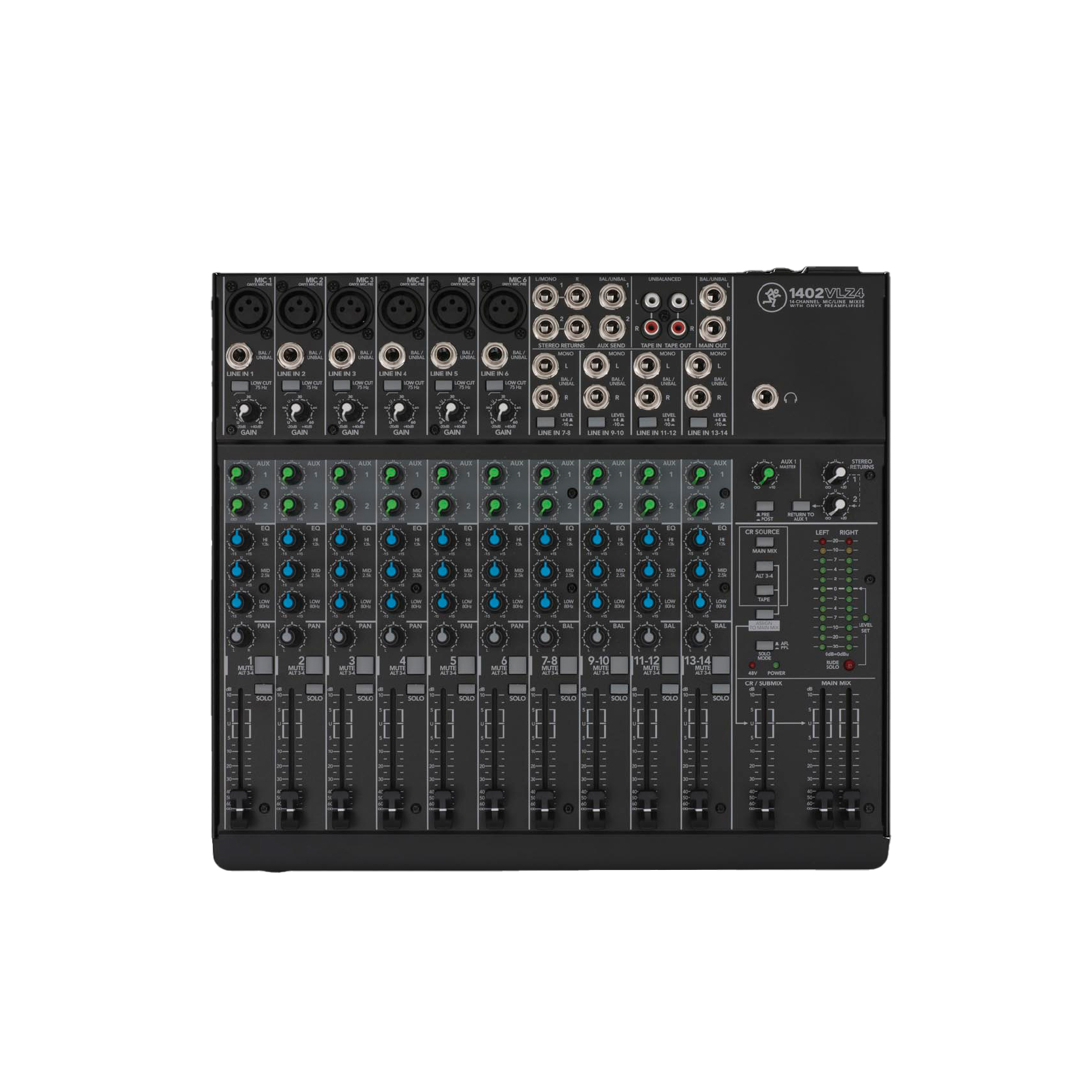

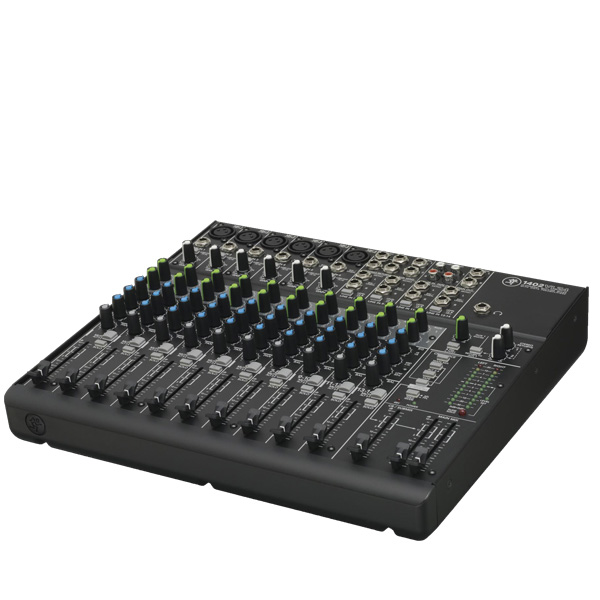

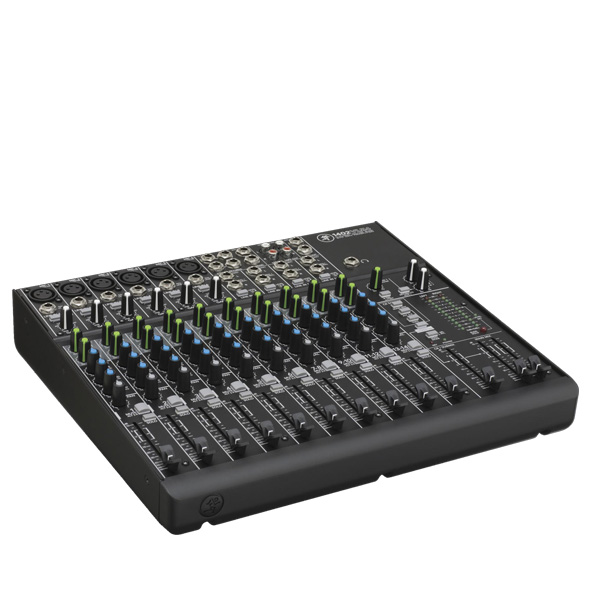

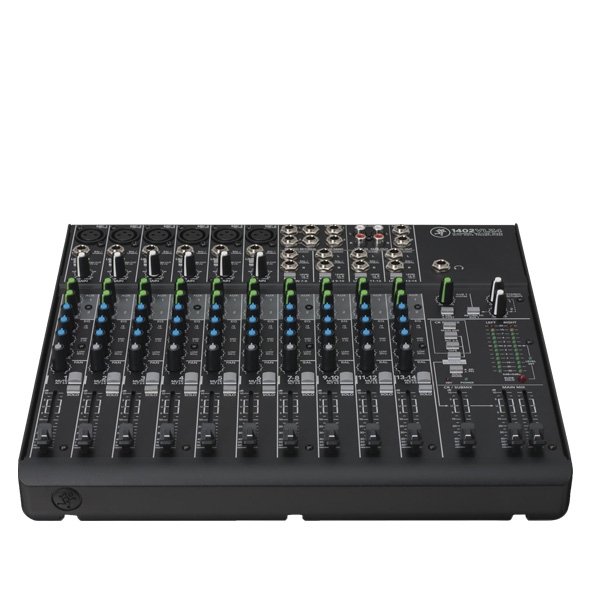

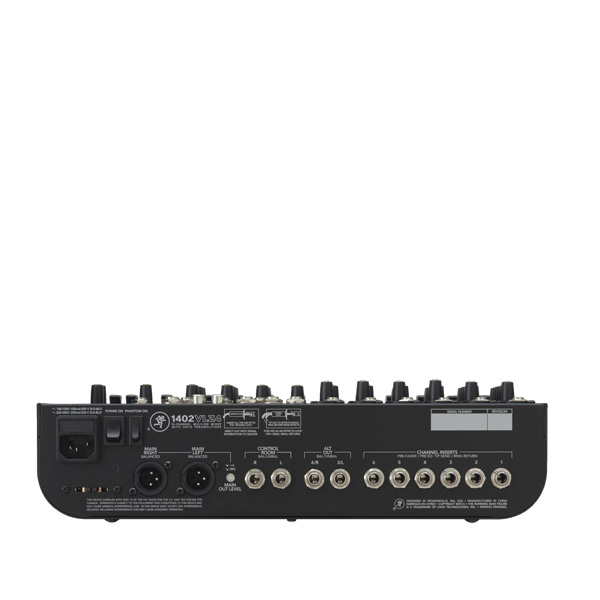

MACKIE 1402VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 14 ชาแนล

• 14-channel mixer featuring our signature high-headroom, low-noise design
• 6 boutique-quality Onyx mic preamps

Ultra-wide 60 dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Extended frequency response

Distortion under 0.0007% [20 Hz — 50 kHz]

• Improved RF rejection, perfect for broadcast applications
• Phantom power for condenser mics
• 14 high-headroom line inputs with +4/-10 operation control
• 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
• 18 dB/oct 75 Hz low-cut filter on mic input channels
• Two aux sends, level, pan and PFL solo on each channel
• Two stereo returns for connecting FX processor or other stereo source
• ALT 3/4 stereo bus for added routing flexibility
• Control room / phones source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary controls resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with
• powder-coat finish
• High-visibility, high-contrast controls deliver
• convenient “at-a-glance” visual feedback
• Rack-mountable design using an optional rack ear kit
• Multi-voltage power supply for worldwide use

Main Mix Noise

• (20 Hz—20 kHz bandwidth, 1/4″ main out, channels 143 gain @ unity, channel E05 flat, all channels assigned to main mix, channels 1, 3 and 5 panned left. 2. 4 and 6 panned right.)
• Main mix fader down, channel faders down: -101 dBu
• Main mix @ unity, channel faders down: ~91 dBu
• (95 dB Signal to Noise Ratio. ref +4 dBu)
• Main mix fader @ unity, channel faders @ unity: -86 dBu

Total Harmonic Distortion (THD)

• (1 kHz @ 35 dB gain, 20 Hz~20 kHz bandwidth)
• Mic pre @ insert <0.0007%

Attenuation / Crosstalk

• (1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in,1/4″ main out, gain @ unity)
• Main mix fader down ~100 dBu
• Channel Alt / Mute switch engaged ~90 dBu
• Channel fader down ~90 dBu

Frequency Response

• Mic input to main output (gain @ unity)
• +0, -1 dB, 20 Hz to 50 kHz
• +0. -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (ElN)

• (Mic input to insert send out, max gain)
• 150 termination -128.5 dBu
• 20 Hz-20 kHzF

Common Mode Rejection Ratio (CMRR)

• 1 kHz better than -70 dB

Maximum Levels

• Mic in +22 dBu
• Tape in +16 dBu
• All other inputs +22 dBu
• Main mix XLB out +28 dBu
• All other outputs +22 dBu

Impedances

• Mic in 2.5 k
• Channel insert return 2.5 k
• All other inputs 10 k or greater
• Tape out 1.1 k)
• All other outputs 120

ED

• High Shelving :15 dB @ 12 kHz
• Mid Peaking :15 dB @ 2.5 kHz
• Low Shelving :15 dB @ 80 Hz

AC Power Requirements

• Power Consumption 25 watts
• US, JP 100-120 VAC,50~60 Hz
• EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz
• Operating Temperature 0′ – 40 32′ – 104’F

Fuse Rating

• 100-120V 500 mA slo bio, 5 x 20 mm
• 220-240V 250 mA slo bio, 5 x 20 mm

Physical Properties (product)

• Height 1 2.5 in / 317 mm
• Depth 3.2 in / 81 mm
• Width 14.0 In / 356 mm
• Weight 9.5 lb / 4.5 kg

Physical Properties (packaged product)

• Height 6.9 in / 175 mm
• Depth 16.1 in / 409 mm
• Width 15.2 in / 386 mm
• Weight 12.0 lb / 5.4 kg

Options

• 1402VLZ4 Mixer Bag P/N OBS-004.01

Ordering Information

• 1402VLZ4 14-Channel Compact Mixer, US P/N 2040764-00
• 1402VLZ4 14-Channel Compact Mixer, EU P/N 2040764-01
• 1402VLZ4 14-Channel Compact Mixer, JP P/N 2040764-02
• 1402VLZ4 14-Channel Compact Mixer, UK P/N 2040764-03
• 1402VLZ4 14-Channel Compact Mixer, AU P/N 2040764-04
• 1402VLZ4 14-Channel Compact Mixer, CN P/N 2040764-05
• 1402VLZ4 14-Channel Compact Mixer, 82 P/N 2040764-06
