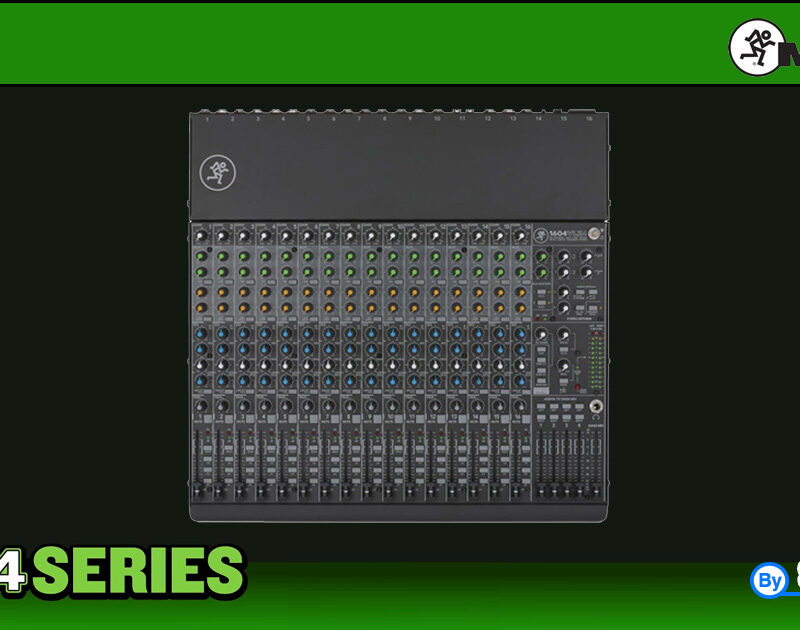

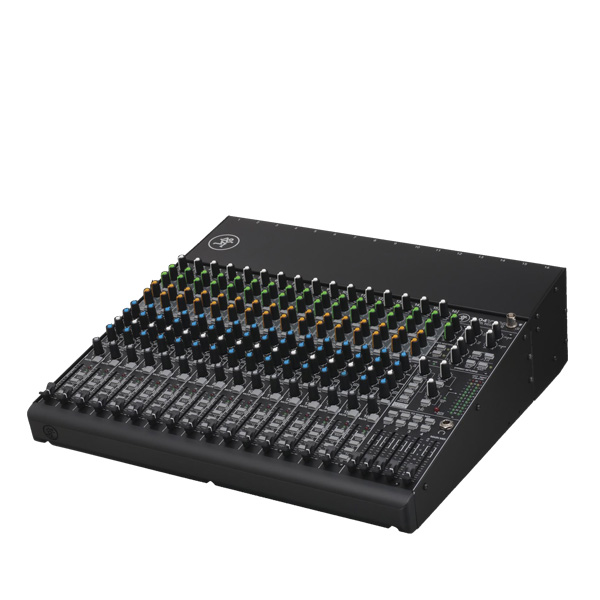

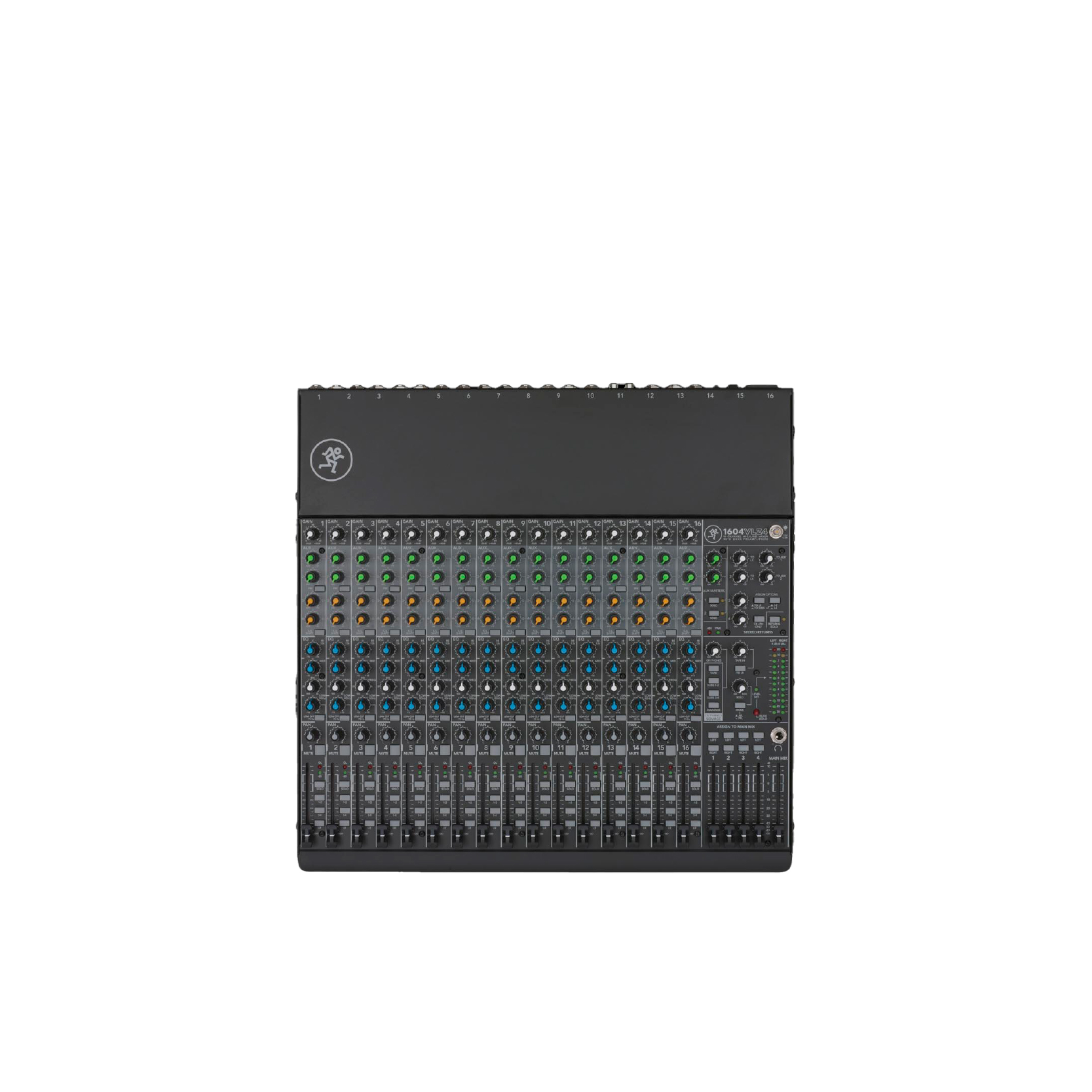

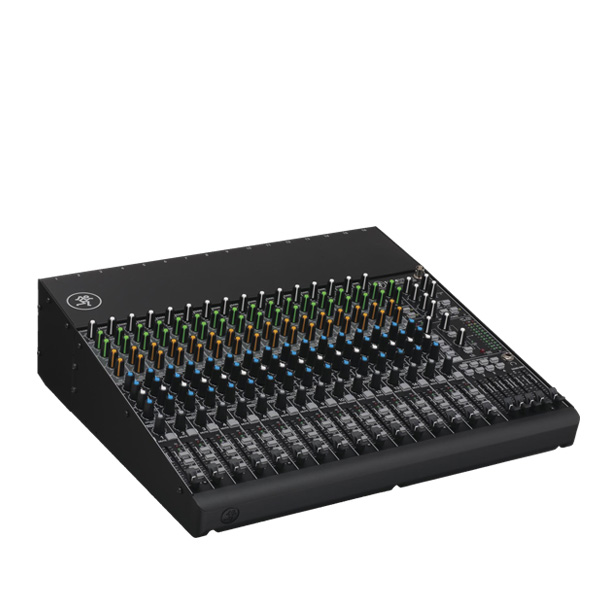

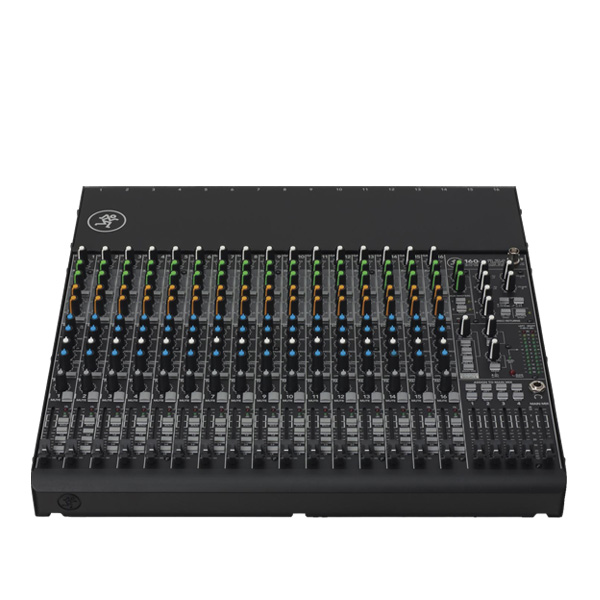

MACKIE 1604VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 16 ชาแนล

• 16-channel mixer featuring our signature high-headroom, low-noise design
• 16 boutique-quality Onyx mic preamps

Ultra-wide 60 dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Extended frequency response

Distortion under 0.0007% [20 Hz — 50 kHz]

• improved RF rejection, perfect for broadcast applications
• Phantom power for condenser mics
• 16 high-headroom line inputs with +4/-10 operation control
• 16 balanced inserts perfect for integrating outboard ear
• 3-band EQ with sweepable midrange
• 18 dB/oct 75 Hz low-cut filter on mic input channels
• Four aux sends, level, pan and solo and overload/ mute LEDS on each channel

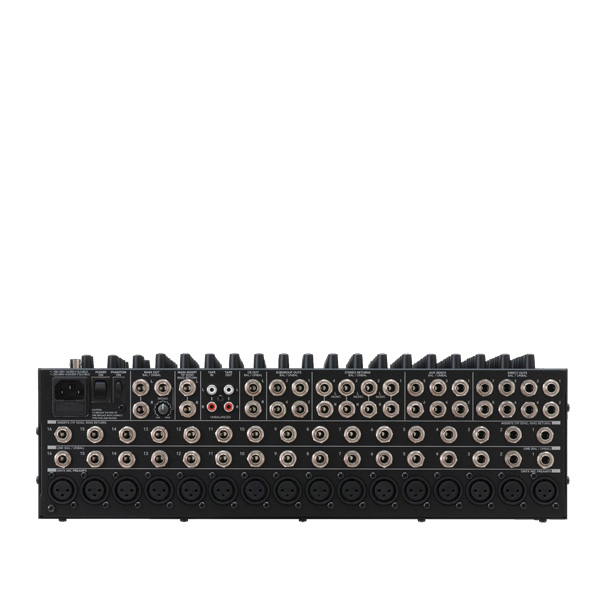

• Four stereo returns, eight direct outs and four group/bus outputs
• 60 mm long-wearing log-taper faders
• Control room / phones multi-input source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary controls resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with
• powder-coat finish
• High-visibility, high-contrast controls deliver
• convenient “at-a-giance” visual feedback
• Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
• Multi-voitage power supply for worldwide use

Main Mix Noise

• (20 Hz—20 kHz bandwidth, 1/4″ main out, channel gains @ unity,channel 805 flat, all channels assigned to main mix, odd channels panned left, even channels panned right.)
• Main mix fader unity, channel faders down: -88.5 dBu
• (92 dB Signal to Noise Ratio, ref +4 dBu)
• Main mix fader @ unity, channel faders @ unity: -82.5 dBu

Total Harmonic Distortion (THD)

• (1 kHz @ 35 dB gain, 20 Hz-20 kHz bandwidth)
• Mic in to insert send <0.0007%
• Mic in to main out <0.005%

Attenuation / Crosstalk

• (1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in,
• 1/4“ main out, gain @ unity)
• Channel mute switch engaged ~84 dBu
• Channel gain knob down -84 dBu

Frequency Response

• Mic input to main output (gain @ unity)

1. +0, -1 dB, 20 Hz to 50 kHz

• +0, -3 dB, <10 Hz to >100 kHz



Equivalent Input Noise (ElN)

• (Mic input to insert send out, max gain)
• 150 termination -128.5 dBu 20 Hz-2O kHz

Common Mode Rejection Ratio (CMRR)

• 1 kHz better than -70 dB

Maximum Levels

• Mic in +22 dBu
• All other inputs +22 dBu
• Main mix TRS out +28 dBu
• All other outputs +22 dBu

Impedances

• Mic in 2.5 k
• Channel insert return 2.5 k
• All other inputs 10 k!) or greater
• Tape out 1.1 k
• All other outputs 120

EQ

• High Shelving :15 dB @ 12 kHz
• Mid Peaking :15 dB sweep 100 Hz – 8 kHz
• Low Shelving :15 dB @ 80 Hz
• Low Cut Filter 18 dB/octave, -3 dB @ 75 Hz

AC Power Requirements

• Power Consumption 50 watts
• US,JP 100-120 VAC,50-60 Hz
• EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz
• Operating Temperature 0‘ – 40 32′ – 104’F

Fuse Rating

• 100-120V 1A 510 bio, 5 x 20 mm
• 220-240V 0.5A slo bio, 5 x 20 mm

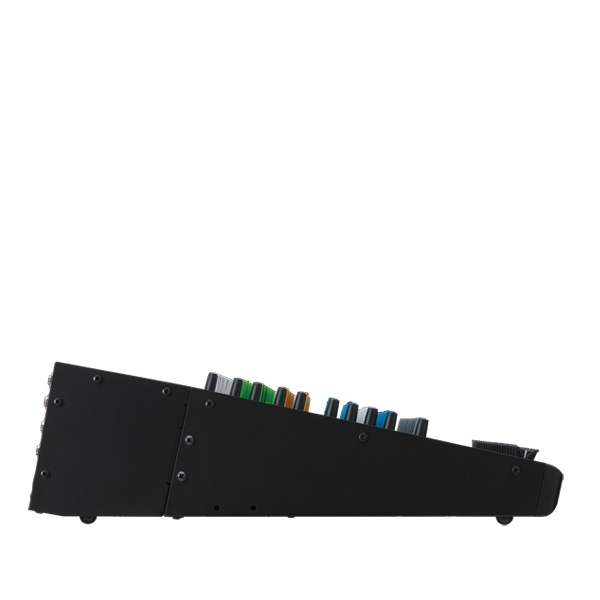

Physical Properties (product)

• Height 17.0 in / 433 mm
• Depth 5.1 in/ 129 mm
• Width 17.3 in/440 mm
• Weight 20.0 lb / 9.1 kg

Physical Properties (packaged product)

• Height 9.3 in I 236 mm
• Depth 20.7 in I 526 mm
• Width 21.3 in I 541 mm
• Weight 24.0 lb I 10.9 kg

Ordering Information

• 1604VLZ4 16-Channel Compact 4-Bus Mixer, US P/N 2040765-00
• 1804VLZ4 16-Channel Compact 4-Bus Mixer, EU P/N 2040765-01
• 1604VLZ4 16-Channel Compact 4-Bus Mixer, AU P/N 2040765-04
• 1604VLZ4 16-Channel Compact 4-Bus Mixer, CN P/N 2040765-05
• 1804VLZ4 16-Channel Compact 4-Bus Mixer, 82 P/N 2040765-06
