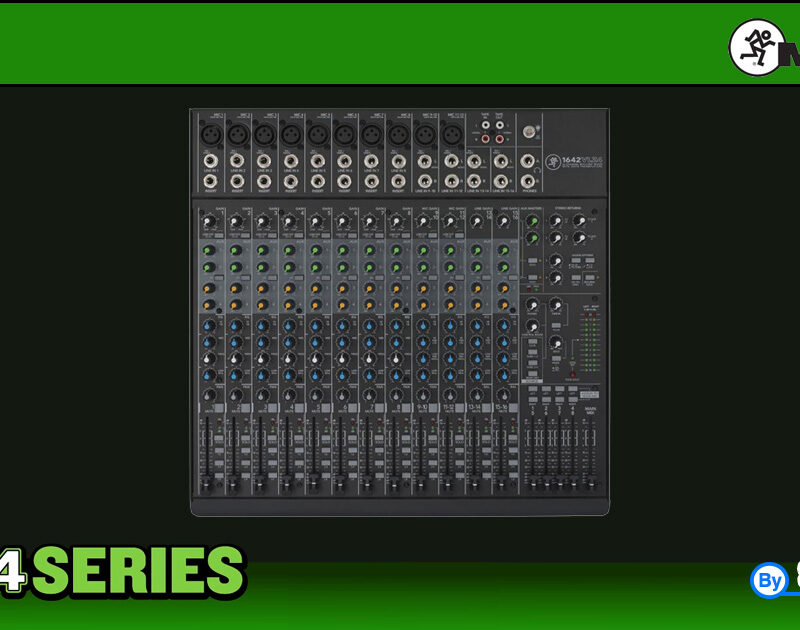

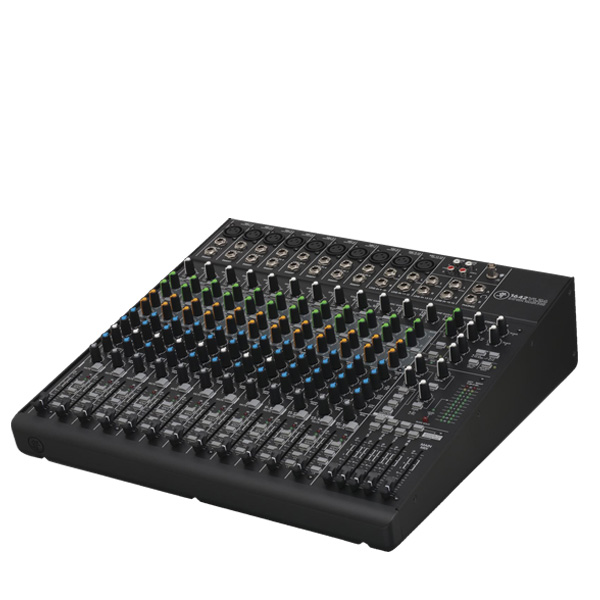

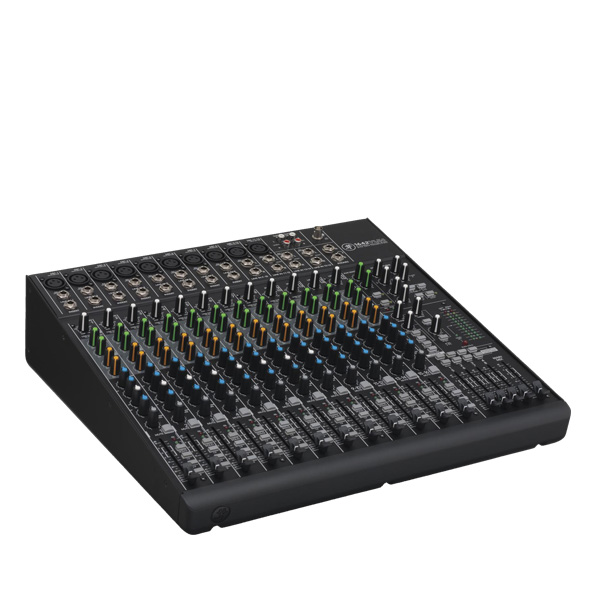

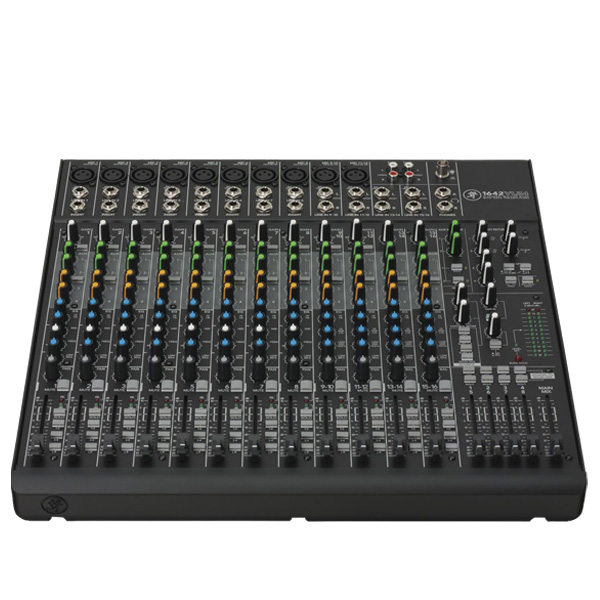

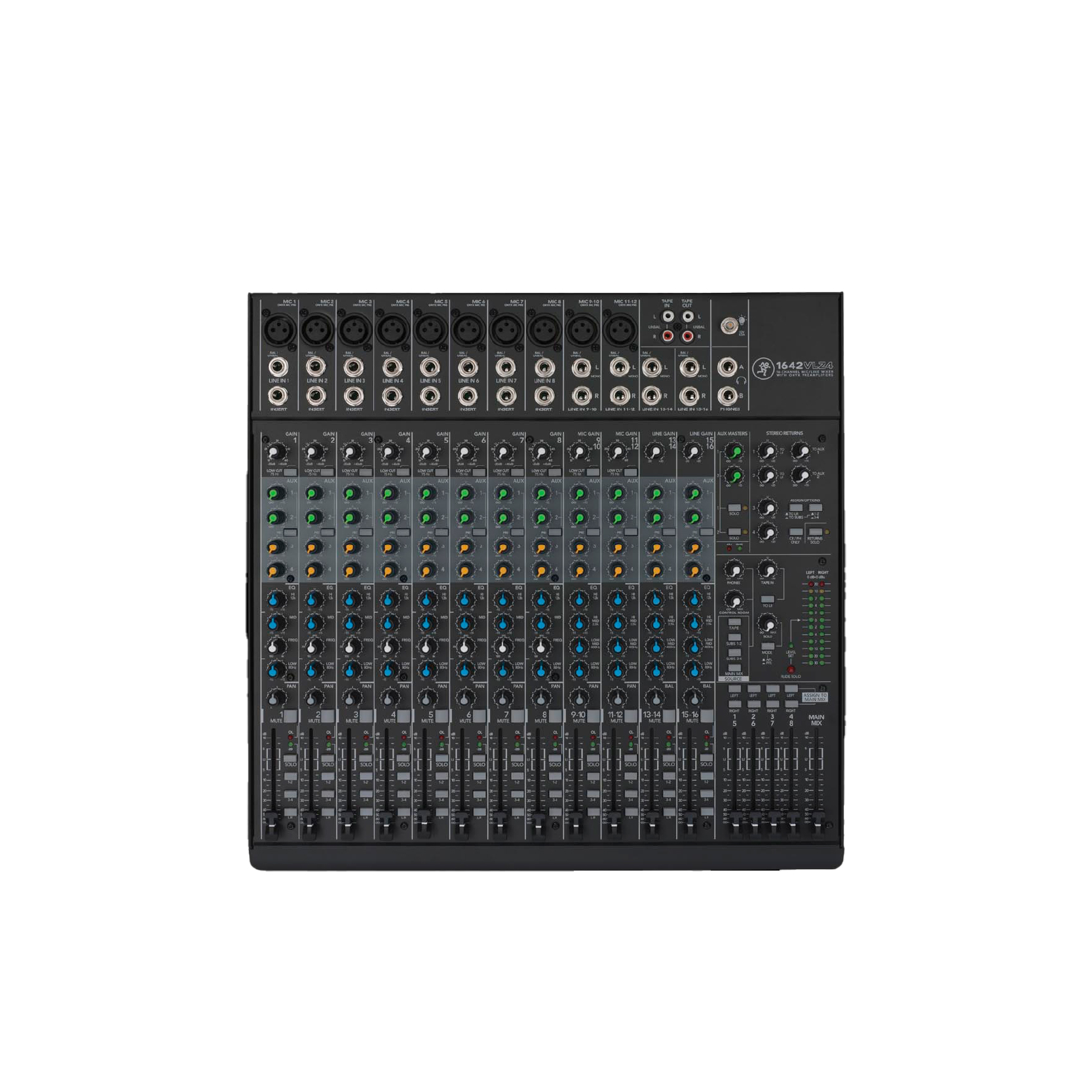

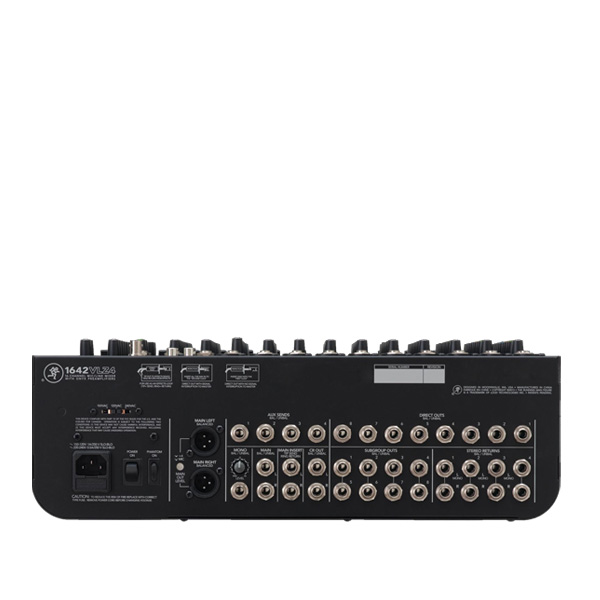

MACKIE 1642VLZ4 เครื่องผสมสัญญาณเสียง อนาล็อก 16 ชาแนล

• 16-channel mixer featuring our signature high-headroom, low-noise design
• 10 boutique-quality Onyx mic preamps
• Ultra-wide 60 dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Extended frequency response

• Improved RF rejection, perfect for broadcast applications
• Phantom power for condenser mics
• 16 high-headroom line inputs with+4/-10 operation control
• 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
• 18 dB/oct 75 Hz low-cut filter on mic input channels
• Four aux sends, level, pan and PFL solo on each channel
• Four stereo returns for connecting FX processor or other stereo source
• 60 mm long-wearing log-taper faders
• ALT 3/4 stereo bus for added routing flexibility
• Control room / phones source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary controls resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
• Rack-mountable design using optional rack ear kit
• Multi-voltage power supply for worldwide use

Distortion under 0.0007°/o [20 Hz — 50 kHz]

Main Mix Noise

• (20 Hz—20 kHz bandwidth, 1/4“ main out. channel gains @ unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right.)
• Main mix fader unity, channel faders down: -86.5 dBu
• (90 dB Signal to Noise Ratio, ref +4 dBu)
• Main mix fader @ unity, channel faders @ unity: -86 dBu

Total Harmonic Distortion (THD)

• (1 kHz @ 35 dB gain, 20 Hz-20 kHz bandwidth)
• Mic in to insert send <0.0007%

Attenuation / Crosstalk

• (1 kHz relative to 0 dBu, 20 112-20 kHz bandwidth, line in,1/4“ main out. gain @ unity)
• Channel mute switch engaged -82 dBu
• Channel gain knob down -82 dBu

Frequency Response

Mic input to main output (gain @ unity)

+0, -1 dB, 20 Hz to 50 kHz

+0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (ElN)

• (Mic input to insert send out, max gain)
• 150 5 termination -1 28.5 dBu 20 Hz-20 kHz

Common Mode Rejection Ratio (CMRR)

• 1 kHz better than -70 dB

Maximum Levels

• Mic in +22 dBu
• All other inputs +22 dBu
• Main mix TBS out and XLB out +28 dBu
• All other outputs +22 dBu

Impedances

• Mic in 2.5
• Channel insert return 2.5
• All other inputs 10 or greater
• Tape out 1.1
• All other outputs 120

3-Band EQ (Channels 1-8)

• High Shelving :15 dB @ 12 kHz
• Mid Peaking :15 dB sweep 100 Hz – 8 kHz
• Low Shelving :15 dB @ 80 Hz
• Low Cut Filter 18 dB/octave, —3 dB @ 75 Hz

4-Band EQ (Channels 9-l6)

• High Shelving :15 dB @ 12 kHz
• Hi Mid Peaking :15 dB @ 2.5 kHz
• Low Mid Peaking :15 dB @ 400 Hz
• Low Shelving :15 dB @ 80 Hz
• Low Cut Filter 18 dB/octave, -3 dB @ 75 Hz

AC Power Requirements

• Power Consumption 50 watts
• US,JP 100-120 VAC,50-60 Hz
• EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz
• Operating Temperature 0‘ – 40’C 32′ – 104’F

Fuse Rating

• 100-1 20V 1A slo bio, 5 x 20 mm
• 220-240V 0.5A slo bio, 5 x 20 mm

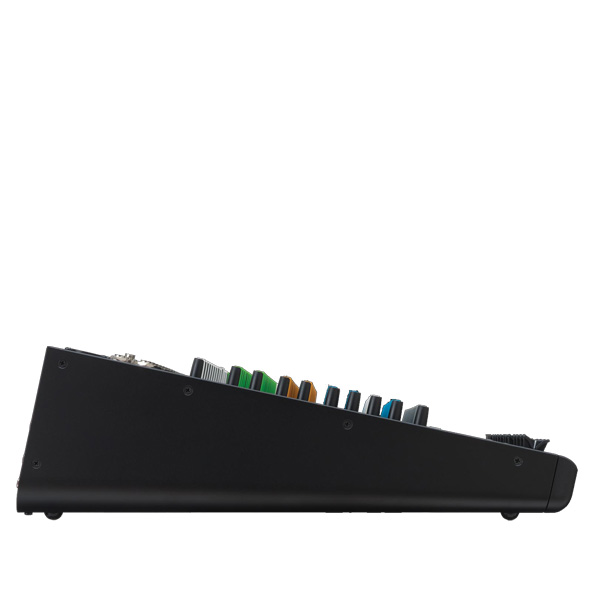

Physical Properties (product)

• Height 16.7 in / 425 mm
• Depth 5.2 in / 131 mm
• Width 16.6 in / 421 mm
• Weight 18.2 lb / 8.3 kg

Physical Properties (packaged product)

• Height 9.4 in / 289 mm
• Depth 19.9 in / 505 mm
• Width 21.3 in/ 541 mm
• Weight 21.0 lb / 9.5 kg

Ordering Information

• 1642VLZ4 16-Channel Compact 4-Bus Mixer, US P/N 2040766-00
• 1642VLZ4 16-Channel Compact 4-Bus Mixer, EU P/N 2040766-01
• 1642VLZ4 16-Channel Compact 4-Bus Mixer, AU P/N 2040766-04
• 1642VLZ4 16-Channel Compact 4-Bus Mixer, CN P/N 2040766-05
• 1642VLZ4 16-Channel Compact 4-Bus Mixer, BZ P/N 2040766-06
