ตู้ลำโพง MACKIE C300z 12 นิ้ว 2 ทาง 750 วัตต์ MACKIE C300z PASSIVE LOUDSPEAKER จากแบรนด์ MACKIE

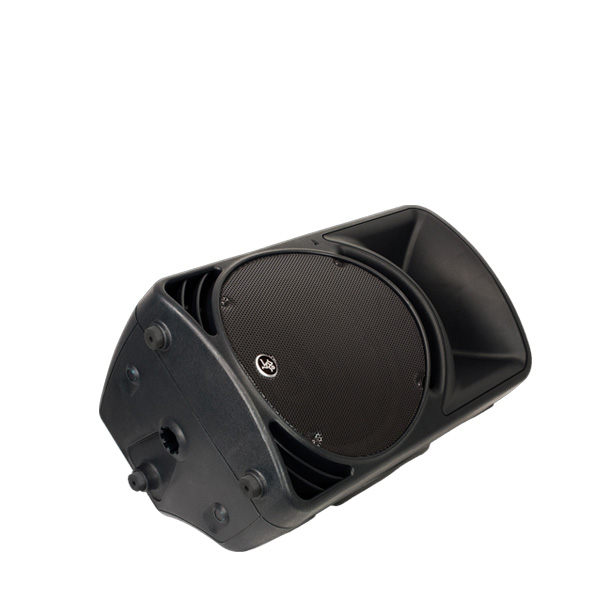

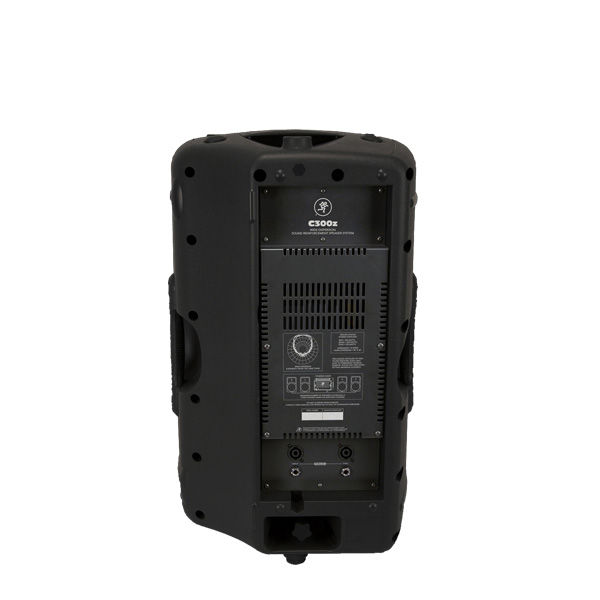

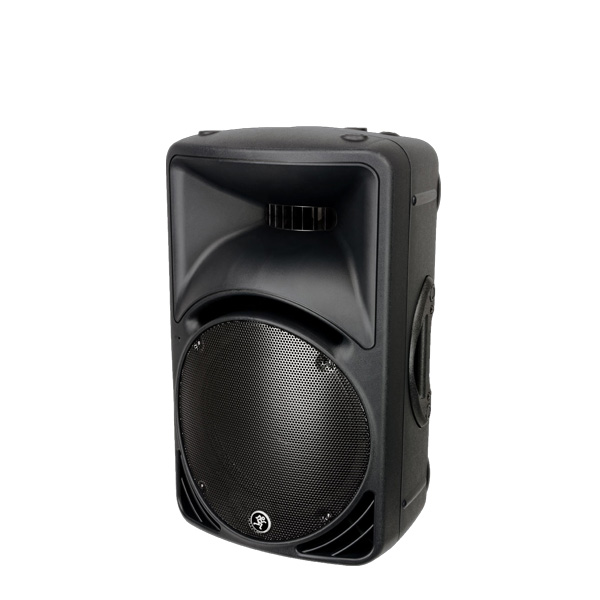

MACKIE C300z PRECISION PASSIVE LOUDSPEAKER
C Series
Experience the same Mackie sound quality heard from the legendary SRM Series Powered speakers in an incredibly versatile passive design. C-Series loudspeakers are built with rugged road worthy molded cabinets, custom designed high-output drivers and a precision tuned asymmetrical crossover for natural, high-fidelity sound.
PRECISION-TUNED BY EAW°
The same team that designs systems for some of the biggest touring bands in the world poured their expertise into the driver and crossover design for the C-Series. This means drivers thatcan really take a beating and unmatched clarity across the entire frequency range of the speaker.
SUPERB FLOOR MONITOR
The C-Series loudspeakers have incredibly smooth, spike-free response and dispersion over a wide range of treble frequencies. 80 you can increase their volume without boosting those nasty, feedback-inducing spikes-
TUNED TO PERFECTION
The crossover in the C-Series is a unique Low impedance Compensated Crossover (LICC) design with an asymmetrical slope. With EQ and crossover points meticulously chosen sothat beamwidth patterns match in both drivers, C Serie sloudspeakers offer natural sound at all volume levels.
BETTER THAN YOUR AVERAGE BOX
The C-Series enclosures are an asymmetrical monocoque (ihad to Google this..-) design with no parallel surfaces, causingmid and high frequency resonance’s to be reflected at anglesinto internal damping materials, instead of interfering with the woofer doing its thing.
ULTRA-WIDE DISPERSION
The C-Series loudspeakers provide a wide, controlled dispersion pattern and precise reproduction of the criticalupper mid-range and high frequencies. The result is anunbelievably smooth off-axis response that allows everyone in the audience to experience the same high-resolution audio nomatter where they are seated.
‘BUlLT-LlKE-A-TANK”
These speakers’ injection—molded composite chassis and premium components are built for the rigors of the road and years of abuse. And they shrug off impacts that would turn those cheap-o, fuzz covered wood box speakers into toothpicks.
-
2-way portable Precision Passive loudspeaker system
-
750W / 300W RMS peak power handling at 8 Ohm
-
12” long-throw low-frequency transducer with 3” voice coil
-
High-output 1.75″ titanium compression driver
-
Ultra-wide, smooth dispersion via multi-cell horn aperture and constant directivity horn
-
Integrated Low impedance Compensated Crossover (LICC) with full driver protection
-
Lightweight for ultimate portability (46 lb / 20.9 kg)
-
Asymmetrical trapezoidal cabinet for floor monitor positioning
-
Stand / Pole-mountable
-
Flyable via ten M10 rigging points using the optional eyeboit kit
Acoustic Performance
- Frequency Response (-3 dB) 55 Hz-18 kHz
- Frequency Range (-10 dB) 45 Hz-20 kHz
- Max SPL long-term 123 dB 6 1 m
- Low-Frequency Crossover Type 24 dB I octave,time offset corrected
- High-Frequency Crossover Type 24 dB / octave
Audio
- Input / Thru Connector Type SpeakonTM-style NL-4 jack 1/4′ TS jack
- Input Impedance 8 9
- Power HandlingRMS 300 wattsMusic 500 wattsPeak 750 watts
Low-Frequency Transducer
- Diameter 12 in / 300 mm
- Voice Coll Diameter 3 in / 75 mm
- Magnet Material Ferrite
High-Frequency Transducer
- Diaphragm Diameter 1.75 in / 44.5 mm
- Diaphragm Material Heat treated titanium
- Horn Exit Diameter 1 in / 24.5 mm
Horn Design
- Type Conical and Exponential
- MouthSize 12in/305mm(W)x7ln/178mm(H)
- Horizontal Coverage 90° (1 kHz – 20 kHz)
- Vertical Coverage 45° (2.8 kHz – 20 kHz)
Safety Features
- Over-Excursion Protection Second-order high-pass filter
- Driver Protection Dynamic protection for compression driver
Construction Features
- Basic Design Asymmetrical Trapezoidal
- Material Polypropylene
- Finish Black, textured finish
- Handles One on each side, one on top
- Grille Perforated metal with weather-resistant coating
- Operating Temperature Range -10° C to 45° C 14° F to 113° F
Physical Properties (packaged product)
- Height 26.5 in / 673 mm
- Width 16.8 in / 427 mm
- Depth 15.5 in / 394 mm
- Shipping Weight 52.0 lb / 23.6 kg
Physical Properties (product)
- Height 26.1 in I 663 mm
- Width 16.0 in I 406 mm
- Depth 14.8 in / 376 mm
- Net Weight 46.0 lb I 20.9 kg
Mounting Methods
Floor mount, pole mount, or fly via 10 integrated M10 threaded inserts (two each located on each side, top, bottom and rear of enclosure)
Options
- PA-A1 forged shoulder eyeboit kit (4 x M10 x 1.5 mm x 20 mm) P/N 0031943
- SPM200 Loudspeaker Pole Mount P/N 2035170-01
Orderinglnformation
C3002 Passive, 2-way Loudspeaker P/N 2033793
03002 Passive, 2-way Loudspeaker, CN P/N 2033793-05
