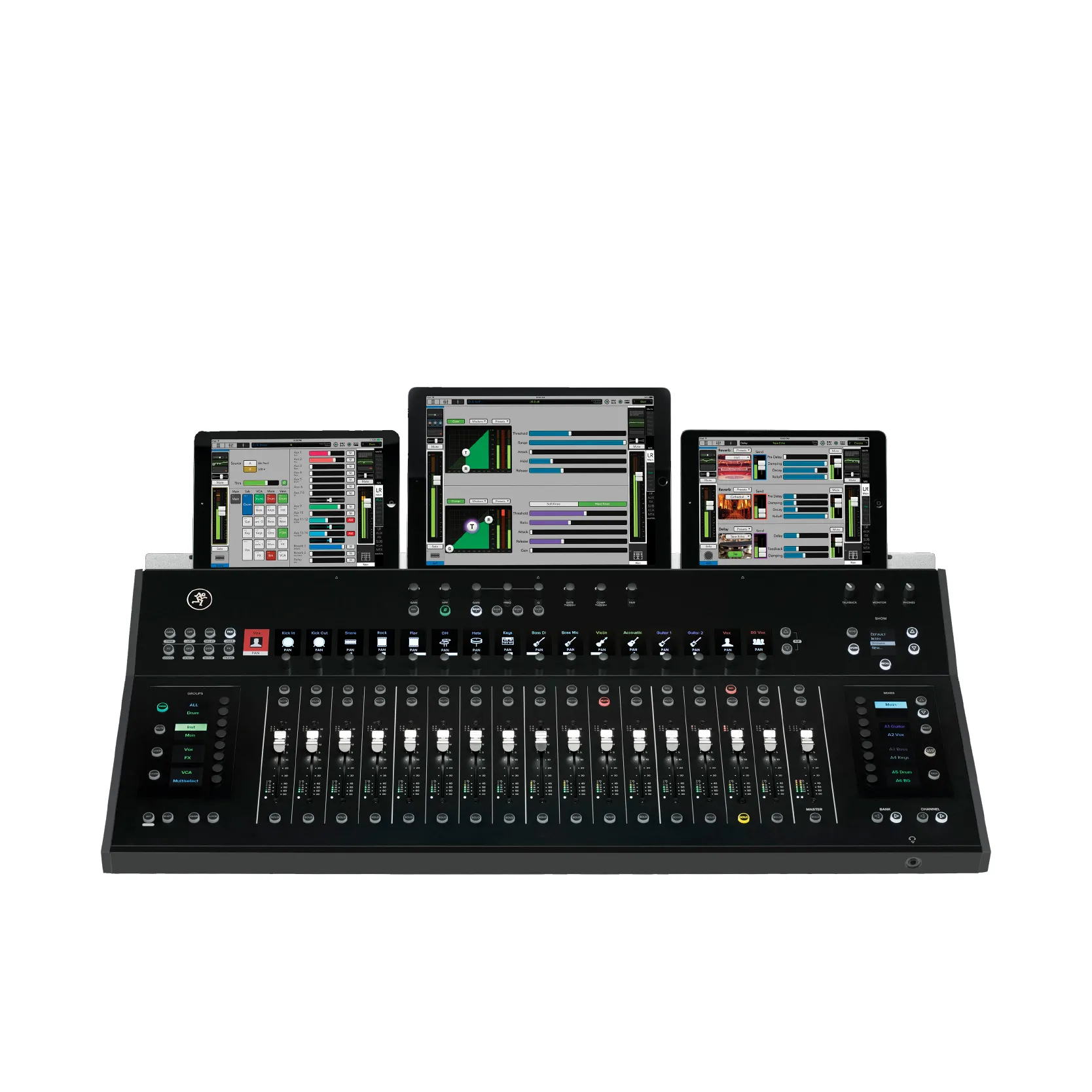

MACKIE DC16
Digital Control Surface
The Mackie DC16 is a digital control surface that has dedicated Dante-connected control surface for the AXIS system. It features 17 full channel strips with Alps 100 mm motorized touch-sensitive faders and per channel encoders. It also has dedicated selected channel section with controls for fast access to important parameters.
The DC16 has unmatched visual feedback with large, full-color backlit channel screens with class-leading readability. It also has surface to wireless mixing via SmartBridge. It automatically senses presence of up to three iPad devices and changes Master Fader operation to deliver tight integration and customized functionality.
32-Channel Rackmount Digital Mixer
Dedicated Dante-connected control surface for the AXIS system
- 17 full channel strips with Alps® 100mm motorized touch-sensitive faders and per channel encoders
- Dedicated selected channel section with controls for fast access to important parameters
- Mix selector and view groups deliver innovative navigation without preset banks
- Ergonomic layout with generous working space for easy access to all controls
Unmatched Visual Feedback
- Large, full-color backlit channel ID screens with class-leading readability
- Flexible channel labeling including name, color and icon
- 6-segment LED channel meters and 3-segment GR meters per channel
- Dedicated show display with snapshot control
Surface to Wireless Mixing via SmartBridge™
- Automatically senses presence of up to three iPad devices and changes Master Fader operation to deliver tight integration and customized functionality
- Central iPad follows dedicated hardware controls for selected channel
- Unique history and fixed display iPad modes provide flexible workflow options
- Control up to four channels simultaneously from control surface and iPad devices
- Grab any iPad and go for instant wireless mixing from anywhere in the venue
- Wired recording and playback to central iPad
- Built-in charging for all three iPad devices
- Dedicated Wi-Fi router connection point
Tough Professional Hardware
- All-steel chassis with aluminum front and back extrusions
- Low profile, compact design fits seamlessly into any workspace
Additional I/O for your AXIS system
- 4×4 Dante via dual locking etherCON
- XLR talkback input
- 1/8” stereo input
- Control room/phones outputs
Type | Control Surface for DL32R |
Screen | Channel ID screens, view up to three iPads |
Faders | 17 x 100mm (Motorized) |
Analog Inputs | 1 x XLR (talkback mic), 1 x 1/8″ (line in) |
Analog Outputs | 2 x 1/4″ (monitor out), 1 x 1/4″ (headphones) |
Computer Connectivity | SmartBridge, connect up to three iPads |
USB | 2 x Type A (charging), 1 x Type A (control) |
Control I/O | 2 x EtherCON (Dante), 1 x RJ45 port (Wi-Fi router), 1 x 1/4″ (talkback footswitch) |
OS Requirements – Mac | iOS 8.0 or later |
Power | Multi-pin power supply included |
Height | 3.3″ |
Depth | 17.6″ |
Width | 36.8″ |
Weight | 38 lbs. |
