ตู้ลำโพงซับวูฟเฟอร์ 15 นิ้ว 1200 วัตต์ มีแอมป์ในตัว คลาส D MACKIE SRM1550 ลำโพง POWERED SUBWOOFER จากแบรนด์ MACKIE

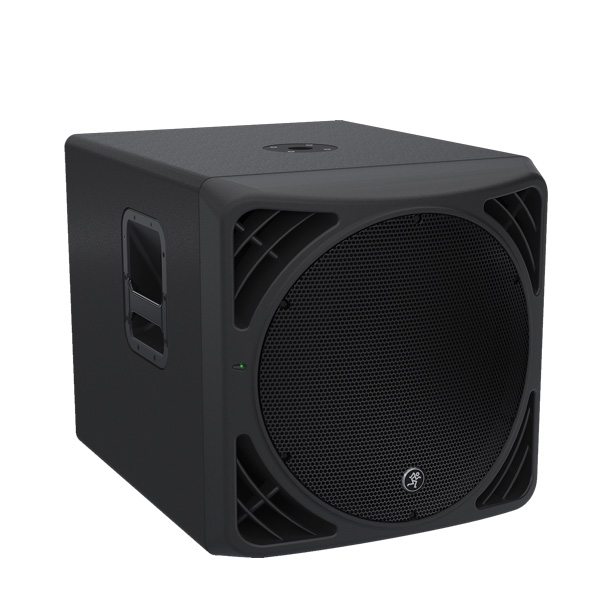

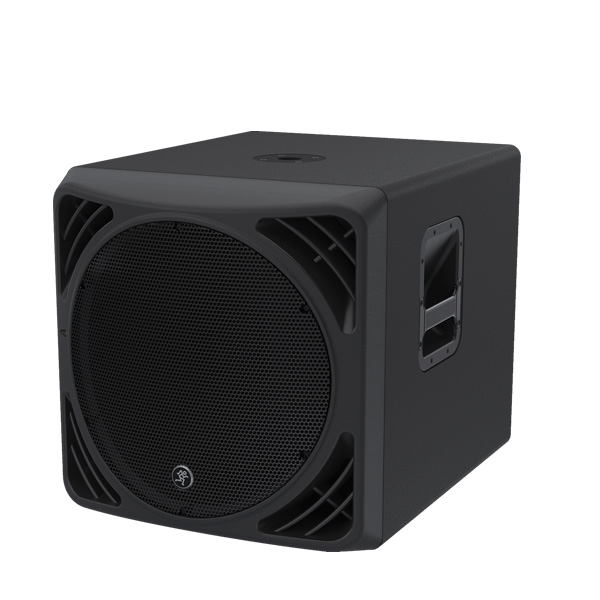

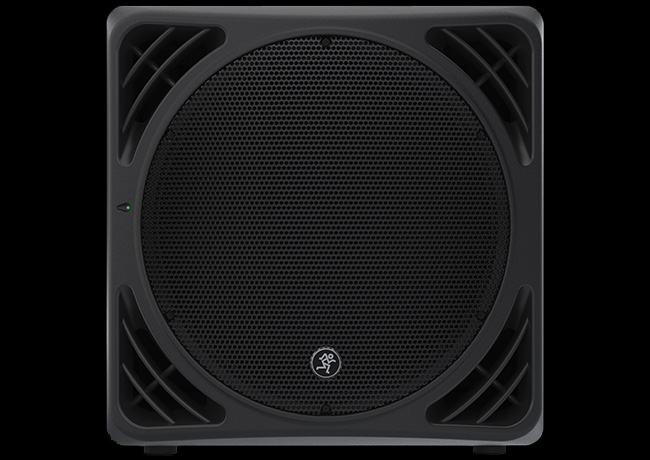

MACKIE SRM1550 15” POWERED SUBWOOFER

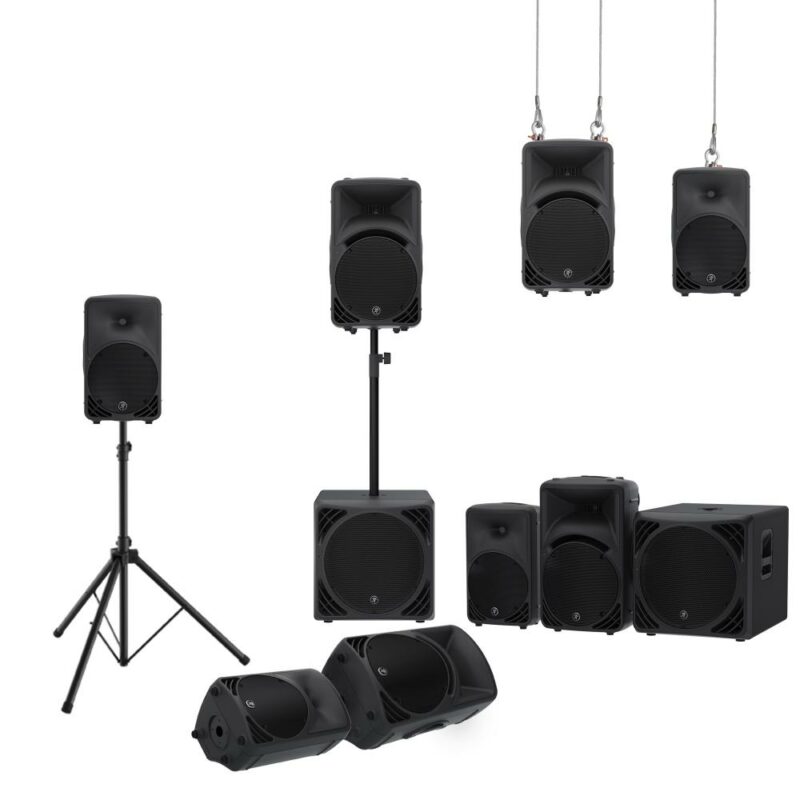

SRM Portable
The Mackie SRM is the most widely used portable loudspeaker ever. it’s unparalleled ease-of-use, professional sound quality and indestructible portability has made it a live sound legend. Now with more power and flexibility than ever, SRM is the ultimate portable PA system.
PROVEN
The 1000W SRM350 and SRM450 feature modern tools like application-specific speaker modes and an automatic feedback destroyer, each with a single-button interface that gets you optimized performance in just seconds. And with the integrated 2-channel mixer, you can easily mix multiple sources. Complete your SRM system with the 1200W SRM1550 subwoofer, packed with plenty of power and versatility to match SRM loudspeakers perfectly.The SRM Portable Series is beyond powerful and provides an array of modern featuresmaking these the easiest to use, best sounding SRMs ever.
SRMl55U SUBUWOFER
The Mackie SRM1550 powered subwoofer is designed from the ground up to be the perfect match for SRM450 and SRMBSO speakers, delivering 1200W of raw power paired with a custom high-output 15″ woofer for room-shaking performance.
THE BEST-SOUNDING SRM EVER
With optimization at every single stage of design,SRM delivers unmatched performance and unbelievable sound quality.
- Patented acoustic correction algorithms
- Precision 2-way crossover
- Driver time alignment and phase correction
BIG POWER. HIGH OUTPUT.
The SRM450 and SRM350 feature a powerful new 1000W amp platform paired with custom high-output drivers and Mackie Smart ProtectTM DSP for intelligent system protection for a solid, reliable PA solution perfect for your high-output application.
BUILT-IN 2-CHANNEL MIXER
- 2 Mackie Wide-Z TM inputs offer flexible connection options and ultra-wide gain range
- Stereo RCA input for smartphone, laptops, etc.
- XLR thru with source options for connecting to other speakers
lNTUlTIVE SOUND TOOLS
Speaker Modes
- Choose between four different speaker modes to optimize your SRM for the application at hand
Automatic Feedback Destroyer
- Get rid of nasty feedback for fearless performance with a single button push
- 1200W of power paired with a 15″ custom high-output woofer with 3″ voice coil delivers gig-level volumes with room to spare
- Same cosmetic design as the renowned SRM450
- Road-ready “Built-Like-A-Tank” design
- 18 mm, internally reinforced poplar cabinet and steel grille
- Front ported for maximum low-frequency extension and punch

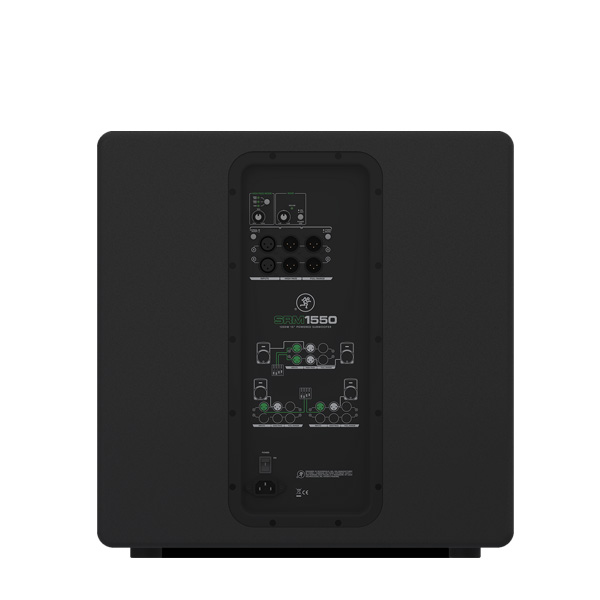

- Stereo XLR inputs plus stereo XLR full-range and high-pass outputs
- integrated digital crossover with variable controland presets for Mackie SRM350 and SRM450 loudspeakers
- Smart Protect” DSP kicks in to protect your investment when things get pushed a little too hard
- Built-in cup for easily pole-mounting full-range loudspeakers
- El Extremely portable design weighing in at only 65.5 lb / 29.7 kg
Acoustic Perfonnance:
- Frequency Response (-3 dB) 50 Hz -120 Hz
- Frequency Response (-10 dB) 40 Hz – 180 Hz
- Max peak SPL 131 dB
Crossover Point 115 Hz plus alignment delay [SRM350]
110 Hz plus alignment delay [SRM450]
60 Hz- 120 Hz [Variable]
- Slope 4th order HP, 4th order LP
Transducer
- Woofer Diameter 15.0 in / 381 mm
- Voice Coil Diameter 3.0 in / 76 mm
- Subwoofer Diaphragm Material Paper
- Magnet Material Ferrite
Power Amplifier
- Rated Power 600 watts rrns 1200 watts peak
- Rated THD < 1 %
- Cooling Convection
- Design Class D
Input/Output
- input Type Female XLR balanced
differential (stereo left / right)
- input impedance 20 k9 balanced,
10 kfl unbalanced
- Full Range Outputs Male XLR balanced
(parallel with inputs – mono)
- High Pass Outputs Male XLR balanced
Line Input Power
- US detachable line cord 100 – 120 VAC, 50 – 60 Hz, 115W
- EU detachable line cord 200 – 240 VAC, 50 – 60 Hz, 115W
- AC Connector 3-pin IEC 250 VAC
- Power Supply Type Switchmode
- Operating Temperature 0 – 40 ‘C
- [extended ambient temperature] 32 – 104 ‘F
Safety Features
- input Protection Peak and RMS limiting, power supply and amplifier thermal protection
- Display LEDs Defeatable front power ON,High Pass Mode,
- input / Limiter Signal
Construction Features
- Cabinet 18 mm Poplar plywood
- Finish High durability black paint

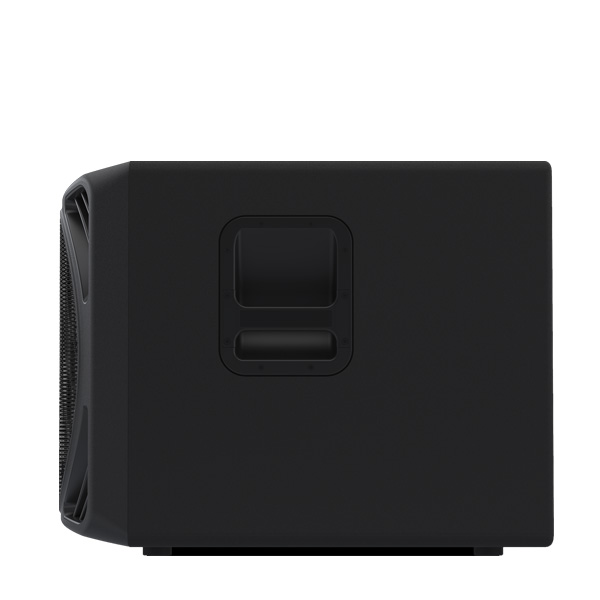

- Handles One on each side
- Grille Powder-coated 16 gauge steel
Mounting Method
- SRM1550 subwoofers are designed to sit on the floor or stage.They are NOT designed to be pole-mounted or suspended.The cabinet has no rigging points and is not suitable for rigging.Never attempt to suspend an SRM subwoofer by its handles.
Physical Properties (packaged product)
Height 22.8 in / 579 mm
Width 25.5 in / 648 mm
Depth 31.3 in / 795 mm
Weight 72.0 lb / 32.7 kg
Physical Properties (product)
Height 20.3 in / 516 mm
Width 20.0 in / 508 mm
Depth 26.5 in / 673 mm
Weight 65.5 lb / 29.7 kg
Options
SRM1550 Subwoofer Cover P/N 2036809-41
SPM200 Loudspeaker Pole Mount P/N 2035170-01
OrderingInformation
SRM15501200W15′ Portable Powered Sub, US P/N 2046831-00
SRM1550 1200w15‘ Portable Powered Sub, EU P/N 2046831-01
SRM15501200W15′ Portable Powered Sub, UK P/N 2046831-03
SRM1550 1200W15′ Portable Powered Sub, AU P/N 2046831 -04
SRM15501200W15‘ Portable Powered Sub, CN P/N 2046831-05
SRM1550 1200W15′ Portable Powered Sub, BZ (120V) P/N 2046831-06
SRM1550 1200W15′ Portable Powered Sub, BZ (230V) P/N 2046831-1 6
