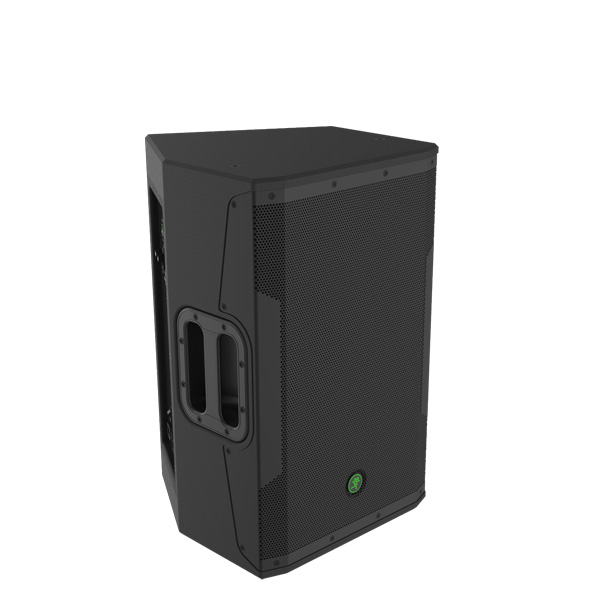

MACKIE SRM550 ตู้ลำโพง 12 นิ้ว 1,600 วัตต์ มีแอมป์ในตัว คลาส D

• 1600W system power paired with custom transducers deliver gig-level volumes with room to spare

12” high-output LF driver/ 1.4= titanium dome compression driver

• “Built-Like-A-Tank” all-wood, internally-braced cabinet delivers unmatched road-worthiness

Rugged 18gauge steel grille and fine-textured, sleek black cabinet finish

Front ported for maximum low-end extension and punch

• High-Definition Audio Processing for professional sound withunmatched clarity

Patented acoustic correction developed with touring geniuses at EAW®

Precision 2-way digital crossover

Driver time alignment and phase correction

• Quick one-button Speaker Ivlode selection for application-specificvoicing (PA, DJ, Monitor and Soloist)
• Effortlessly eliminate nasty feedback with one-button automaticFeedback Destroyer
• Integrated 2-channel mixer featuring dual Mackie VVIde—ZTM inputsHandles anything from mics to guitars to mixers with a single twist of the gain knob

includes stereo RCA inputs for easy connection to music source

Perfect for the singer/songwriter= plug in and leave the mixer at home

• Smart ProtectTM DSP kicks in to protect your investment when things get pushed a little too hard
• Monitor-specific 60-degree angle and voicing mode perfect for cutting through on stage

Acoustic Performance

• Frequency Response

(-3 dB) 55 Hz – 17 kHz [SRMSSO]

50 Hz – 17 kHz [SRM650]

42 Hz – 20 kHz [SRM750]

• Frequency Response

(-10 dB) 49 Hz – 20 kHz [SRMSSD]

39 Hz – 20 kHz [SRMSSD]

37 Hz – 20 kHz [SRM750]

• Crossover Palm 3 kHz
• Disperslon 90′ x 50′
• Volce Coil Dlameter 1.0 In / 25 mm
• Horn Entry Dlameter 1.4 In / 36 mm
• Diaphragm Material Tltanlum
• Magnet Material Ferrlte

High-Pregnancy Section

• Compression Driver 1.4 In / 36 mm
• Diaphragm Material Tltanlum
• Magnet Material Ferrite

Low-Frequency Section

• Woofer Dlameter

12.0 In / 305 mm [SRM550]

15.0 In / 381 mm [SRMSSO]

2 x 15.0 In / 381 mm [SRM750]

• Voice Coil Dlameter

2.6 In / 66 mm [SRM550]

3.0 In / 76 mm [SRMSSO]

2.5 In / 64 mm [SRM750]

• Diaphragm Material Paper
• Magnet Material Ferrlte

Power Amplifiers

• System Power Amplification
• Rated Power800 watts mts1600 watts peak
• Low Frequency Power Amplifier

Rated Power

400 watts ms

800 watts peak

• Rated THD < 1 %

Cooling Convection

Design Class D

• High Frequency Power Amplifier

Rated Power

400 watts ms

800 watts peak

• Rated THD < 1 %
• Cooling Convection
• Design Class D

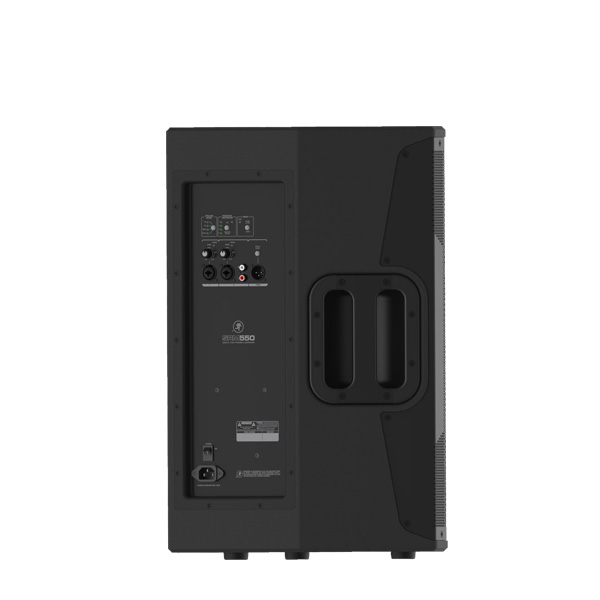

lnput/Output

• Channel 1

Mic-Line 8 k Ohm balanced

1/4“ ms, Wide-Z” 1 M Ohm unbalanced

• Channel 2

Mic-Line 8 Ohm balanced

1/4″ TRS, Wide-Z” 1 M Ohm unbalanced

RCA 25 kOhm unbalanced

• Thru

Male XLR balanced

[Passive when the Ch 1 / Mix switch

Is In the “out” (Ch 1) position] [Active when the Ch 1 / Mix switch

Is in the “In” (Mix) position]

Power

• US detachable llne cord 100 – 120 VAC, 50 – 60 Hz, 200W
• EU detachable line cord 200 – 240 VAC, 50 – 60 Hz, 200W
• AC Connector 3-pin IEC 250 VAC
• Power Supply Type Switchmode
• Operating Temperature 0 – 40 ‘C
• [extended ambient temperature] 32 – 104 ‘F

Safety Features

• Input Protection Peak and EMS limiting. power supply and amplifier thermal protection
• Display LEDs

Construction Features

• Cabinet 15 mm Poplar

• Finish High durability black paint

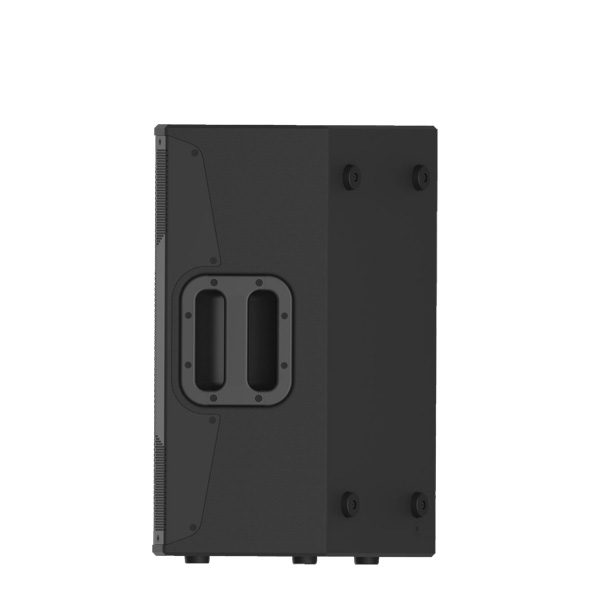

• Handles One on each side
• Grille Powder-coated 18 gauge steel
• Fly Points

Three M10 x 1 .5 x 37 mm [SRM550 / SRMSSO]

Ten M10 x 1.5 x 37 mm [SRM750]

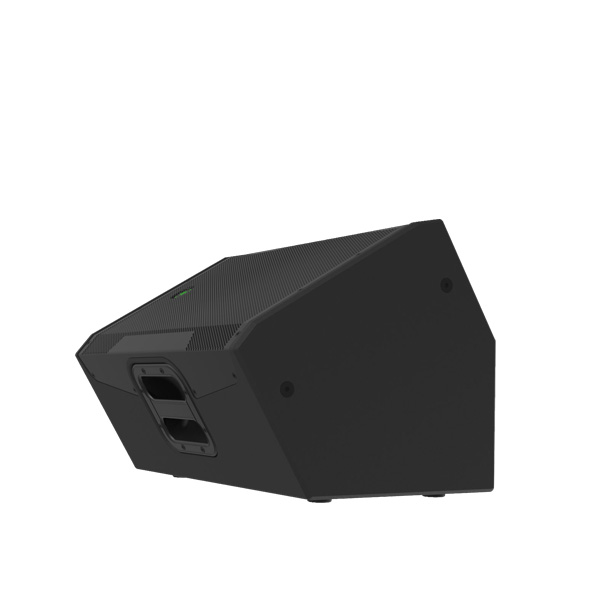

• Monitor Angle 60′ [SRM550 / SRM650]

Mounting Methods

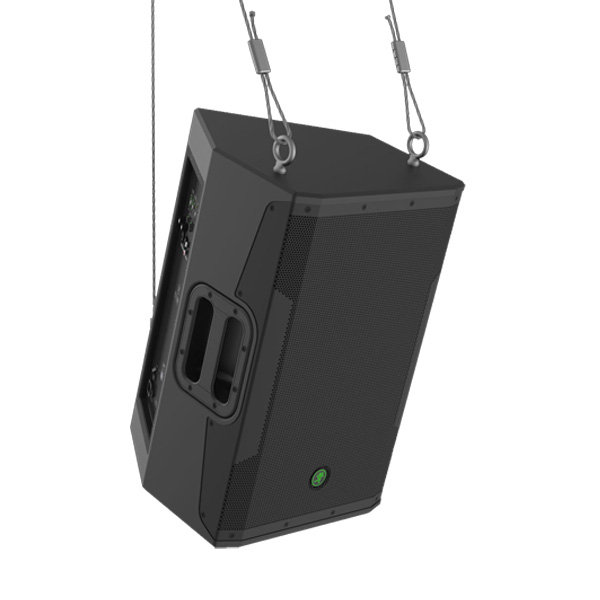

• Floor mount. pole mount or fly via integrated M10 mounting points (using M10 x 1.5 x 37 mm forged shoulder eyebolts).

Physicai Properties (packaged product)

• SRM550

Height 24.7 In / 627 mm

Width 18.3 In / 465 mm

Depth 18.9 In / 480 mm

Weight 44 lb / 20 kg

• SRM650

Height 28.9 in / 734 mm

Width 21 .9 In / 556 mm

Depth 22.0 in / 559 mm

Weight 55 lb / 24.9 kg

• SRM750

Height 45.3 in / 1151 mm

Vlfidth 23.7 In / 602 mm

Depth 23.7 In / 602 mm

Weight 99 lb / 44.9 kg

Physicai Properties (product)

• SRM550

Height 23.0 In / 585 mm

Vlfidth 14.2 In / 360 mm

Depth 14.9 In / 377 mm

Weight 37 lb / 16.8 kg

• SRM650

Height 26.7 In / 677 mm

Mdth 17.5 In / 445 mm

Depth 17.4 In / 441 mm

Weight 46 lb / 21 kg

• SRM750

Height 42.5 in / 1080 mm

Vlfidth 17.5 In / 445 mm

Depth 18.0 In / 458 mm

Weight 89 lb / 40.4 kg

Options

• PA-A2 Forged Shoulder Eyeboit Kit
• (3 x M10 x1.5 x 37 mm) P/N 002827
• SPM200 Loudspeaker Pole Mount PIN 2035170-01
• SRM550 Loudspeaker Cover P/N 2036809-22
• SRM650 Loudspeaker Cover P/N 2036809-23
• SRM750 Loudspeaker Cover P/N 2036809-26

Ordering Information

• SRM550 1600W12′ Powered Loudspeaker, US P/N 2037992-00
• SRM550 1600W12′ Powered Loudspeaker, EU P/N 2037992-01
• SRM550 1600W12′ Powered Loudspeaker, UK P/N 2037992-03
• SRM550 1600W12′ Powered Loudspeaker, AU P/N 2037992-04
• SRM550 1600W12′ Powered Loudspeaker, CN P/N 2037992-05
• SRM550 1600W12′ Powered Loudspeaker, BZ (120V) P/N 2037992-06
• SRM550 1600W12′ Powered Loudspeaker, 82 (230V) P/N 2037992-16

• SRM650 1600W15′ Powered Loudspeaker, US P/N 2037982-00
• SRM650 1600W15′ Powered Loudspeaker, EU P/N 2037982-01
• SRM650 1600W15′ Powered Loudspeaker, UK P/N 2037982-03
• SRM650 1600W 15′ Powered Loudspeaker, AU P/N 2037982-04
• SRM650 1600W15′ Powered Loudspeaker, CN P/N 2037982-05
• SRM650 1600W15′ Powered Loudspeaker, BZ [120V] P/N 2037982-06
• SRM650 1600W15′ Powered Loudspeaker, BZ (230V) P/N 2037982-16

• SRM750 1600W Dual 15′ Powered Loudspeaker, US P/N 2043139-00
• SRM750 1600W Dual 15′ Powered Loudspeaker, EU P/N 2043139-01
• SRM750 1600W Dual 15′ Powered Loudspeaker, UK P/N 2043139-03
• SRM750 1600W Dual 15‘ Powered Loudspeaker, AU P/N 2043139-04
• SRM750 1600W Dual 15′ Powered Loudspeaker, CN P/N 2043139-05
• SRM7501600W 2x 15′ Powered Loudspeaker, BZ (120V)P/N 2043139-06
• SRM750 1600W 2x 15″ Powered Loudspeaker, BZ (230V)P/N 2043139-16
