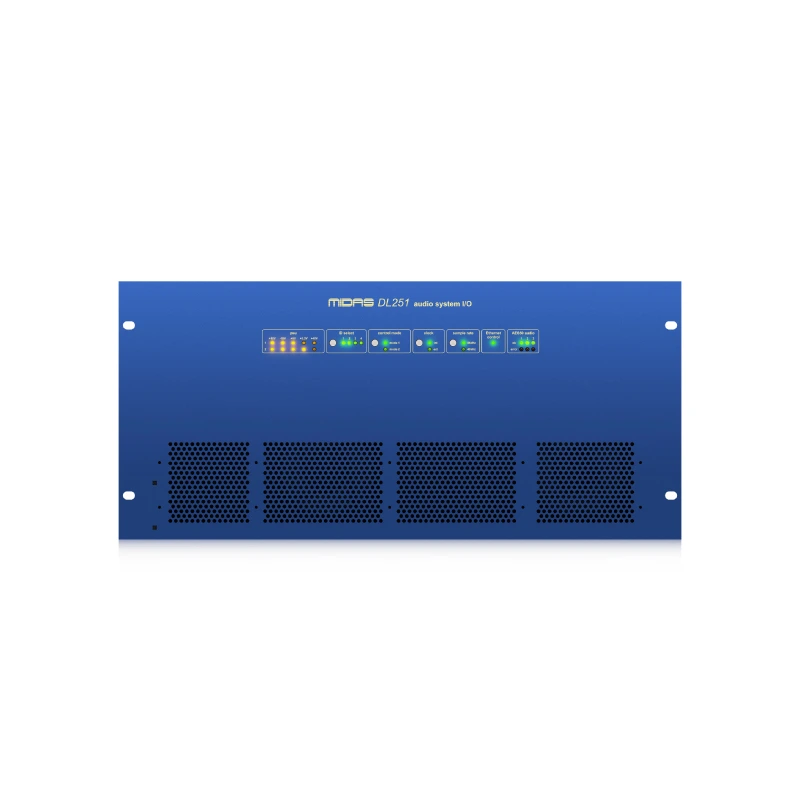

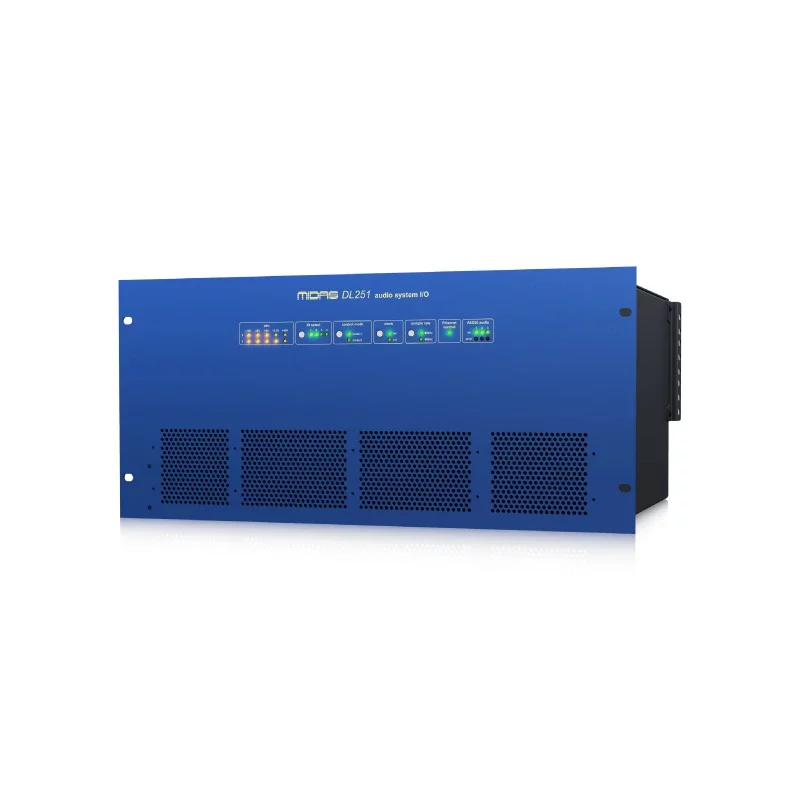

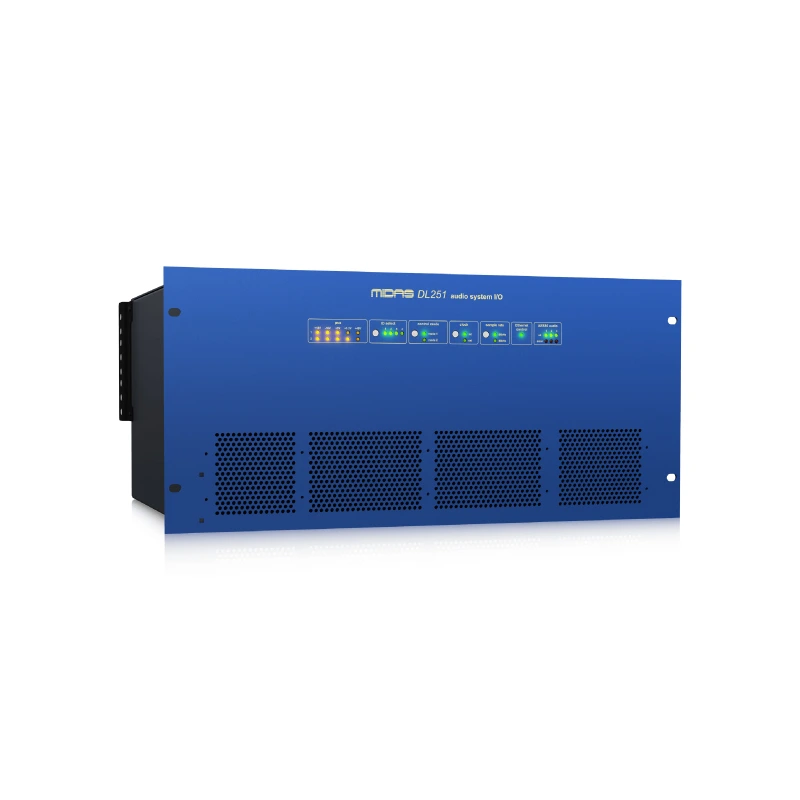

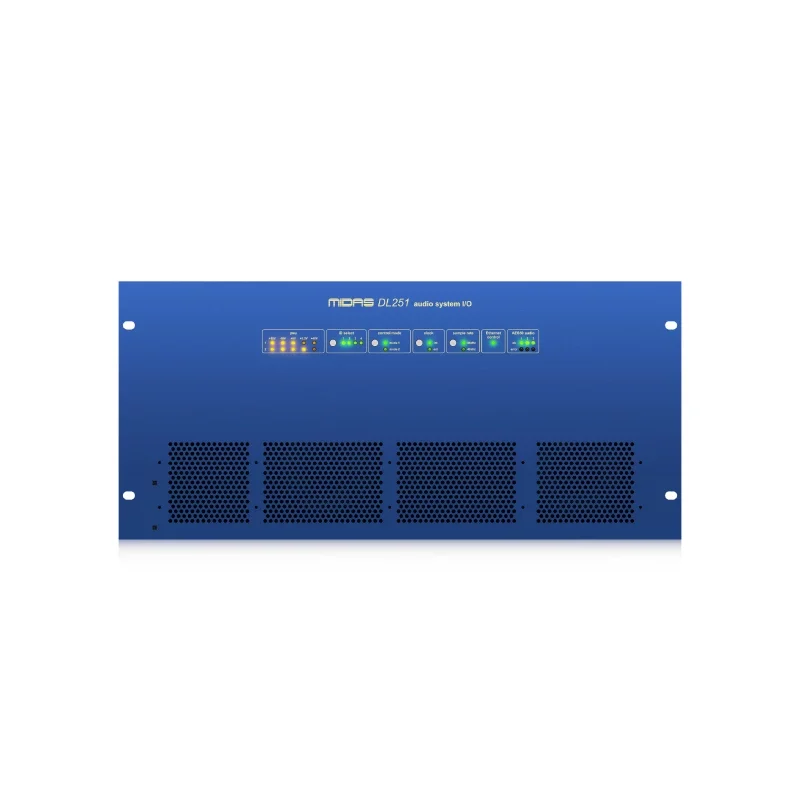

MIDAS DL251 ดิจิตอล สเตจบ๊อกซ์ 48 Input 16 Output MIDAS DL251 Digital StageBox จากแบรนด์ MIDAS
MIDAS DL251
48 Input, 16 Output Stage Box with 48 Midas Microphone Preamplifiers

MIDAS DL251 เป็น Digital Stagebox ที่รองรับอินพุตได้มากถึง 48 อินพุต (Mic/Line Level) และเอาท์พุตอีก 16 เอาท์พุต (Line Level) ให้โทนเสียงอันเป็นเอกลักษณ์ของ Midas (legendary Midas Sound) นอกจากนี้ DL251 จะมีช่องสำหรับการเชื่อมต่อ และส่งผ่านข้อมูลผ่านพอร์ต AES50 ถึง 3 ช่อง และยังมี พอร์ต Ethernet สำหรับคอรโทรล มาอีก 1 ช่อง โดยจะรองรับการใช้งานร่วมกับ มิกเซอร์ดิจิตอล Midas M Series และ Pro Series

Award-Winning Midas Microphone Preamplifier
ด้วยประสบการณ์ที่อยู่ในวงการมายาวนานกว่า 40 ปี จึงทำให้ MIDAS ได้รับการยอมรับจาก Sound Engineer ชั้นนำของโลก ว่าเป็นแบรนด์เครื่องเสียงที่ออกแบบ ปรีแอมป์ไมโครโฟนได้ดีเป็นอันดับต้นๆ ของโลก วัสดุในการประกอบอุปกรณ์แต่ละชิ้น ทางแบรนด์จะเลือกใช้วัสดุเกรด พรีเมี่ยม ช่วยให้ได้มิติของเสียงที่ลึกเป็นพิเศษ และให้เสียงโทนอุ่น เสียงที่ได้จะมีความละเมียดละไม รายละเอียดเสียงต่างๆ ชัดเจนเป็นอย่างมาก
อย่างที่เราๆ รู้กันว่าคุณภาพของเสียงในการแสดงที่ดี ต้องเริ่มต้นที่ ปรีแอมป์ไมโครโฟน MIDAS DL251 จะมาพร้อม ปรีแอมป์ตัวใหม่ล่าสุดจาก MIDAS ที่ได้รับรางวัล NAMM TEC Nominee ในปี 2012 ซึ่งจะถ่ายทอดทุกรายละเอียดเสียงอย่างเที่ยงตรง ให้เสียงที่คม ชัด ใส มีสัญญาณรบกวนต่ำ

Digital Audio Networking
เลือกใช้การส่งผ่านข้อมูลผ่าน SuperMAC (ตามมาตรฐาน AES50) เทคโนโลยีการเชื่อมต่อ และส่งผ่านข้อมูลเสียงแบบดิจิตอล จาก KLARK TEKNIK ที่เป็นเทคโนโลยีที่ช่วยให้การส่งผ่านข้อมูลมีความเร็วสูง ปราศจากดีเลย์ (Low Latency) และที่สำคัญคือใช้งานง่าย
DL 251 จะรองรับการใช้งานร่วมกับ ดิจิตอลมิกเซอร์ ทุกตัวของ Midas และยังรองรับการใช้งานร่วมกับ ดิจิตอลมิกเซอร์ของแบรนด์อื่นๆ ที่มีพอร์ต AES50 ด้วยครับ

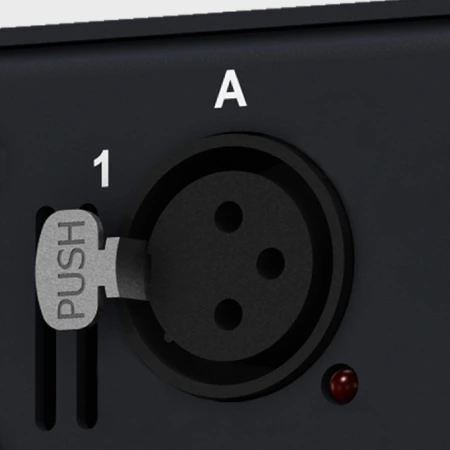

High Output Drive Line Outputs With Mute
ช่องเอาท์พุตของ DL251 จะมาพร้อมฟีเจอร์ Active Servo-Balanced ที่จะช่วยให้สัญญาณที่เดินทางผ่านสายจากเอาท์พุตของ DL251 สามารถเดินทางผ่านสายที่มีความยาวมากกว่าปกติ โดยที่ไม่มีสัญญาณรบกวนได้
นอกจากนี้ยังมี สวิตช์ สำหรับ Mute ช่องสัญญาณเอาต์พุตทั้งหมด ที่จะช่วยให้การต่อเพิ่มอินพุต หรือเอาต์พุต ระหว่างการแสดง เป็นไปอย่างราบลื่น

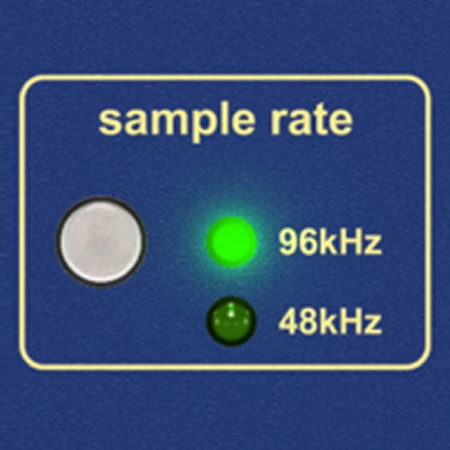

96 kHz Or 48 kHz Operation
DL251 จะรองรับค่า Sampling Rate ที่ 96 kHz เมื่อต่อใช้งานกับ Midas Pro Series ผ่าน AES50 และจะรองรับค่า Sampling Rate ที่ 48 kHz เมื่อต่อใช้งานกับ Midas M32 Series

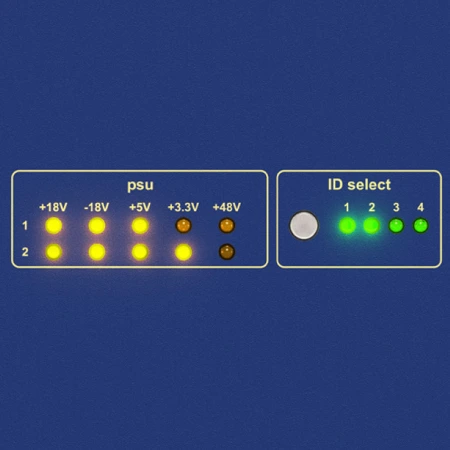

Remote Console Or Front Panel Control
การตั้งค่าทั้งหมดของ DL251 สามารถตั้งค่าได้จากระยะไกล หรือคุณสามารถตั้งค่าทุกอย่างผ่านทางด้านหน้าตัวเครื่องได้โดยตรงเลย โดยบริเวณด้านหน้าของตัวเครื่อง จะมีไฟ LED ที่แสดงสถานะการใช้งานต่างๆ อย่างชัดเจน

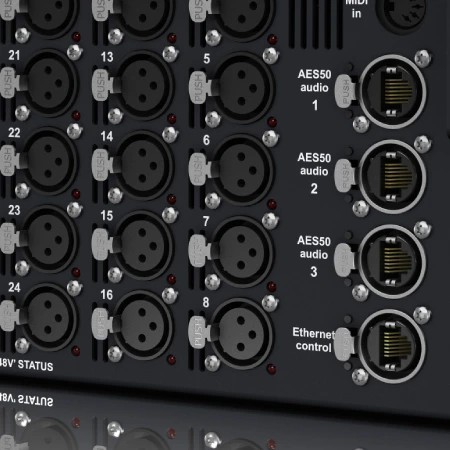

Built For The Road
DL251 จะมาในดีไซน์ที่เรียบง่าย ตามปกติของ Digital Stagebox โดยทั่วไป วัสดุอุปกรณ์ทางแบรนด์ได้เลือกใช้เป็นวัสดุเกรด พรีเมี่ยม! ช่วยให้มีความแข็งแรงทนทานเป็นอย่างมาก พร้อมลุยการทัวร์คอนเสิร์ต ทุกรูปแบบ

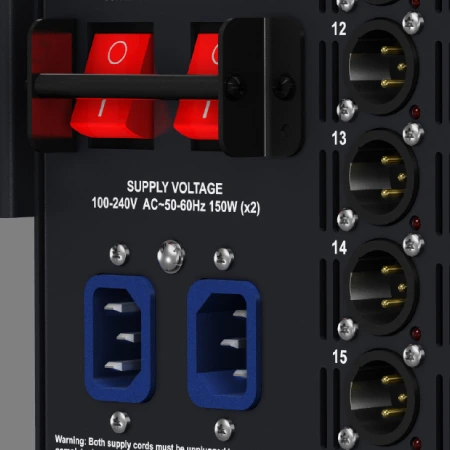

Dual Redundant Universal Switch-Mode Power Supplies
DL251 จะมาพร้อม Power Supply แบบ 2 ตัว โดยจะแสตนด์บายควบคู่กันไประหว่างใช้งาน และจะสลับการใช้งาน Power Supply อัตโนมัติ เมื่อช่องใดช่องนึง มีอาการไฟกระตุกหรือกระชาก เพื่อให้การแสดงของคุณสามารถดำเนินไปได้อย่างราบลื่น โดยไม่มีอะไรมาขัดจังหวะ
DL251 Architecture and Engineering Specifications
The interface unit shall be designed for digital audio mixing applications and be optimised for use in live performance. It shall feature 48 integrated microphone preamplifier inputs with 2.5 dB analogue gain steps and 16 servo-balanced electronic outputs on industry-standard XLR connectors and shall be capable of operating at 48 kHz and 96 kHz sampling rates.
The interface unit shall include a recessed switch on the rear panel to mute all outputs.
The interface unit shall support a 100 Megabit Ethernet frame-based digital audio network that shall offer N+1 cable redundancy and be compliant with the Audio Engineering Society AES50-2011 standard. Three digital audio network ports and one Ethernet control port shall be provided. An industry-standard MIDI Interface (In, Out, Thru) shall also be provided.
The interface unit shall provide both front panel and remote network configuration of operational settings and provide LED status of power supply output rail condition, digital audio and control network connection status and activity, clock synchronisation source, unit identification and communication mode setting.
The interface unit shall include two auto-ranging universal switch-mode power supplies with dual redundancy for use on a worldwide basis.
The interface unit shall be housed in a standard 5U 19″ rackmount chassis, and shall be 483 mm wide x 414 mm deep x 221 mm high (19.0″ x 16.3″ x 8.7″), with nominal weight 10 kg (22.1 lbs). The interface unit shall be installed in a rack frame or road case capable of safely supporting its weight.

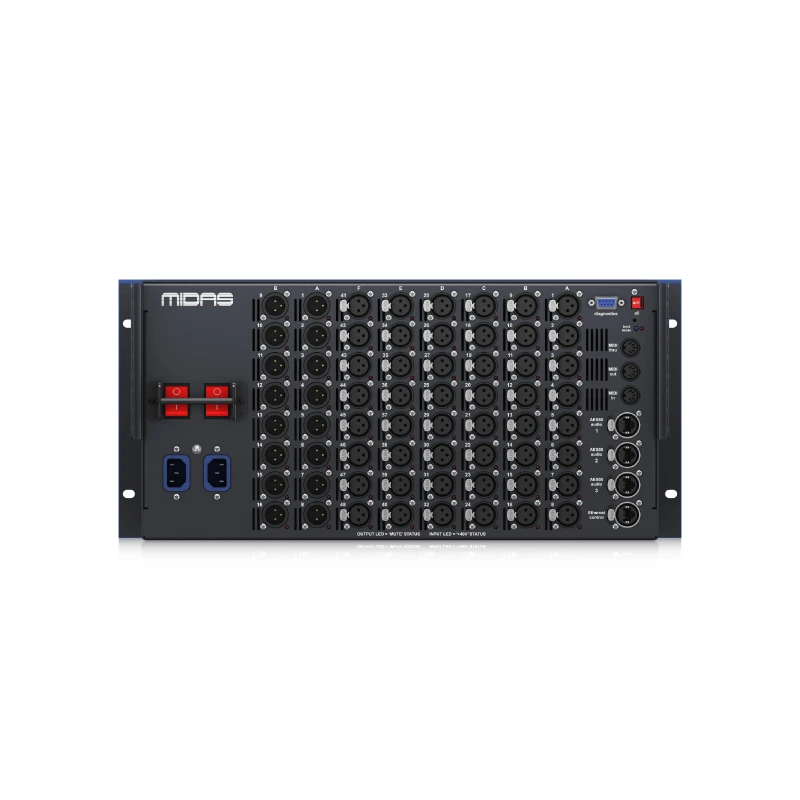

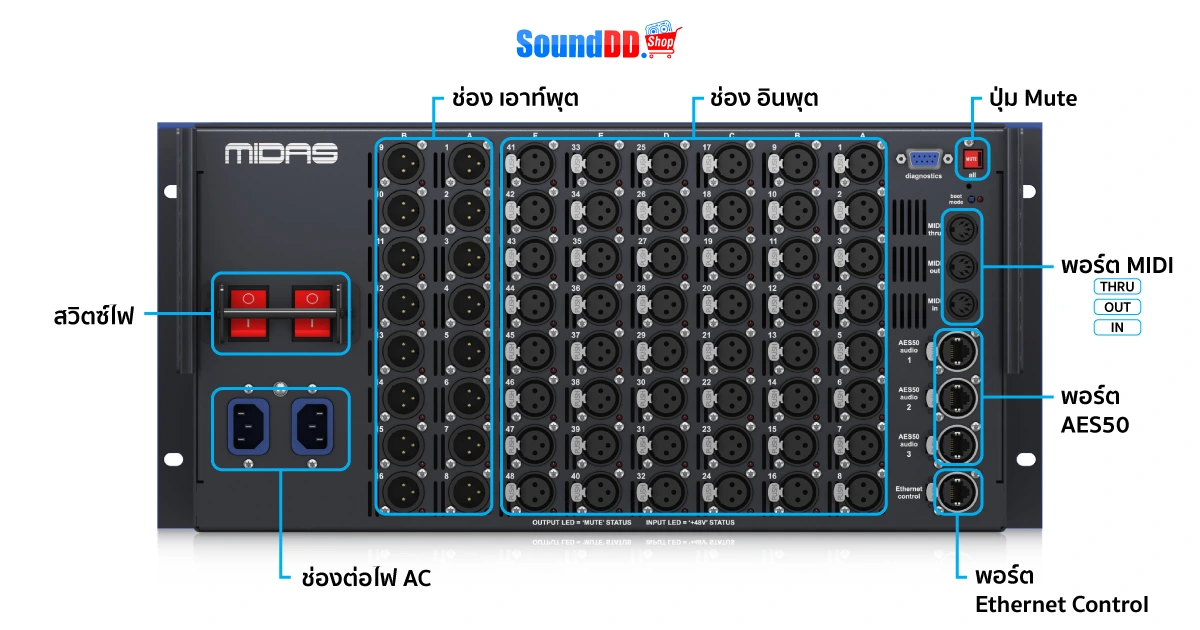

Input, output, and power connections shall be made at the rear panel of the interface unit. Installers shall allow adequate space at the rear for connection and disconnection of input, output, and power connections. The power requirements shall be 100 to 240 VAC, 50 to 60 Hz.
The interface unit shall be the Midas DL251 and no other alternative shall be acceptable.
คุณสมบัติ
-
- 48 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
- 16 actively balanced low impedance line level outputs
- Selectable 96 kHz or 48 kHz sample rate operation
- Remote operation up to 100 m via CAT5/5e cable
- All settings programmable from front panel controls or console
- PSU status indicator LEDs and configuration switches on front panel
- 3 AES50 network ports for redundant connections
- MIDI In, Out and Thru connectors
- Features Neutrik etherCON* AES50 network ports
- Rugged 5U rackmount chassis for durability in portable applications
- Dual redundant auto-ranging universal switch-mode power supplies
