ลำโพงเพดาน OPTIMAL AUDIO UP 6 ขนาด 6 นิ้ว 2 ทาง 60 วัตต์ แบบ 8 โอห์ม หรือ 70/100 โวลต์ ที่ให้การครอบคลุมที่สม่ำเสมอและเสียงที่คมชัด จากแบรนด์ OPTIMAL AUDIO
OPTIMAL AUDIO UP 6

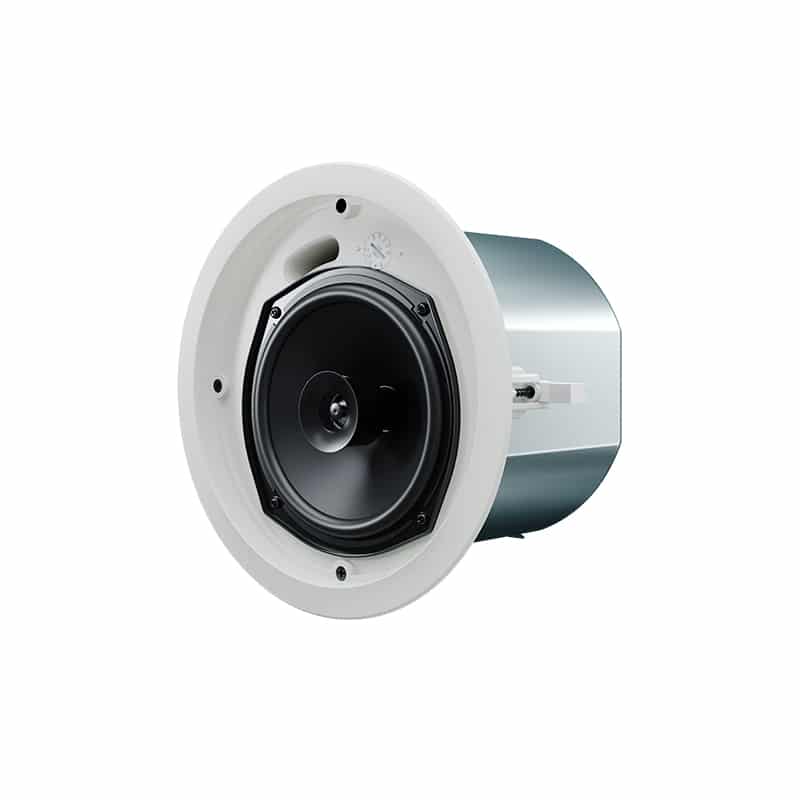

Two-way passive, full-range 6” ceiling speaker
Up 6 is a no-compromise two-way, passive 6” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments that require higher sound pressure levels — from hotels and concourses to retail outlets, bars and restaurants.

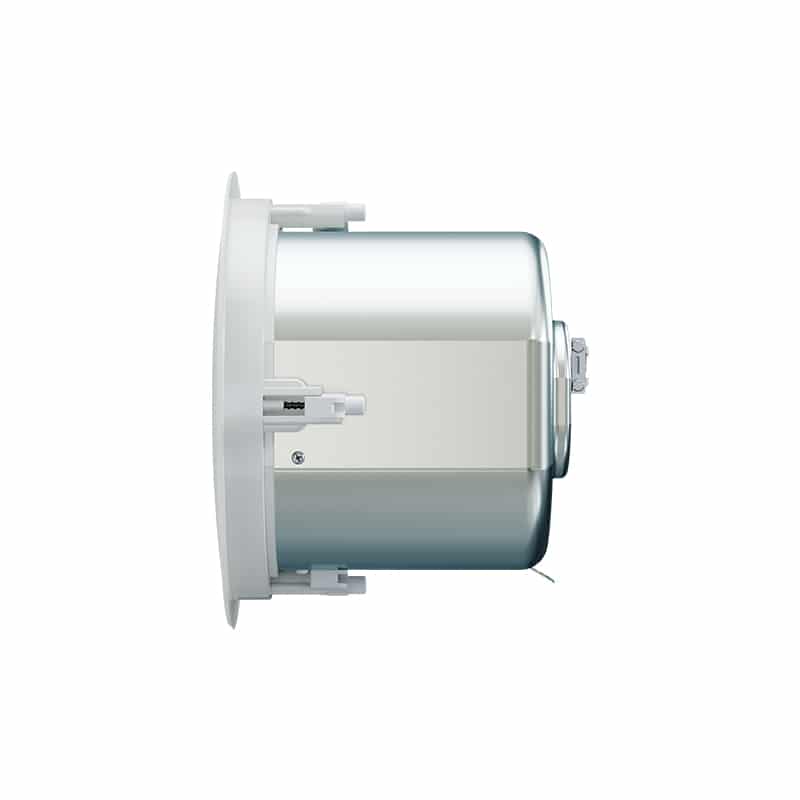

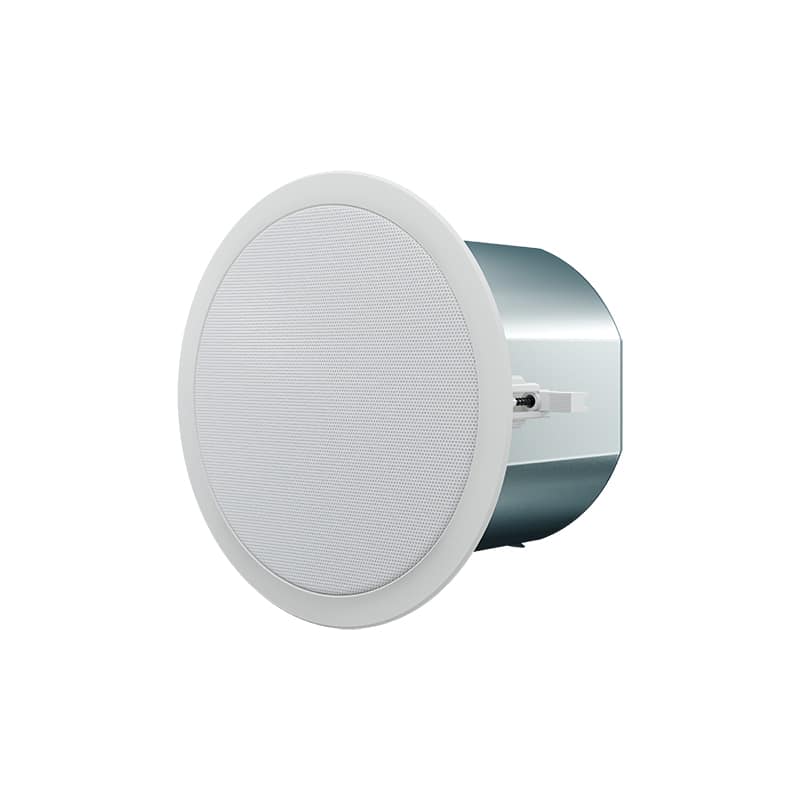

An integral fixing system is included to achieve a simple and clean installation. Up 6 has a steel back can and perforated steel grille and is finished in neutral white.
Up 6 features a 6” (162mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 110° coverage pattern ensures consistent, high performance sound where it needs to go.
Each Up 6 can be run on a variety of 70 or 100 volt taps, or at low impedance. The 16 ohm setting allows up to four units to be connected to each amplifier channel at low impedance. Tap selection is via a rotary switch behind the removable grille.
SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
- 6” coaxial driver
- Discreet size
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 115Hz – 18kHz ± 3dB -10dB @ 80Hz |
| DRIVERS | LF: 6.5” (162mm), Coated paper HF: 1 (25mm) exit/0.7 (20mm) voice coil, Silk Dome |
| RATED POWER (AES) | 60W |
| NOMINAL IMPEDANCE | 16 Ohms |
| SENSITIVITY (1W/1m) | 90dB |
| MAXIMUM SPL | 108dB (cont), 111dB (peak) |
| CROSSOVER | 2.7kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 80Hz |
| TRANSFORMER TAPS @ 70V | 60, 30, 15, 7.5W |
| TRANSFORMER TAPS @ 100V | 60, 30, 15W |
| DISPERSION (-6dB) | 110˚ conical |
| BACK CAN | Zinc-plated Steel |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel |
| FIRE RATING | UL94-V0 |
| CONNECTORS | 2 inputs, 2 links, lockable, screwdown |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS | (W) 251mm x (H) 205mm x (D) 251mm (W) 9.88” x (H) 8.07” x (D) 9.88” |
| WEIGHT | 3.0kg (6.6lbs) |
