audio controller OPTIMAL AUDIO ZONE 4 4 โซน พร้อม DSP และ WebApp ไมค์ 2 ตัว สายสเตอริโอ 4 ตัว และอินพุต HDMI 2 ช่อง จากแบรนด์ OPTIMAL AUDIO

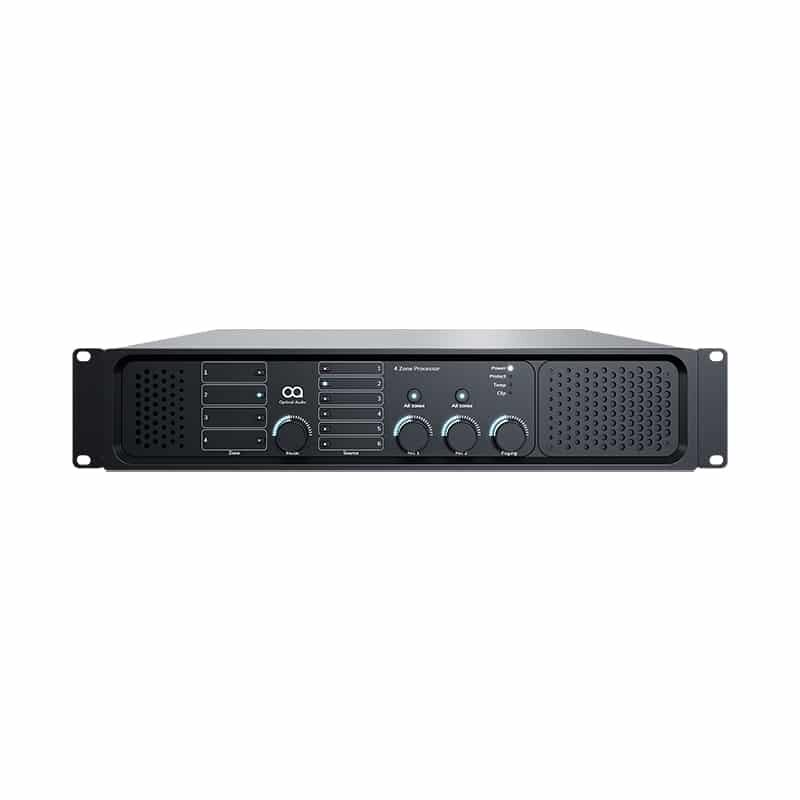

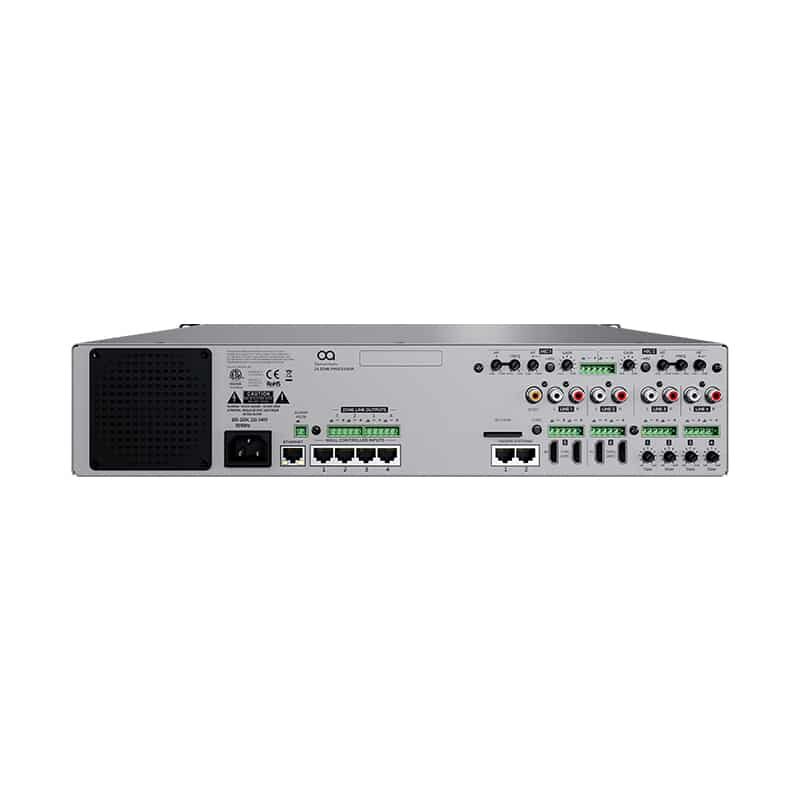

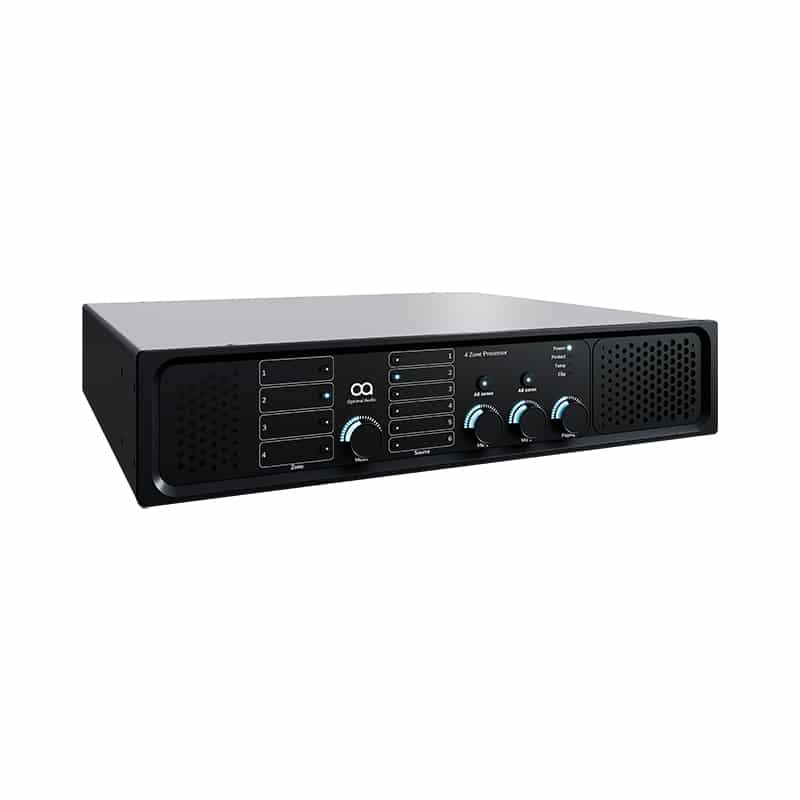

OPTIMAL AUDIO ZONE 4
4 zone audio controller with DSP and WebApp
Flexibility and ease of use are core values of Optimal Audio and the Zone series has been created to give easy access to everyday controls.
Zone 4 allows the user to independently allocate sources across four configurable zones, which could be anything from the bar, back of house or lobby to restaurant, kitchen or shop floor.
Zone 4 is the heart of any sound system, handling audio signal management for four zones. Each zone can be configured to do precisely what is required using the intuitive WebApp. It features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.
Zone 4 has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with our ZonePads and SmartAmp series provides a simple, intuitive and cost-effective audio system with superb sound quality.
- Full suite of audio controls for up to 4 zones
- Fully flexible signal routing
- WebApp interface for easy system configuration and everyday control
- 2 mic, 4 stereo line and 2 HDMI inputs
- Easily expanded – grows with your business
- Fully programmable presets and timed events
- Very competitive pricing
| TYPE | 4 zone audio processor with DSP and loudspeaker presets |
| MIC INPUTS | 2 with 48v phantom power, +12dB to +55dB gain |
| MIC INPUT PROCESSING | Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF bell @12kHz |
| LINE INPUTS | 4 stereo with +26dB gain trim. SPDIF option on input 1 |
| HDMI INPUTS | 2 ARC |
| LINE OUTPUTS | 4 |
| ZONEPAD SOCKETS | 4 |
| PAGING INPUTS (CAT 5) | 2 |
| LAN ETHERNET100Mbps | Yes |
| ALARM OVERRIDE | Yes |
| DIMENSIONS | (W) 480mm x (H) 88mm x (D) 400mm
(W) 18.90” x (H) 3.46” x (D) 15.75” |
| WEIGHT | 9.2kg (20.2lbs) |
