Single zone wall controller OPTIMAL AUDIO ZONEPAD 1 พร้อม local mic และ line inputs รีโมทคอนโทรลสำหรับควบคุมแต่ละโซน จากแบรนด์ OPTIMAL AUDIO

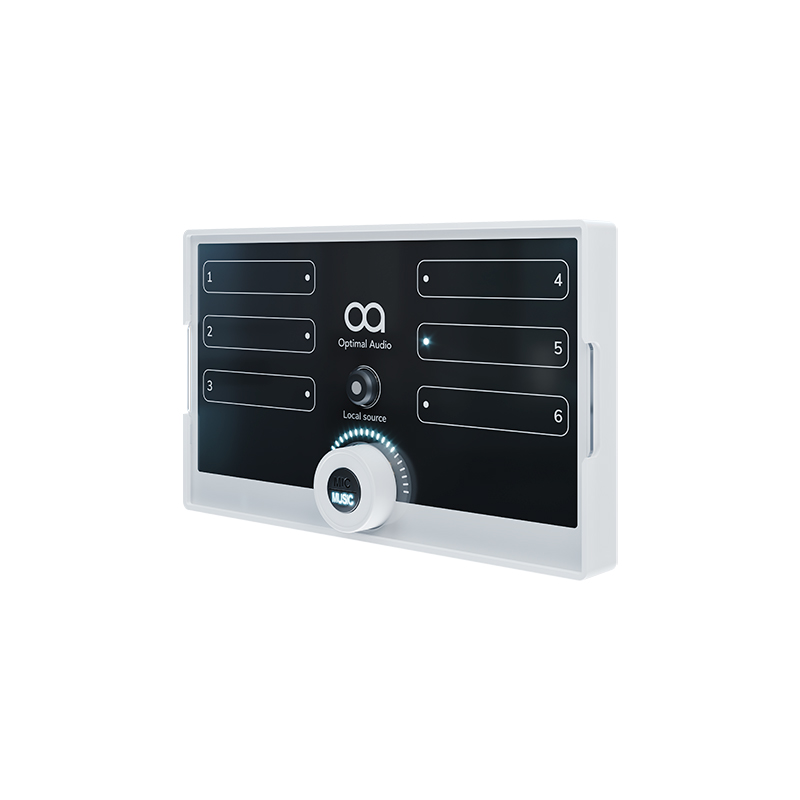

OPTIMAL AUDIO ZONEPAD 1
Single zone wall controller
ZonePad 1 is a wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.
It enables selection and volume control of playback source and a local microphone and mono line input.
ZonePad 1 gives all users the confidence and access they need to operate an Optimal Audio system.
ZonePad 1 features a clean, slick intuitive touch interface.
คุณสมบัติ
- Remote control wall panel for control of an individual zone
- Contemporary design fits in with any décor
- Intuitive layout via touch sensitive controls
- Easily configured to suit your venue
- Includes one local mic and one mono music input
- Easy access to everyday functions
- Very competitive pricing
สเปค
| TYPE | Single zone wall controller with local mic and line inputs |
| LOCAL MIC INPUT | 1 with 48v phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz |
| LOCAL MUSIC INPUT | 1 x mono |
| MAXIMUM DISTANCE (CAT5) | 500m |
| CONNECTION | RJ 45 |
| DATA PROTOCOL | Optimal Audio proprietary over CAT 5 |
| CASE MATERIAL | Zinc plated steel, ABS |
| LENS MATERIAL | Clear acrylic |
| BACK BOX | 2-gang 25mm deep back box |
| DIMENSIONS | (W) 146mm x (H) 86.2mm x (D) 39.3mm (W) 5.75” x (H) 3.39” x (D) 1.55” |
| WEIGHT | 0.35kg (0.8lbs) |
