QSC AD-S.SAT ลำโพงติดผนัง ขนาด 2.75 นิ้ว 25 วัตต์

฿9,202 (รวม VAT 7% แล้ว)

  • ราคาต่อคู่
ขอใบเสนอราคา ทาง LINE
  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดผนัง QSC AD-S.SAT ขนาด 2.75 นิ้ว 25 วัตต์ AD-S.SAT Wall speaker จากแบรนด์ QSC

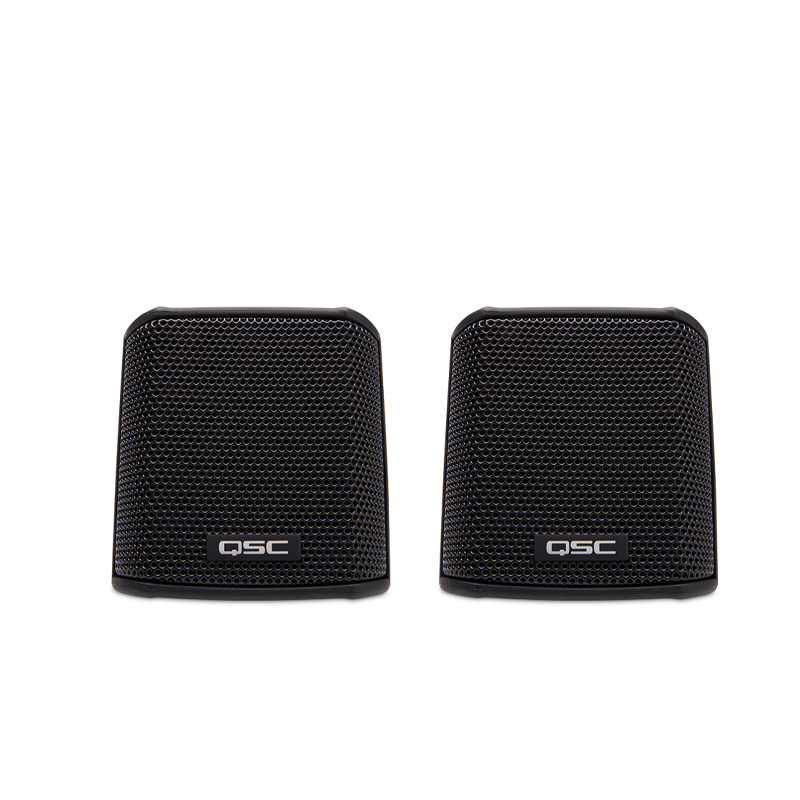

QSC AD-S.SAT

2.75-inch Small Format Surface Satellite Loudspeaker

The QSC AD-S.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

คุณสมบัติ

  • Inverted aluminum dome dust cap
  • Rated at 16 Ω
  • Locking 2-pole Euroblock connectors
  • X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)
ยี่ห้อ

สเปค



Specifications

AD-S.SAT
LF transducer N/A
HF transducer 2.75-inch (70 mm) weather treated paper cone woofer
Effective frequency range 150 Hz – 20 kHz
Rated noise power / voltage 6 25 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)
82
Coverage (‐6 dB) [°] 170 Conical
Directivity factor TBD
Directivity index [dB] TBD
Maximum SPL [dB]
(rated, 1 m (continuous / peak)
90 / 96
Recommended amplifier 25 W (with 1st order high-pass filter at 200 Hz)
Transformer taps / impedance Bypass: 16 Ω
Connector 2-pole Euroblock
Enclosure material ABS
Grill material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 0.95 lb (433 g)
Product dimensions including wall bracket
(H x W x D)
3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136 mm)
Shipping weight TBD (pair packed)
Shipping dimensions (H x W x D TBD (pair packed)
Included accessories X-Mount Mini, Euroblock connector (pair packed)
Safety agency Transformer UL registered per UL1876, ROHS, CE compliant

ดาวน์โหลด
