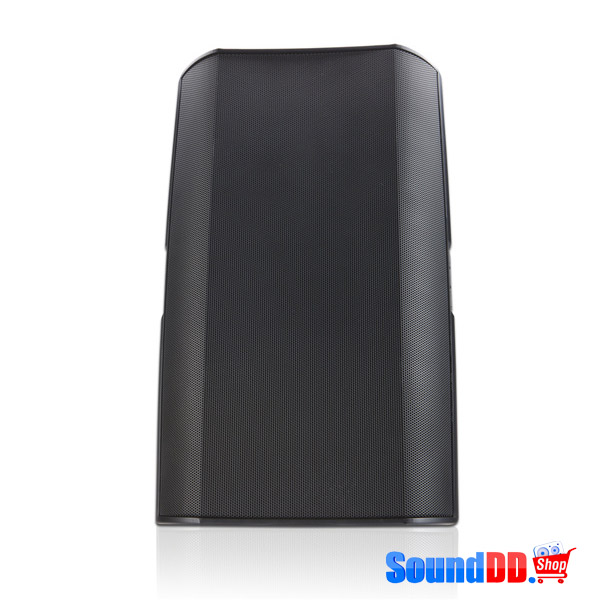

QSC AD-S112sw 12″ Subwoofer
QSC AD-S112sw ลำโพงซับวูฟเฟอร์ ติดผนัง ขนาด 12 นิ้ว 300 วัตต์ QSC AD-S112sw wall speaker จากแบรนด์ QSC
AcousticDesign™ surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mount™ system and weather input cover.
FEATURE

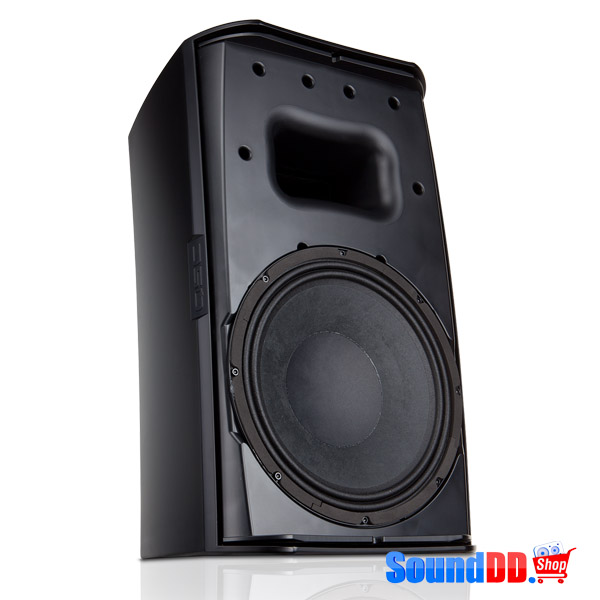

- 12” weather treated woofer
- TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
- Maximum peak SPL 121 dB
- Suggested filter points: 32 Hz high-pass, 24 dB/octave Butterworth; 100 Hz low-pass, 24 dB/octave Butterworth
- Included YMS12 yoke mount maximizes boundary plane coupling while reducing vibration transmission
- Optional M10 Kit-C for additional installation versatility
- Lightweight ABS enclosures offer long-term durability and lasting good looks

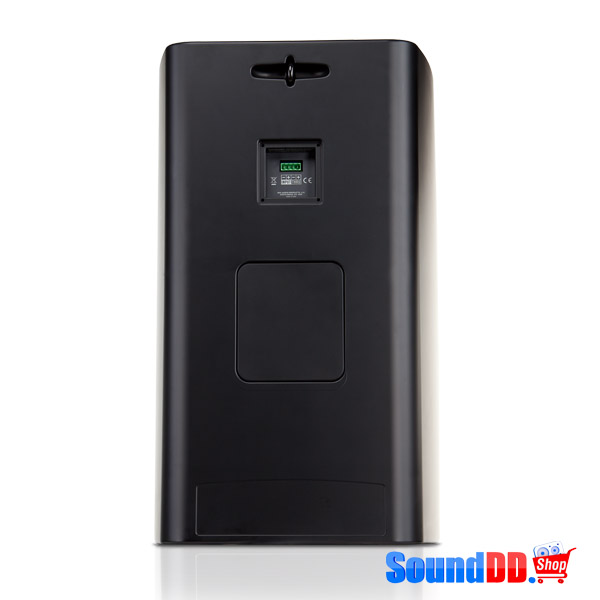

- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011)
- Complete EASE, CF2, CAD, and BIM information available online
SPECIFICATION
System Details |
AD-S112sw |
| Effective frequency range1 | 30 – 135 Hz |
| Rated noise power / voltage2 | 300 watts / 50 volts (rms) |
| Broadband Sensitivity3 | 90 dB SPL |
| Maximum continuous SPL4 | 115 dB |
| Maximum peak SPL4 | 121 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker “program” power) |
600 watts |
| Transformer taps | n/a |
| HF transducer | – |
| LF transducer | 12” weather resistant paper cone woofer, 2.5” / 64mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Yoke material | Powder coated galvanized steel (included) |
Enclosure Details |
|
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Product Dimensions (HWD) inches |
23.4 x 13.9 x 12.7 |
| Product Dimensions (HWD) mm |
594 x 354 x 323 |
| Net weight | 29 lb / 13.2 kg |
| Shipping weight | 43.1 lb / 19.6 kg |
| Shipping dimensions | 27.5” x 21.75” x 18.5” (698 x 552 x 470 mm) |
| Included accessories | YMS12 yoke mounting system, Euroblock connector, input panel cover |
| 1 Free-field, -10 dB from on-axis sensitivity 2 IEC60268-1 noise signal for 2 hours 3 On-Axis, free-field sensitivity, 2.83V, 1 m 4 Calculated from rated noise voltage and sensitivity |
|
