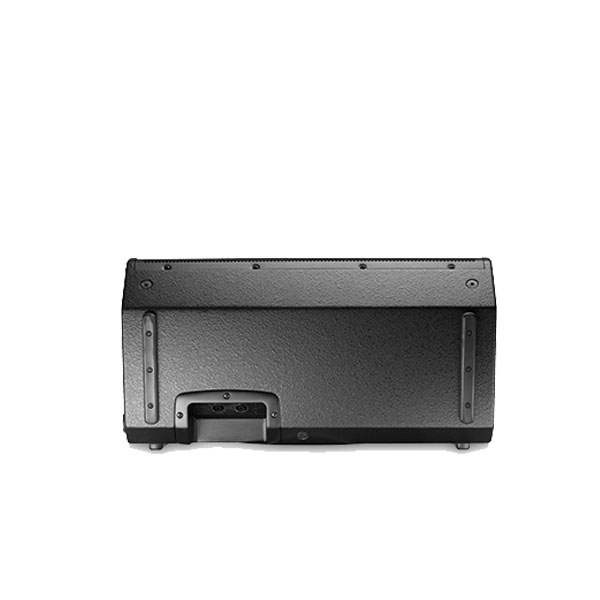

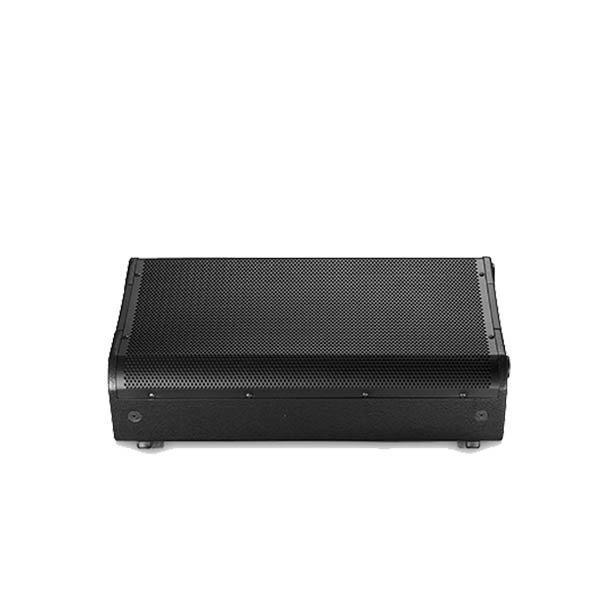

ตู้ลำโพงมอนิเตอร์เวที QSC AP-5122M ขนาด 12 นิ้ว 2 ทาง 550 วัตต์ Moniter Speaker จากแบรนด์ QSC
QSC AP-5122m High-Power, 12 in 2-way, 90˚ conical DMT
- DMT™ (Directivity Matched Transition) ensures smooth, coherent power response across the listening plane
-
3” diaphragm compression delivers a clean and powerful high frequency response
- M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
-
Pole cup (AP-5122m)
- Clean industrial design with unadorned grilles complement most decors and settings
- NL4 Speakon connector and covered barrier strip terminals
-
Bi-amp / passive switchable
- Constructed from 15-ply Baltic birch plywood
- 16-gauge powder coated steel grilles
-
Available in black only (RAL 9011)
- Complete EASE, CAD & BIM information available online
AP-5122m | |
Frequency response (-10 dB) |
55 Hz – 18 kHz |
Rated noise power / voltage1 | 550 watts / 60 volts rms |
Broadband sensitivity2 | 95 dB SPL |
Coverage angle |
90˚ conical DMT |
Directivity factor (Q) | 6.0 |
Directivity index (DI) | 7.8 |
Recommended crossover | 950 Hz, 48 dB/octave |
Maximum SPL at 1 m (passive) | 122 dB continuous3 128 dB peak4 |
Rated impedance |
8Ω |
HF transducer | 76 mm (3-inch) voice coil, compression driver; 72 W / 24 V (2 hours) |
LF transducer | 305 mm (12-inch) driver with 102 mm (4-inch) voice coil; 450 W / 60 V (2 hours) |
Optional accessories | AP-YM12M Yoke mount M10 Kit-W |
Enclosure details |
|
Input connector | Covered barrier strip, NL4 connector |
Enclosure material | 15-ply Baltic birch plywood |
Attachment points | Eleven M10 threaded inserts |
Color | Available in black only (RAL 9011) |
Grille |
16-gauge powder coated steel |
Dimensions (HWD) inches | 26 × 15 × 13 |
Dimensions (HWD) mm | 660 x 381 x 330 |
Net weight | 29.5 kg (65 lb) |
