ลำโพงมีแอมป์ขยายในตัว รุ่น QSC CP12 หรือที่เรียกว่าลำโพง แอคทีฟ นั่นเอง QSC ในแวดวงเครื่องเสียง หลายท่านคงนึกถึง เพาเวอร์แอมป์คุณภาพสูง”หลากหลายรุ่น ที่สร้างความประทับใจมาอย่างยาวนาน วันนี้จะพาทุกท่านมาทำความรู้จักกับ ลำโพงที่มีกำลังขยายในตัว หรือ COMPACT POWERED LOUNDSPEAKER แบรนด์ QSC กันบ้าง ซึ่งจะมีอะไรที่น่าสนใจบ้าง เราจะมาทำความรู้จัก QSC CP8 และ QSC CP12 ไปพร้อมๆกันเลยครับ
QSC CP12 12-Inch Compact Powered Loudspeaker
QSC CP-12 ลำโพงใบเล็กเสียงใหญ่
- อย่างแรกเลยที่ทำให้รู้สึกว่าเป็น “COMPACT POWERED LOUNDSPEAKER” คือตัวตู้ลำโพงมีน้ำหนักค่อนข้างเบาและมีขนาดที่ดูเล็กดีไซน์ค่อนข้างกระชับ ทั้งรุ่น QSC CP8 และ QSC CP12 นั่นหมายความว่า การเคลื่อนย้ายไปใช้งานในสถานที่ต่างๆทำได้อย่างคล่องตัวอย่างแน่นอน และประหยัดพื้นที่ในการจัดเก็บอีกด้วย
- ดีไซน์โดยรวมของตัวตู้ลำโพง ดูเรียบง่ายและให้ความรู้สึกถึงความแข็งแรงด้วยวัสดุโพลีโพไพลีน
- ลำโพงทั้งสองรุ่นนี้ สามารถที่จะสวมขาตั้งลำโพงมาตรฐาน 35 mm.

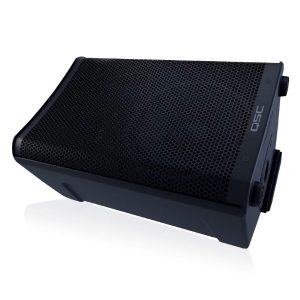

- ลำโพงทั้งสองรุ่นนี้ สามารถวางเป็นมอนิเตอร์ได้ ตอบโจทย์สำหรับ นักร้อง พิธีกร นักดนตรี ที่ต้องการฟังเสียงตัวเอง
- ตัวตู้ลำโพงออกแบบและรองรับสำหรับงานติดตั้ง แบบถาวรได้อีกด้วย
- QSC CP8 ลำโพงวูฟเฟอร์ขนาด 8 นิ้วและมี ไดรเวอร์เสียงแหลม ขนาด 1.4 นิ้ว มาพร้อมเพาเวอร์แอมป์คลาส D ขนาด 1000 วัตต์ (peak) มีมุมกระจายเสียง 90 องศา ให้ความไวเสียง MAX SPL 124 dB
- QSC CP12 ลำโพงวูฟเฟอร์ขนาด 12 นิ้วและมีไดรเวอร์เสียงแหลม ขนาด 1.4 นิ้ว มาพร้อมเพาเวอร์แอมป์คลาส D ขนาด 1000 วัตต์ (peak) มีมุมกระจายเสียง 75 องศา ให้ความไวเสียง MAX SPL 126 dB
High performance, superior
quality and lasting reliability.
These are the Hallmarks of the
QSC Brand.
The CP Series follows in that
same tradition while also offering
an ultra-compact form factor
and class-leading value.

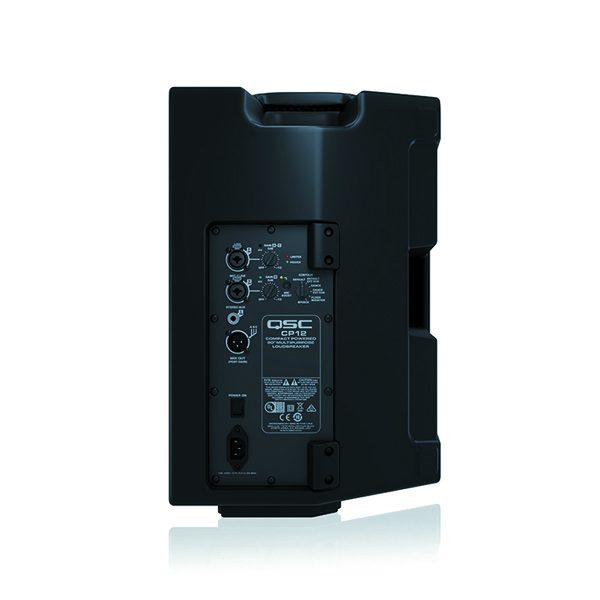

มีช่องรับสัญญาณเสียงที่เป็น 3 Input 1 Output ดังต่อไปนี้
-
ช่องรับสัญญาณอินพุท เอ เหมาะสำหรับนำ เครื่องดนตรี เช่น กีต้าร์และคีบอร์ด มาอินพุทเสียบเข้า เป็น แจ๊คแบบคอมโบ้ใช้ได้ทั้ง XLR และ TR Phone และมีวอลลุ่มลดและเพิ่มเสียง
-
ช่องรับสัญญาณอินพุท บี เหมาะสำหรับไมโครโฟน และสัญญาณเสียงอื่นๆมาเสียบเข้า แจ๊คแบบคอมโบ้ใช้ได้ทั้ง XLR และ TR Phone ช่องอินพุท บี นอกจากนี้สามารถกดบู๊สสัญญาณให้แรงเพิ่มขึ้น +25 dB ด้วยปุ่ม (Mic Boost) และมีวอลลุ่มลดและเพิ่มเสียงแยกอิสระ
-
ช่องรับสัญญาณอินพุท ซี เหมาะสำหรับนำเครื่องมัลติเพลเยอร์เช่น MP3 player Notebook มาอินพุทเข้าเพื่อเปิดเพลง แจ็คแบบ TRS 3.5 มินิแจ็ค และมีวอลลุ่มลดและเพิ่มเสียงใช้งานร่วมกับ อินพุท เอมี
-
1 ช่องเอ้าท์พุท สำหรับส่งสัญญาณออกไปต่อพ่วงกับตู้ CP Series ได้อีกแจ๊คแบบ XLR ตัวเมียนอกจากนี้จุดเด่นของตู้ลำโพง QSC CP Series ไม่เพียงแต่มีฟังก์ชั่นที่กล่าวมาข้างต้นเท่านั้น

Tote
Incredibly compact and
light weight, the
CP Series is easy
to lift, carry and transport.

Outdoor Cover
SELECT A MODEL
Model | CP 8 | CP 12 |
Frequency Response (-6 dB) | 56 Hz – 20 kHz | 49 Hz – 20 kHz |
Frequency Range (-10 dB) | 53 Hz – 20 kHz | 47 Hz – 20 kHz |
Nominal Coverage Angle (Peak SPL @ 1 m) |
90 0 Axisymetric | 75 0 Axisymetric |
Maximum Rated SPL1 | 124 dB | 126 dB |
Amplifier Power | Class D Peak: 800 W (LF), 200 W (HF) | |
AC Power Consumption 1/8th Power | 100 VAC, 0.75A/120 VAC, 1.0A/240 VAC 0.31 A | |
Driver Information | LF: 8-in (203 mm), cone
HF: 1.4-in (35.6 mm) compression driver |
LF: 12-in (305 mm), cone
HF: 1.4-in (35.6 mm) compression driver |
Connectors | 2x locking XLR/F 1/4″ combo (Line input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
|
Enclosure | Polypropylene | |
Net Weight | 21.0 lb (9.5 kg) | 30.3 lb (13.7 kg) |
A CP Series for everyone.
Musicians and Bands
When the music matters, CP delivers. Musicians and their audiences alike will appreciate CP Series’ fidelity and authentic reproduction of instruments and vocals, even when pushed to high SPL. The CP Series is also incredibly versatile, effortlessly moving between main PA, stage monitor and musical instrument amplifier duties. Easy-to-use, incredibly light weight and ultra-compact, CP represents a tremendous value for working musicians and bands, offering QSC quality and reliability at an unprecedented price point.
Event Production and Dry Hire
CP Series’, QSC CP12 combination of performance, versatility and reliability make it an outstanding solution for event production and dry hire. Simple to operate for AV professionals and rental customers alike, CP is equally capable for high quality sound reinforcement of both music and speech. Incredibly compact and light weight, CP Series takes up little shelf space, is carried with ease and stacks neatly atop KS Series subwoofers for easy, rolling transport. CP also delivers tremendous value for its owners, offering QSC quality and reliability at an unprecedented price point.
Presenters and Announcers
CP Series is the perfect go-anywhere solution for presenters, educators, and business users who need reliable, great-sounding, easy-to-use sound reinforcement at a value price point. Setup is quick, with simple connectivity for microphones, smartphones/laptops and musical instruments (no mixer required) along with one-touch settings for the most common speech, music and multi-purpose applications. Ultra-compact and light weight, CP is easily transported and effortlessly deployed on a speaker pole. An optional quick-connect yoke mount is available for both temporary and permanent installations.
DJs and Mobile Entertainers
With astonishing range, fidelity and output for an ultra-compact loudspeaker, CP Series represents the perfect solution for DJs and mobile entertainers who want QSC performance, quality and reliability at a value price point. Highly compact, CP fits in the smallest of vehicles while its light weight makes it effortless to carry and place on a speaker pole. Whether used alone or atop KS Series subwoofers, DJs and their audiences alike will also appreciate CP Series’ authentic reproduction of high-energy music, even when pushed to high SPL.
Houses of Worship
CP Series, QSC CP12 is the ideal solution for houses of worship and portable churches who want QSC performance, quality and reliability at a value price point. CP is incredibly versatile; its one-touch DSP allowing it to effortlessly move between main PA, stage monitor and musical instrument amplifier duties. Remarkably compact and light weight, CP Series is easy to lift onto a speaker pole and transport between venues, rooms and storage spaces. Of course, CP delivers remarkable audio performance, providing outstanding fidelity and high-energy output for both enthusiastic performers and worshippers alike.
System Integrators
CP Series, QSC CP12 is the ideal solution for system integrators who want QSC performance, quality and reliability at a value price point. Incredibly compact, CP features an elegant form factor that blends well into small spaces while also providing outstanding audio performance for both speech and music applications. Because of its light weight, CP Series is easy to deploy either horizontally or vertically with an optional quick-connect yoke mount.
Public Address
CP Series, QSC CP12 is the perfect, value-priced solution for easy-to-use, high quality sound reinforcement in a wide range of public address purposes. Setup is quick, with simple connectivity for microphones, smartphones/laptops and musical instruments, along with one-touch settings for the most common speech, music and multi-purpose applications. Ultra-compact and light weight, CP takes up little storage space, is easily transported and is effortlessly placed atop a speaker pole. An optional quick-connect yoke mount is available for permanent installations.
- ดีไซน์ขนาดกะทัดรัดแต่ทรงประสิทธิภาพอันทรงพลัง
- กำลังขับสูงสุด 1,000 วัตต์โมดูลเครื่องขยายเสียง Class-D
- โหมด DSP 6 พรีเซ็ท เพื่อคุณภาพเสียงที่ยอดเยี่ยม
- Directivity Matched Transition ™ (DMT) เทคโนโลยีตอบสนองความถี่ที่สม่ำเสมอครอบคลุมทั่วทั้งพื้นที่
- น้ำหนักเบาและพกพาง่าย
- มีภาพลักษณ์มืออาชีพดูดีในทุกมุมมอง
- ใช้สำหรับงาน PA หลัก, มอนิเตอร์บนเวทีหรือเครื่องขยายเสียงเครื่องดนตรี
- ซ็อกเก็ตสำหรับใส่เสาขนาด 35 มม
- อุปกรณ์เสริมกระเป๋าสำหรับลำโพงรุ่นนี้
Amplifier and DSP
จุดเด่นมี DSP ดิจิตอลซิกแนลโปรเซสเซอร์ ในตัวสำหรับเลือกการใช้งานได้ถึง 6 รูปแบบเสียงดังต่อไปนี้
-
รูปแบบเสียงที่ 1 Default เสียงฟูลเร้นท์
-
รูปแบบเสียงที่ 2 Default Ext sub ใช้งานร่วมกับซัพวูฟเฟอร์
-
รูปแบบเสียงที่ 3 Dance เบสจะหนักแน่น
-
รูปแบบเสียงที่ 4 Dance Ext sub แนวเสียงแด๊นซ์ใช้งานร่วมกับซัพวูฟเฟอร์
-
รูปแบบเสียงที่ 5 Floor monitor สำหรับเป็นลำโพงมอนิเตอร์
-
รูปแบบเสียงที่ 6 Speech สำหรับใช้งานพูดหรือบรรยาย
Compact and Light Weight
CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Flexible Design
CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.
Presets
“พรีเซ็ท” ทุกรูปแบบเสียงสามารถปรับหมุนได้เลยที่หลังตัวตู้ลำโพง ทำให้ง่ายและสะดวกมากๆในการใช้งาน หลังจากที่ทราบฟีดเจอร์สเปคกันไปแล้ว ก็พอสรุปได้ว่า QSC CP Series ตอบโจทย์และเหมาะกับการใช้งานประเภทใหนบ้าง? ดังต่อไปนี้
1. งาน พรีเซนต์ และ เทรนนิ่ง
2. งานดนตรี ที่ต้องการใช้เป็นลำโพงหลักซ้าย ขวา (Main PA.) และเป็นลำโพงมอนิเตร์สำหรับนักดนตรี
3. ใช้เป็นลำโพงแบ็คกราวด์มิวสิค และงาน DJ เป็นต้น
Model |
QSC CP12 |
Configuration |
Two-way active loudspeaker |
LF Transducer: |
12 in (305 mm), cone |
HF Transducer: |
1.4 in (35.6 mm) compression driver |
Frequency Response (-6 dB) |
49 – 20 kHz |
Frequency Range (-10 dB) |
47 – 20 kHz |
Nominal Coverage Angle: |
75° Axisymetric |
Maximum Rated SPL1: |
126 dB |
Amplifier: |
Class DPeak: 800 W (LF), 200 W (HF) |
Controls: |
Power2 x GainMic Boost Push Switch6-way Contour Selection Switch |
Indicators: |
Power LED2 x Input Signal LEDInput B MIC selected LEDLimiter active LED |
Connectors: |
2 x locking XLR/F ¼” combo (Line Input and Mic/Line input)1 x 3.5 mm TRS (Stereo Input)1 x XLR/M (Mix Output)1 x IEC power connector |
AC Power Input: |
Universal power supply 100 – 240 VAC, 50 – 60 Hz |
AC Power Consumption 1/8th Power: |
100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
Enclosure Material: |
Polypropylene |
Attachment Points: |
M10 threaded insert |
Color: |
Black (RAL 9011) |
Grille: |
18 Gauge powder-coated steel |
Dimensions (HxWxD): |
20.3 x 13.8 x 12.7 in516 x 350 x 323 mm |
Net Weight: |
30.3 lbs (13.7 kg) |
Shipping Weight: |
36.3 lbs (16.5 kg) |
Regulatory: |
EMC, UL, CB |
Optional Accessories: |
CP12 Tote, CP12 Outdoor Cover, CP12 Yoke |
