WHARFEDALE PRO SIGMA-X12 ลำโพง 12 นิ้ว 1200 วัตต์

Name: WHARFEDALE PRO SIGMA-X12 ลำโพง 12 นิ้ว 1200 วัตต์
Brand: WHARFEDALE PRO
SKU: WHARFEDALE PRO SIGMA-X12
Availability: InStock

฿16,900 (รวม VAT 7% แล้ว)

เลือกขนาดดอก:

8 นิ้ว

10 นิ้ว

12 นิ้ว

15 นิ้ว

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพง WHARFEDALE-PRO SIGMA-X12 ขนาด 12 นิ้ว 1200 วัตต์ ซีรี่ส์ SIGMA-X ง่ายต่อการติดตั้งในเกือบทุกตำแหน่ง ดูดีและให้เสียงที่ยอดเยี่ยม ติดตั้งง่าย เชื่อมต่อง่าย พร้อมท่อนำคลื่นที่หมุนได้

WHARFEDALE PRO SIGMA-X12
SIGMA series of Installation loudspeakers

Description

A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.

Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.

New column models (Sigma-XV5 and XV9) also now feature HF compression drivers coupled to the innovative mini EVO-Fold waveguide developed for the flagship WLA-1 Hybrid Curvature Array system.

Feature

Newly designed cosmetics
Rotatable HF waveguides
Re-evaluated performance
Updated column models with HF drivers
Column models with mini EVO-Fold waveguides
70 V / 100 V Hi-Z Column models
EASE gll files available for download
Supported with system diagrams
Supported with downloadable FIR presets
Easy fixings and brackets
Available in black or white durable paint finishes

GRILLE DESIGN

All SIGMA-X models feature the iconic Wharfedale Pro logo. A grille to enhance any stylish installation, without being visually overpowering.

COLUMNS WITH MINI EVO-FOLD

SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers. For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

EASY INSTALL

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.

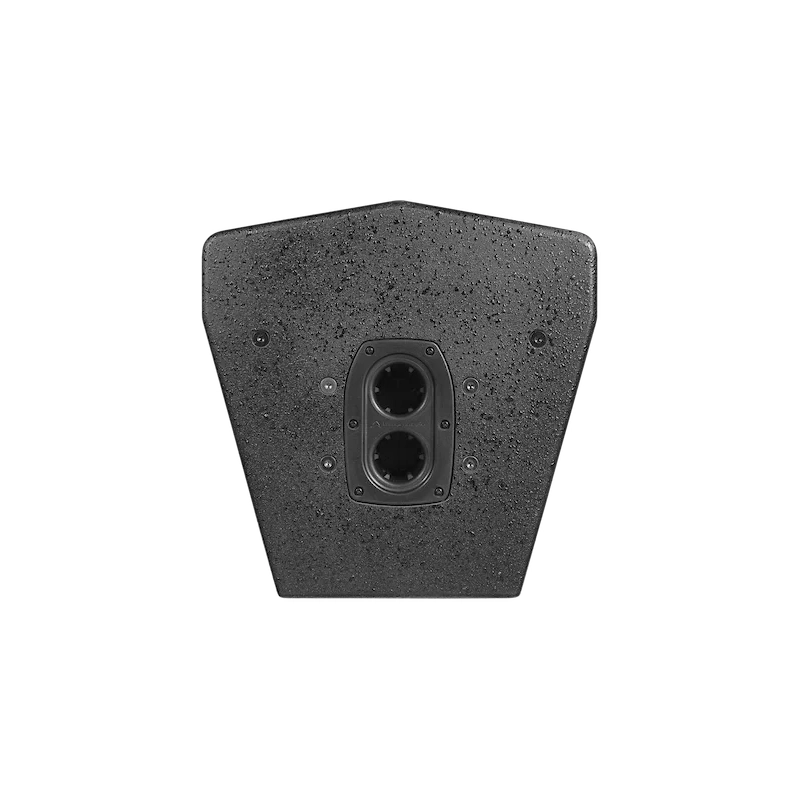

SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket!

SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets

EASY CONNECTION

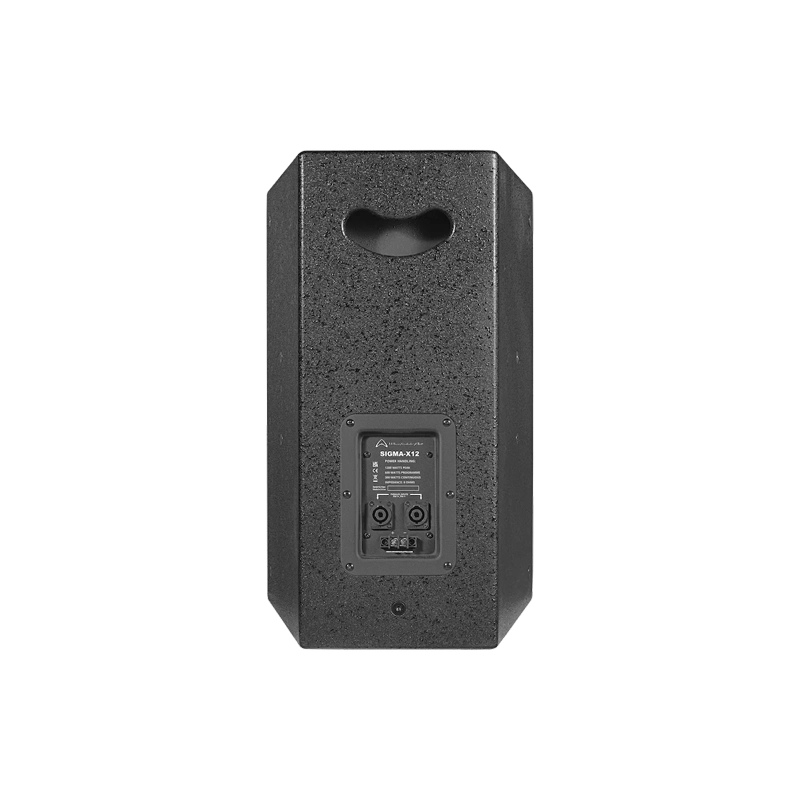

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs. It is another small step that makes the installation easy.

ROTATABLE WAVEGUIDES

SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.

90° x 60° or 60° x 90°….you decide.

SUPPORT WITH EASE

All full range models in the SIGMA-X series are supported with EASE .gll files.

น้ำหนัก	20.74 กก.
ขนาด	404 × 468 × 616 มิลลิเมตร
ยี่ห้อ	WHARFEDALE PRO

สเปค

Model Name	SIGMA-X8	SIGMA-X10	SIGMA-X12	SIGMA-X15	SIGMA-X18B
System Type	Passive	Passive	Passive	Passive	Passive
Configuration	Two-Way	Two-Way	Two-Way	Two-Way	Subwoofer
Frequency Response (+/-3 dB)	70 Hz – 18 KHz	65 Hz – 18 KHz	60 Hz – 18 KHz	50 Hz – 18 KHz	35 Hz – 250 Hz
Frequency Range (-10 dB)	65 Hz – 20 KHz	60 Hz – 20 KHz	55 Hz – 20 KHz	45 Hz – 20 KHz	30 Hz – 250 Hz
Sensitivity 2.83 V / 1 m	96 dB	97 dB	98 dB	98 dB	100 dB
Calculated Maximum SPL @1 m	124 dB	126 dB	129 dB	129 dB	133 dB
System Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	4 Ω
Low Frequency Transducer
Size (mm / inches)	203 mm / 8”	254 mm / 10”	305 mm / 12”	381 mm / 15”	457 mm / 18”
Voice Coil Size (mm / inches)	38 mm / 1.5”	38 mm / 1.5”	64 mm / 2.5”	64 mm / 2.5”	64 mm / 2.5”
Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	4 Ω
LF Power re:AES2-2012	150 W	200 W	300 W	350 W	500 W
High Frequency Transducer
HF Driver Type	Compression Driver	Compression Driver	Compression Driver	Compression Driver	n/a
Coil Size (mm / inches)	44 mm / 1.75”	44 mm / 1.75”	44 mm / 1.75”	44 mm / 1.75”	n/a
Exit Size (mm / inches)	1″	1″	1″	1″	n/a
Diaphragm Material	Titanium	Titanium	Titanium	Titanium	n/a
Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	n/a
HF Power re:AES2-2012	40 W	40 W	40 W	40 W	n/a
Waveguide Type	Constant Directivity / Rotatable	Constant Directivity / Rotatable	Constant Directivity / Rotatable	Constant Directivity / Rotatable
Nominal Coverage (H x V)	90˚ x 60˚	90˚ x 60˚	90˚ x 60˚	90˚ x 60˚	na
LF Driver	1 x 8″	1 x 10″	1 x 12″	1 x 15″	1 x 18″
HF Driver	1 x 1.75″ Titanium Compression Driver	1 x 1.75″ Titanium Compression Driver	1 x 1.75″ Titanium Compression Driver	1 x 1.75″ Titanium Compression Driver	n/a
Power
System Continuous Power	150 W	200 W	300 W	350 W	500 W
System Programme Power	300 W	400 W	600 W	700 W	1000 W
System Peak Power	600 W	800 W	1200 W	1400 W	2000 W
Crossover frequency	2.8 KHz	2.4 KHz	2.2 KHz	2.2 KHz	150 Hz
Recommended HPF = BW 18 dB/oct.	55 Hz	45 Hz	38 Hz	33 Hz	28 Hz
Input Connector	2 x speakON / 1x Barrier Strip	2 x speakON / 1x Barrier Strip	2 x speakON / 1x Barrier Strip	2 x speakON / 1x Barrier Strip	2 x speakON / 1x Barrier Strip
Hardware	35 mm pole socket	Dual-angle (0° /10°) 35 mm socket	Dual-angle (0° / 10°) 35 mm socket	Dual-angle (0° / 10°) 35 mm socket	35 mm pole socket
	M8 x 17	M8 x 17	M8 x 17	M8 x 17
	1 handle on back	1 handle on back	1 handle on back	2 handles on sides	4 handles on sides
Enclosure
Enclosure Material	15 mm MDF	15 mm MDF	15 mm MDF	15 mm MDF	18 mm MDF
Finish	Black Paint / White Paint	Black Paint / White Paint	Black Paint / White Paint	Black Paint / White Paint	Black Paint / White Paint
Grille Material & Finish	1.2 mm steel, painted	1.2 mm steel, painted	1.2 mm steel, painted	1.2 mm steel, painted	1.2 mm steel, painted
Dimensions – Unpacked
Height	465 mm / 18.3″	520 mm / 20.5″	551 mm / 21.7″	650 mm / 25.6″	554 mm / 21.25″
Width Front	284 mm / 11.2″	338 mm / 13.3″	354 mm / 14″	435 mm / 17″	502 mm / 20″
Width Rear	176 mm / 6.9″	213 mm / 8.4″	218 mm / 8″	261 mm / 11.7″	502 mm / 20″
Depth	282.7 mm / 11.1″	338.3 mm / 13.3″	359 mm / 14″	439 mm / 17.25″	780 mm / 30.8″
Dimensions – Packed
Height	505 mm / 19.9″	585 mm / 23″	616 mm / 24.3″	715 mm / 28.1″	649 mm / 25.5″
Width Front	364 mm / 14.3″	441 mm / 17.3″	468 mm / 18.4″	553 mm / 21.75″	588 mm / 22.75″
Width Rear	214.4 mm / 8.43″	251 mm / 9.9″	260 mm / 10.2″	304 mm / 12″	588 mm / 22.75″
Depth	333 mm / 13.1″	389 mm / 15.3″	404 mm / 15.9″	488 mm / 19.2″	865 mm / 34″
Weight
Net Weight	12.2 kg / 26.8 lbs	17.1 kg / 37.62 lbs	19.1 kg / 42.02 lbs	24.4 kg / 53.7 lbs	39.1 kg / 86 lbs
Gross Weight	13.5 kg / 29.7 lbs	18.8 kg / 41.4 lbs	20.74 kg / 48.2 lbs	27.7 kg / 60.9 lbs	46.4 kg / 102 lbs
Optional Wall-mount bracket	WPB-1 / WPB-2	WPB-1 / WPB-2	WPB-1 / WPB-2	WPB-1 / WPB-2	n/a
