ลำโพงซับวูฟเฟอร์ QSC WL212-sw ขนาด 2×12 นิ้ว 1100 วัตต์ ซีรีส์ WideLine ที่ได้รับการยกย่องของ QSC สำหรับการใช้งานภาคพื้นดิน จากแบรนด์ QSC

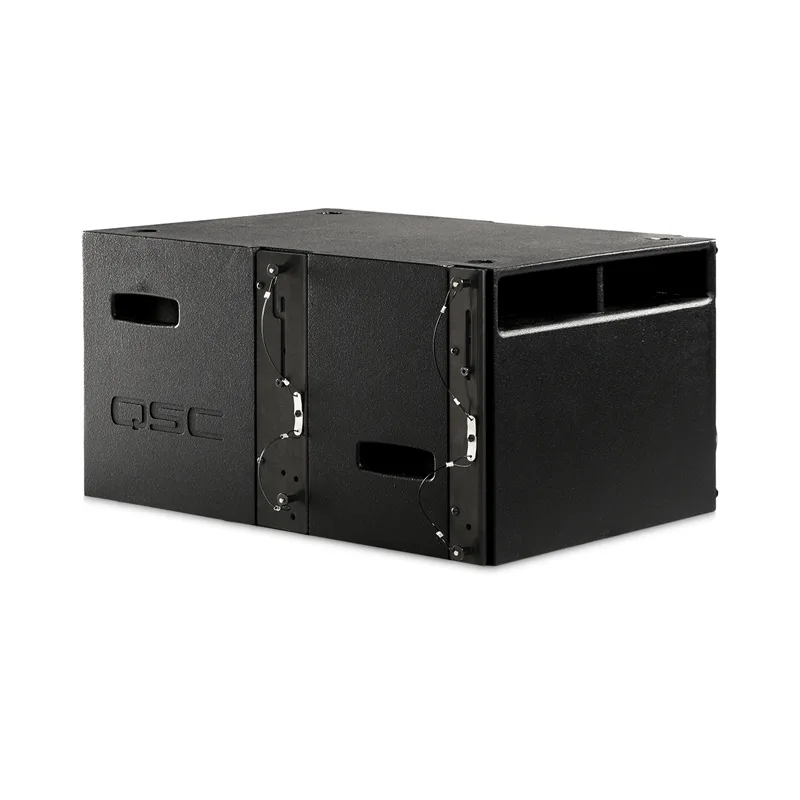

QSC WL212-sw
Passive Dual 12-inch Flying Subwoofer
คุณสมบัติ
- Dual 12-inch subwoofer in a 4th order bandpass enclosure
- 135 dB SPL peak output capability
- Frequency range to 32 Hz (-10 db down point)
- May be suspended at the top of a WL3082 array or behind the array
- Integral suspension hardware also supports WL3082 in ground stack applications
สเปค
SPECIFICATIONS | WL212-sw | |
Configuration | Dual 12-inch, 4th-order bandpass subwoofer | |
Transducers High-frequencyLow-frequency |
-Dual, 12-inch woofer with a 4-inch voice coil, ceramic magnet assembly | |
Frequency Response (±3 dB) | 40 Hz – 100 Hz | |
Frequency Range (-10 dB) | 32 Hz – 107 Hz | |
Nominal Impedance | SUB: 4 ohms | |
Continuous Power Capacity1 | LF: 1100 W | |
Maximum Output, Continuous / Peak (dB SPL at 1 m) |
LF: 129 dB SPL / 135 dB SPL | |
Nominal Coverage | – – |
|
Enclosure Type | 4th-order bandpass | |
Enclosure Material | 15 mm birch plywood | |
Finish | Available in black | |
Grille | – | |
Connectors | Two NL8 in parallel | |
Pin Outs | 1+/1- Sub 2+/2- NC 3+/3- NC 4+/4- NC |
|
Attachment Points | Integral, non-adjustable | |
Dimensions (H×W×D) | 381 × 508 × 737 mm 15 × 20 × 29 in |
|
Carton Dimensions (H×W×D) | 660 × 510 × 838 mm 26 × 20 × 33 in |
|
Net Weight | 49.4 kg / 109 lb | |
Shipping Weight | 56.7 kg / 125 lb | |
Available Accessories | AF3082-L AF3082-S CP212-0 Wood cart EB3082 |
