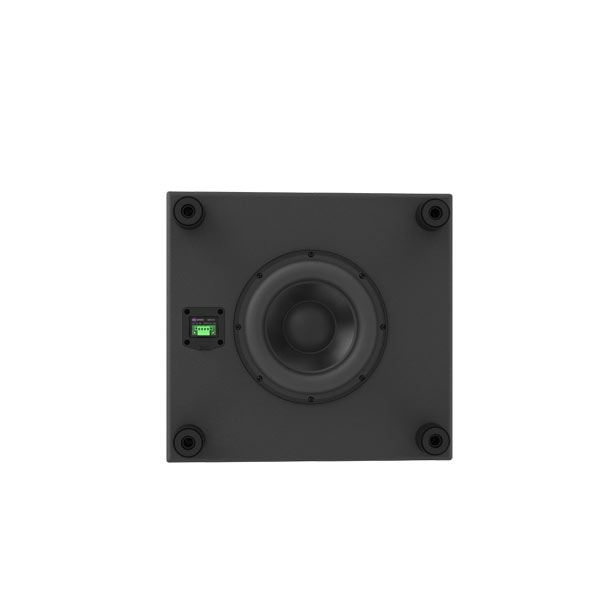

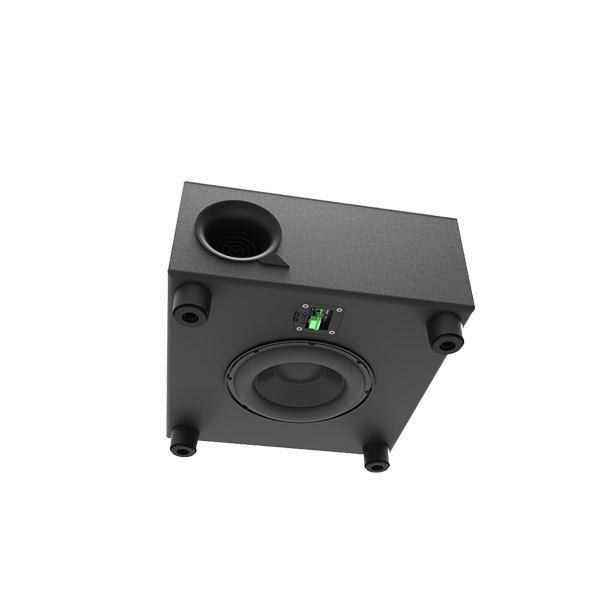

QUEST MXS10 Compact, Concealable Subwoofer
Extended range bass, and easy to conceal. The MXS10 coupled with MX or MXC loudspeakers provides a complete, full-range audio solution. One which architects and venue designers have long been waiting for.
The MXS10 is a suitable low/mid sound pressure level subwoofer for use in permanent installation environments. It is ideal as a bass extension to a distributed background music system, or as a multi-unit system in a bar or music venue.
The ‘punchy’, yet smooth performance of the MXS10 is delivered via the custom 10” 50mm Voice Coil – Dual Magnet Woofer. A decision early on in the design phase was made to build a custom driver to suit the application specific requirements of the MXS10…the result speaks for itself.
|Max SPL *calculated||118dBSPL|
|Sensitivity 1W @ 1m – 60Hz||96dB|
|Frequency Response||-9dB 44Hz – 90Hz|
|Power Handling||300W RMS|
|Driver||10″ 50mm Voice Coil Dual Spider, Dual Magnet Woofer.|
|Connectivity||Captive Screw Terminal Plug (In/Thru)|
|Dimensions *L x W x H||500 x 470 x 256mm|
|Net Weight||15.1 kg|
|Shipping Weight||17.3 kg|
