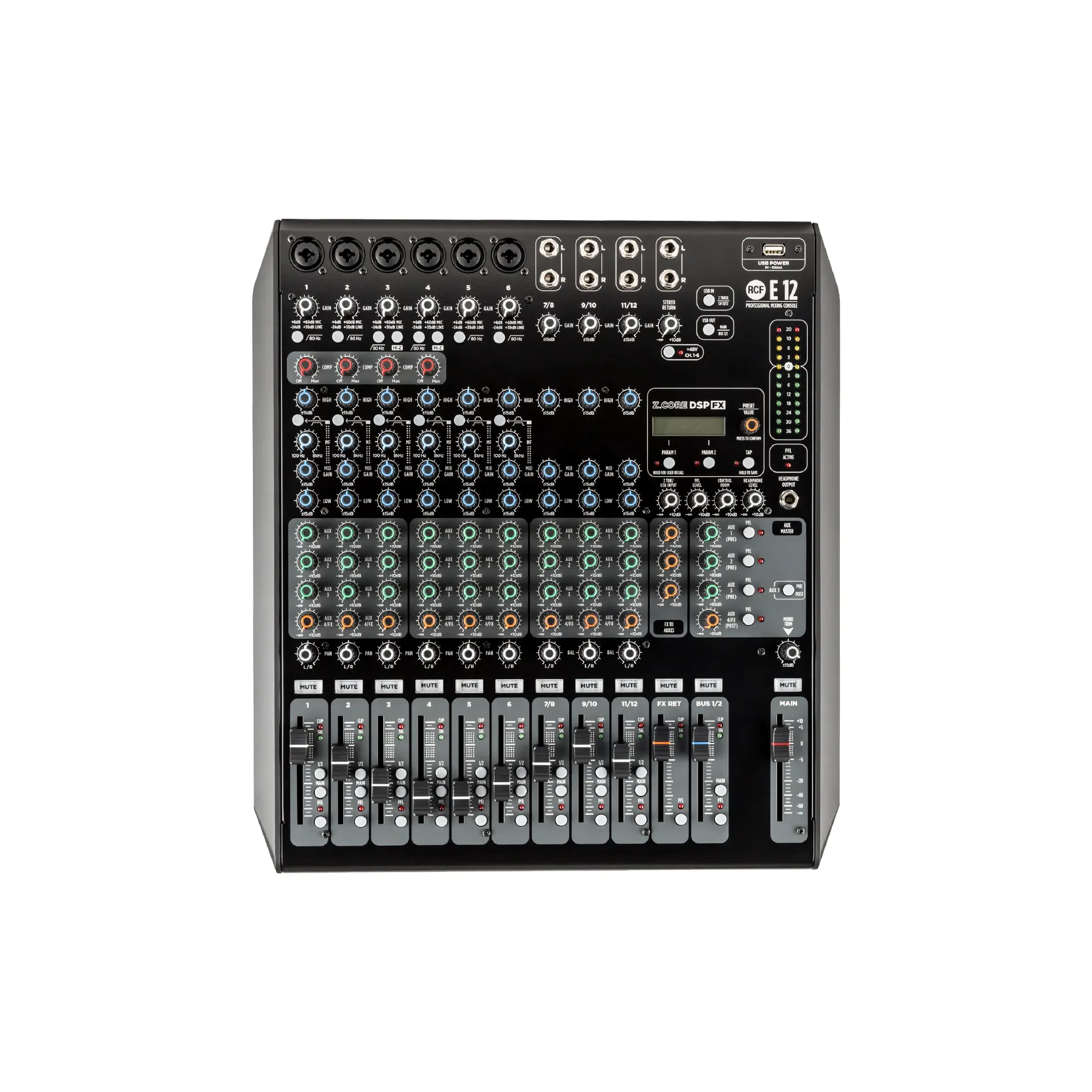

RCF E 12 เครื่องผสมสัญญาณเสียง อนาล็อก12 ชาแนล RCF E 12 MIXING CONSOLES จากแบรนด์ RCF
RCF E 12 12-CHANNEL MIXING CONSOLE WITH SUPERIOR EFFECTS AND EQS
All consoles feature the newly-designed 32-bit floating-point Z.CORE DSP effects engine offering 80 predefined presets – 40 reverbs, 20 delays and 20 modulation effects – with two responsive parameters that can be freely modified to suit the needs of the mix and a Tap tempo button. Also, a storage bank of 20 user presets are available with quick recalls. The last preset used is recalled when turning on the mixer. All algorithms have been developed internally by RCF’s R&D Electronic Department, with the contribution of some of the most trusted sound engineers.
HIGH-GRADE PREAMPLIFIERS
Purpose-designed high-grade preamplifiers, based on modern solutions and accurately selected components, offer high dynamics and exceptional sound clarity. Re-designed single-control dynamic compressors on mic input channels adjust the dynamic behavior of any instrument and voice. Two onboard Hi-Z inputs solve the need for the D.I. Boxes.
EQ LIKE NO OTHERS
Shaping the sound is fast and precise, thanks to the ultra-musical four-band EQ, featuring two semi-parametric EQs with a narrow/wide Q selector and two shelving EQs. Theswitchable Q brings the accuracy of parametric EQ on the small form factor of the mixer.

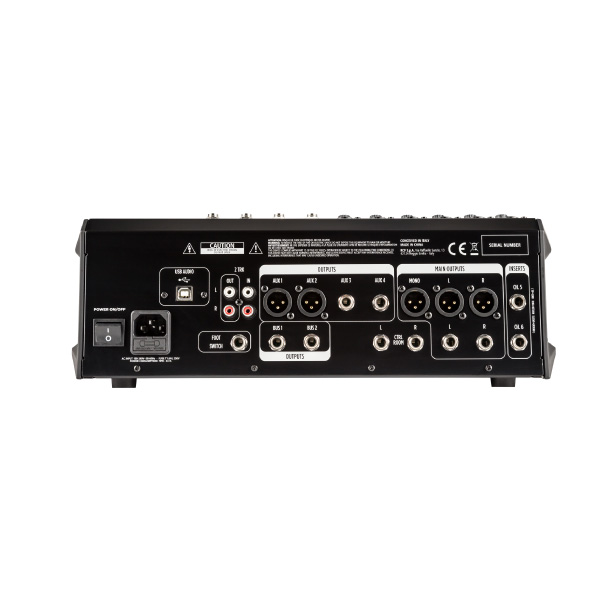

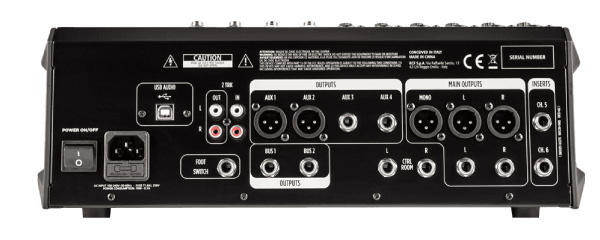

COMPLETE SET OF CONNECTORSON BACK PANELS
- 6 Mic/line in, 3 stereo line IN
- 1 Stereo return input
- 4 Single-control dynamic compressors (ch.1 – ch.4)
- 3 Band semiparametric EQ
- 3 Band EQ on stereo inputs
- 4 Aux sends per channel
- 60 mm progressive faders with dust cover
- 1 Stereo groups
- 32-Bit floating-point z.core dsp effects section
E 12 provides six studio-quality 54 dB gain range Mic preamps with combo connectors. Two line inputs are switchable to Hi-Z input. The input section also features three stereo line inputs and a stereo return. Input channels from 1 to 4 are equipped with a single-control compressor.
The six mono channels are provided with 3-band EQs, including shelving high and low bands and a semi-parametric mid-band with frequency selection and switchable Q choice, wide or narrow. The stereo input channels are provided with a three band EQ.
Electrical specifications
- FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : >0.02
- POWER SUPPLY : Internal
- VOLTAGE REQUIREMENTS : 90 V – 240 V
- POWER CONSUMPTION (W) : 70 W
Inputs
- GAIN RANGE : 6 dB ÷ 60 dB
- GAIN SELECTION : -24 dB ÷ 30 dB
- HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
- HI-Z LINE INPUTS : 2
- INPUT NOISE LEVEL (DBU A-WEIGHTED) : 120 dBu A-Weighted
- MIC INPUTS IMPEDANCE (KOHM) : 2 kohm
- LINE : 6
- LINE INPUT IMPEDANCE (KOHM) : 60 kohm
- LOW CUT : 80 Hz
- MIC : 6
- PHANTOM POWER +48V : Yes
- STEREO LINE : 3
- STEREO RETURN : 1
- STEREO LINE GAIN SELECTION : -15 dB ÷ 15 dB
- STEREO RETURN GAIN SELECTION : 0 dB ÷ 10 dB
- STEREO LINE INPUT IMPEDANCE : 60 kohm
Outputs
- MAIN MIX : 1
- CONTROL ROOM : Yes
- FX SEND : 1
- AUX SEND : 4
- AUX OUTPUT : 4
- PHONES : 1
- 2 TRACK : Yes
Outputs specifications
- MAIN OUT IMPEDANCE (OHM) : 600 ohm
- MAIN OUT LEVEL (DBU) : 22 dBu
- AUX OUT IMPEDANCE (OHM) : 600 ohm
- AUX OUT LEVEL (DBU) : 22 dBu
- GROUP OUT IMPEDANCE (OHM) : 600 ohm
- GROUP OUT LEVEL (DBU) : 22 dBu
- PHONES OUT IMPEDANCE (OHM) : 150 ohm
- STEREO RETURN INPUT IMPEDANCE : 60 kohm
Compressors
- RCF COMPRESSORS : 4 Single Control
EQ
- INPUT CHANNELS EQ : 1 Semi Parametric / 2 Shelving
- DESCRIPTION : High Shelving at 10kHz +/-15dBMid Semi parametric freq. 100Hz-8kHz, +/-15db, Wide/Narrow Q bellLow Shelving at 1 0Hz
Auxiliary sends
- AUX : 2 PRE / 1 PRE/POST
- FX POST : 1
Internal Effects
- SEND EFFECTS : 1
USB audio
- TYPE : B
- PLAY TRK : 2
- REC TRK : 2
- SUPPORTED PLAY FORMATS : WAVE
- SUPPORTED REC FORMAT : WAVE
Other features
- FOOTSWITCH : Yes
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Metal
Size
- DEPTH : 385 mm / 15.16 inches
- HEIGHT : 125 mm / 4.92 inches
- WEIGHT : 6.9 kg / 15.21 lbs
- WIDTH : 430 mm / 16.93 inches
Shipping informations
- PACKAGE DEPTH : 506 mm / 19.92 inches
- PACKAGE HEIGHT : 215 mm / 8.46 inches
- PACKAGE WEIGHT : 8 kg / 17.64 lbs
- PACKAGE WIDTH : 580 mm / 22.83 inches
