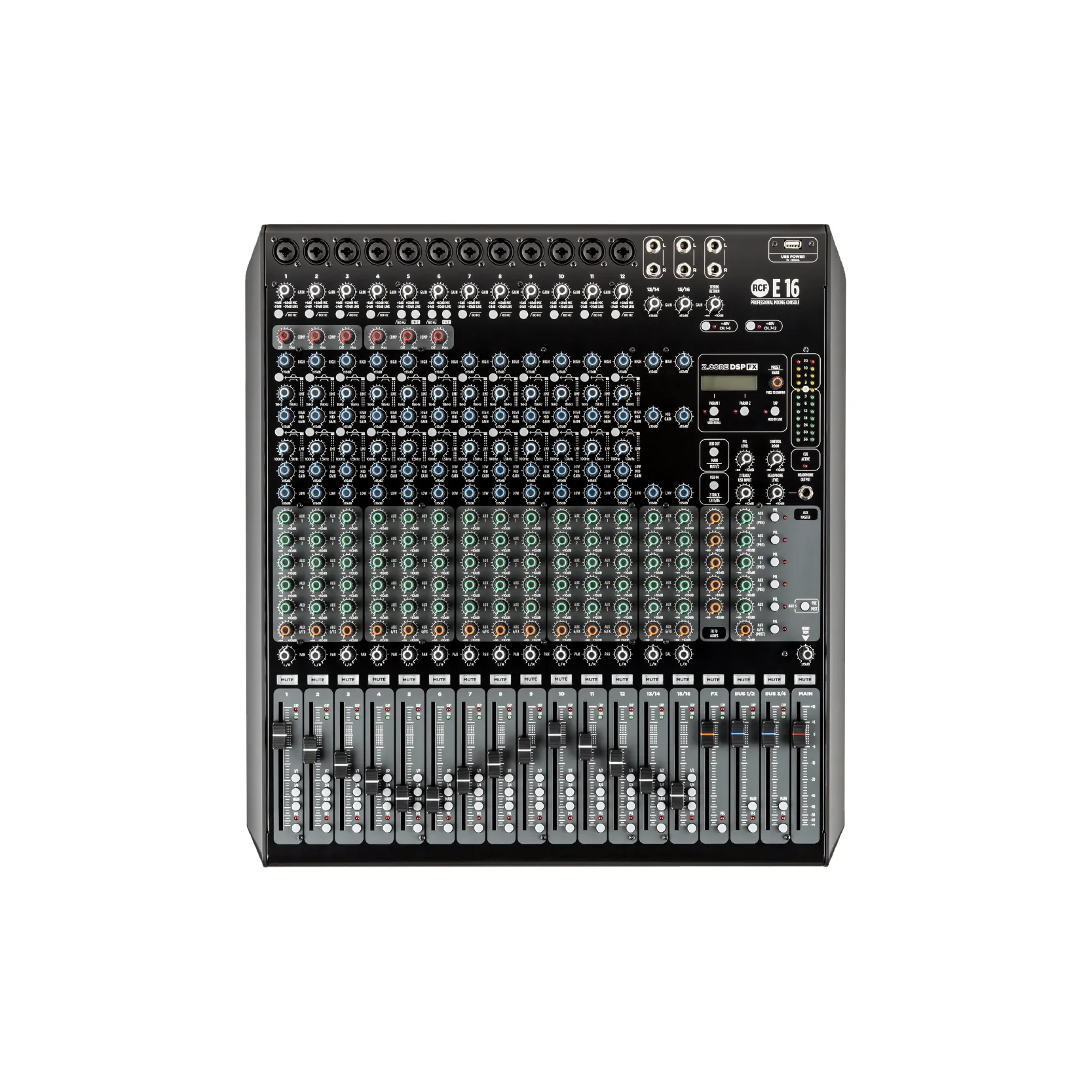

RCF E 16 เครื่องผสมสัญญาณเสียง อนาล็อก16 ชาแนล RCF E 16 MIXING CONSOLES จากแบรนด์ RCF
RCF E 16 16-CHANNEL MIXING CONSOLE WITH SUPERIOR EFFECTS AND EQS

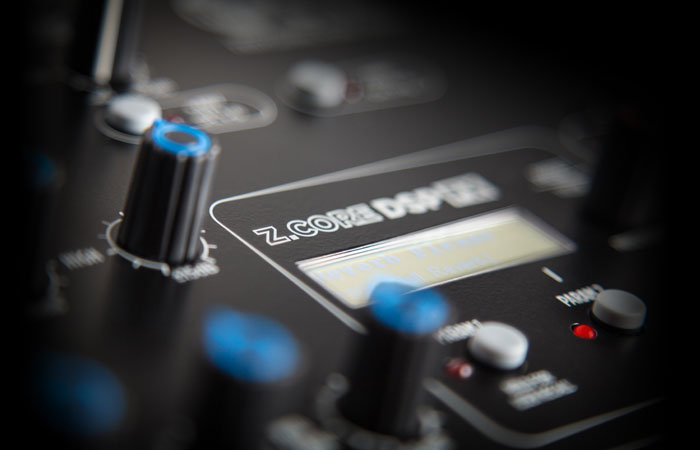

All consoles feature the newly-designed 32-bit floating-point Z.CORE DSP effects engine offering 80 predefined presets – 40 reverbs, 20 delays and 20 modulation effects – with two responsive parameters that can be freely modified to suit the needs of the mix and a Tap tempo button. Also, a storage bank of 20 user presets are available with quick recalls. The last preset used is recalled when turning on the mixer. All algorithms have been developed internally by RCF’s R&D Electronic Department, with the contribution of some of the most trusted sound engineers.

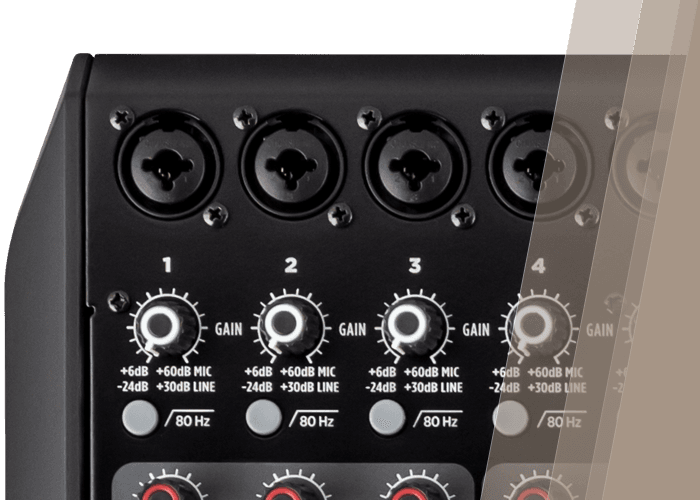

HIGH-GRADE PREAMPLIFIERS
Purpose-designed high-grade preamplifiers, based on modern solutions and accurately selected components, offer high dynamics and exceptional sound clarity. Re-designed single-control dynamic compressors on mic input channels adjust the dynamic behavior of any instrument and voice. Two onboard Hi-Z inputs solve the need for the D.I. Boxes.

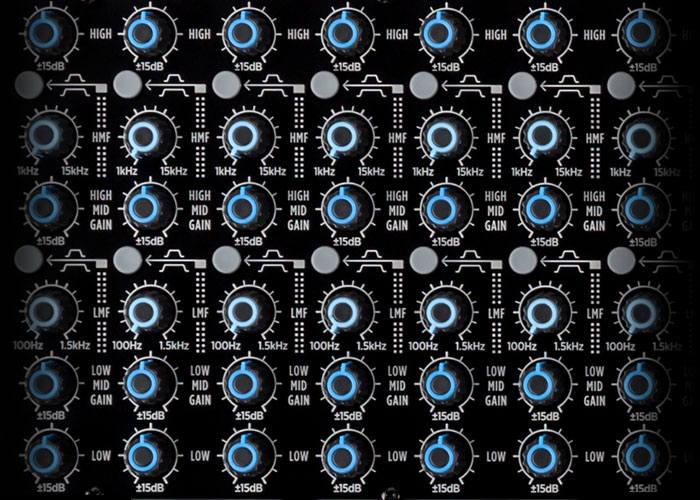

EQ LIKE NO OTHERS
Shaping the sound is fast and precise, thanks to the ultra-musical four-band EQ, featuring two semi-parametric EQs with a narrow/wide Q selector and two shelving EQs. Theswitchable Q brings the accuracy of parametric EQ on the small form factor of the mixer.

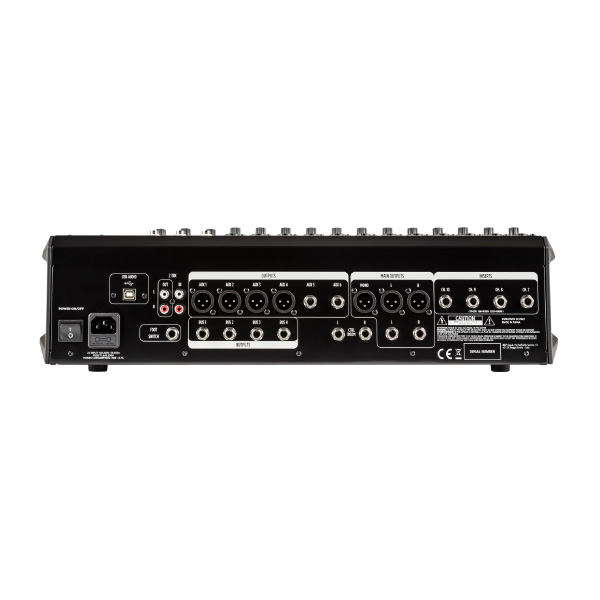

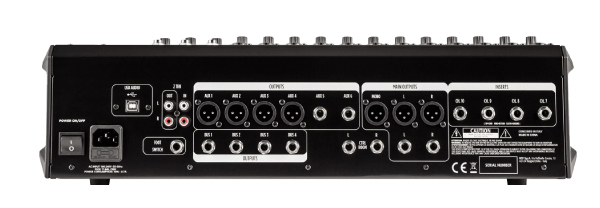

COMPLETE SET OF CONNECTORSON BACK PANELS
- 12 Mic/line IN, 2 stereo line IN
- 1 Stereo return input
- 6 single-control dynamic compressors (ch.1 – ch.6)
- 4 Band semiparametric EQ
- 3 Band EQ on stereo inputs
- 6 Aux sends per channel
- 100 mm progressive faders with dust cover
- 2 Stereo groups
- 32-Bit floating-point Z.CORE DSP effects section
E 16 provides twelve studio-quality 54 dB gain range Mic preamps with combo connectors. Two line inputs are switchable to Hi-Z input. The input section also features two stereo line inputs and a stereo return. Input channels from 1 to 6 are equipped with a single-control compressor.
The twelve mono channels are provided with 4-band EQs, including shelving high and low bands and 2 semi-parametric mid-bands (mid-high and mid-low) with frequency selection and switchable Q choice, wide or narrow. The stereo input channels are provided with a three band EQ.
Electrical specifications
- FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : >0.02
- POWER SUPPLY : Internal
- VOLTAGE REQUIREMENTS : 90 V – 240 V
- POWER CONSUMPTION (W) : 70 W
Inputs
- GAIN RANGE : 6 dB ÷ 60 dB
- GAIN SELECTION : -24 dB ÷ 30 dB
- HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
- HI-Z LINE INPUTS : 2
- INPUT NOISE LEVEL (DBU A-WEIGHTED) : 120 dBu A-Weighted
- MIC INPUTS IMPEDANCE (KOHM) : 2 kohm
- LINE : 12
- LINE INPUT IMPEDANCE (KOHM) : 60 kohm
- LOW CUT : 80 Hz
- MIC : 12
- PHANTOM POWER +48V : Yes
- STEREO LINE : 2
- STEREO RETURN : 1
- STEREO LINE GAIN SELECTION : -15 dB ÷ 15 dB
- STEREO RETURN GAIN SELECTION : 0 dB ÷ 10 dB
- STEREO LINE INPUT IMPEDANCE : 60 kohm
-
STEREO RETURN INPUT IMPEDANCE : 60 kohm
Outputs
- MAIN MIX : 1
- CONTROL ROOM : Yes
- FX SEND : 1
- AUX SEND : 5
- AUX OUTPUT : 6
- GROUP OUT : 4
- PHONES : 1
- 2 TRACK : Yes
Outputs specifications
- MAIN OUT LEVEL (DBU) : 22 dBu
- AUX OUT IMPEDANCE (OHM) : 600 ohm
- AUX OUT LEVEL (DBU) : 22 dBu
- GROUP OUT LEVEL (DBU) : 22 dBu
- PHONES OUT IMPEDANCE (OHM) : 150 ohm
Compressors
- RCF COMPRESSORS : 6 Single Control
EQ
- INPUT CHANNELS EQ : 2 Semi Parametric / 2 Shelving
- DESCRIPTION : High Shelf at 10kHz, +/-15dBMid High, Freq. 1kHz-15kHz, Wide/Narrow Q bell Mid Low, Freq. 100Hz-1,5kHz, Wide/Narrow Q bellLow Shelf at 100Hz, +/-15dB
Auxiliary sends
- AUX : 4 PRE / 1 PRE/POST
- FX POST : 1
Internal Effects
- SEND EFFECTS : 1
USB audio
- TYPE : B
- PLAY TRK : 2
- REC TRK : 2
-
SUPPORTED SAMPLE RATE (KHZ) : 44.1
Other features
- FOOTSWITCH : Yes
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Metal
Size
- DEPTH : 550 mm / 21.65 inches
- HEIGHT : 135 mm / 5.31 inches
- WEIGHT : 10.3 kg / 22.71 lbs
- WIDTH : 510 mm / 20.08 inches
Shipping informations
- PACKAGE DEPTH : 705 mm / 27.76 inches
- PACKAGE HEIGHT : 215 mm / 8.46 inches
- PACKAGE WEIGHT : 12.2 kg / 26.9 lbs
- PACKAGE WIDTH : 635 mm / 25 inches
