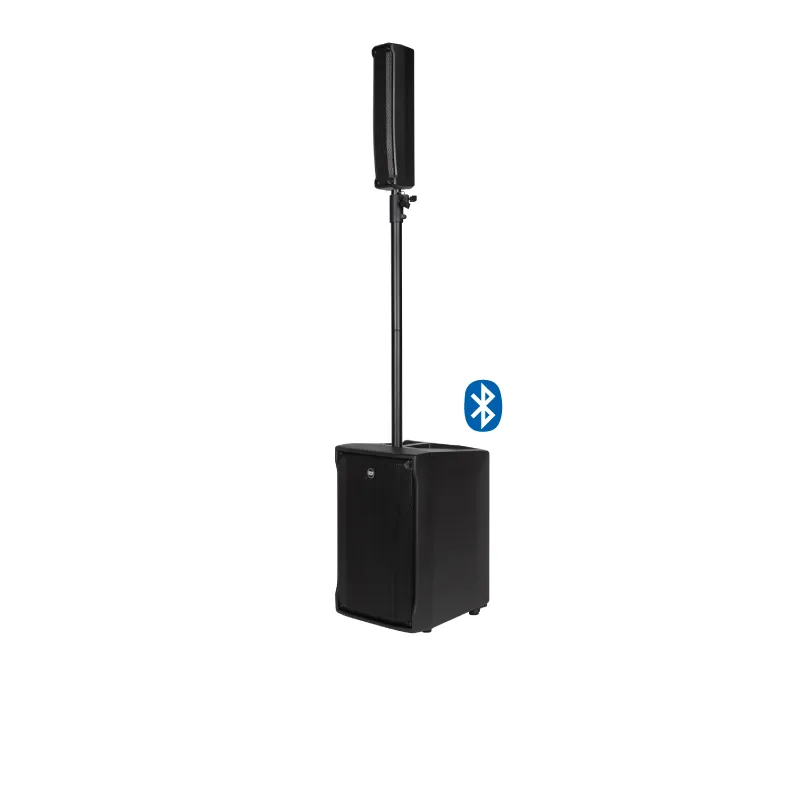

RCF EVOX JMIX8 ตู้ลำโพง Active Column 8×2 นิ้ว ซับ 12 นิ้ว 1,400 วัตต์

RCF EVOX JMIX8 ตู้ลำโพง Active Column 8×2 นิ้ว ซับ 12 นิ้ว 1,400 วัตต์

฿56,630 ฿50,900 (รวม VAT 7% แล้ว)

  • ได้รับสินค้า 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่ง)

หมายเหตุ : กรุณาเช็ค Stock สินค้ากับเจ้าหน้าที่ ก่อนสั่งซื้อทุกครั้ง

ตู้ลำโพง Active Column 12 นิ้ว 2 ทาง 1,400 วัตต์ มีแอมป์ในตัว RCF EVOX JMIX8 ACTIVE TWO WAY ARRAY MUSIC SYSTEM จากแบรนด์ RCF

RCF EVOX JMIX8 ACTIVE TWO WAY ARRAY MUSIC SYSTEM

BRING THE PARTY WITH YOU

EVOX JMIX8

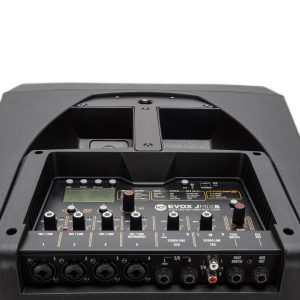

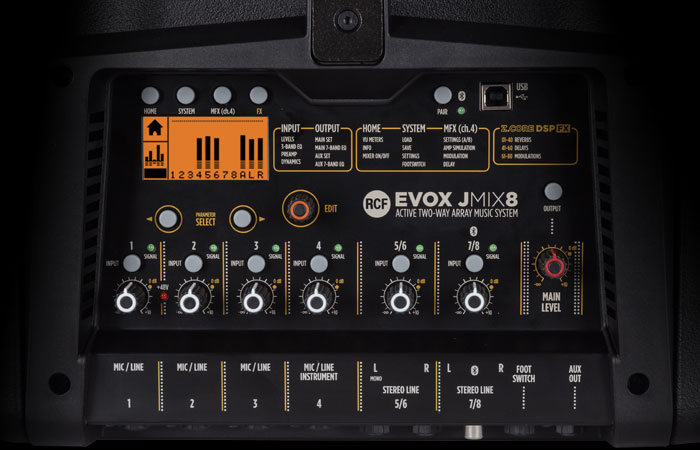

ONBOARD DIGITAL MIXER

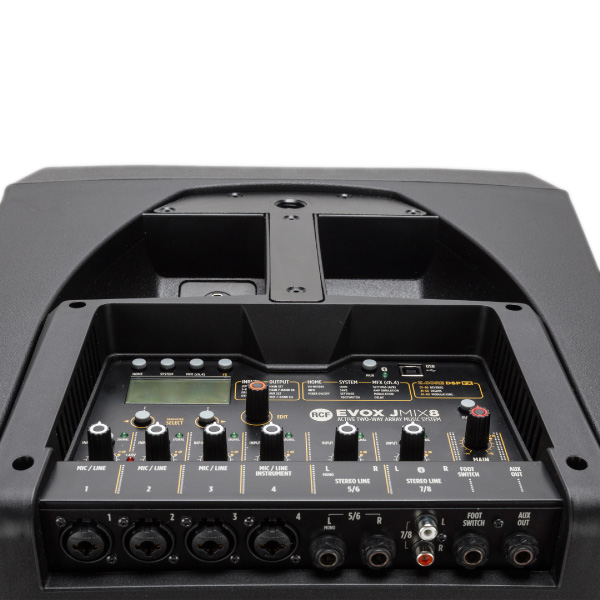

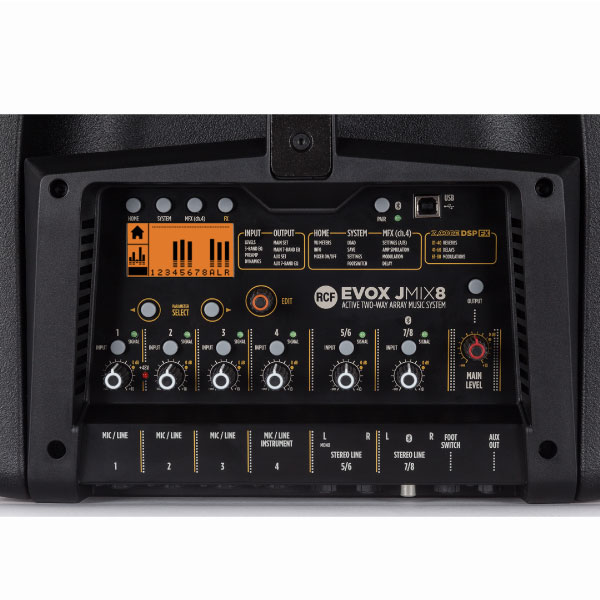

All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.

EVOX JMIX8

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

IOS APP Download ANDROID APP Download
EVOX JMIX8

POWERFUL CLASS D AMPLIFIER

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

EVOX J8

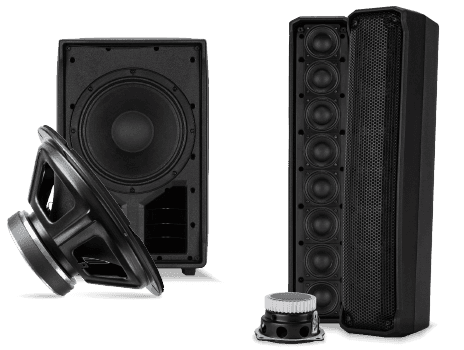

SUPERIOR TRANSDUCERS

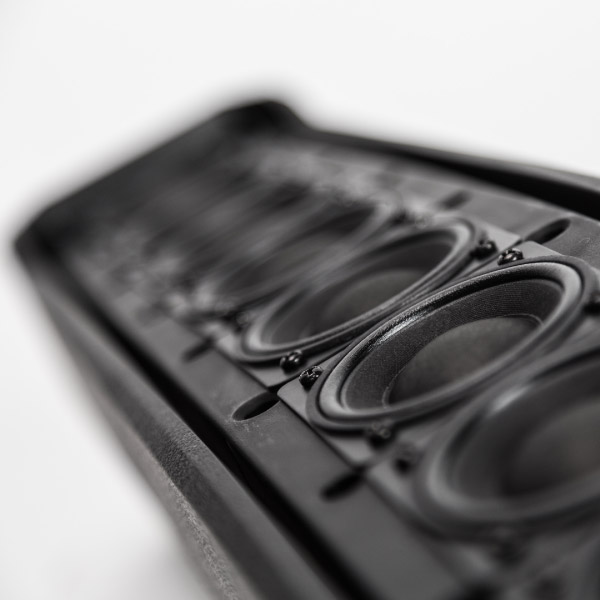

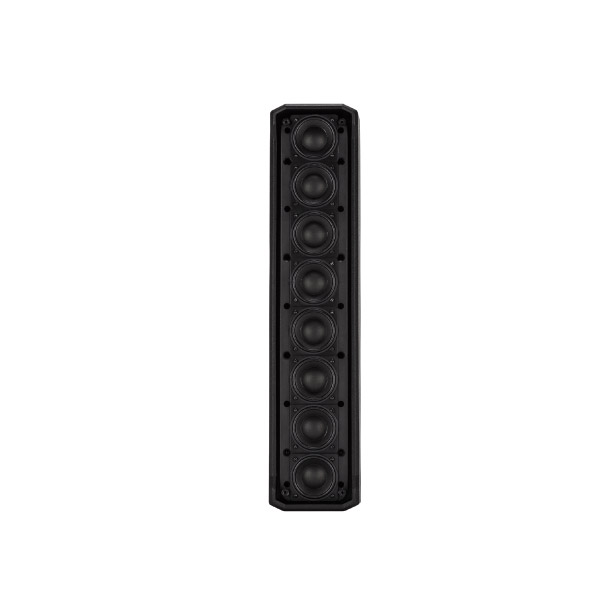

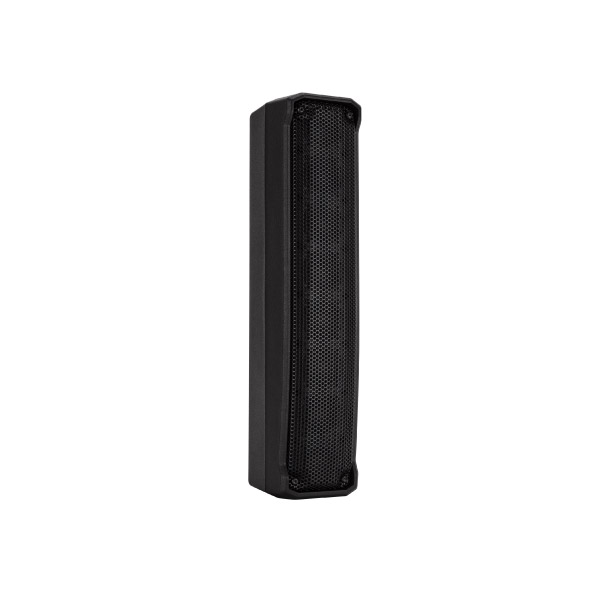

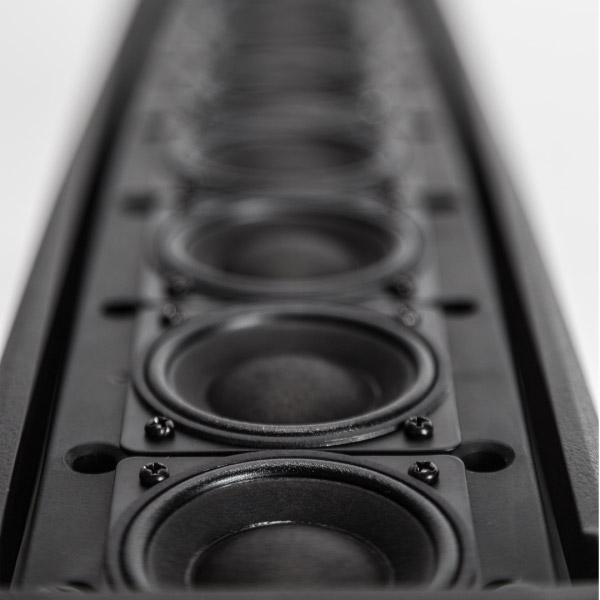

HIGH FREQUENCIES – The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

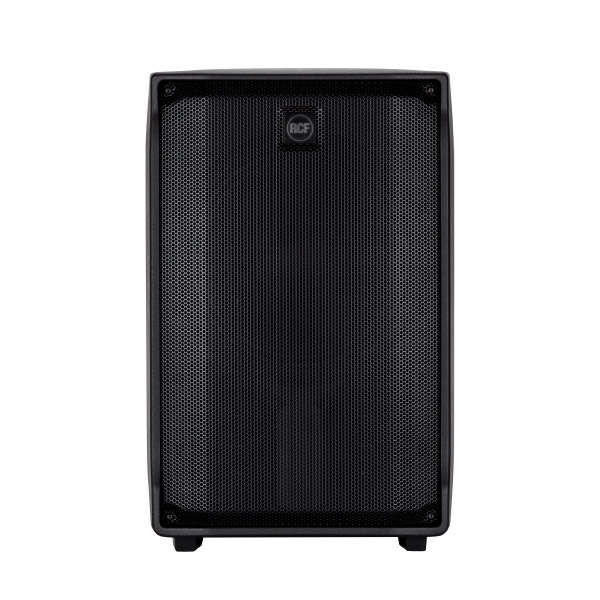

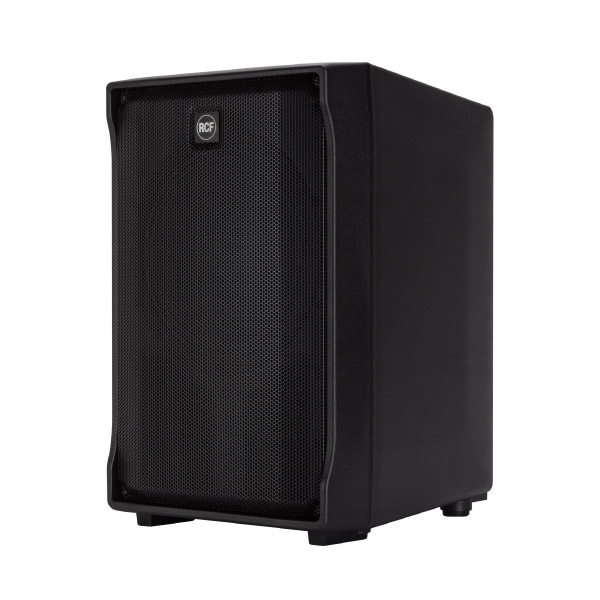

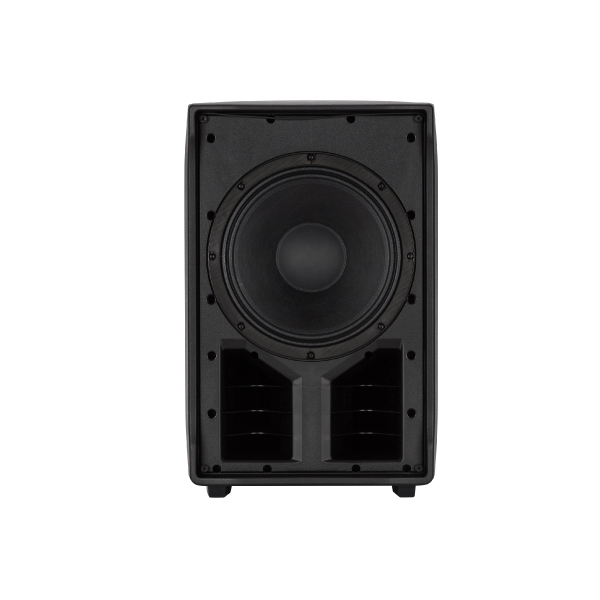

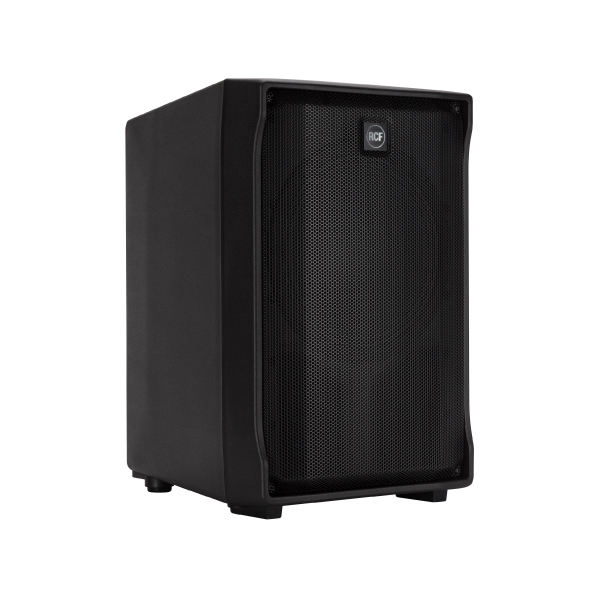

LOW FREQUENCIES – The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

EVOX J8

READY TO PLAY IN A FEW SIMPLE STEPS

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

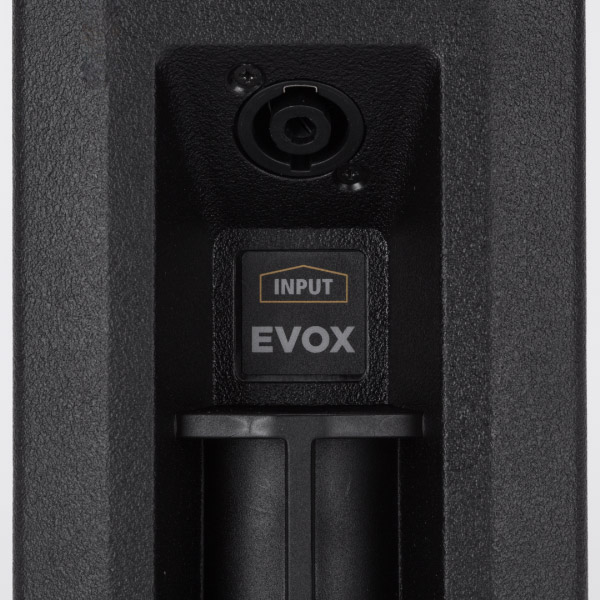

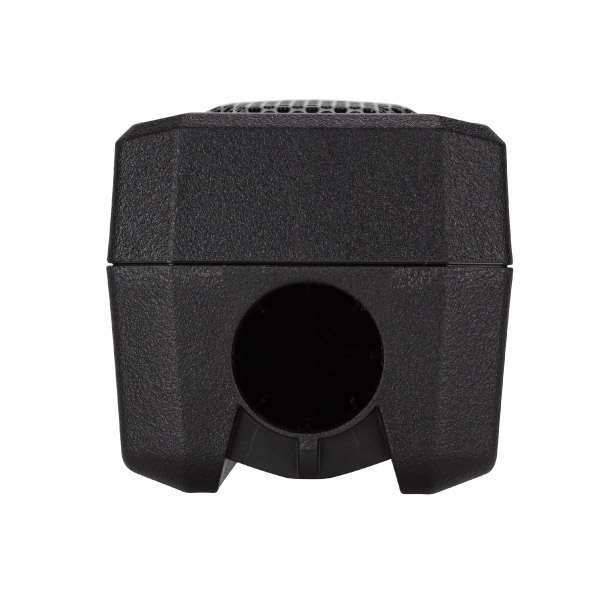

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY! Carrying and mounting your audio system has never been so quick.

EVOX J8

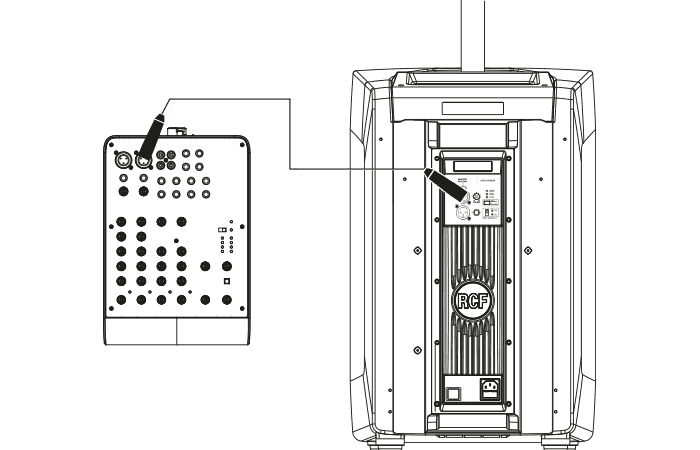

J SYSTEM CONFIGURATIONS

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

ART 310-A MK4

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

คุณสมบัติ
  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12″ woofer, high power 2.5″ voice coil
  • 8 x 2″ ultra compact fullrange 1.0″ voice coil
  • 2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

สเปค

Acoustical specifications

  • FREQUENCY RESPONSE : 40 Hz ÷ 20000 Hz
  • MAX SPL @ 1M : 128 dB
  • HORIZONTAL COVERAGE ANGLE : 120°
  • VERTICAL COVERAGE ANGLE : 30°

Transducers

  • FULLRANGE : 8 x 2.0”, 1.0” v.c
  • WOOFER : 12”, 2.5” v.c

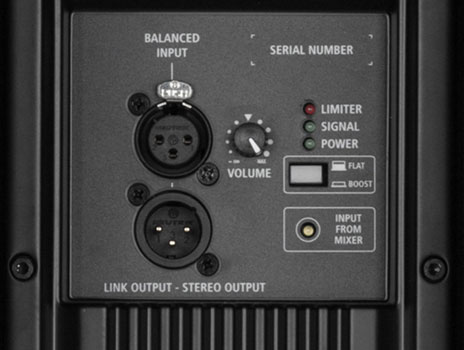

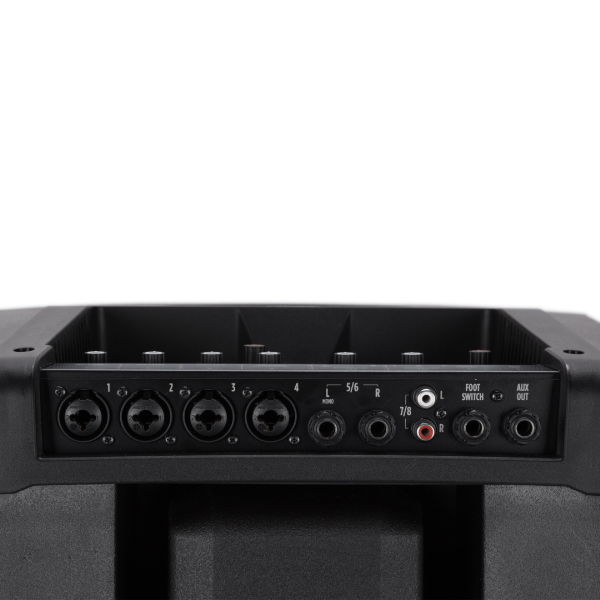

Input/Output section

  • INPUT SIGNAL : bal/unbal
  • INPUT CONNECTORS : XLR, Jack
  • OUTPUT CONNECTORS : XLR
  • INPUT SENSITIVITY : -2 dBu/+4 dBu

Processor section

  • CROSSOVER FREQUENCIES : 220 Hz
  • PROTECTIONS : Thermal, RMS
  • LIMITER : Soft Limiter
  • CONTROLS : Volume, Boost, Mic/Line

Power section

  • TOTAL POWER : 1400 W Peak, 700 W RMS
  • HIGH FREQUENCIES : 400 W Peak, 200 W RMS
  • LOW FREQUENCIES : 1000 W Peak, 500 W RMS
  • COOLING : Convection
  • CONNECTIONS : VDE

Electronic specifications

  • FREQUENCY RESPONSE : 20 Hz ÷ 20 Hz
  • THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED ): 0.004% A-Weighted

Processing

  • A/D-D/A CONVERSION : 24 Bit @ 48.0 kHz
  • DYNAMIC RANGE : 108
  • PROCESSING CHANNELS : 8
  • SIGNAL PROCESSING : 32 Bit Floating Point

Inputs

  • A/D DYNAMIC RANGE (DB) : 108 dB
  • GAIN RANGE : 0 dB ÷ 45 dB
  • GAIN SELECTION : 0 dB ÷ 45 dB
  • STEREO LINE GAIN SELECTION : 0 dB ÷ 45 dB
  • HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
  • HI-Z LINE INPUTS : 1
  • INPUT NOISE LEVEL (DBU A-WEIGHTED) : -114 dBu A-Weighted
  • MIC INPUTS IMPEDANCE (KOHM) : 3 kohm
  • LINE : 4
  • LINE INPUT IMPEDANCE (KOHM) : 11 kohm
  • LOW CUT : 20 Hz ÷ 1000 dB
  • MIC : 4
  • PHANTOM POWER +48V : Yes
  • REMOTE CONTROLLED STORABLE GAIN : Yes
  • STEREO LINE : 2
  • STEREO LINE INPUT IMPEDENCE (KOHM) : 11 kohm

Outputs

  • AUX OUTPUT : 1
  • AUX SEND : 1

Outputs specifications

  • AUX OUT IMPEDANCE (OHM) : 150 ohm
  • AUX OUT LEVEL (DBU) : 19 dBu
  • D/A DYNAMIC RANGE (DB) : 108 dB
  • MAIN OUT IMPEDANCE (OHM) : 150 ohm
  • MAIN OUT LEVEL (DBU) : 19 dBu

Compressors

  • RCF COMPRESSORS : 4 mono (6 preset)

EQ

  • DESCRIPTION : 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
  • INPUT CHANNELS EQ : 1 Semi Parametric / 2 Shelving

Auxiliary sends

  • AUX : 1 PRE/POST
  • FX POST : 1

Internal Effects

  • MULTIFX INSERT EFFECTS : 1
  • SEND EFFECTS : 1

Mastering processors

  • MAIN OUT PROCESSORS : 1

USB audio

  • PLAY TRK : 2

Other features

  • FOOTSWITCH : Yes

Electrical specifications

  • POWER SUPPLY : Internal

Standard compliance

  • CE MARKING : Yes

Physical specifications

  • CABINET/CASE MATERIAL : PP Composite
  • HANDLES : 1 Top
  • GRILLE : Steel
  • COLOR : Black

Size

  • HEIGHT : 623 mm / 24.53 inches
  • WIDTH : 400 mm / 15.75 inches
  • DEPTH : 460 mm / 18.11 inches
  • WEIGHT : 22.2 kg / 48.94 lbs

Shipping informations

  • PACKAGE HEIGHT : 676 mm / 26.61 inches
  • PACKAGE WIDTH : 451 mm / 17.76 inches
  • PACKAGE DEPTH : 581 mm / 22.87 inches
  • PACKAGE WEIGHT : 29 kg / 63.93 lbs
น้ำหนัก 29 kg
ขนาด 581 × 451 × 676 mm
ยี่ห้อ

ดูเฉพาะ

  • ทางบริษัทฯ ขอสงวนสิทธิ์ในการรับผิดชอบใดๆ อันเนื่องจากข้อผิดพลาดทางการพิมพ์ (ผิด/ตก)
  • บริษัทฯ ขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
รหัสสินค้า: RCF EVOX JMIX8 หมวดหมู่: , ป้ายกำกับ:
