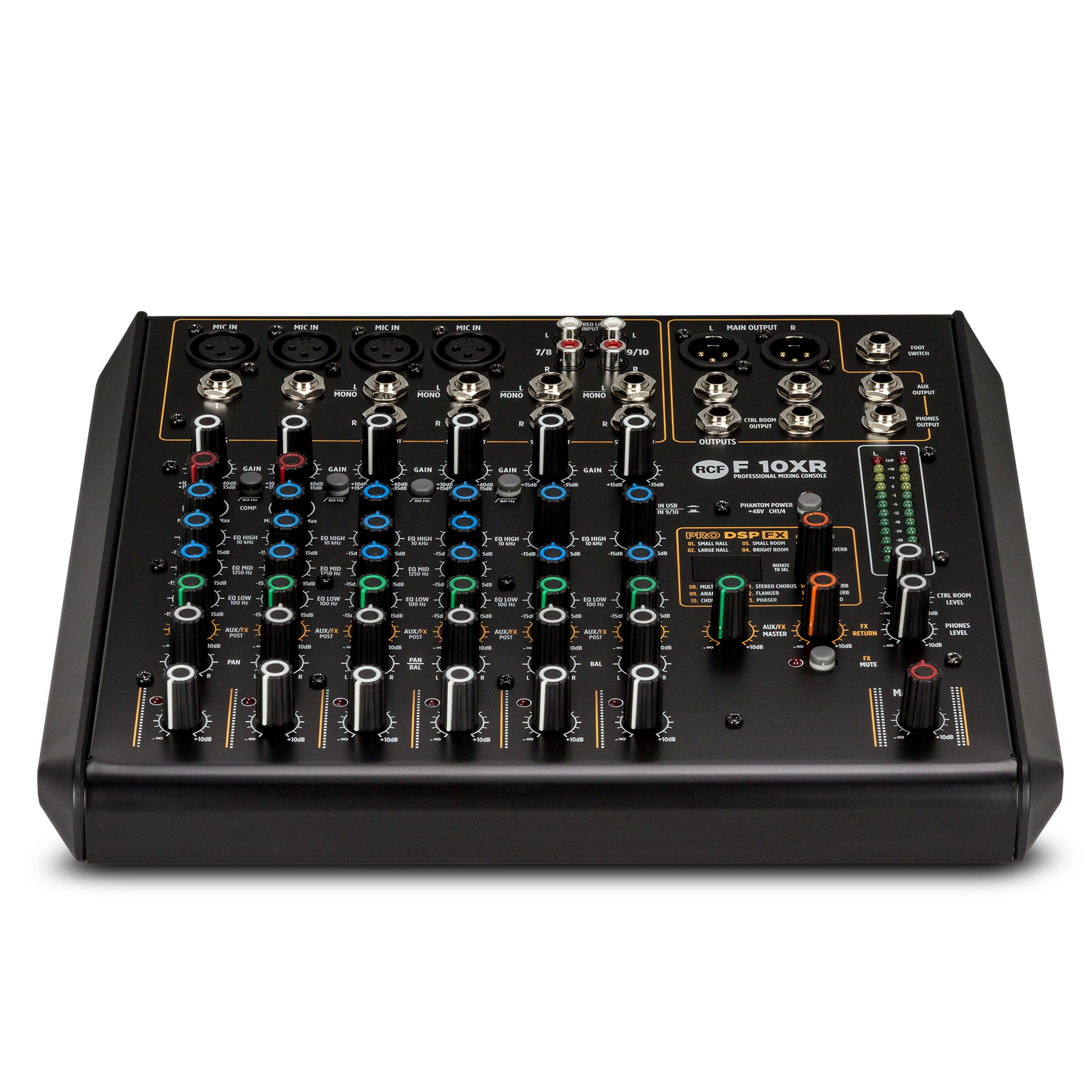

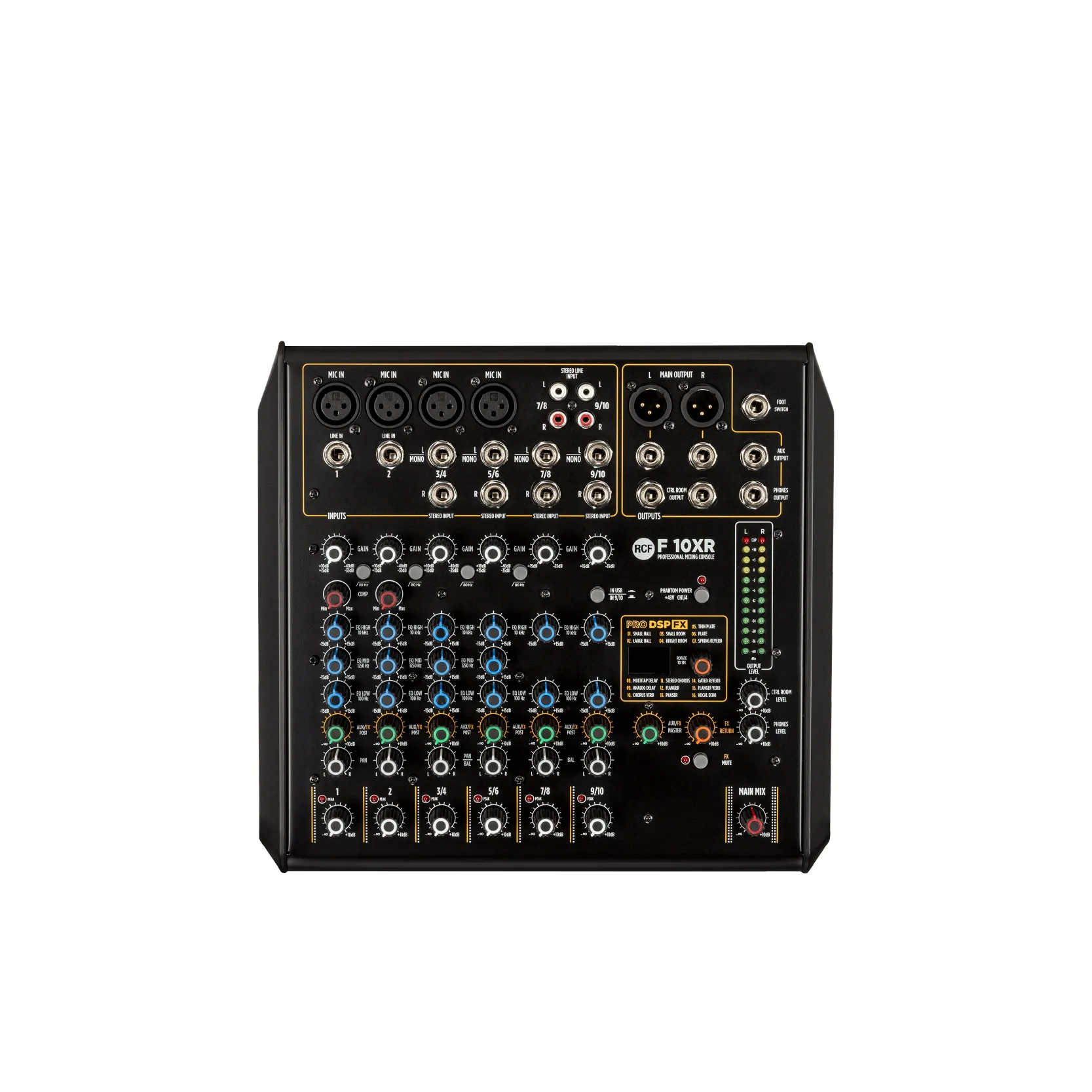

RCF F 10XR เครื่องผสมสัญญาณเสียง อนาล็อก10 ชาแนล RCF F 10XR MIXING CONSOLES จากแบรนด์ RCF
RCF F 10XR 10-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
ENHANCED ANALOG MIXING FLEXIBILITY
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
STATE OF THE ART EQ
State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.
HIGH QUALITY PREAMPLIFIERS
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
- 4 Mic preamp inputs, 2 mono line inputs
- 4 Stereo line inputs

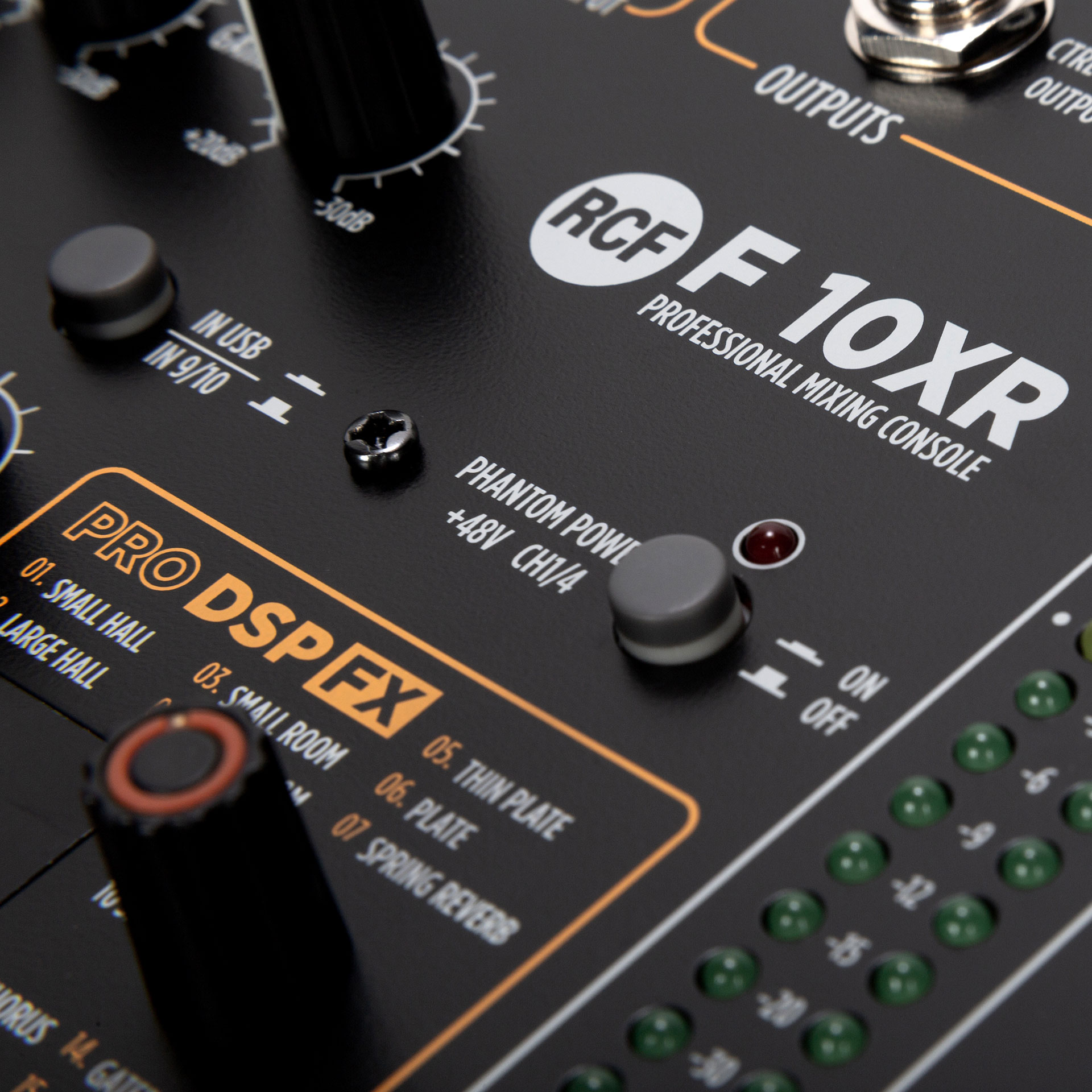

- PRO DSP FX onboard with 16 presets

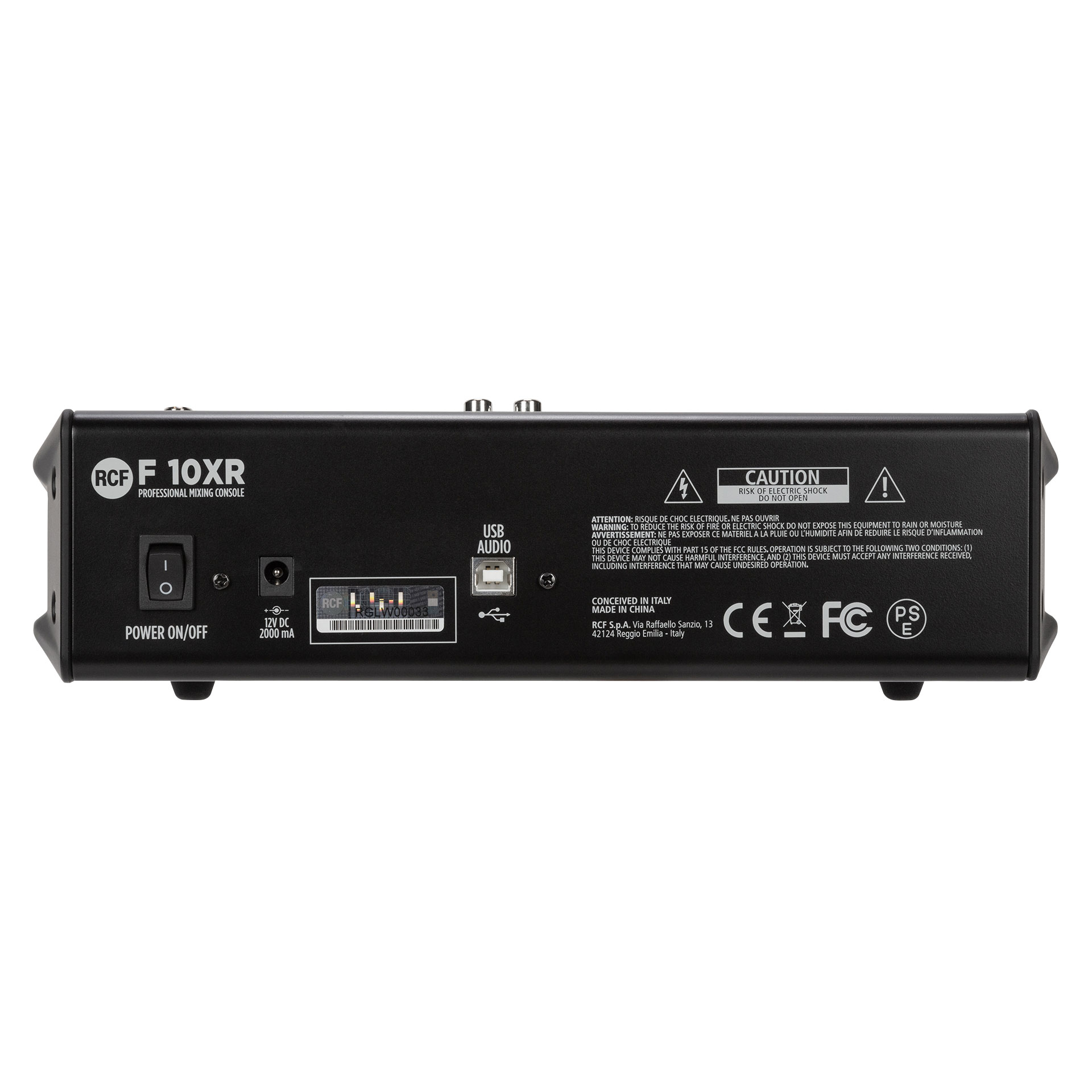

- Stereo recording and playback via USB port
- 2 single control compressors
- Balanced main output +28 dB (Stereo XLR + TRS)
- 1 aux/FX (post)
- Sturdy metal chassis
- External universal power supply
- Designed and engineered in Italy
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback
Electrical specifications
- FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : <0.02
- POWER SUPPLY : External
- VOLTAGE REQUIREMENTS : 100 V – 240 V
- POWER CONSUMPTION (W) : 18 W
Inputs
- GAIN RANGE : 0 dB ÷ -50 dB
- GAIN SELECTION : 20 dB ÷ -30 dB
- MIC INPUTS IMPEDANCE (KOHM ): 14 kohm
- LINE : 2
- LINE INPUT IMPEDANCE (KOHM) : 21 kohm
- LOW CUT : 80 Hz
- MIC : 4
- PHANTOM POWER +48V : Yes
- STEREO LINE : 4
- STEREO LINE GAIN SELECTION : 20 dB ÷ -30 dB
- STEREO LINE INPUT IMPEDANCE : 15 kohm
Outputs
- MAIN MIX : 1
-
CONTROL ROOM : Yes
- FX SEND : 1
- AUX OUTPUT : 1
- PHONES : 1
Outputs specifications
- MAIN OUT LEVEL (DBU) : 28 dBu
- AUX OUT LEVEL (DBU) : 28 dBu
- PHONES OUT IMPEDANCE (OHM) : 150 ohm
EQ
- INPUT CHANNELS EQ : 2 Shelving / 1 Generic
- DESCRIPTION : High:+/-15 dB @ 10 kHz ShelvingMid:+/-15 dB @ 1,250 kHz BellLow:+/-15 dB @ 100 Hz Shelving
Auxiliary sends
- FX POST : 1
Internal Effects
- SEND EFFECTS : 1
USB audio
- TYPE : B
- PLAY TRK : 2
- REC TRK : 2
- SUPPORTED SAMPLE RATE (KHZ) : 44.1, 48.0
Other features
- FOOTSWITCH : Yes
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Metal
-
COLOR : Black
Size
- DEPTH : 275 mm / 10.83 inches
- HEIGHT : 82 mm / 3.23 inches
- WEIGHT : 2.8 kg / 6.17 lbs
- WIDTH : 294 mm / 11.57 inches
Shipping informations
- PACKAGE DEPTH : 345 mm / 13.58 inches
- PACKAGE HEIGHT : 130 mm / 5.12 inches
- PACKAGE WEIGHT : 3.8 kg / 8.38 lbs
- PACKAGE WIDTH : 400 mm / 15.75 inches
