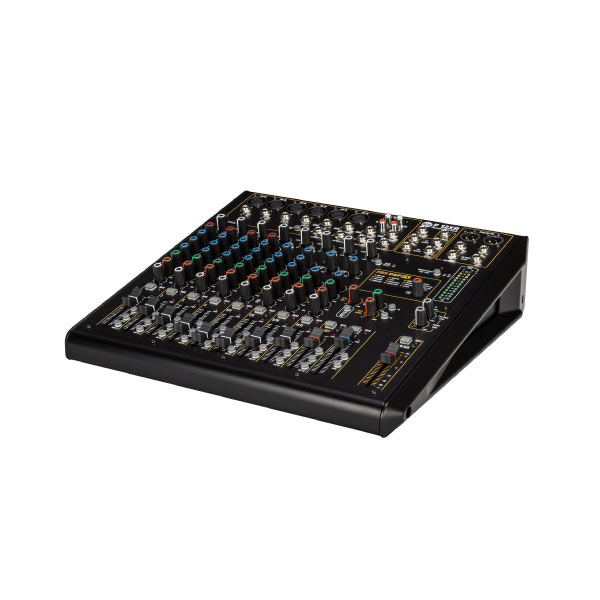

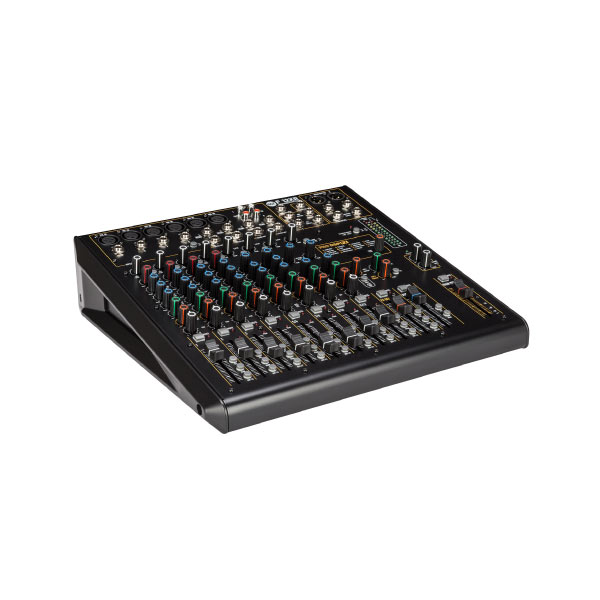

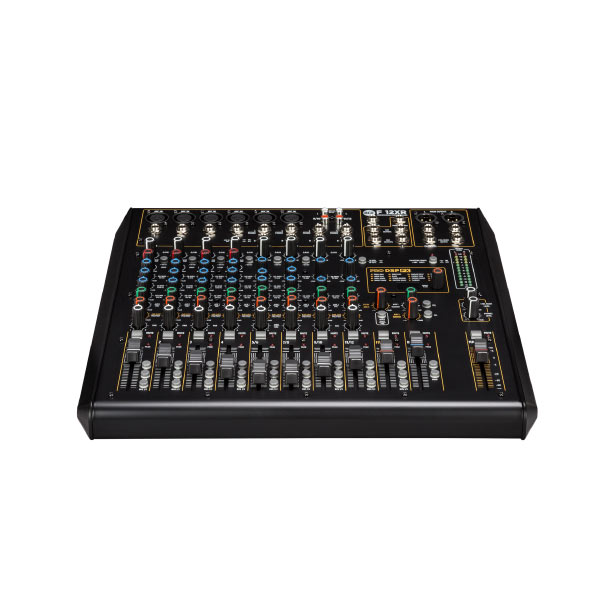

RCF F 12XR เครื่องผสมสัญญาณเสียง อนาล็อก 12 ชาแนล RCF F 12XR MIXING CONSOLES จากแบรนด์ RCF
RCF F 12XR 12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
ENHANCED ANALOG MIXING FLEXIBILITY
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

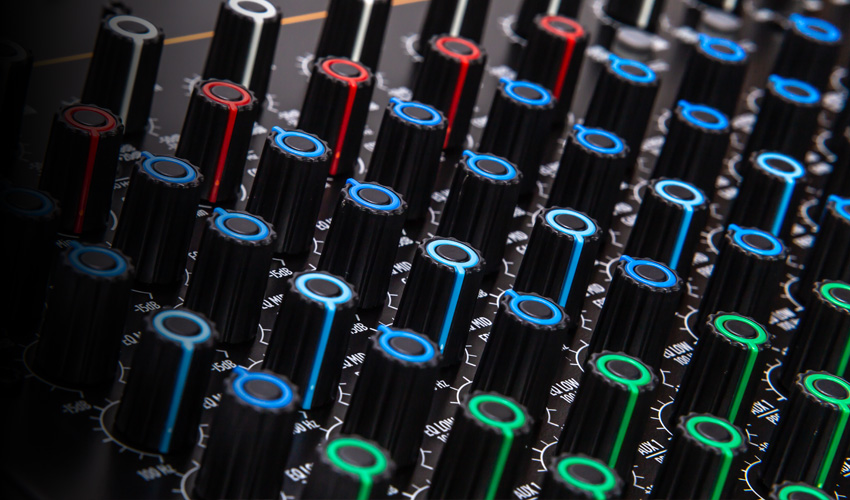

STATE OF THE ART EQ
State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.

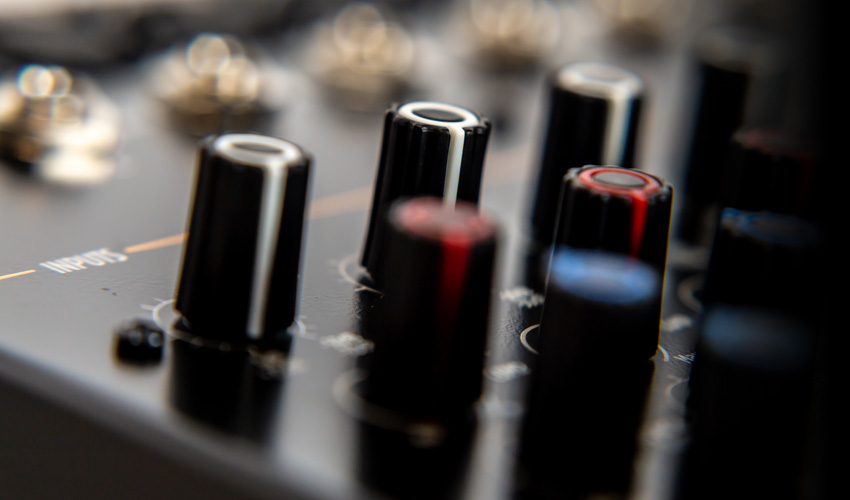

HIGH QUALITY PREAMPLIFIERS
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
- 6 Mic preamp inputs, 4 mono Line inputs
- 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 4 single control compressors

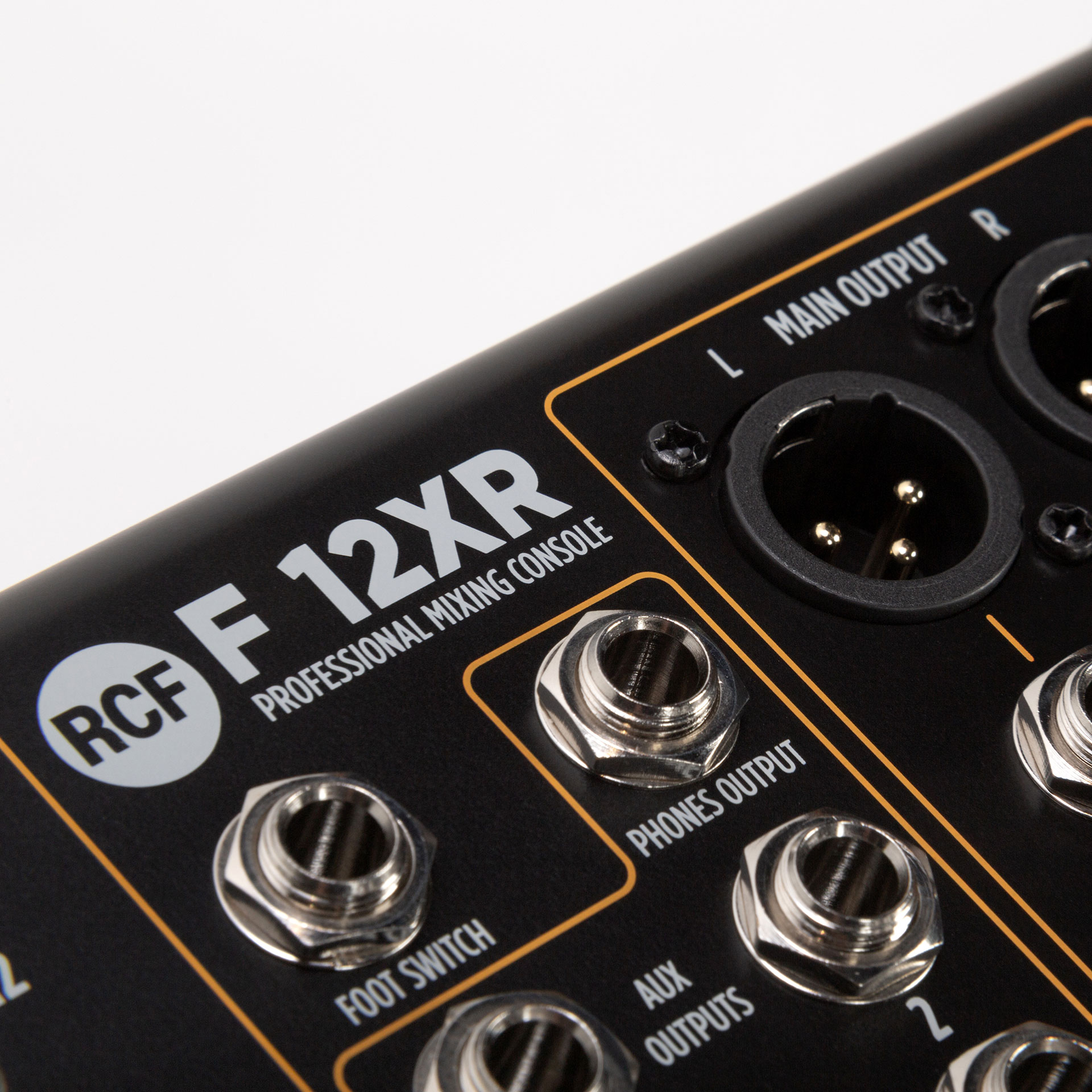

- Balanced main output +28 dB (Stereo XLR + TRS)
- One Stereo output bus and 2 Aux sends (1 pre, 1 pre/post)

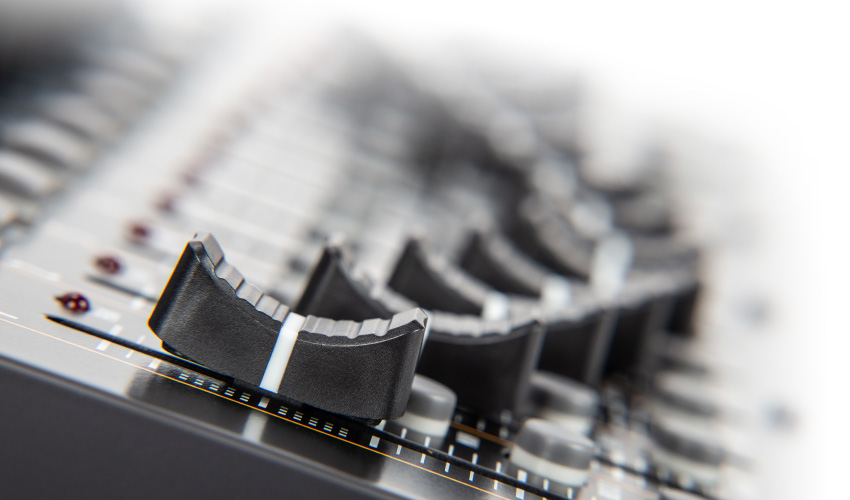

- 60 mm faders
- Internal universal power supply
- Designed and engineered in Italy

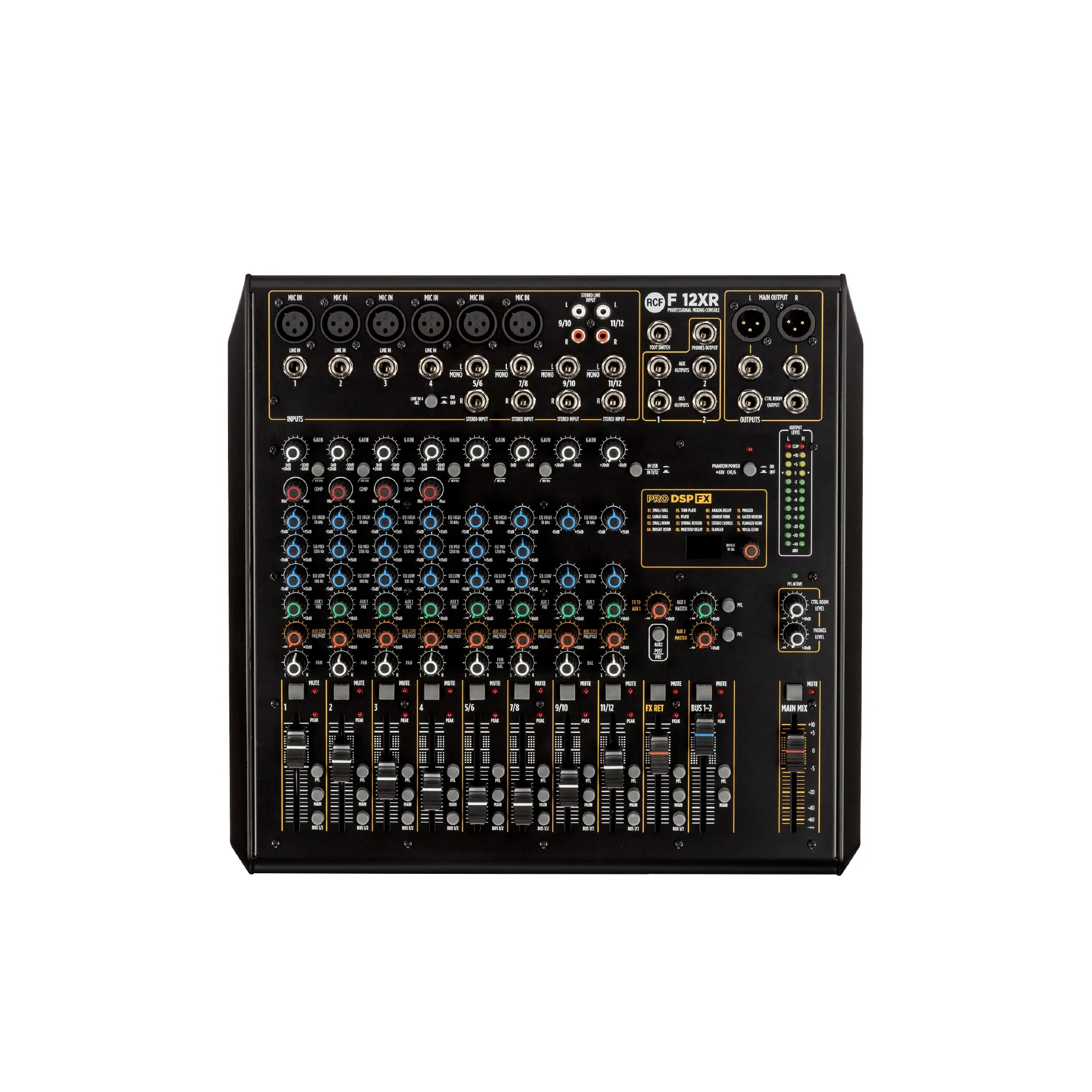

The F 12XR features 6 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and recording via USB port, with balanced main output (Stereo XLR + TRS) and 4 single control compressors. The mono channels are provided with 3-band EQ and stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 aux sends (1 pre,1pre/post fader). It also features a stereo output BUS and 60mm faders.
Electrical specifications
- FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : <0.02
- POWER SUPPLY : External
- VOLTAGE REQUIREMENTS : 100 V – 240 V
- POWER CONSUMPTION (W) : 24 W
Inputs
- GAIN RANGE : 0 dB ÷ -50 dB
- GAIN SELECTION : 20 dB ÷ -30 dB
- HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
- HI-Z LINE INPUTS : 1
- MIC INPUTS IMPEDANCE (KOHM ): 14 kohm
- LINE : 4
- LINE INPUT IMPEDANCE (KOHM) : 21 kohm
- LOW CUT : 80 Hz
- MIC : 6
- PHANTOM POWER +48V : Yes
- STEREO LINE : 4
- STEREO LINE GAIN SELECTION : 20 dB ÷ -30 dB
- STEREO LINE INPUT IMPEDANCE : 15 kohm
Outputs
- MAIN MIX : 1
-
CONTROL ROOM : Yes
- FX SEND : 1
- AUX OUTPUT : 1
- GROUP OUT : 1
- PHONES : 1
Outputs specifications
- MAIN OUT LEVEL (DBU) : 28 dBu
- AUX OUT LEVEL (DBU) : 28 dBu
-
GROUP OUT LEVEL (DBU) : 28 dBu
- PHONES OUT IMPEDANCE (OHM) : 150 ohm
EQ
- INPUT CHANNELS EQ : 2 Shelving / 1 Generic
- DESCRIPTION : High:+/-15 dB @ 10 kHz ShelvingMid:+/-15 dB @ 1,250 kHz BellLow:+/-15 dB @ 100 Hz Shelving
Auxiliary sends
-
AUX : 1 PRE/POST
- FX POST : 1
Internal Effects
- SEND EFFECTS : 1
USB audio
- TYPE : B
- PLAY TRK : 2
- REC TRK : 2
- SUPPORTED SAMPLE RATE (KHZ) : 44.1, 48.0
Other features
- FOOTSWITCH : Yes
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Metal
-
COLOR : Black
Size
- DEPTH : 355 mm / 13.98 inches
- HEIGHT : 97 mm / 3.82 inches
- WEIGHT : 4.5 kg / 9.92 lbs
- WIDTH : 373 mm / 14.69 inches
Shipping informations
- PACKAGE DEPTH : 425 mm / 16.73 inches
- PACKAGE HEIGHT : 140 mm / 5.51 inches
- PACKAGE WEIGHT : 5.5 kg / 12.13 lbs
- PACKAGE WIDTH : 400 mm / 15.75 inches
